Electrical Component Locator: Connectors
CONNECTORS LOCATION
| Component | Location |
|---|---|
| AD1 (3.5L) (Black, 10 Pin) | Left front corner of engine compartment. See Figure. |
| AD1 (4.3L) (Black, 10 Pin) | Left front corner of engine compartment. See Figure. |
| AE1 (3.5L) (White, 39 Pin) | Left side of engine compartment. See Figure. |
| AE1 (4.3L) (White, 39 Pin) | Left side of engine compartment. See Figure. |

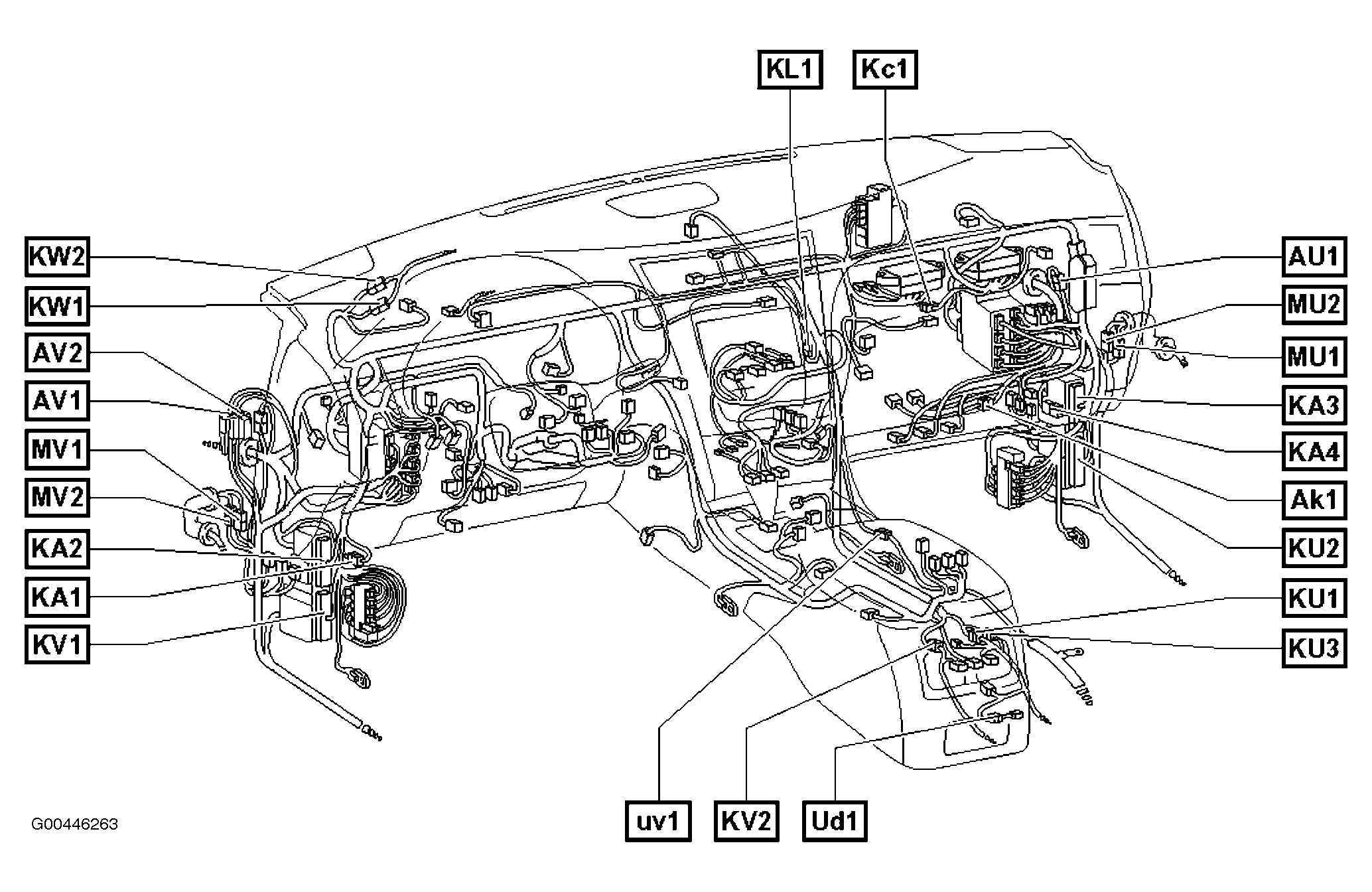

| Ak1 (White, 3 Pin) | Under right end of dash. See Figure. |
| AU1 (White, 25 Pin) | Behind right end of dash. See Figure. |
| AV1 (White, 22 Pin) | Behind left end of dash. See Figure. |
| AV2 (White, 3 Pin) | Behind left end of dash. See Figure. |
| BA1 (3.5L) (Gray, 3 Pin) | Left side of engine compartment. See Figure. |
| BA1 (4.3L) (Gray, 3 Pin) | Left side of engine compartment. See Figure. |
| BA2 (3.5L) (Gray, 22 Pin) | Left side of engine compartment. See Figure. |
| BA2 (4.3L) (Gray, 22 Pin) | Left side of engine compartment. See Figure. |
| BA3 (3.5L) (White, 25 Pin) | Left side of engine compartment. See Figure. |
| BA3 (4.3L) (White, 25 Pin) | Left side of engine compartment. See Figure. |
| EA1 (Black, 2 Pin) | Right front of engine compartment. See Figure. |
| Ef1 (Dark Gray, 2 Pin) | Rear of engine compartment. See Figure. |
| Eg1 (Gray, 6 Pin) | Top front of engine. See Figure. |
| EH1 (Gray, 6 Pin) | Left rear of engine. See Figure. |
| FE1 (3.5L) (Black, 6 Pin) | Rear of engine. See Figure. |
| FE1 (4.3L) (Black, 6 Pin) | Rear of engine. See Figure. |
| KA1 (Yellow, 2 Pin) | At left kick panel. See Figure. |
| KA2 (White, 60 Pin) | At left kick panel. See Figure. |
| KA3 (White, 39 Pin) | At right kick panel. See Figure. |
| KA4 (Yellow, 2 Pin) | At right kick panel. See Figure. |
| Kc1 (Yellow, 4 Pin) | Behind right side of dash. See Figure. |
| KL1 (White, 13 Pin) | Behind center of dash. See Figure. |
| KU1 (White, 25 Pin) | Under rear of center floor console. See Figure. |
| KU2 (White, 60 Pin) | At right kick panel. See Figure. |
| KU3 (White, 18 Pin) | Under rear of center floor console. See Figure. |
| KV1 (White, 39 Pin) | At left kick panel. See Figure. |
| KV2 (White, 10 Pin) | Under rear of center floor console. See Figure. |
| KW1 (White, 22 Pin) | Behind left side of dash. See Figure. |
| KW2 (White, 25 Pin) | Behind left side of dash. See Figure. |
| mA1 (3.5L) (Gray, 2 Pin) | Left front corner of engine compartment. See Figure. |
| mA1 (4.3L) (Gray, 2 Pin) | Left front corner of engine compartment. See Figure. |
| Mp1 (White, 10 Pin) | In right front door. See Figure. |
| Mp2 (White, 10 Pin) | In driver's door. See Figure. |
| MQ1 (White, 25 Pin) | In right front door. See Figure. |
| MQ2 (White, 25 Pin) | In driver's door. See Figure. |
| MU1 (White, 10 Pin) | Behind right end of dash. See Figure. |
| MU2 (White, 18 Pin) | Behind right end of dash. See Figure. |
| MV1 (White, 10 Pin) | Behind left end of dash. See Figure. |
| MV2 (White, 18 Pin) | Behind left end of dash. See Figure. |
| nU1 (White, 5 Pin) | Right side of luggage compartment. See Figure. |
| Or1 (Gray, 8 Pin) | In right rear door. See Figure. |
| Or2 (Gray, 8 Pin) | In left rear door. See Figure. |
| OS1 (White, 13 Pin) | In right rear door. See Figure. |
| OS2 (White, 18 Pin) | In right rear door. See Figure. |
| OS3 (White, 13 Pin) | In left rear door. See Figure. |
| OS4 (White, 18 Pin) | In left rear door. See Figure. |
| OU1 (White, 13 Pin) | In right "B" pillar. See Figure. |
| oV1 (White, 5 Pin) | Left side of luggage compartment. See Figure. |
| OV1 (White, 13 Pin) | In left "B" pillar. See Figure. |
| tA1 (3.5L) (Gray, 2 Pin) | Right front corner of engine compartment. See Figure. |
| tA1 (4.3L) (Gray, 2 Pin) | Right front corner of engine compartment. See Figure. |
| Ua1 (White, 17 Pin) | Under front passenger's seat. See Figure. |
| Ua2 (White, 4 Pin) | Under front passenger's seat. See Figure. |
| Ud1 (White, 2 Pin) | Under rear of center floor console. See Figure. |
| uv1 (Gray, 1 Pin) | Under center floor console. See Figure. |
| UV1 (White, 60 Pin) | Right side of luggage compartment. See Figure. |
| Vb1 (White, 17 Pin) | Under driver's seat. See Figure. |
| Ve1 (White, 13 Pin) | Center rear of luggage compartment. See Figure. |
| VX1 (White, 10 Pin) | Left side of luggage compartment. See Figure. |
| wv1 (Gray, 1 Pin) | Right side of luggage compartment. See Figure. |
| yA1 (Black, 1 Pin) | Behind left kick panel. See Figure. |
| ye1 (Black, 2 Pin) | Center rear of luggage compartment. See Figure. |
| yV1 (White, 10 Pin) | Under rear center of vehicle. See Figure. |
| ZX1 (White, 10 Pin) | Left rear corner of luggage compartment. See Figure. |
