Initialization Of Power Window During PDS (PD044-06)

INITIALIZATION OF POWER WINDOW DURING PDS

TECHNICAL SERVICE BULLETIN

Introduction

As a result of the removal of the DCC fuse, the "one-touch open and close" and "jam protection" functions of each door's power window will be inoperative due to loss of the power window position memory stored in the microcomputer.

Initialize each door's power window after installing the DCC fuse into its original location during Pre-Delivery Service (PDS) at the dealership.

Applicable Vehicles

• 2007  model year GS 350  and GS 430  vehicles.

Warranty Information

OP CODE	DESCRIPTION	TIME	OFP	T1	T2
N/A	Not Applicable to Warranty	-	-	-	-

Initialization Procedure

1. Turn the ignition switch to the "ON" position.

   If the power windows have not been initialized, the driver's door power window switch should be blinking.

2. Push the driver's door power window switch to open the window.

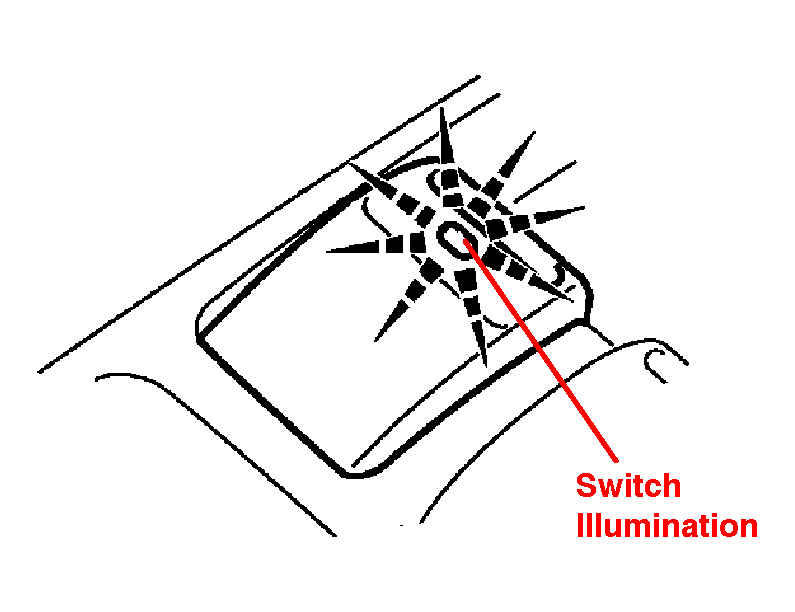

   Fig 1: Identifying Driver's Door Power Window Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Pull up the driver's door power window switch until the window closes, and hold it for approximately one second.

   At this time, the driver's door power window switch illumination changes from blinking to constant illumination.

4. Repeat steps  1 -  3 for each door's power window.
   NOTE: When the battery terminal has been disconnected, pull up each door's power window switch until the window closes, and hold it for approximately one second.
   At this time, each door's power window switch illumination changes from blinking to constant illumination.

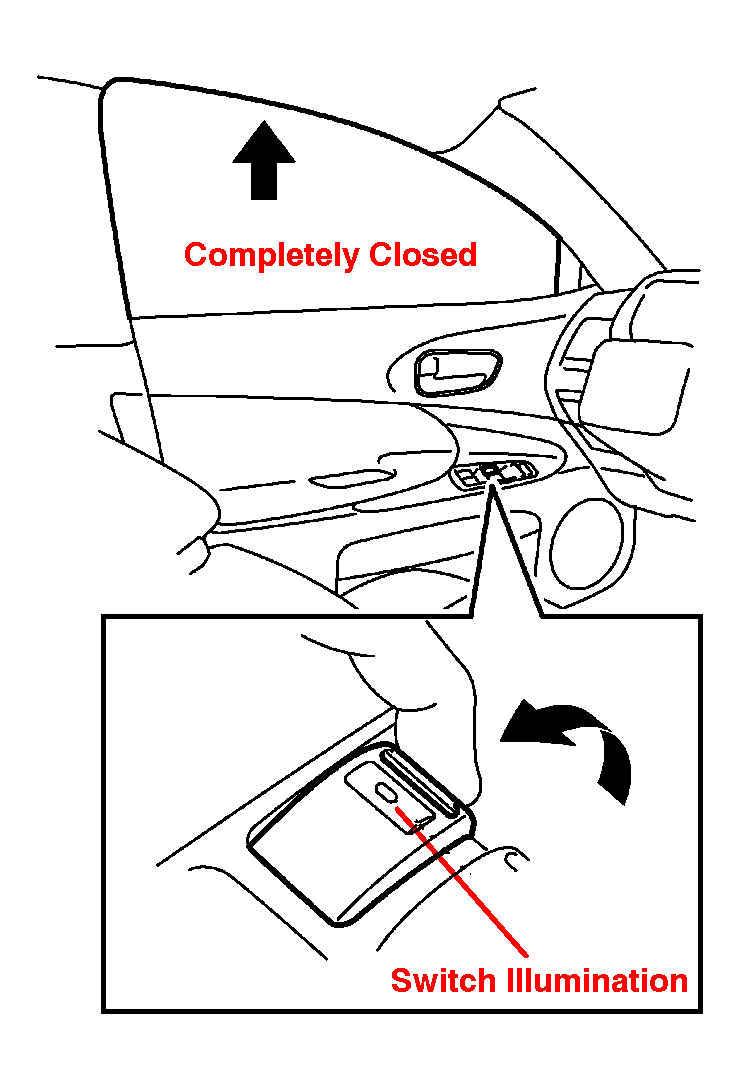

   Fig 2: Pulling Up Driver's Door Power Window Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Check for proper operation of the "one-touch open and close" function by fully pushing the switch "DOWN" once and fully pulling the switch "UP" once.
