Child Restraint Seat Tether Anchor: Components

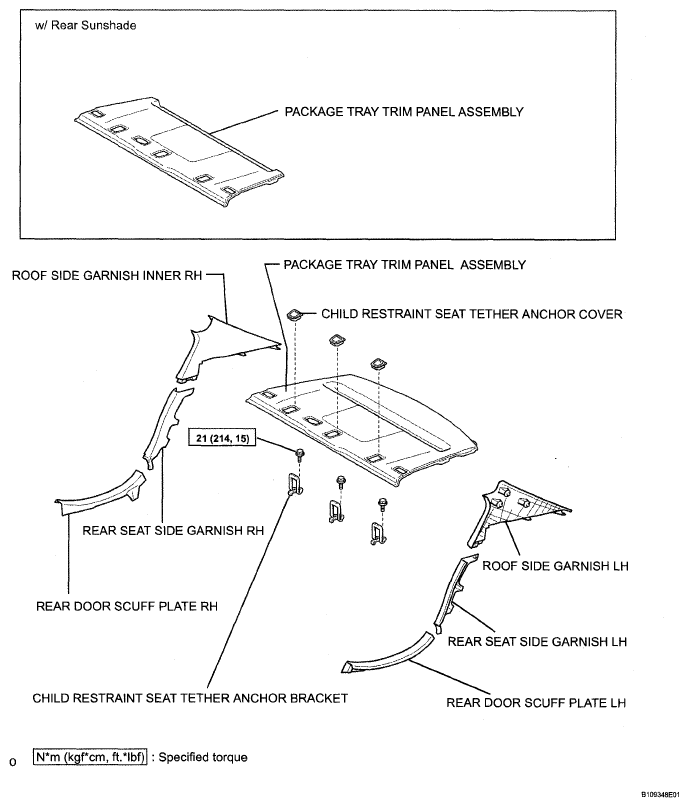

Fig 1: Exploded View Of Child Restraint Seat Tether Anchor With Torque Specification (1 Of 2)
G05298537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

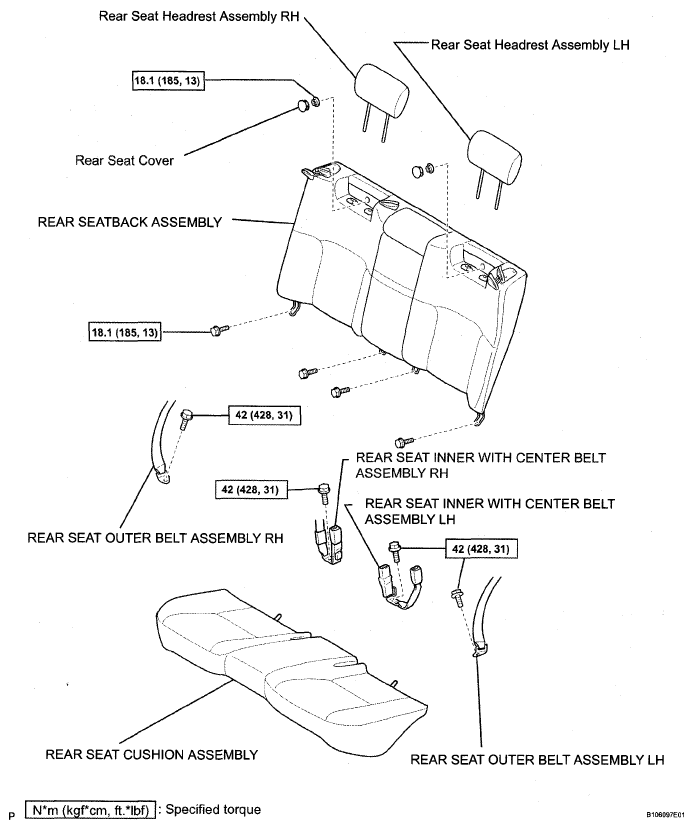

Fig 2: Rear Seat Inner Belt Assembly Replacement Components With Torque Specifications (1 Of 3)
G05298489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
