Child Restraint Seat Tether Anchor: Installation

  1. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
    1. Align the claw with the positioning hole and install the anchor bracket with the bolt.
      Fig 1: Identifying Child Restraint Seat Tether Anchor Bracket Bolt
      G05013665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  2. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Sunshade) (See  INSPECTION  )
  3. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (See  INSTALLATION  )
  4. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR COVER

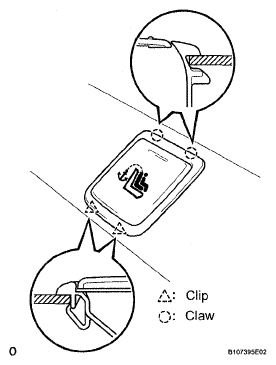

    Fig 2: Detaching 2 Clips And 2 Claws
    G05298539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the tether anchor cover to the package tray trim panel as shown in the illustration.

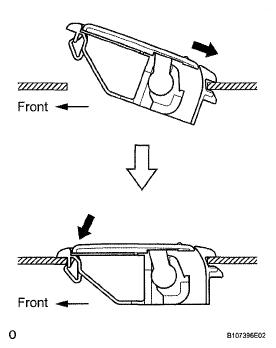

      Fig 3: Installing Tether Anchor Cover To Package Tray Trim Panel
      G05298543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL ROOF SIDE GARNISH INNER (See  INSTALLATION  )
  6. INSTALL REAR SEAT SIDE GARNISH (See  INSTALLATION  )
  7. INSTALL REAR DOOR SCUFF PLATE (See  INSTALLATION  )
  8. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH (See  INSTALLATION  )
  9. INSTALL REAR SEAT BELT OUTER ANCHOR (See  INSTALLATION  )
  10. INSTALL REAR SEATBACK ASSEMBLY (See  INSTALLATION  )
  11. INSTALL REAR SEAT HEADREST ASSEMBLY RH & LH
  12. INSTALL REAR SEAT CUSHION ASSEMBLY (See  INSTALLATION  )
