Absorber Control Ecu: Components

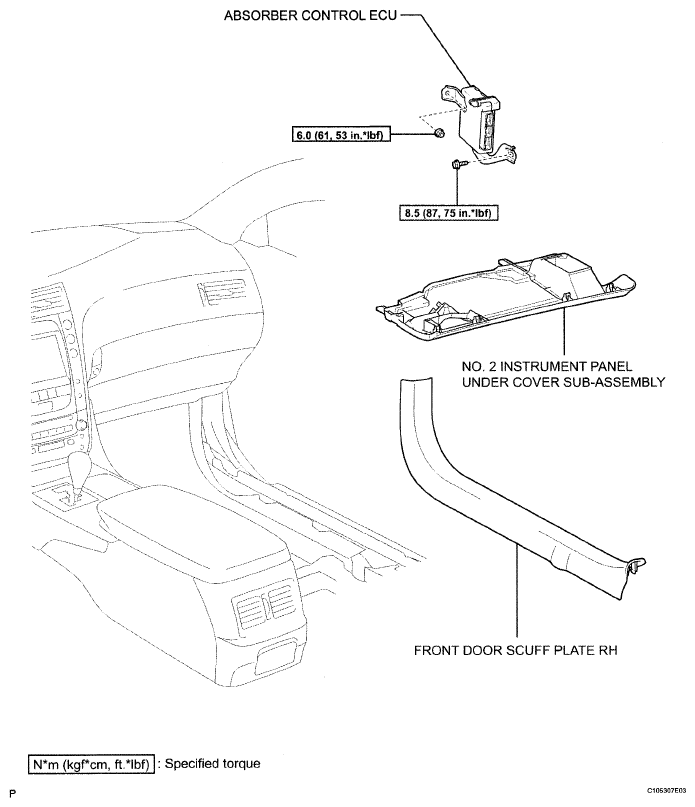

Fig 1: Absorber Control ECU Replacement Components With Torque Specifications
G05296528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
