Absorber Control Switch: Components

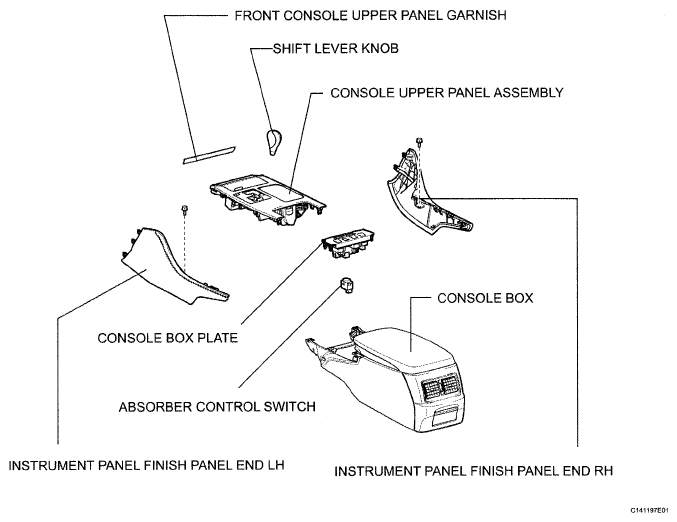

Fig 1: Identifying Absorber Control Switch Components
G05296562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
