System Diagram

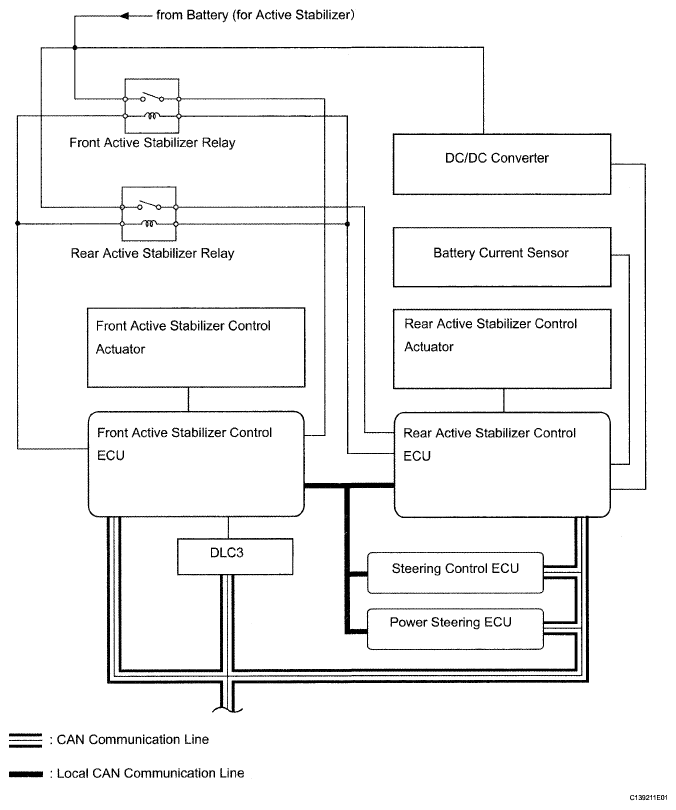

Fig 1: Suspension Control - System Diagram (1 Of 2)
G05296422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

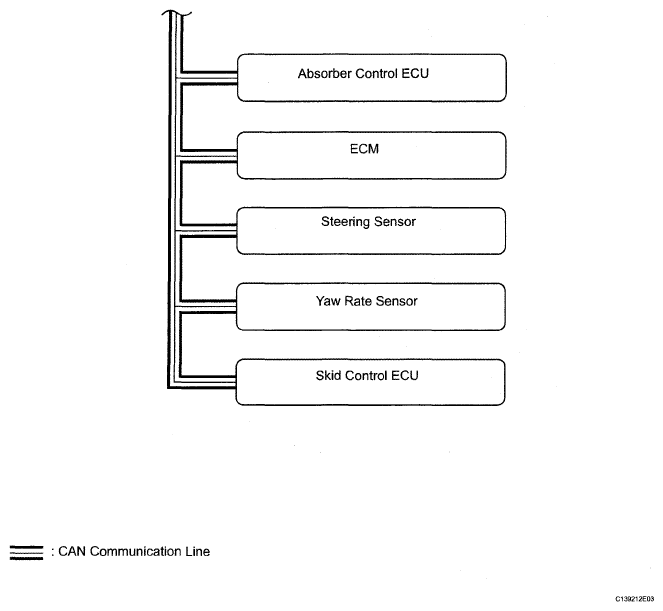

Fig 2: Suspension Control - System Diagram (2 Of 2)
G05296423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
