Front Acceleration Sensor: Inspection

INSPECT FRONT ACCELERATION SENSOR

Connect 3 1.5 V dry batteries in series.
Connect terminal 3 (SGB) to the battery's positive (+) terminal, and terminal 2 (SGG) to the battery's negative (-) terminal.

Measure the voltage of the sensor.

Standard voltage

VOLTAGE SPECIFICATION

Tester Connection	Sensor Condition	Specified Condition
SGFL (1) - SGG (2)	Sensor stationary	Approx. 2.3 V
SGFL (1) - SGG (2)	Sensor vibrating vertically	Change between approx. 1.0 to 4.0 V

NOTE:

HINT:

When the acceleration sensor is tilted, it may output a different value.

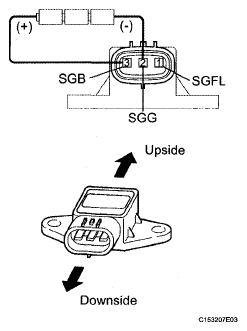

Fig 1: Connecting Terminal 3 (SGB) To Battery'S Positive Terminal, And Terminal 2 (SGG) To Battery's Negative Terminal
