Front Active Stabilizer Control Ecu: Components

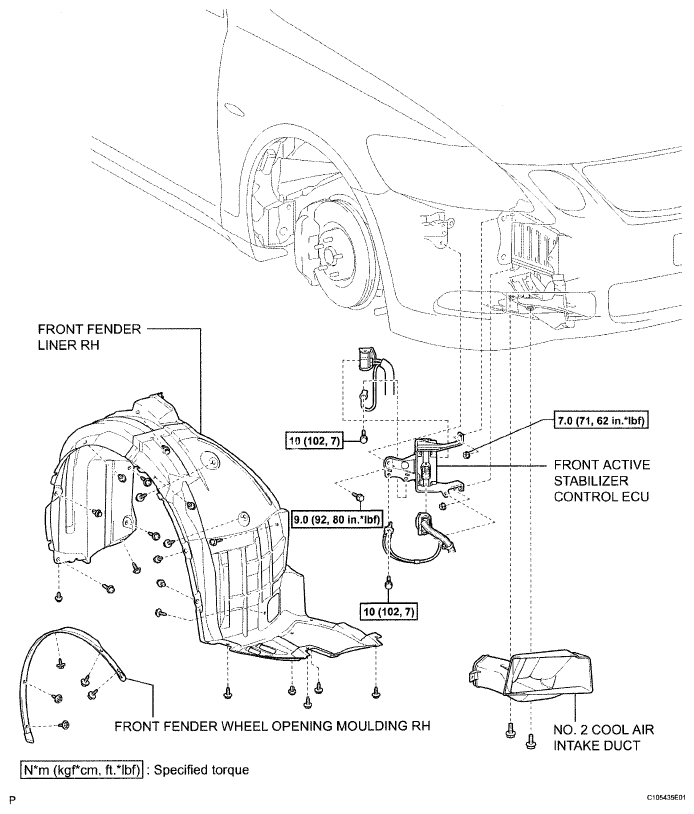

Fig 1: Front Active Stabilizer Control ECU Replacement Components With Torque Specifications
G05296551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
