Front Active Stabilizer Control Ecu: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE FRONT FENDER WHEEL OPENING MOLDING RH
REMOVE FRONT FENDER LINER RH
REMOVE NO. 2 COOL AIR INTAKE DUCT
1. Remove the 2 bolts and intake duct.
REMOVE FRONT ACTIVE STABILIZER CONTROL ECU
1. Remove the 2 bolts and disconnect the 2 ground wires.
2. Disconnect the wire harness clamp from the bracket.
3. Using the procedures below, disconnect the ECU connector.
  1. Release the lever's lock. (*1)
  2. Press the claw and move the lever in the direction of the arrow in the illustration. (*2)
  3. Disconnect the ECU connector. (*3)
    NOTE: When disconnecting the ECU connector, do not apply excessive force to the wire harness.

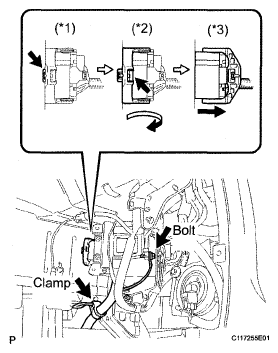

  Fig 1: Locating Front Active Stabilizer Control ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the bolt and 2 nuts, and disconnect the ECU from the body.
5. Disconnect the ECU connector.

  Fig 2: Locating ECU Connector, Bolt And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
