Rear Acceleration Sensor: Components

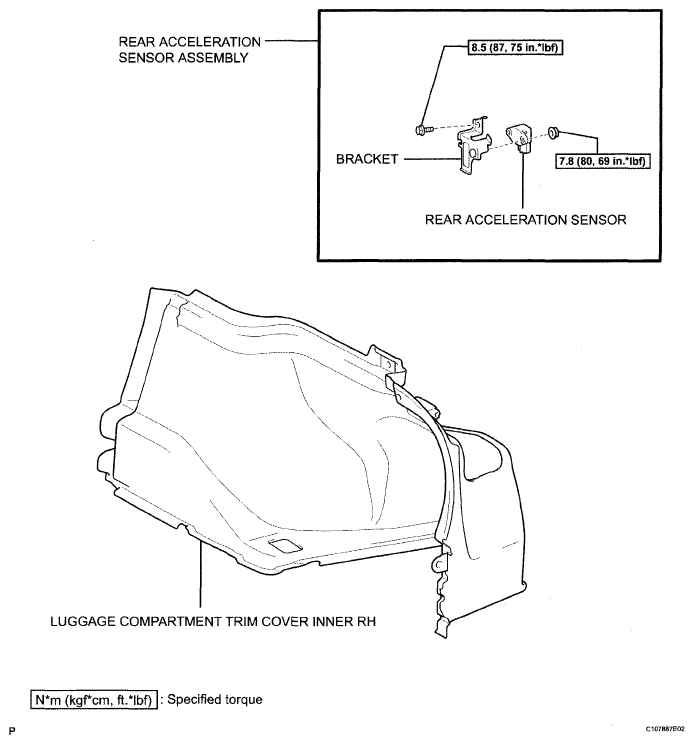

Fig 1: Rear Acceleration Sensor Replacement Components With Torque Specifications
G05296522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
