Pattern Select Switch Power Mode Circuit: Wiring Diagram

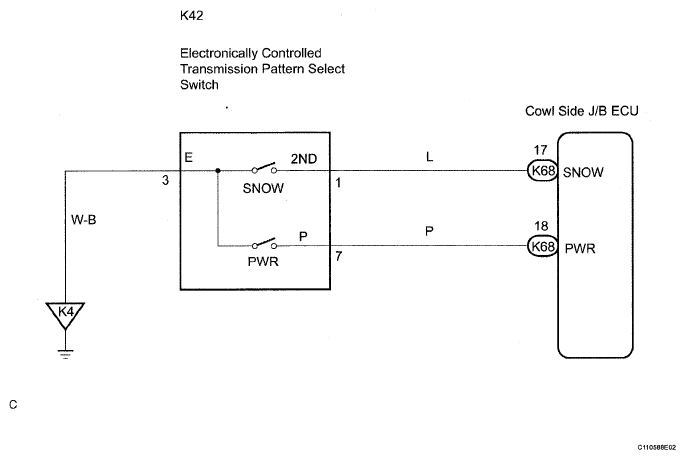

Fig 1: Pattern Select Switch - Wiring Diagram
G05288172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
