Electronic Power Steering System

TERMINALS OF ECU

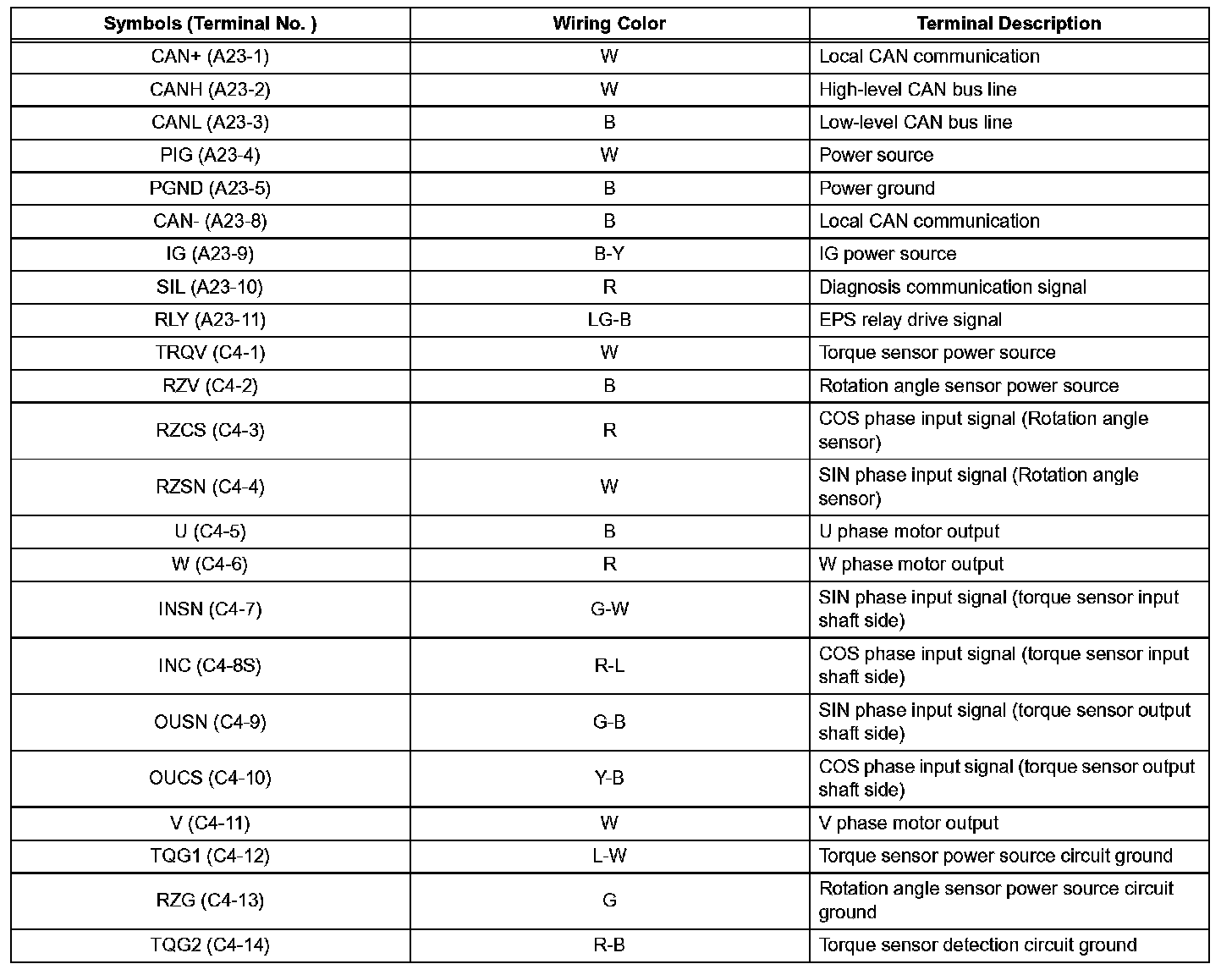

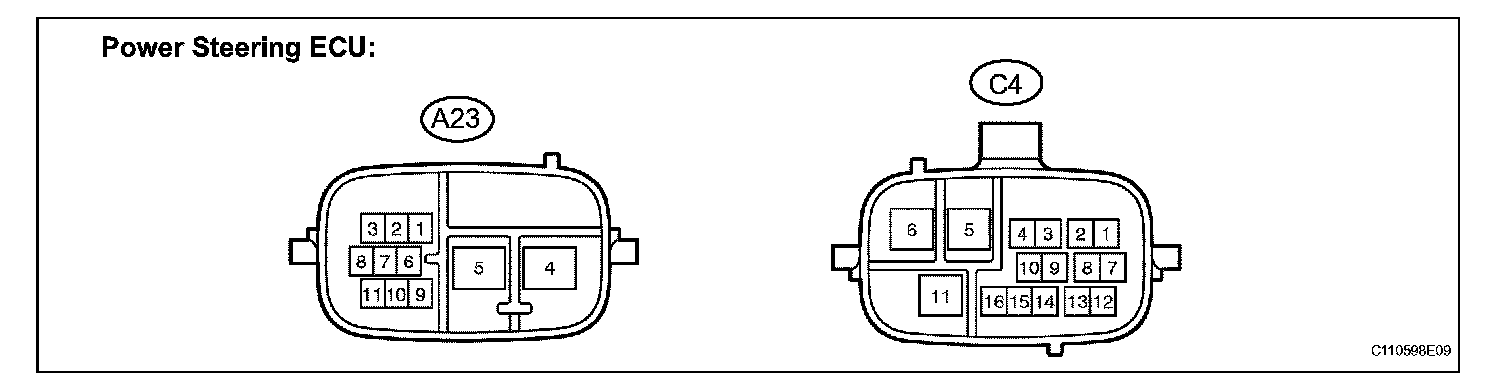

1. TERMINALS OF ECU





HINT:
The power steering ECU has waterproof connectors. Therefore, voltage or waveforms cannot be checked with the connectors connected to the vehicle.

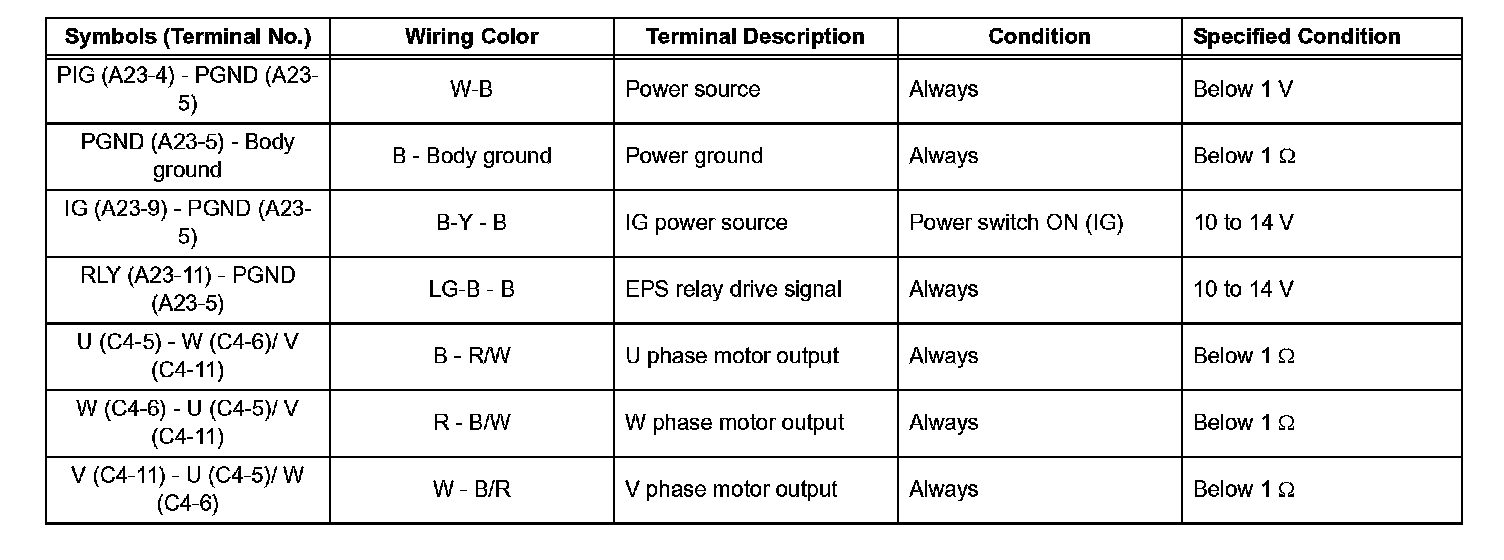

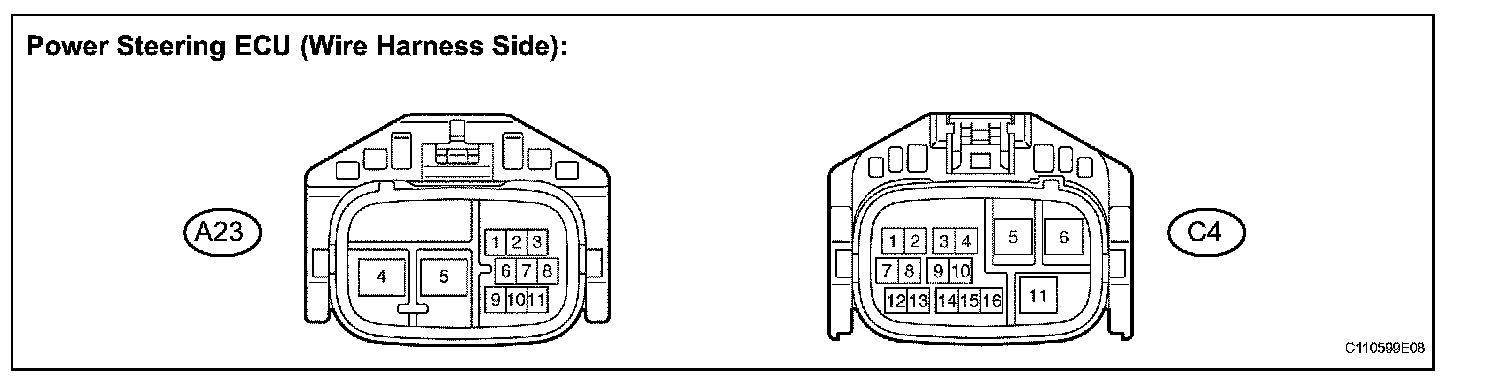

2. CHECK WIRE HARNESS SIDE CONNECTOR
