Headlight Assembly: Components: Notes

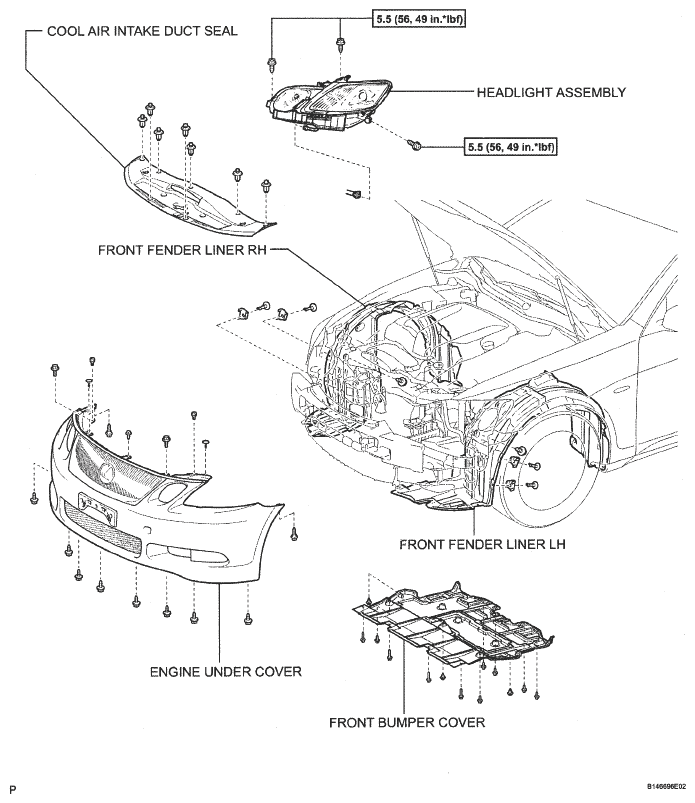

Fig 1: Headlight Assembly Replacement Components With Torque Specifications (1 Of 2)
G05315677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

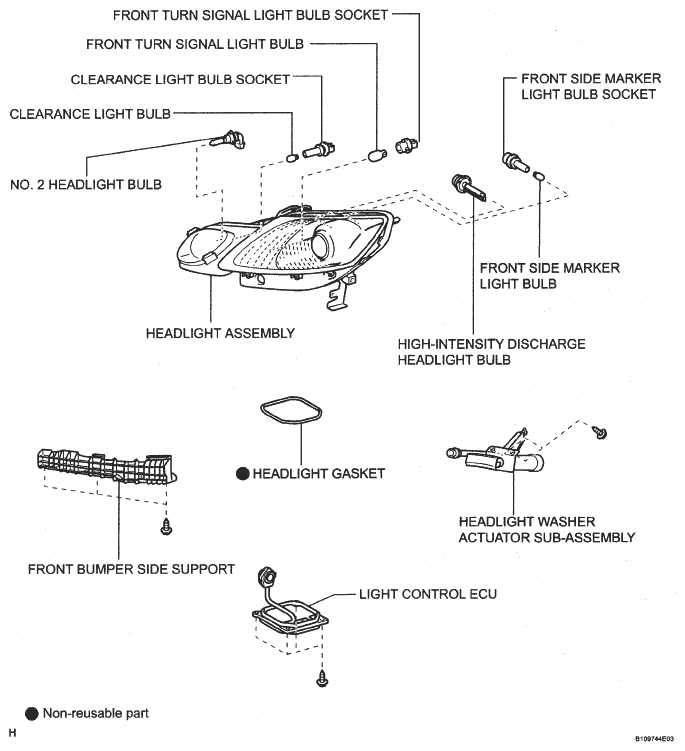

Fig 2: Identifying Headlight Assembly Components (2 Of 2)
G05315678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
