Charging Systems: Charging: Battery: Components

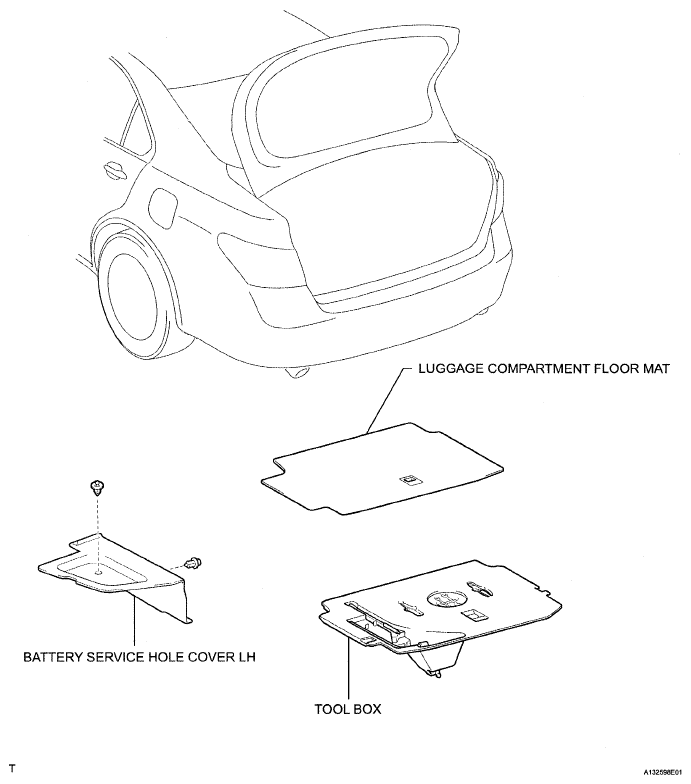

Fig 1: Identifying Battery Components (1 Of 3)
G05303663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

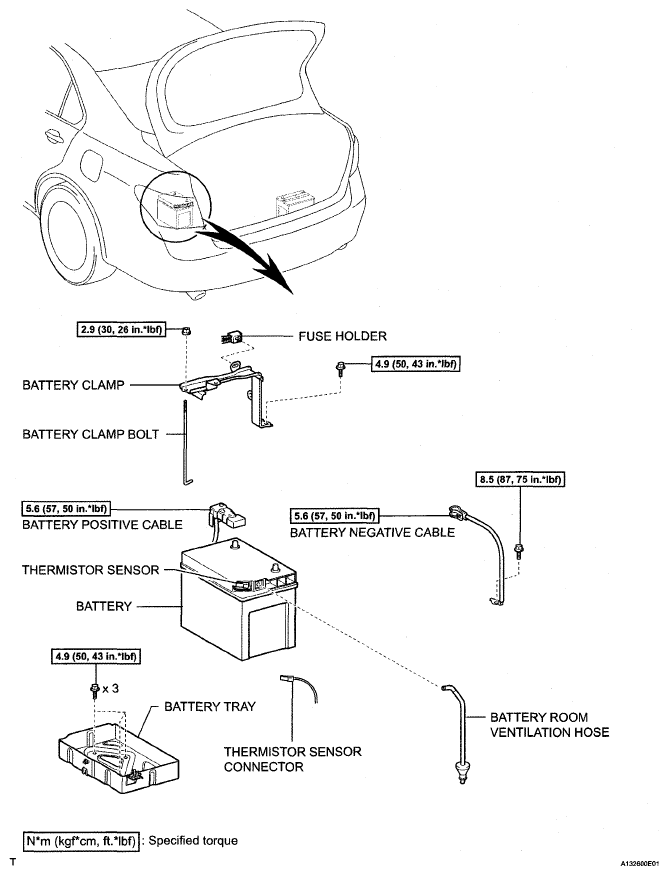

Fig 2: Battery Replacement Components With Torque Specifications (2 Of 3)
G05303664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

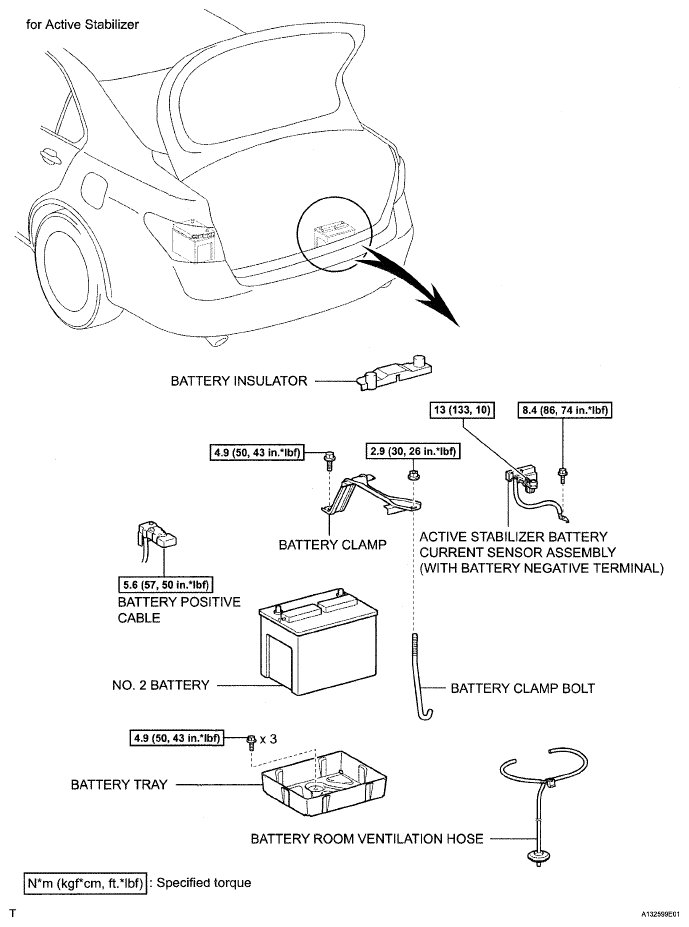

Fig 3: Battery Replacement Components With Torque Specifications (3 Of 3)
G05303665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
