Engine Coolant Temperature Sensor: Components

Fig 1: Camshaft Timing Oil Control Valve Assembly Replacement Components With Torque Specifications (1 Of 4)
G05302524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Camshaft Timing Oil Control Valve Assembly Replacement Components With Torque Specifications (2 Of 4)
G05302525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (3 Of 4)
G05302561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

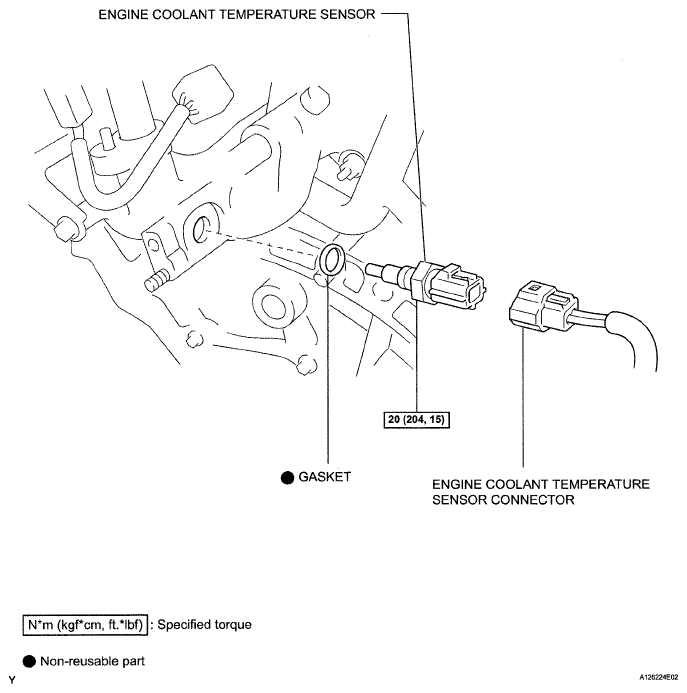

Fig 4: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (4 Of 4)
G05302562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
