Knock Sensor: Components

Fig 1: Camshaft Timing Oil Control Valve Assembly Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Camshaft Timing Oil Control Valve Assembly Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

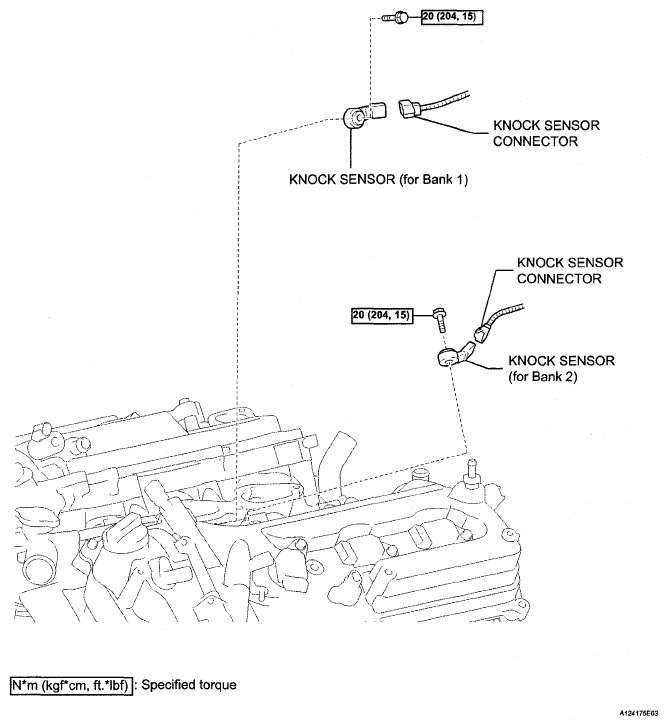

Fig 3: Knock Sensor Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Knock Sensor Replacement Components With Torque Specifications (4 Of 6)

Fig 5: Knock Sensor Replacement Components With Torque Specifications (5 Of 6)

Fig 6: Knock Sensor Replacement Components With Torque Specifications (6 Of 6)
