Steering Column Assembly: Components

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (1 Of 3)
G05306362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

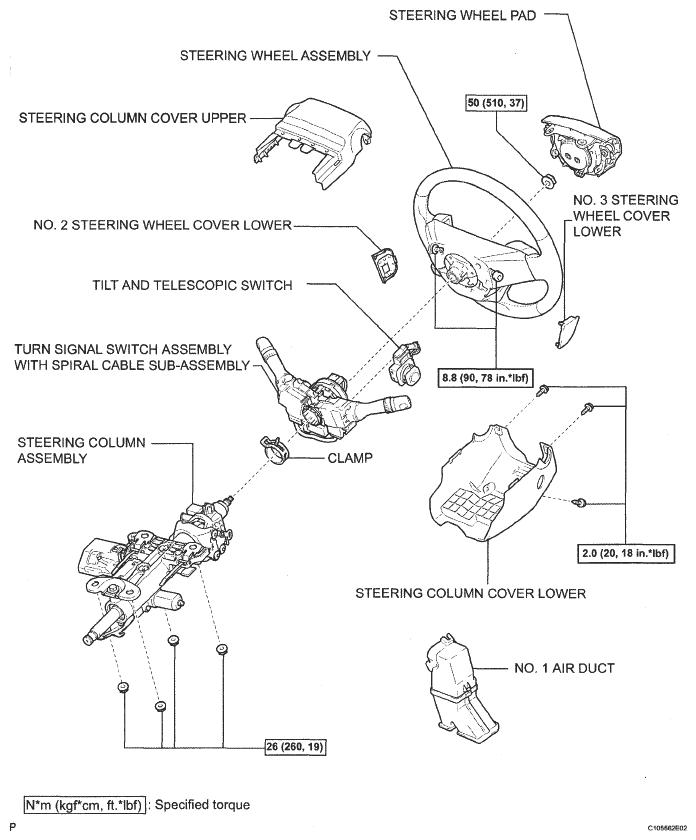

Fig 2: Steering Column Assembly Replacement Components With Torque Specifications (2 Of 3)
G05306363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

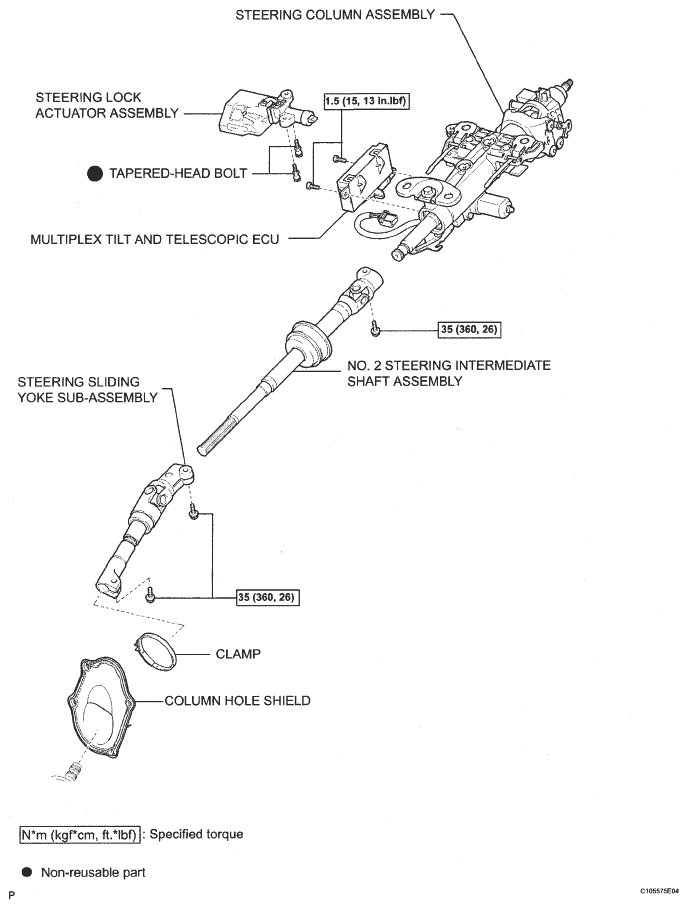

Fig 3: Steering Column Assembly Replacement Components With Torque Specifications (3 Of 3)
G05306364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
