System Diagram

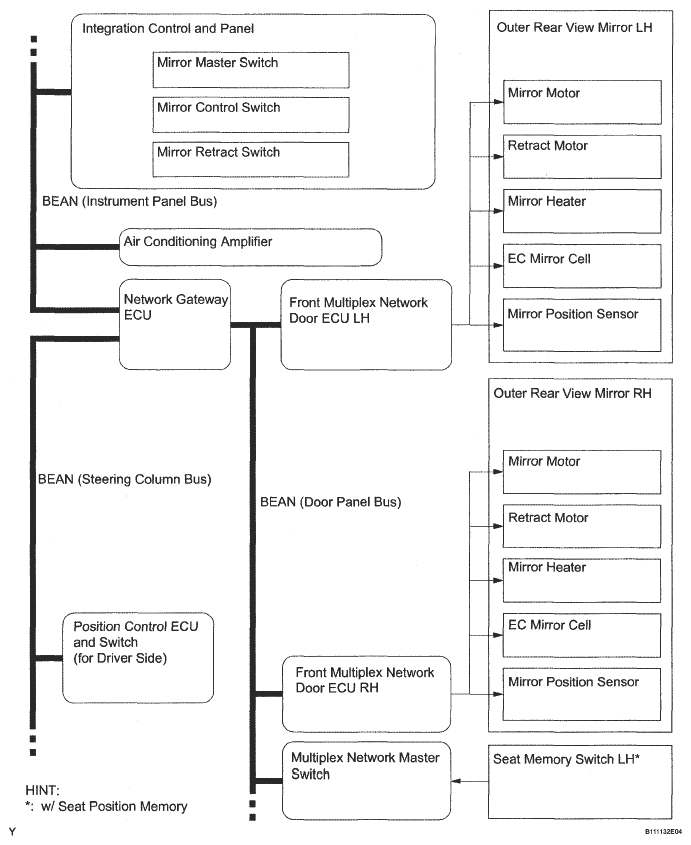

Fig 1: Power Mirror Control System Diagram
G05315078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table:

COMMUNICATION CHART

Sender Receiver Signal Line
Integration control and panel Front multiplex network door ECU RH
  • RH mirror master switch signal
  • LH mirror master switch signal
  • Mirror control switch signal (RIGHT)
  • Mirror control switch signal (LEFT)
  • Mirror control switch signal (UP)
  • Mirror control switch signal (DOWN)
  • Mirror retract switch signal
 BEAN
Front multiplex network door ECU LH
  • RH mirror master switch signal
  • LH mirror master switch signal
  • Mirror control switch signal (RIGHT)
  • Mirror control switch signal (LEFT)
  • Mirror control switch signal (UP)
  • Mirror control switch signal (DOWN)
  • Mirror retract switch signal
Air conditioning amplifier Front multiplex network door ECU RH Mirror heater operation request signal
Front multiplex network door ECU LH Mirror heater operation request signal
