Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch: Wiring Diagram

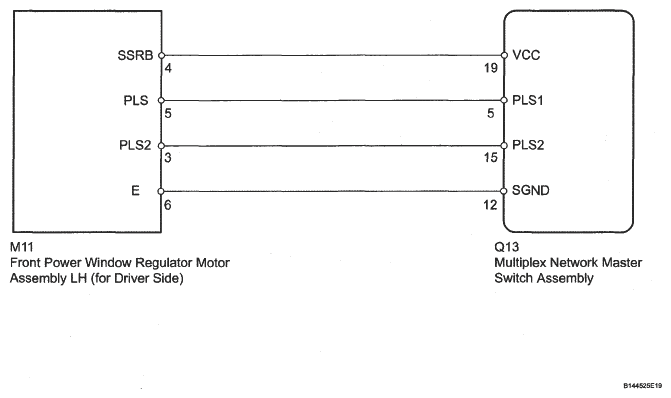

Fig 1: Driver Side Power Window Auto Up / Down Function Does Not Operate With Power Window Master Switch - Wiring Diagram
G05314998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
