Inspection Procedure

1. Check that the manual UP / DOWN functions operate normally.

   OK:

   Manual UP / DOWN functions operate normally.

NG: OTHER PROBLEM

OK: GO TO Next Step

1. Turn the power switch ON (IG).
2. Operate the switch for 2 seconds or more.
   Fig 1: Checking Light Of Multiplex Network Switch Assembly (AUTO Light) (For Front Passenger Side)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check the blinking pattern of the AUTO light. Compare the blinking pattern with the illustration below.
   Fig 2: AUTO Light Blinking Pattern Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Result

   RESULT REFERENCE



   Blinking Pattern	Proceed to
   1 or 3	A
   2	B
   4	C

B:  GO TO step  4

C: REPLACE MULTIPLEX NETWORK SWITCH ASSEMBLY (for Front Passenger Side)

A: GO TO Next Step

1. Check that the power window operates normally after it is reset.

   OK:

   Power window operates normally.

OK: END

NG: GO TO Next Step

1. Disconnect the Q6 switch connector.
2. Disconnect the M5 power window motor connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION AND SPECIFIED CONDITION



   Tester Connection	Specified Condition
   Q6-8 (VCC) - M5-4 (SSRB)	Below 1 Ω
   Q6-2 (PLS1) - M5-5(PLS)	Below 1 Ω
   Q6-3 (PLS2) - M5-3 (PLS2)	Below 1 Ω
   Q6-5 (SGND) - M5-6 (E)	Below 1 Ω
   Q6-8 (VCC) or M5-4 (SSRB) - Body ground	10 kΩ or higher
   Q6-2 (PLS1) or M5-5 (PLS) - Body ground	10 kΩ or higher
   Q6-3 (PLS2) or M5-3 (PLS2) - Body ground	10 kΩ or higher
   Q6-5 (SGND) or M5-6 (E) - Body ground	10 kΩ or higher

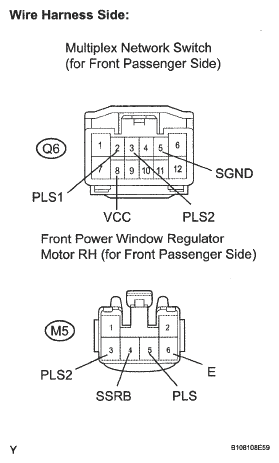

Fig 3: Checking Wire Harness (Power Window Switch - Power Window Motor)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (for Front Passenger Side)
