Inspection Procedure

  1. CHECK REMOTE UP / DOWN FUNCTION
    1. Check that the front passenger side power window manual UP / DOWN function on the multiplex network master switch operates normally.

      OK:

      Remote UP / DOWN functions operate normally.

    OK: REPLACE MULTIPLEX NETWORK SWITCH ASSEMBLY

    NG: GO TO Next Step

  2. PERFORM ACTIVE TEST BY INTELLIGENT TESTER (POWER WINDOW UP / DOWN)
    1. Select the ACTIVE TEST, use the intelligent tester to generate a control command, and then check the power window.

      Multiplex network master switch (for front passenger side)

      ACTIVE TEST REFERENCE

      Item Test Details
      P/W UP/DOWN Power Window UP / DOWN

      OK:

      Front passenger side power window operates normally.

      CAUTION: Be careful to avoid injuries as this test causes vehicle parts to move.

    OK: REPLACE FRONT MULTIPLEX NETWORK DOOR ECU RH (FRONT PASSENGER DOOR ECU)

    NG: GO TO Next Step

  3. INSPECT FUSE (FR DOOR RH, RH-IG, D/C CUT, MPX-B)
    1. Remove the FR DOOR RH and RH-IG fuses from the main body ECU RH.
    2. Remove the MPX-B and D/C CUT fuses from the engine room No. 1 relay block.
    3. Measure the resistance of the fuses.

      Standard resistance:

      Below 1 Ω

    NG: REPLACE FUSE

    OK: GO TO Next Step

  4. CHECK WIRE HARNESS (POWER WINDOW SWITCH - POWER WINDOW MOTOR)
    1. Disconnect the Q6 switch connector.
    2. Disconnect the M5 motor connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      Q6-6 (U) - M5-2 (U) Below 1 Ω
      Q6-1 (O) - M5-1 (D) Below 1 Ω
      Q6-6 (U) or M5-2 (U) - Body ground 10 kΩ or higher
      Q6-1 (D) or M5-1 (D) - Body ground 10 kΩ or higher

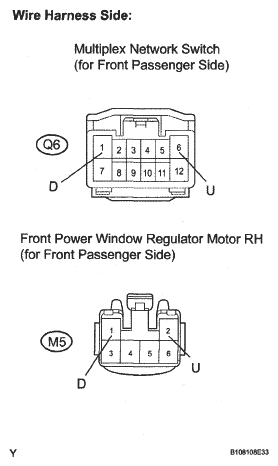

    4. Fig 1: Checking Wire Harness (Power Window Switch - Power Window Motor)
      G05314983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO Next Step

  5. CHECK WIRE HARNESS (POWER WINDOW SWITCH - FRONT DOOR ECU RH)
    1. Disconnect the Q6 switch connector.
    2. Disconnect the M4 ECU connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Specified Condition
      Q6-7 (+B) - M4-5 (BDRJ) Below 1 Ω
      Q6-12 (E) - M4-2 (PWE) Below 1 Ω
      Q6-7 (+B) or M4-5 (BDRJ) - Body ground 10 kΩ or higher
      Q6-12 (E) or M4-2 (PWE) - Body ground 10 kΩ or higher
    4. Fig 2: Checking Wire Harness (Power Window Switch - Front Door ECU RH)
      G05314984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO Next Step

  6. CHECK WIRE HARNESS (DOOR ECU FRONT RH - BATTERY AND BODY GROUND)
    1. Disconnect the M4 ECU connector.
    2. Measure the voltage and resistance of the wire harness side connector.

      Standard voltage

      STANDARD VOLTAGE REFERENCE

      Tester Connection Condition Specified Condition
      M4-4 (CPUB) - Body ground Always 10 to 14 V
      M4-6 (BDR) - Body ground Always 10 to 14 V
      M4-3 (SIG) - Body ground Power switch ON (IG) 10 to 14 V

      Standard resistance

      STANDARD RESISTANCE REFERENCE

      Tester Connection Condition Specified Condition
      M4-1 (GND) - Body ground Always Below 1 Ω
      Fig 3: Checking Wire Harness (Door ECU Front RH - Battery And Body Ground)
      G05314985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO Next Step

  7. INSPECT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
    1. Remove the motor.
    2. Apply battery voltage to connector terminals 1 and 2.
      NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.
    3. Check that the motor gear rotates smoothly as follows.

      OK

      MEASUREMENT CONDITION AND SPECIFIED CONDITION

      Measurement Condition Specified Condition
      Battery positive (+) → 1
      Battery negative (-) → 2
      Motor gear rotates clockwise
      Battery positive (+) → 2
      Battery negative (-) → 1
      Motor gear rotates counterclockwise
    4. Fig 4: Inspecting Front Power Window Regulator Motor Assembly RH
      G05300175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

    OK: GO TO Next Step

  8. CHECK OPERATION OF MULTIPLEX NETWORK SWITCH ASSEMBLY (for Passenger Side)
    1. Temporarily replace the multiplex network switch (front passenger side) with a new or normally functioning one.
    2. Check that the power window operates normally.

      OK:

      Power window operates normally.

    NG: REPLACE FRONT MULTIPLEX NETWORK DOOR ECU RH (FRONT PASSENGER DOOR ECU)

    OK: END (MULTIPLEX NETWORK SWITCH (FRONT PASSENGER SIDE) IS FAULTY)
