Remote Up / Down Function does not Operate: Wiring Diagram

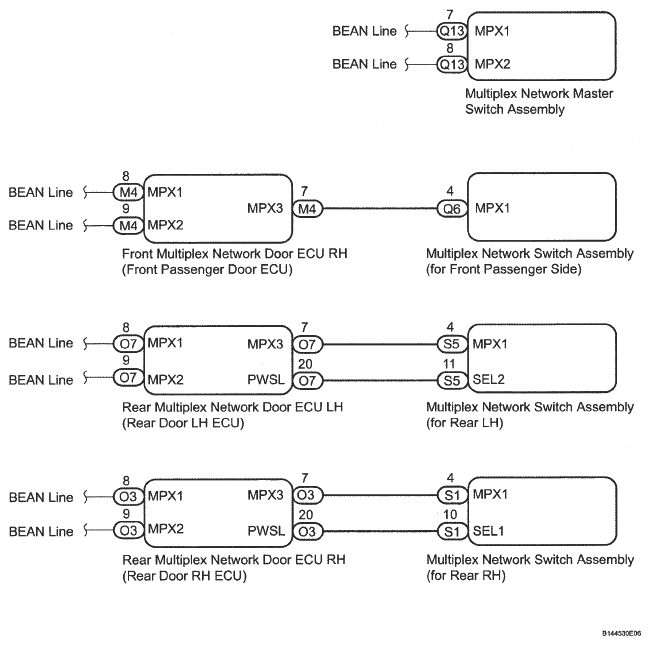

Fig 1: Remote Up / Down Function Does Not Operate - Wiring Diagram
G05314972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

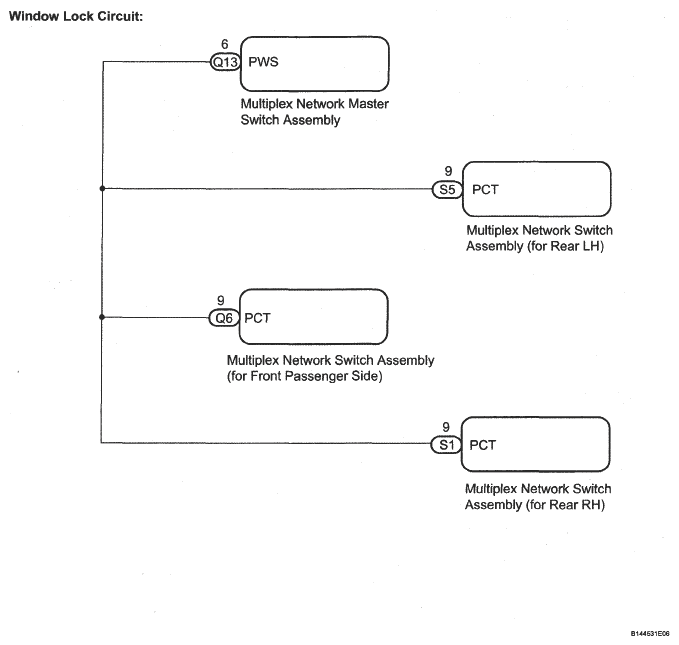

Fig 2: Window Lock Circuit Diagram
G05314973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
