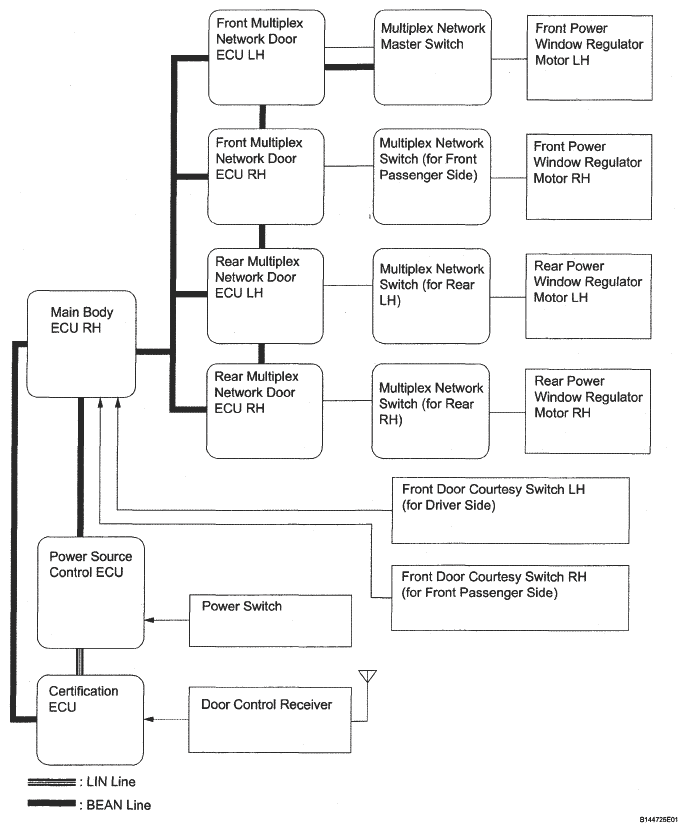

System Diagram
Communication table
COMMUNICATION CHART
| Sender | Receiver | Signal | Line |
|---|---|---|---|
| Multiplex Network Master Switch | Front Multiplex Network Door ECU RH (Front Passenger Side Door ECU) |
|
BEAN |
| Multiplex Network Master Switch | Rear Multiplex Network Door ECU RH (Rear Door RH ECU) |
|
BEAN |
| Multiplex Network Master Switch | Rear Multiplex Network Door ECU LH (Rear Door LH ECU) |
|
BEAN |
| Multiplex Network Master Switch | Multiplex Network Switch (for Front Passenger Side) | Window lock switch signal | BEAN |
| Multiplex Network Master Switch | Multiplex Network Switch (for Rear LH) | Window lock switch signal | BEAN |
| Multiplex Network Master Switch | Multiplex Network Switch (for Rear RH) | Window lock switch signal | BEAN |
| Front Multiplex Network Door ECU LH (Driver Side Door ECU) | Multiplex Network Master Switch | Door key-linked power window control signal | BEAN |
| Main Body ECU RH | Multiplex Network Master Switch |
|
BEAN |
| Power Source Control ECU | Multiplex Network Master Switch | Power switch status signal | BEAN |
| Certification ECU | Multiplex Network Master Switch | Wireless transmitter-linked power window control signal | BEAN |
