Inspection Procedure

1. Connect the intelligent tester to the DLC3.
2. Turn the power switch ON (IG) and turn the intelligent tester main switch on.
3. Select ACTIVE TEST mode on the intelligent tester.

   Skid control ECU:

   DATA LIST



   Item (Display)	Vehicle Condition / Test Details	Diagnostic Note
   BUZZER	Turns skid control buzzer ON / OFF	Buzzer can be heard

4. Check that the buzzer sounds/stops when turning the skid control buzzer on/off by using the intelligent tester.

   Result

   RESULT



   Condition	Proceed to
   Buzzer does not sound or sounds constantly	A
   Buzzer sounds/stops	B

   HINT:

   If troubleshooting has been carried out according to the "PROBLEM SYMPTOMS TABLE ", refer back to the table and proceed to the next step.

B: REPLACE SKID CONTROL ECU (See  REMOVAL   )

A: GO TO Next Step

1. Disconnect the K11 buzzer connector.
2. Turn the power switch ON (IG).
3. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   K11-2 - Body ground	Power switch ON (IG)	10 to 14 V

   Fig 1: Identifying K11 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

OK: GO TO Next Step

1. Disconnect the skid control buzzer connector.
2. Apply battery negative voltage to terminal 1, and battery positive voltage to terminal 2 of the skid control buzzer, and then check that the buzzer sounds.

   OK:

   Skid control buzzer sounds.

   Fig 2: Inspecting Skid Control Buzzer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE SKID CONTROL BUZZER

OK: GO TO Next Step

1. Disconnect the A13 ECU connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   A13-6 (BZ) - K11-1	Below 1 Ω
   A13-6 (BZ) - Body ground	10 kΩ or higher
   A13-22 (VBZ) - K11-2	Below 1 Ω
   A13-22 (VBZ) - Body ground	10 kΩ or higher

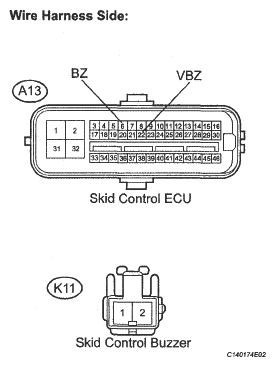

   Fig 3: Identifying A13 And K11 Connectors Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO Next Step

1. Disconnect the A13 and A15 ECU connectors.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   A13-1 (GND) - Body ground	Below 1 Ω
   A15-1 (GND4) - Body ground	Below 1 Ω

   HINT:

   If troubleshooting has been carried out according to the "PROBLEM SYMPTOMS TABLE ", refer back to the table and proceed to the next step before replacing the part.

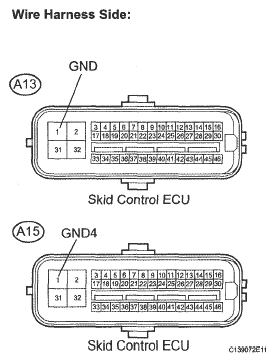

   Fig 4: Identifying A13 And A15 Connectors Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (GND CIRCUIT)

OK: REPLACE SKID CONTROL ECU (See  REMOVAL   )
