Air Conditioning: Notes

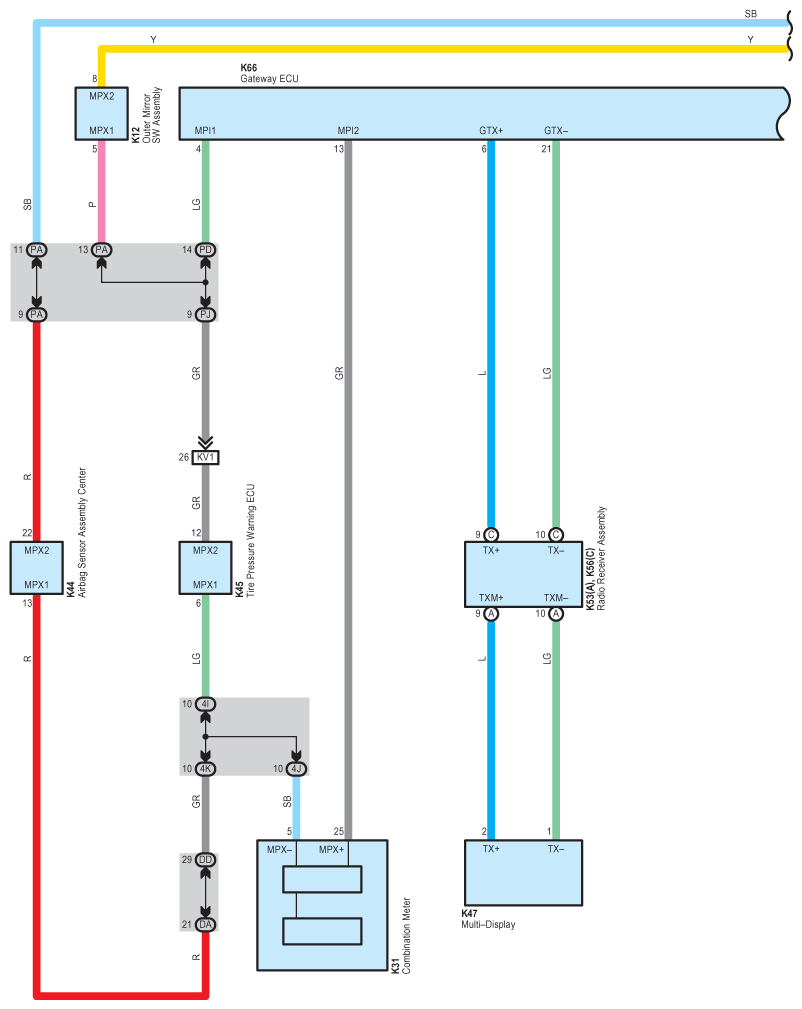

Fig 1: Air Conditioning Wiring Diagram (1 Of 8)

G08919772

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Air Conditioning Wiring Diagram (2 Of 8)

G08919773

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

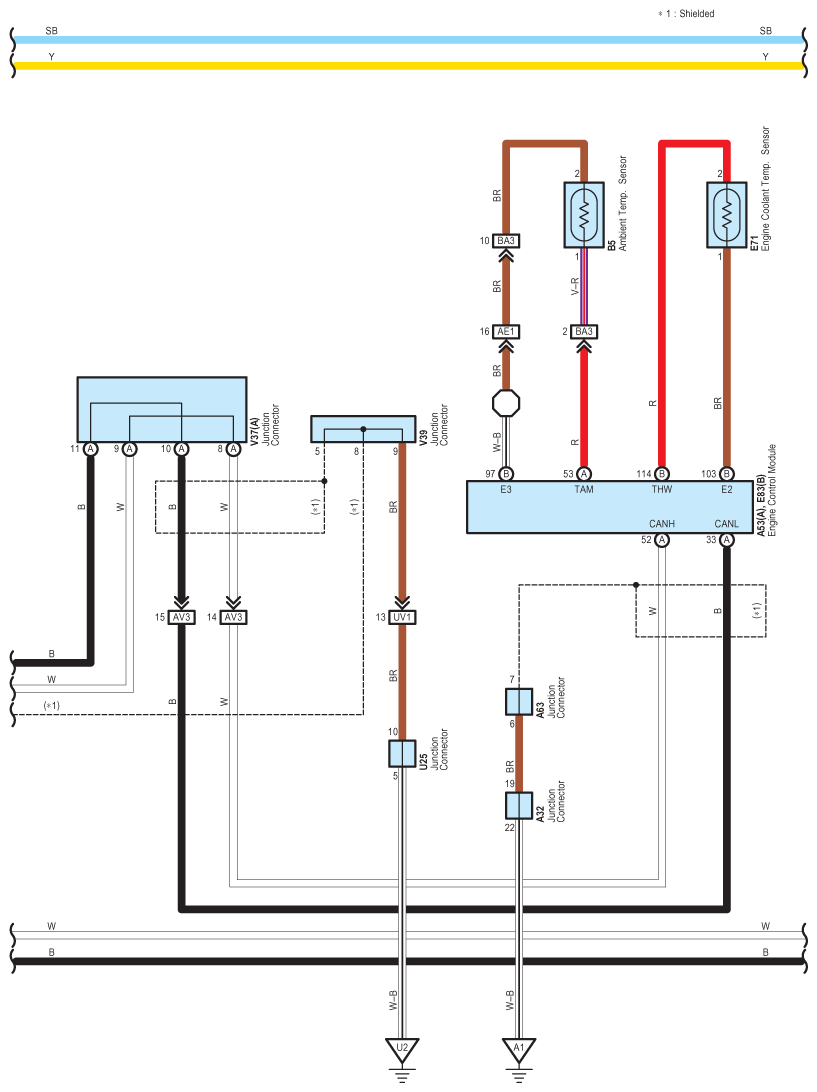

Fig 3: Air Conditioning Wiring Diagram (3 Of 8)

G08919774

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

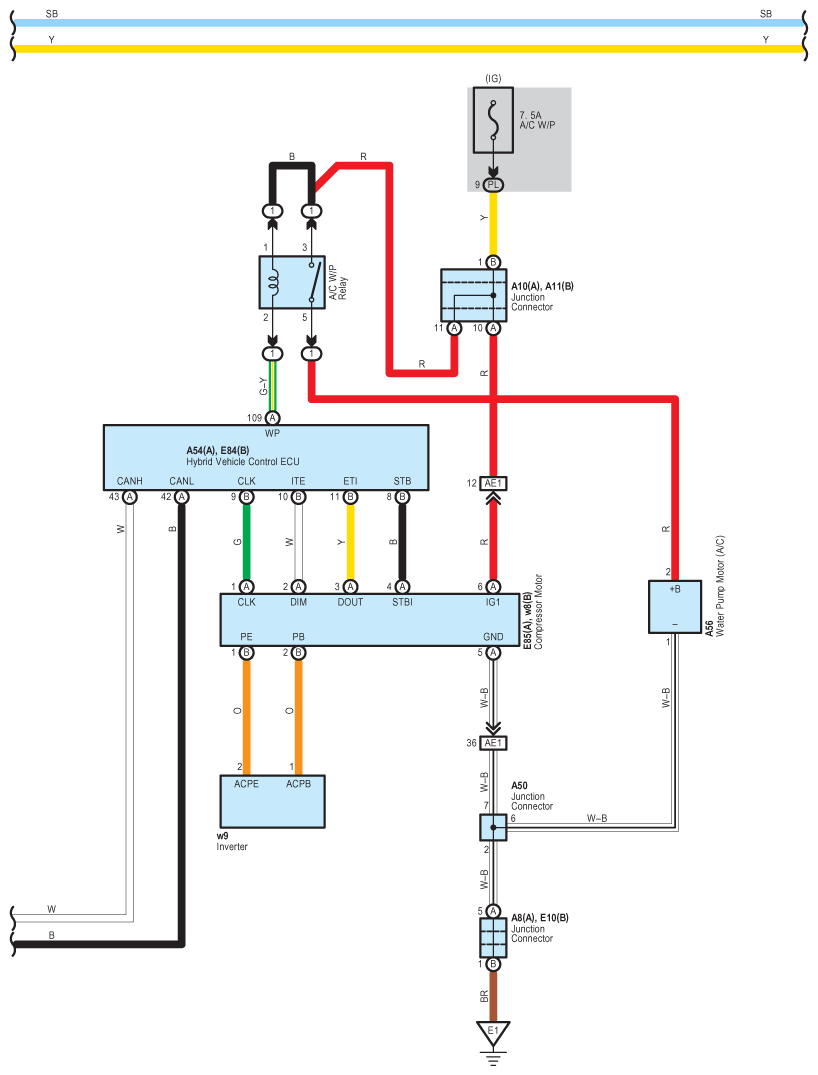

Fig 4: Air Conditioning Wiring Diagram (4 Of 8)

G08919775

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

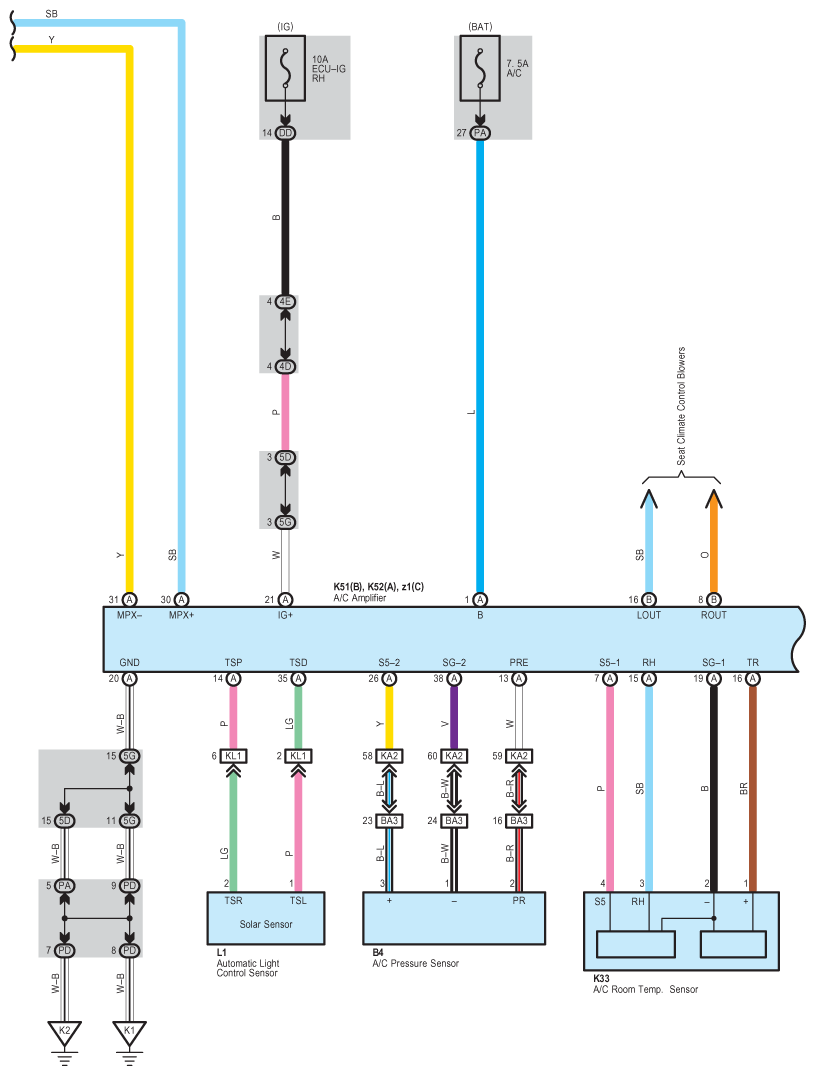

Fig 5: Air Conditioning Wiring Diagram (5 Of 8)

G08919776

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Air Conditioning Wiring Diagram (6 Of 8)

G08919777

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

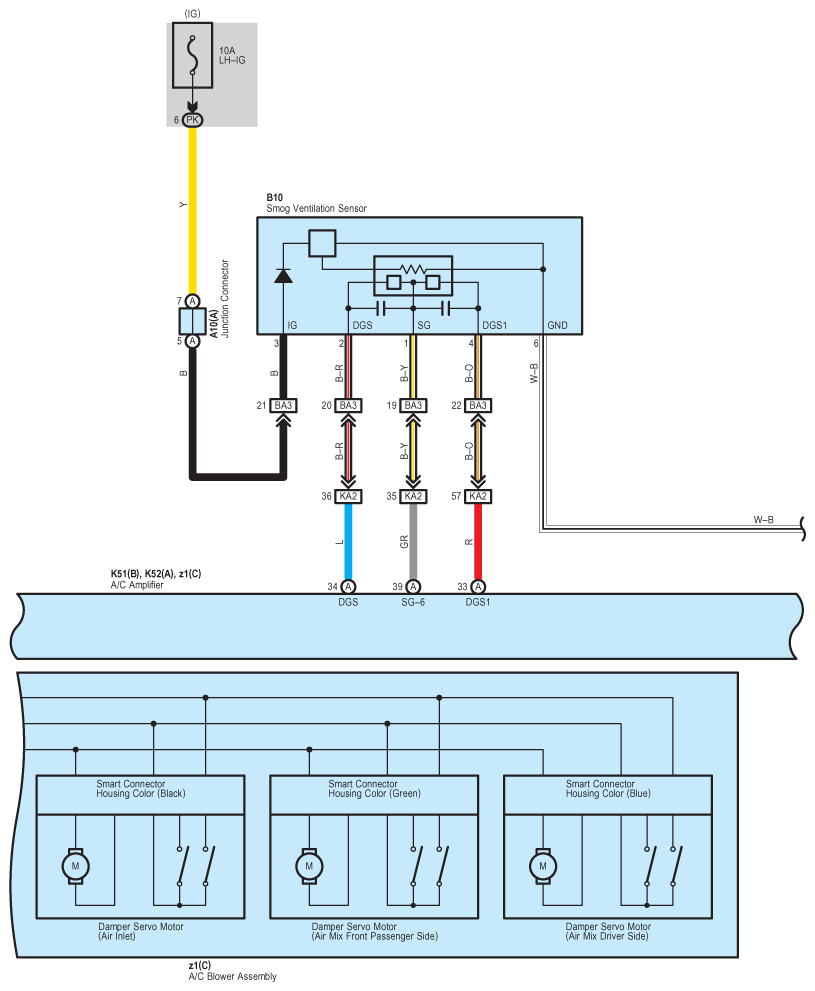

Fig 7: Air Conditioning Wiring Diagram (7 Of 8)

G08919778

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

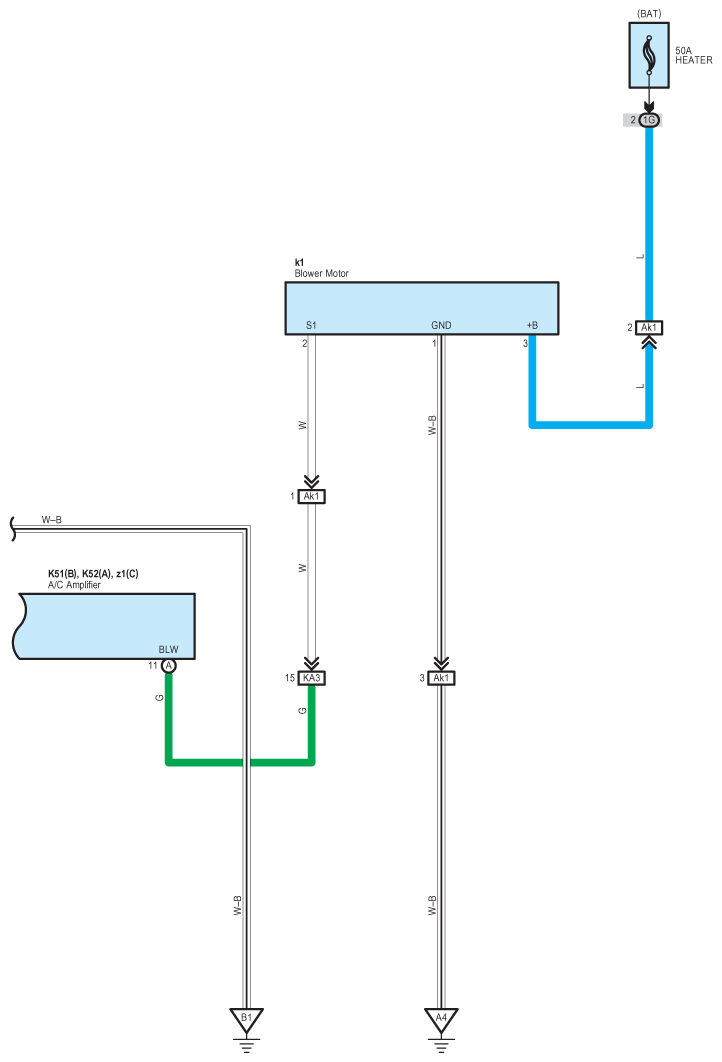

Fig 8: Air Conditioning Wiring Diagram (8 Of 8)

G08919779

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
