Audio and Multi Display System (Before Aug. 2006 Production): Notes

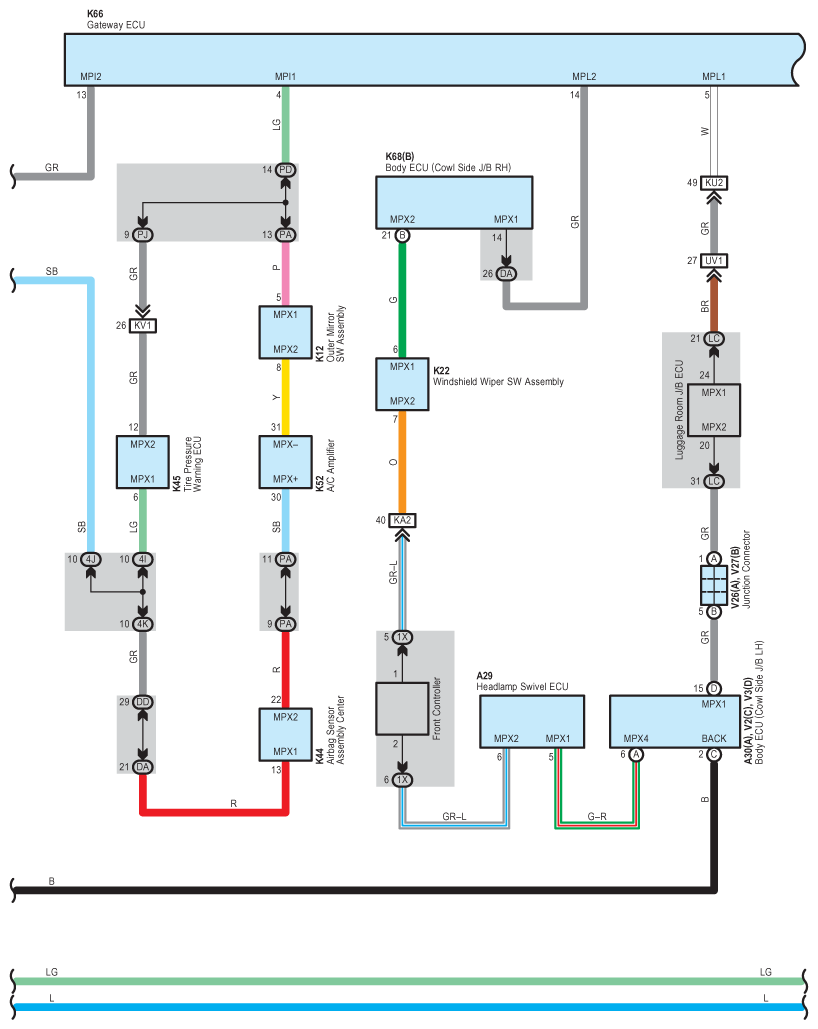

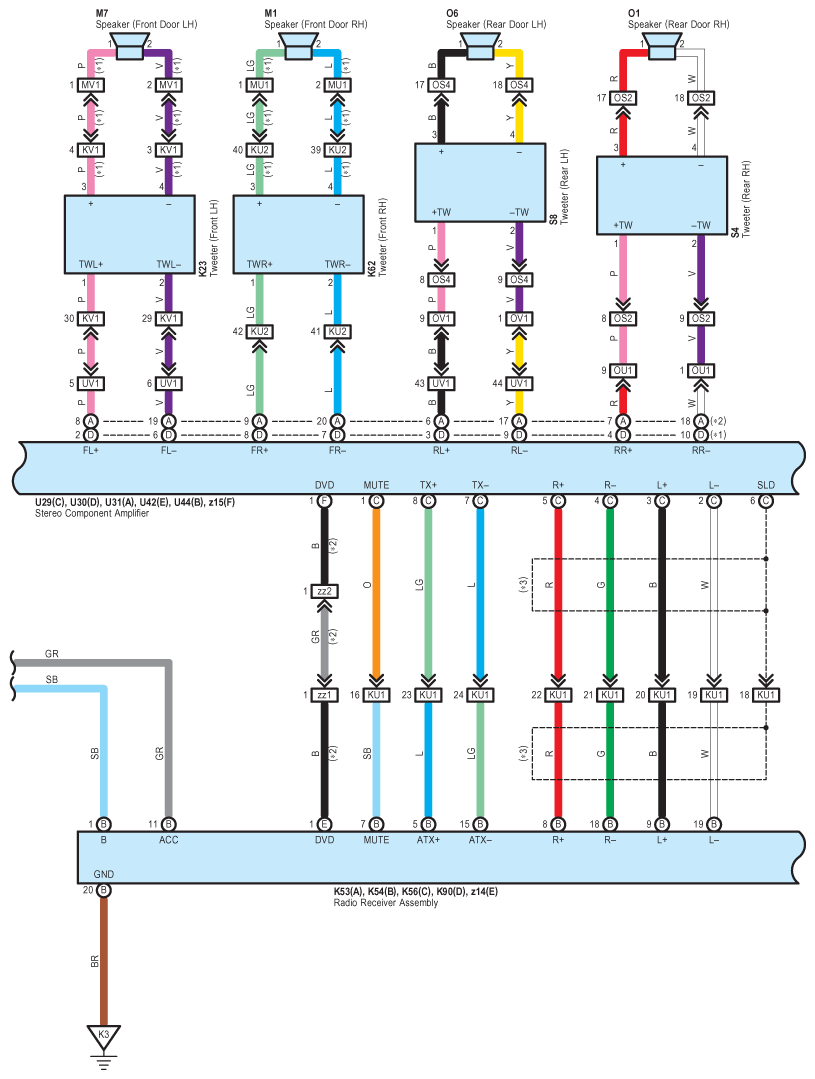

Fig 1: Audio And Multi Display System (Before Aug. 2006 Production) Wiring Diagram (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

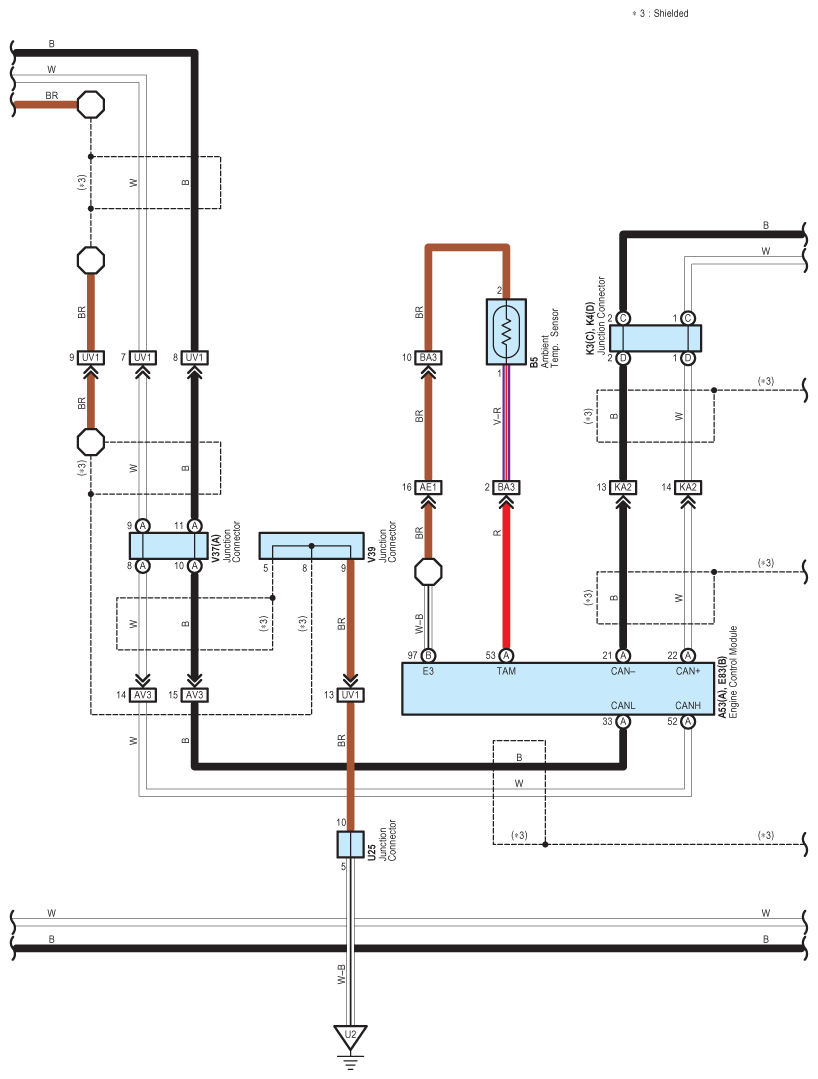

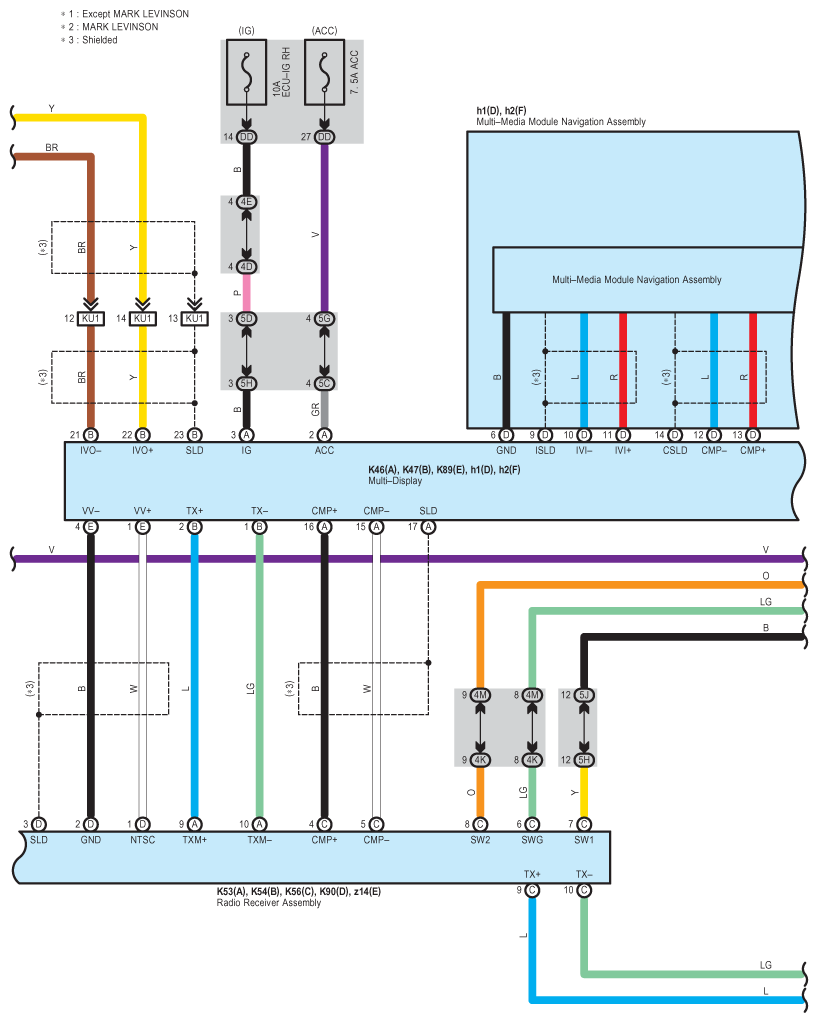

Fig 2: Audio And Multi Display System (Before Aug. 2006 Production) Wiring Diagram (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

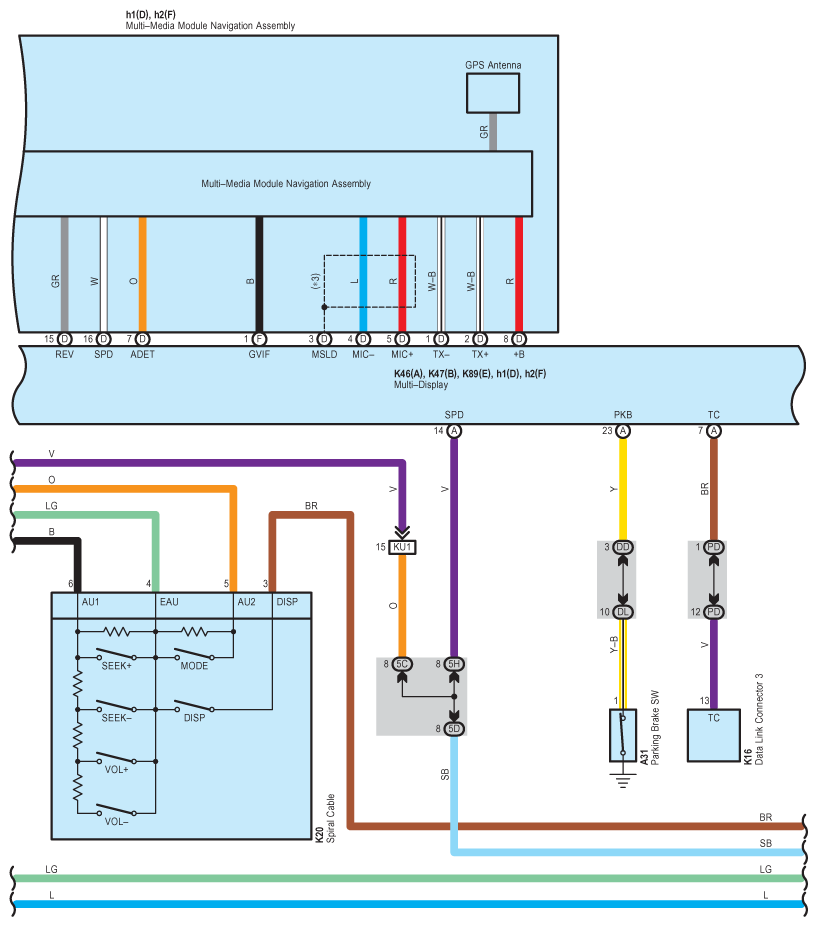

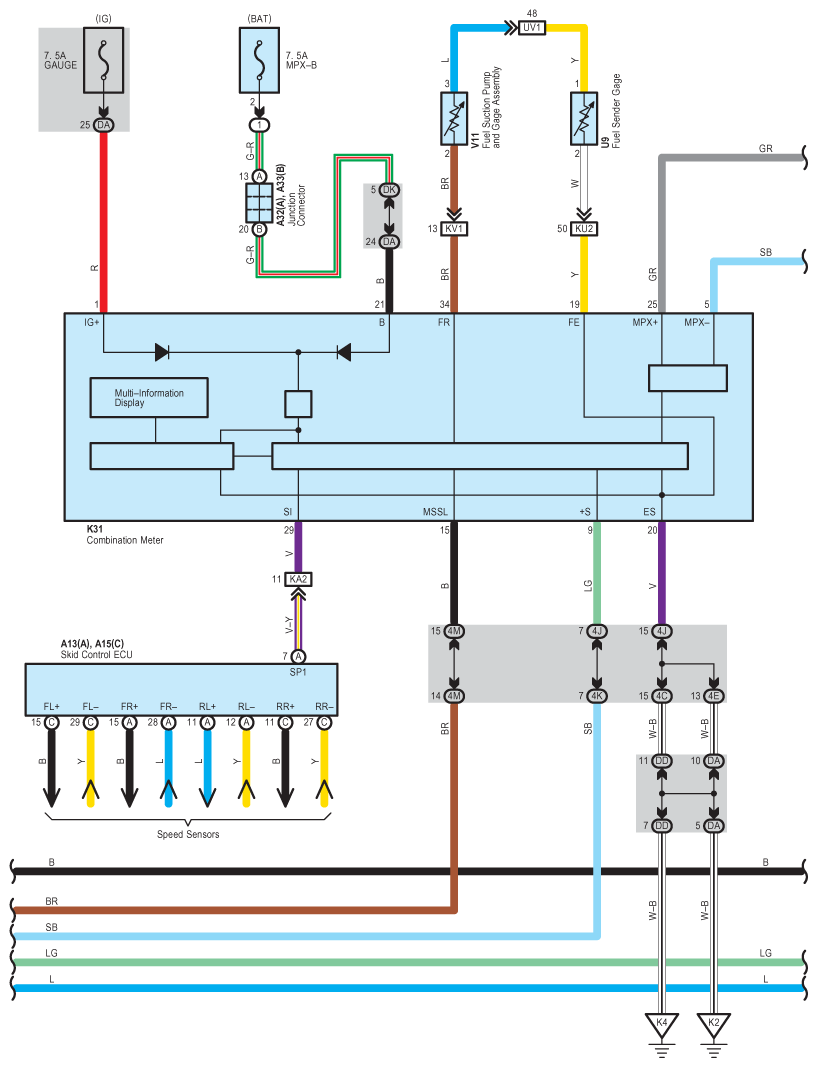

Fig 3: Audio And Multi Display System (Before Aug. 2006 Production) Wiring Diagram (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

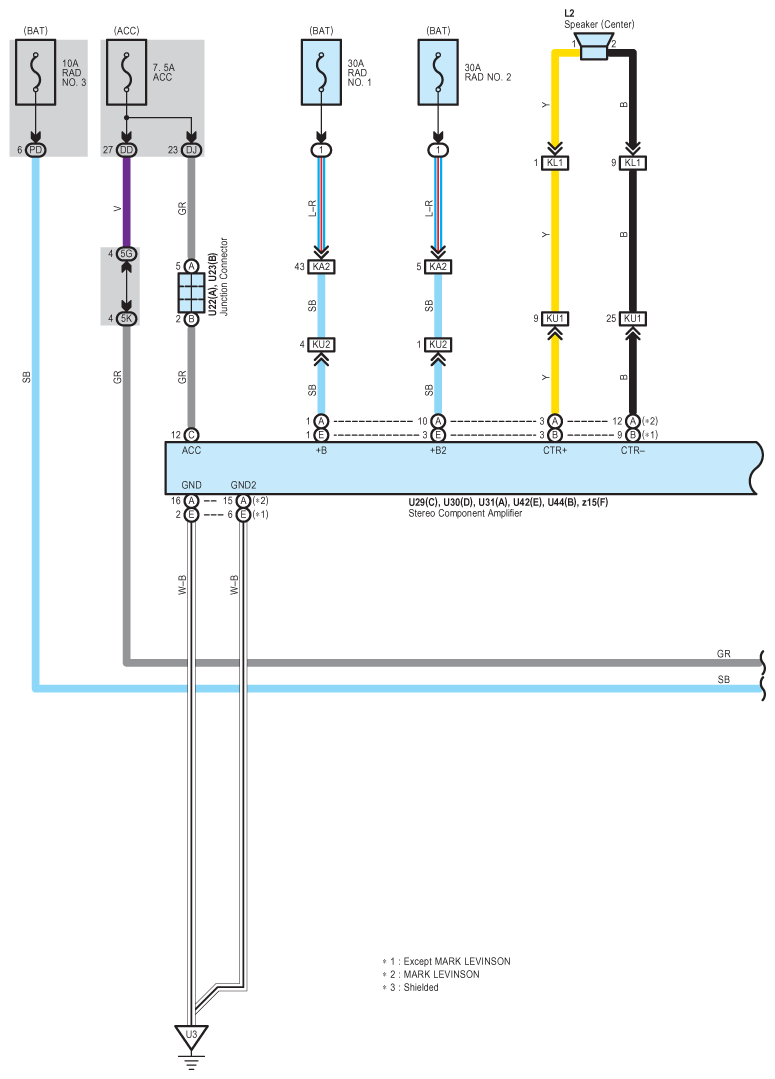

Fig 4: Audio And Multi Display System (Before Aug. 2006 Production) Wiring Diagram (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

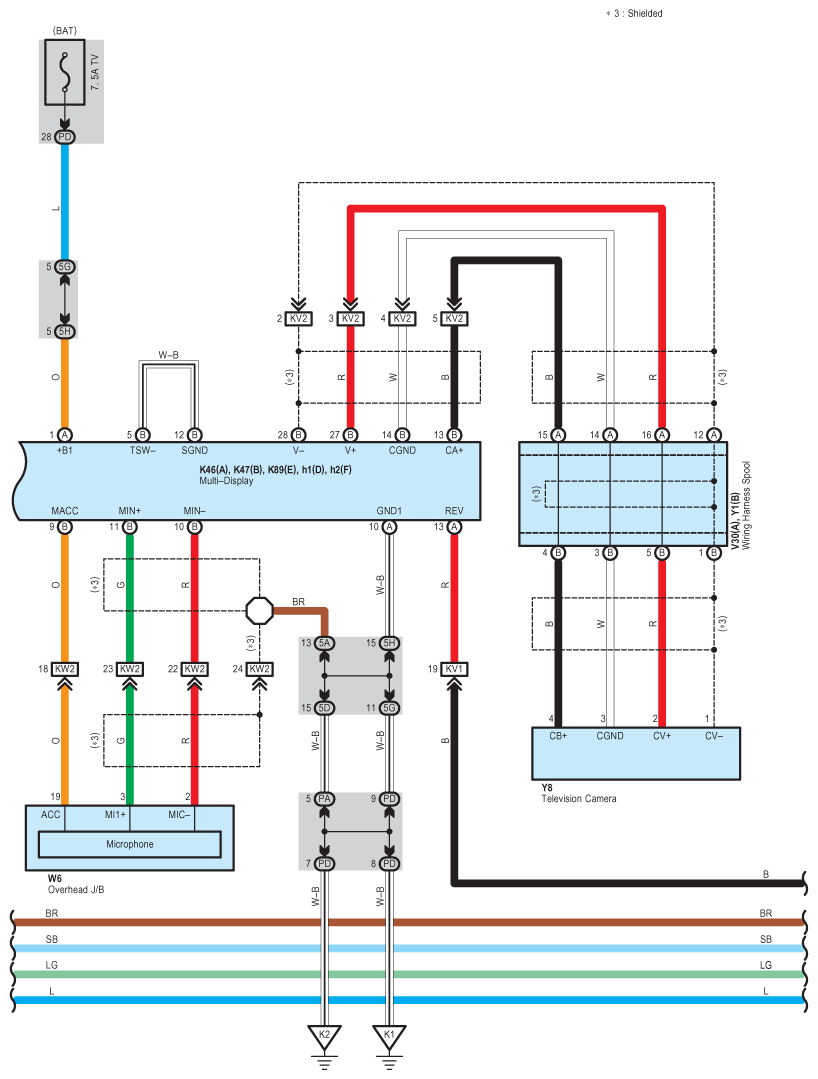

Fig 5: Audio And Multi Display System (Before Aug. 2006 Production) Wiring Diagram (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

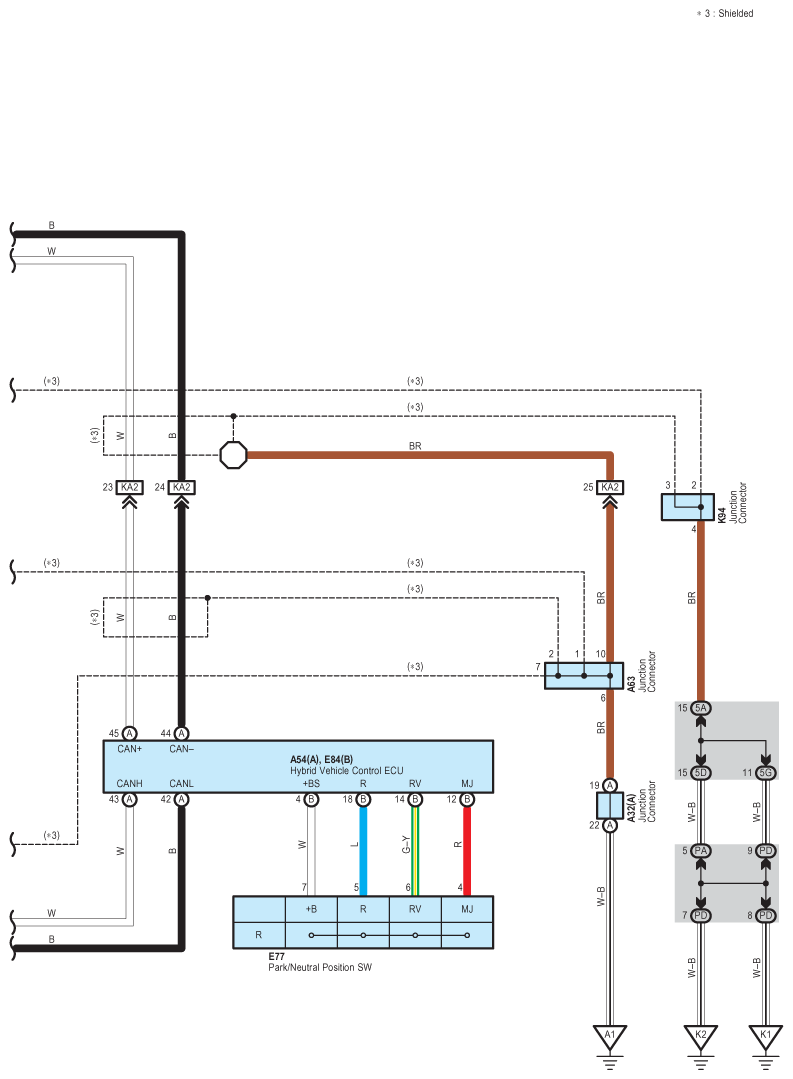

Fig 6: Audio And Multi Display System (Before Aug. 2006 Production) Wiring Diagram (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

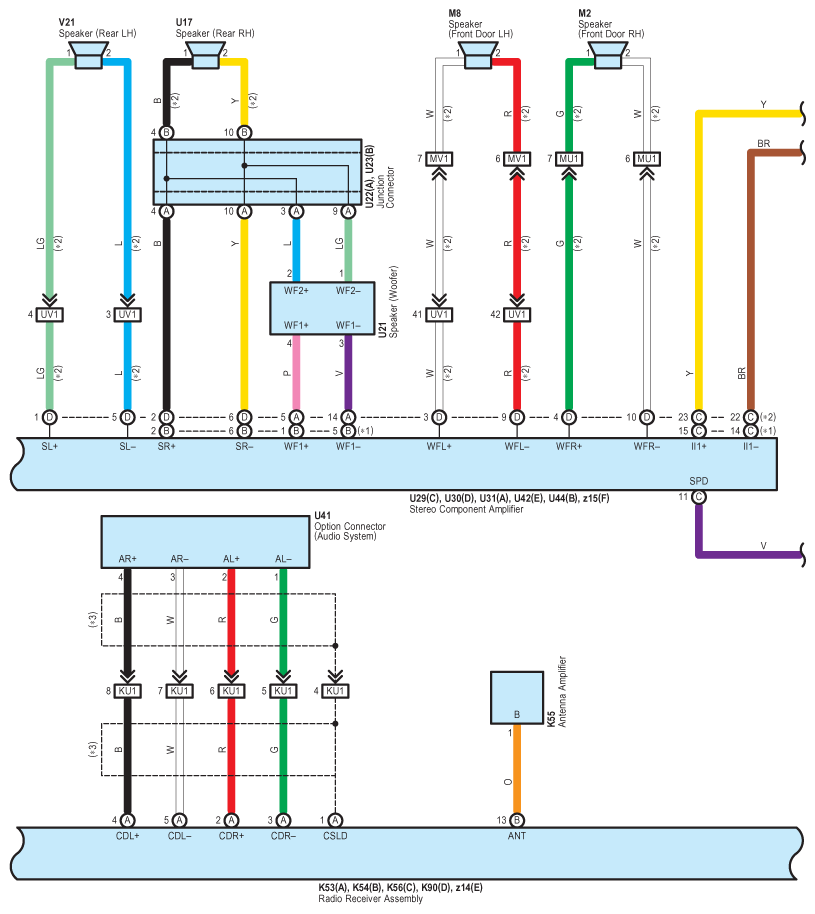

Fig 7: Audio And Multi Display System (Before Aug. 2006 Production) Wiring Diagram (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

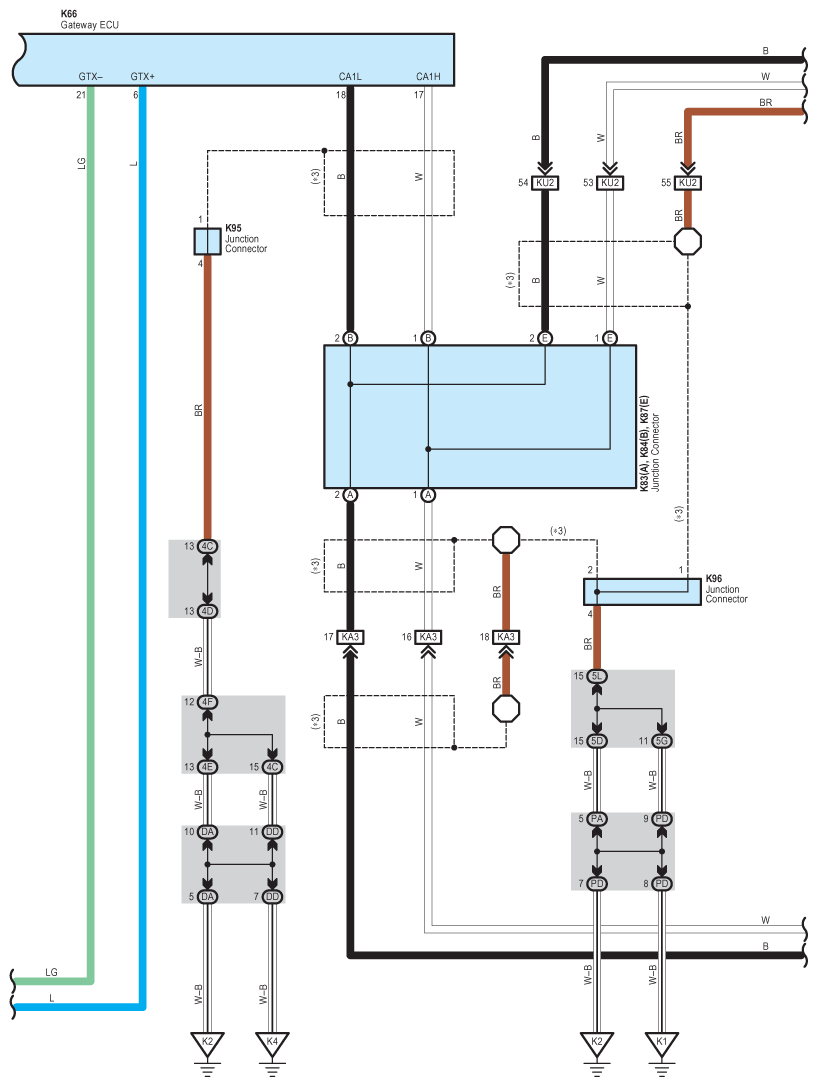

Fig 8: Audio And Multi Display System (Before Aug. 2006 Production) Wiring Diagram (8 Of 11)

Fig 9: Audio And Multi Display System (Before Aug. 2006 Production) Wiring Diagram (9 Of 11)

Fig 10: Audio And Multi Display System (Before Aug. 2006 Production) Wiring Diagram (10 Of 11)

Fig 11: Audio And Multi Display System (Before Aug. 2006 Production) Wiring Diagram (11 Of 11)
