Cruise Control: Notes

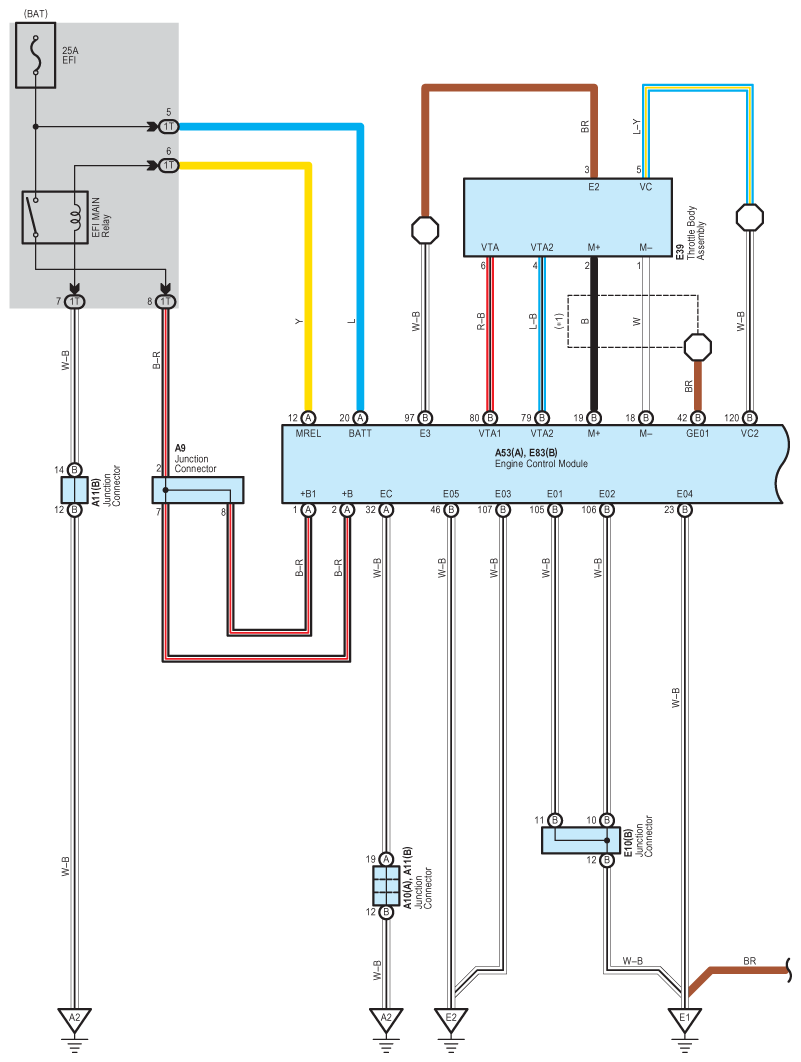

Fig 1: Cruise Control Wiring Diagram (1 Of 16)

G08919560

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

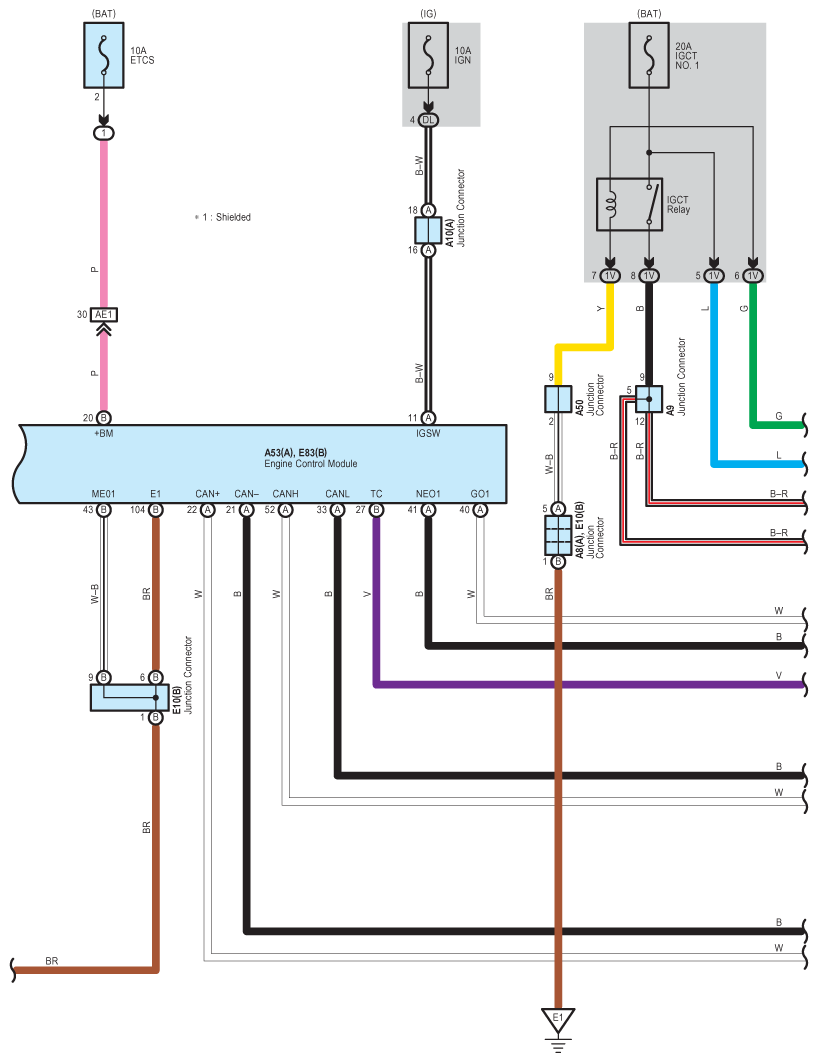

Fig 2: Cruise Control Wiring Diagram (2 Of 16)

G08919561

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

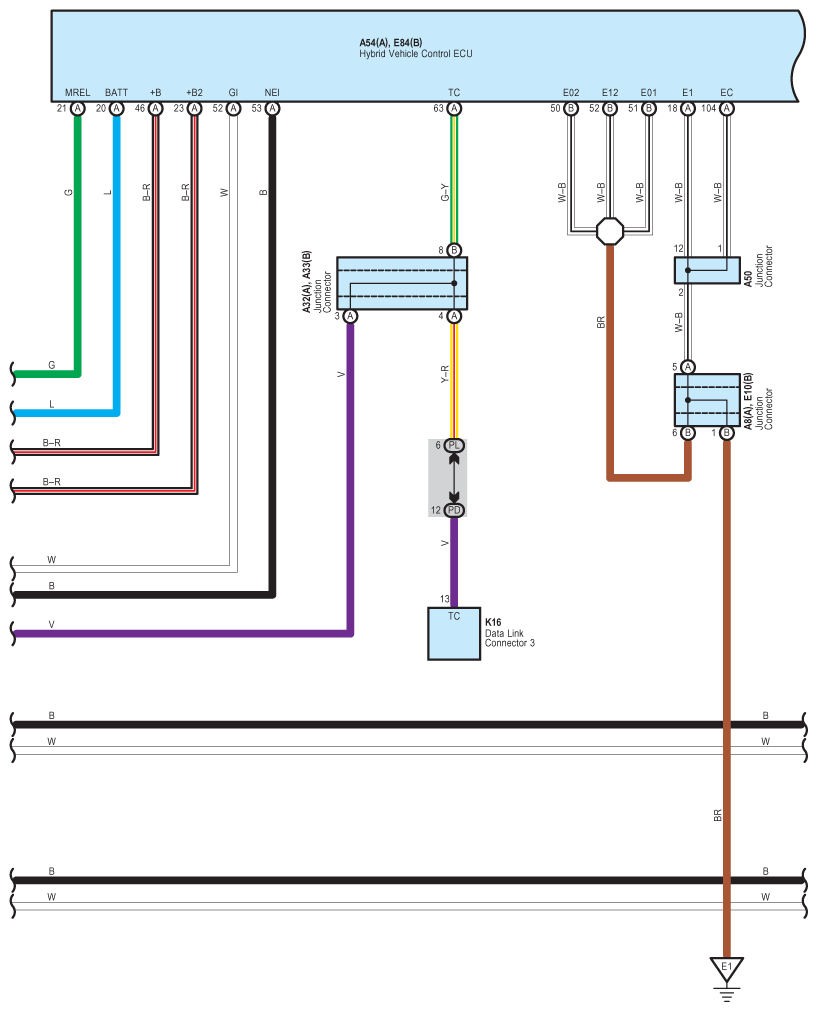

Fig 3: Cruise Control Wiring Diagram (3 Of 16)

G08919562

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

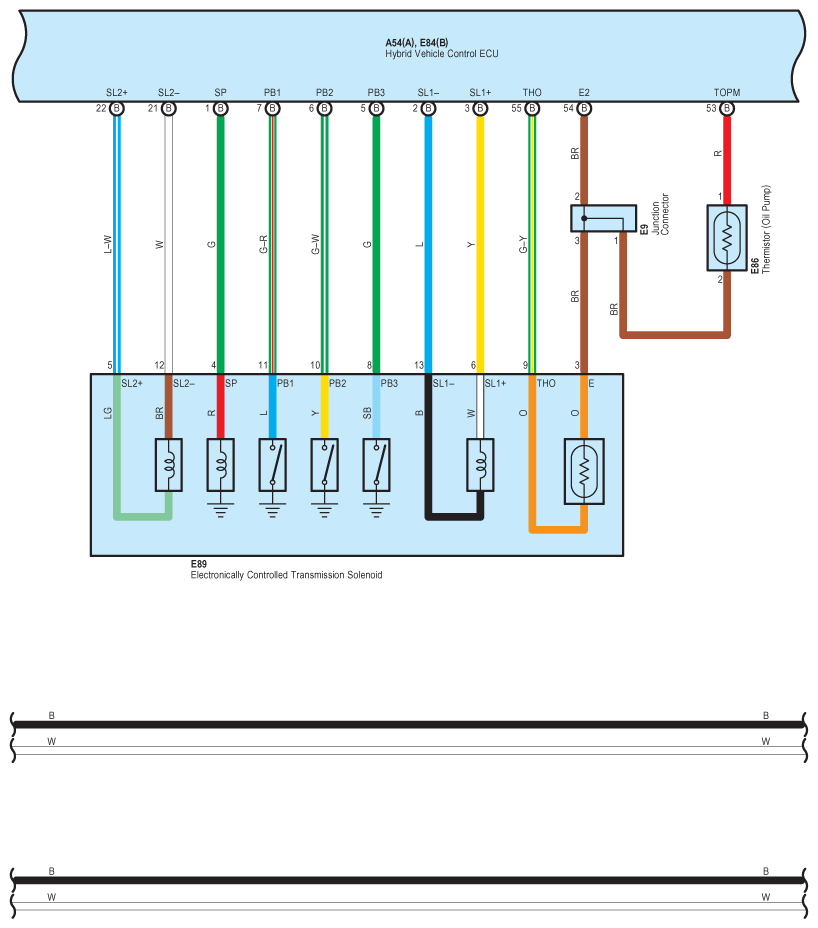

Fig 4: Cruise Control Wiring Diagram (4 Of 16)

G08919563

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

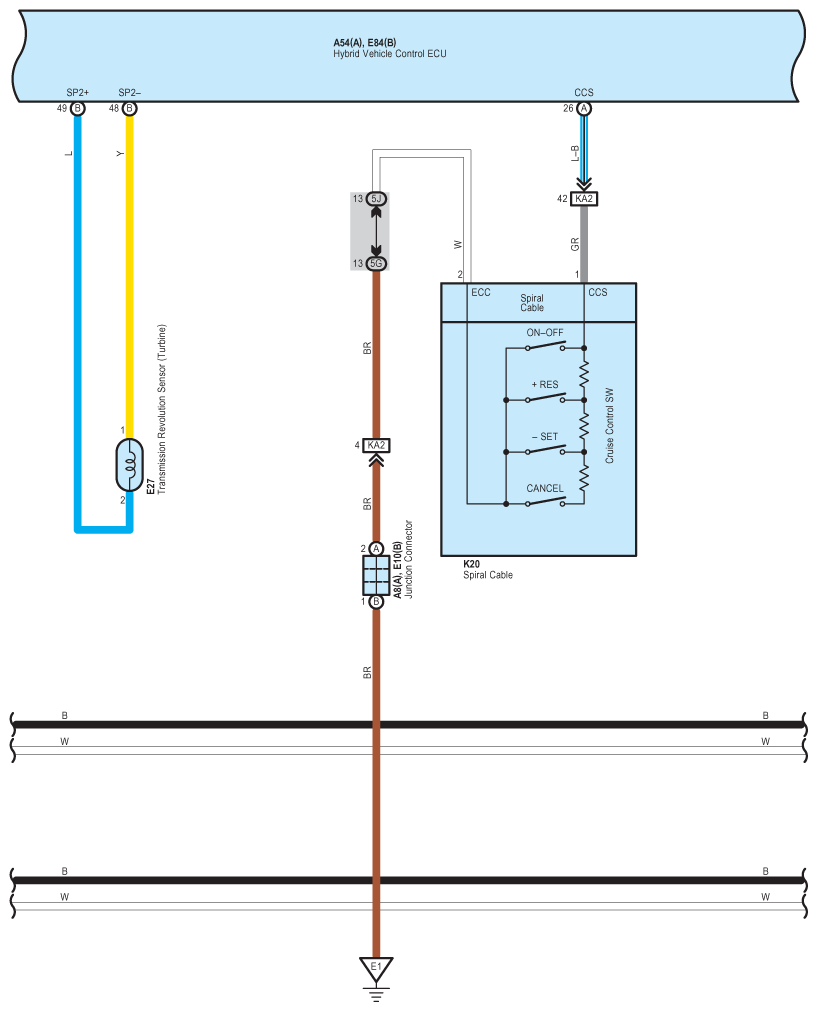

Fig 5: Cruise Control Wiring Diagram (5 Of 16)

G08919564

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

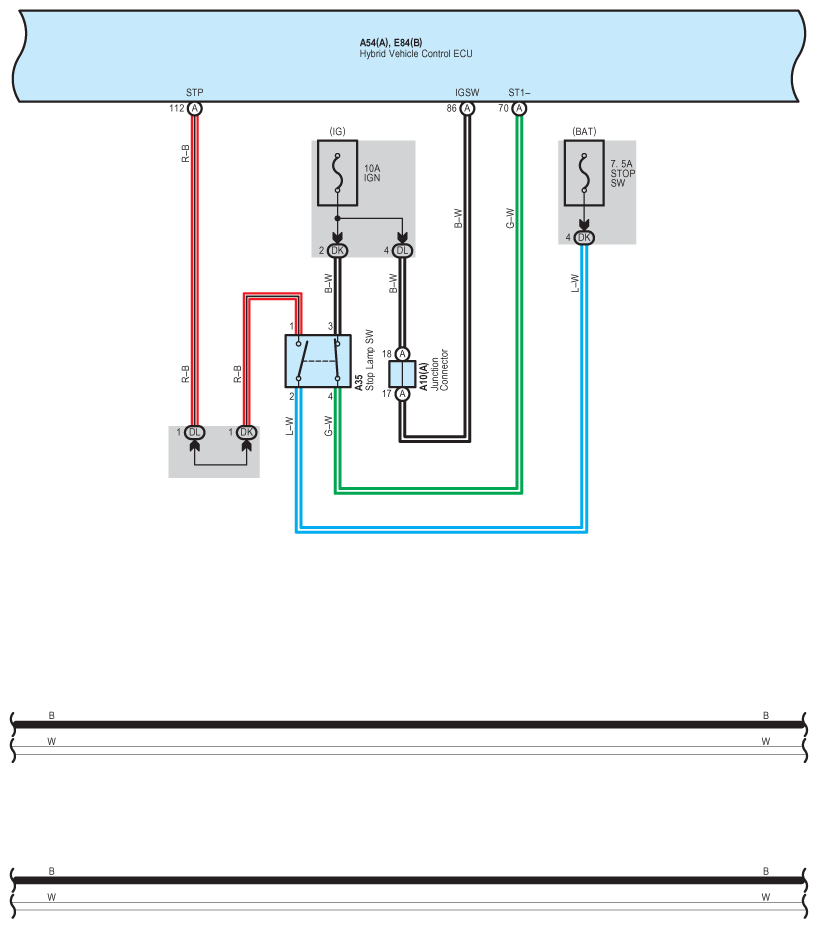

Fig 6: Cruise Control Wiring Diagram (6 Of 16)

G08919565

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

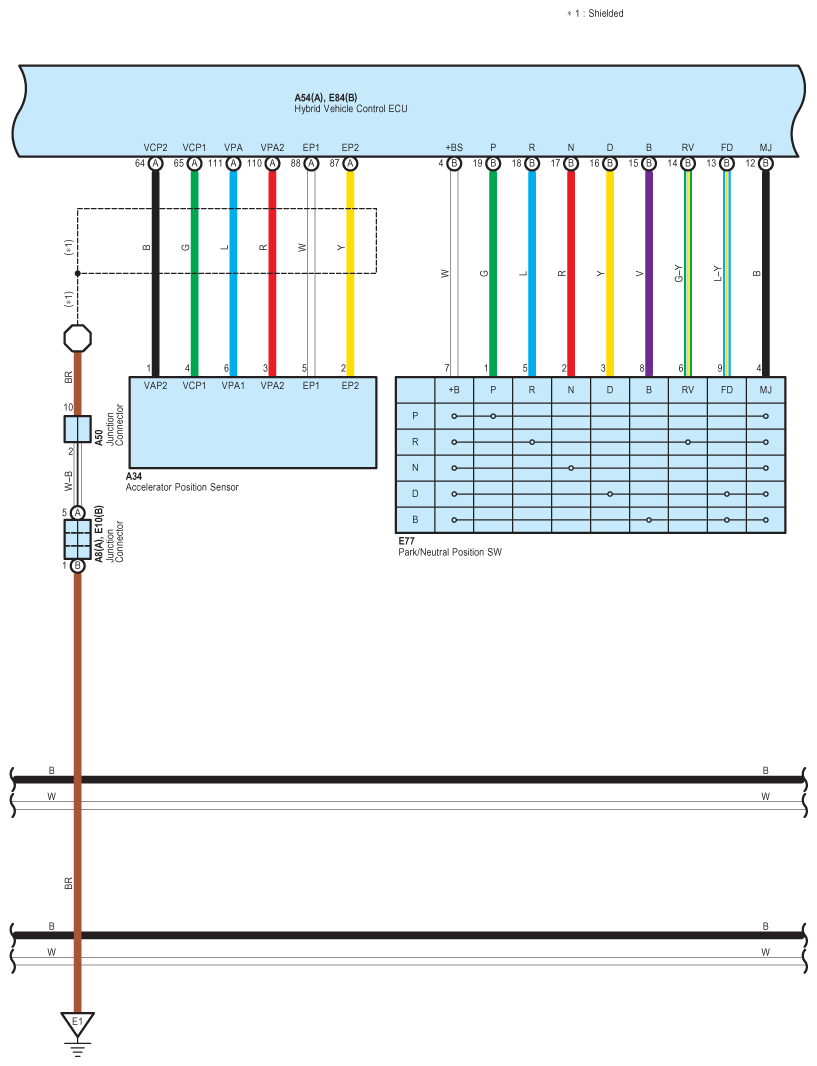

Fig 7: Cruise Control Wiring Diagram (7 Of 16)

G08919566

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

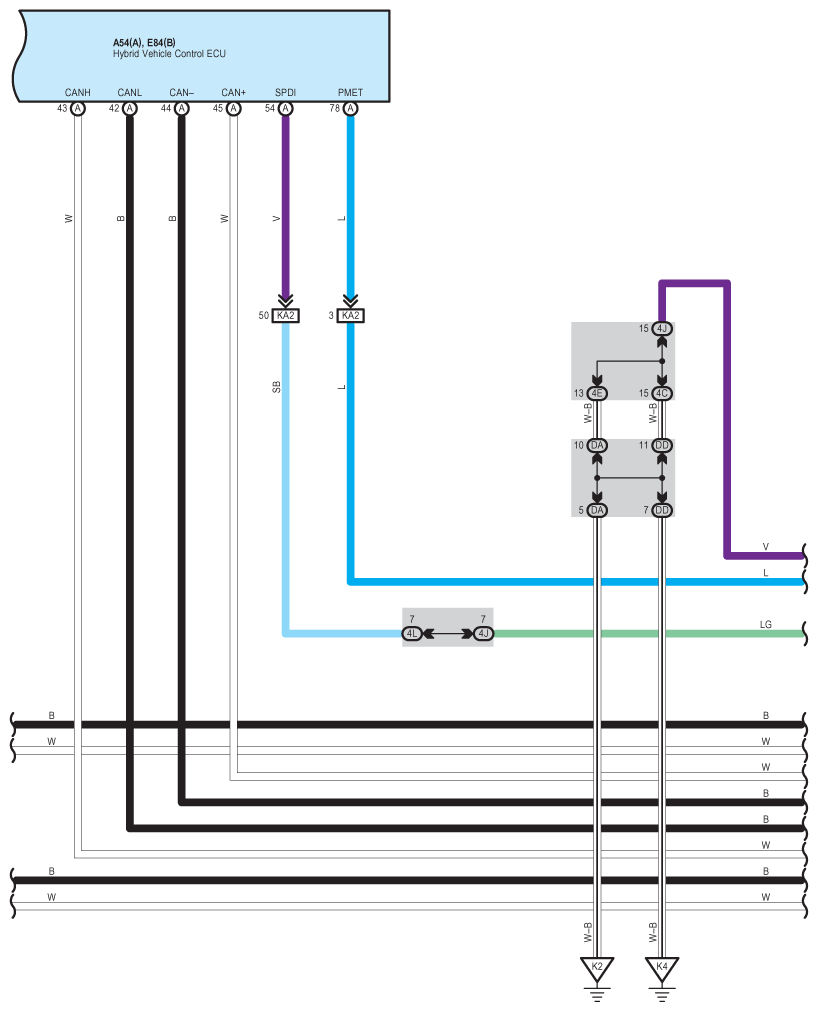

Fig 8: Cruise Control Wiring Diagram (8 Of 16)

G08919567

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

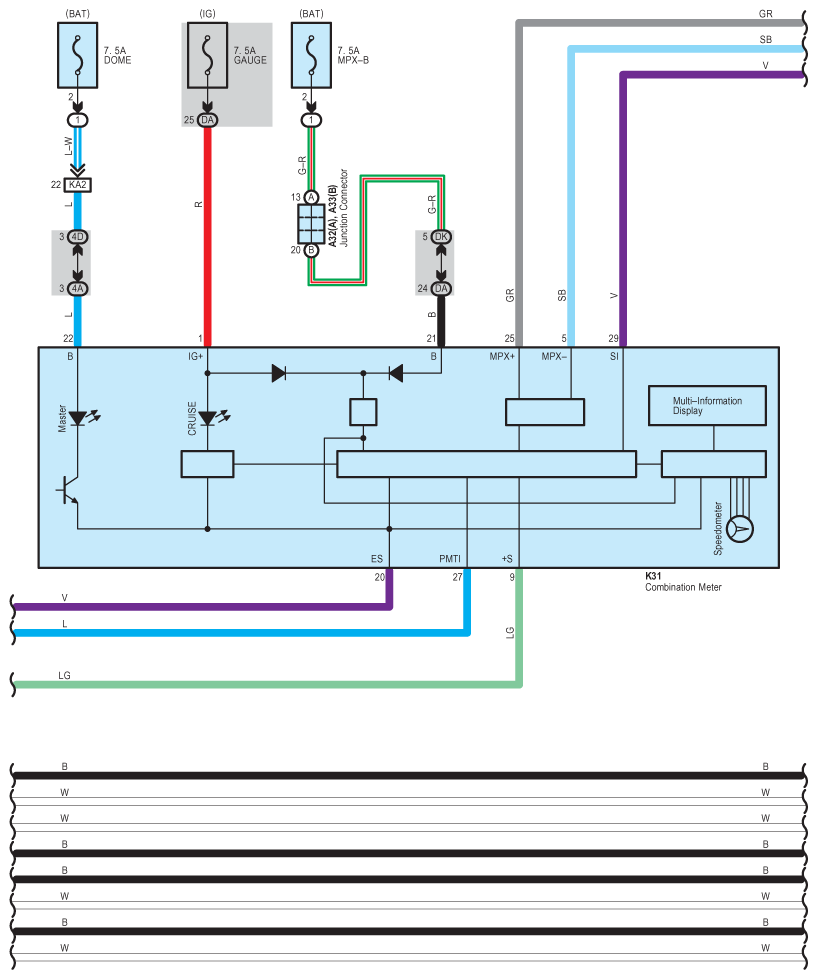

Fig 9: Cruise Control Wiring Diagram (9 Of 16)

G08919568

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

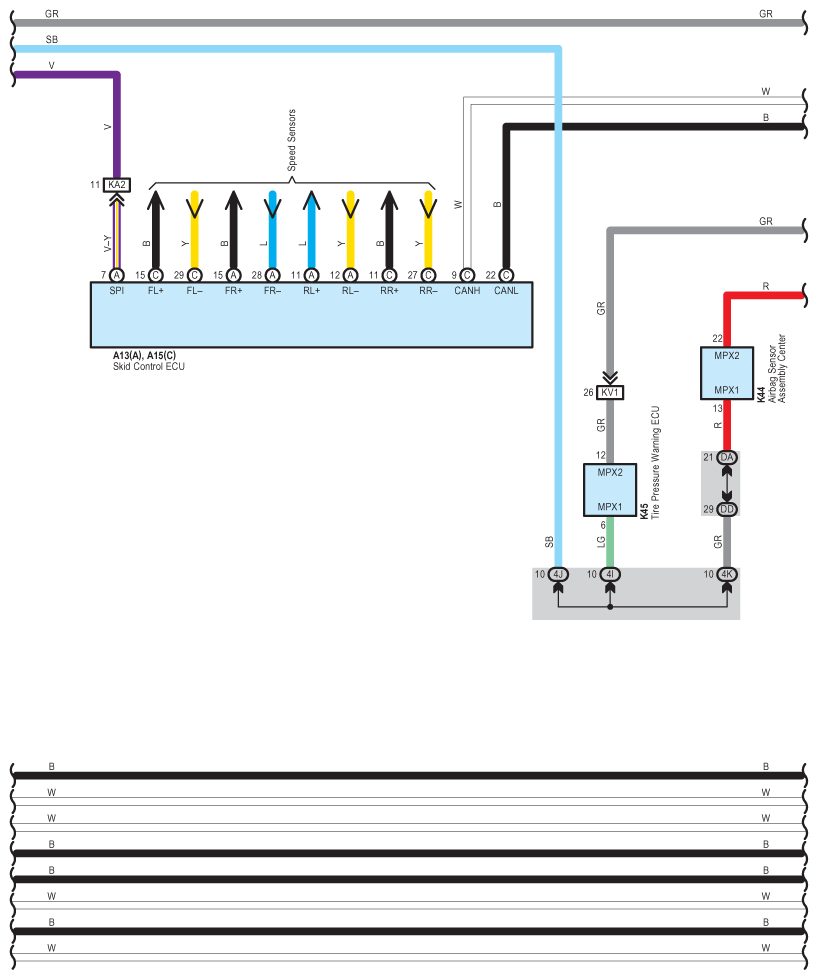

Fig 10: Cruise Control Wiring Diagram (10 Of 16)

G08919569

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

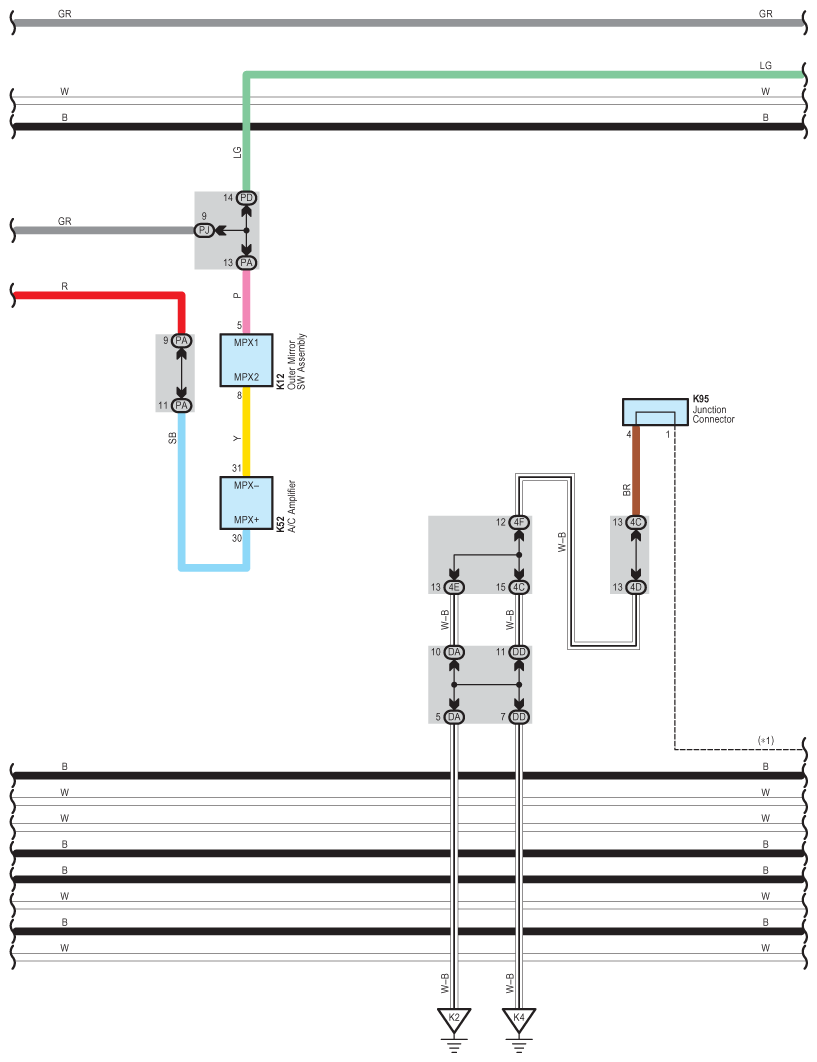

Fig 11: Cruise Control Wiring Diagram (11 Of 16)

G08919570

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

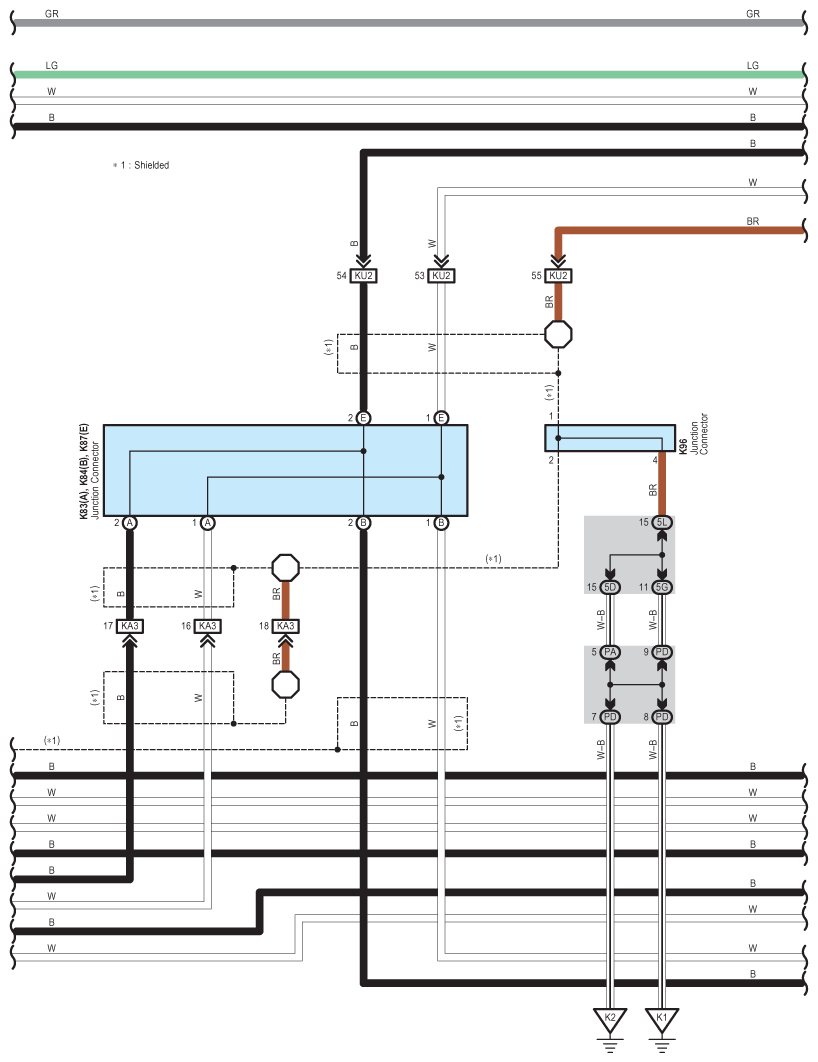

Fig 12: Cruise Control Wiring Diagram (12 Of 16)

G08919571

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

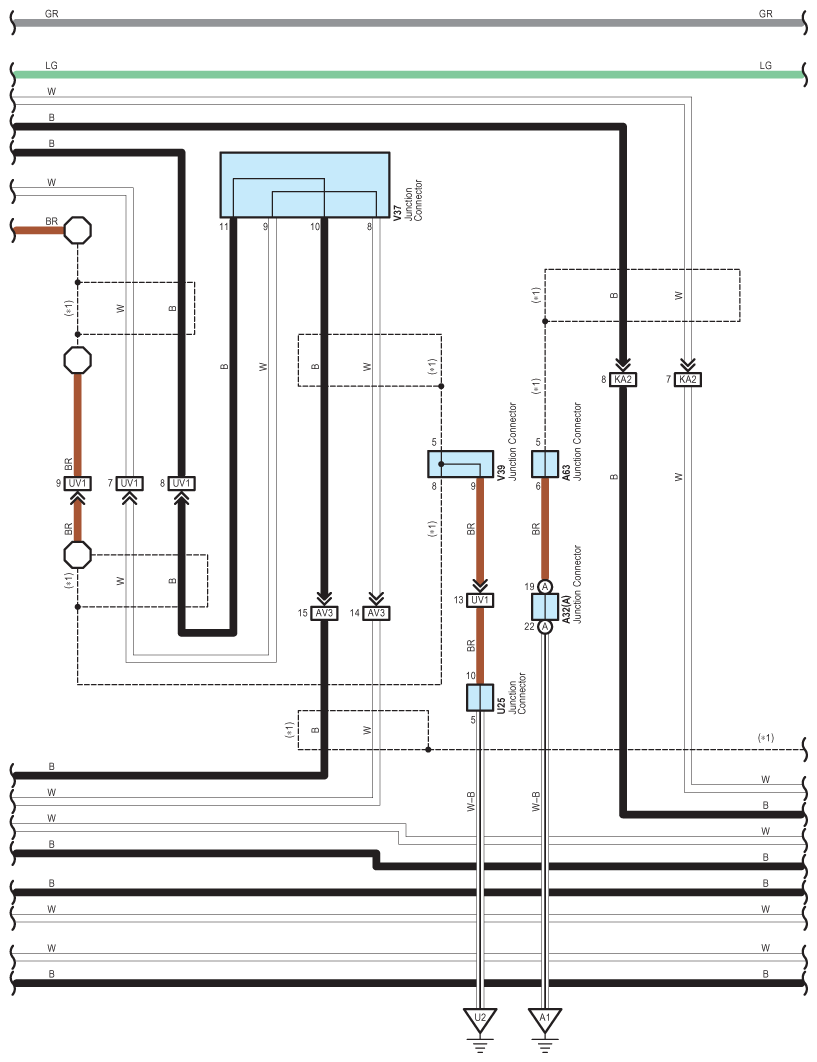

Fig 13: Cruise Control Wiring Diagram (13 Of 16)

G08919572

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

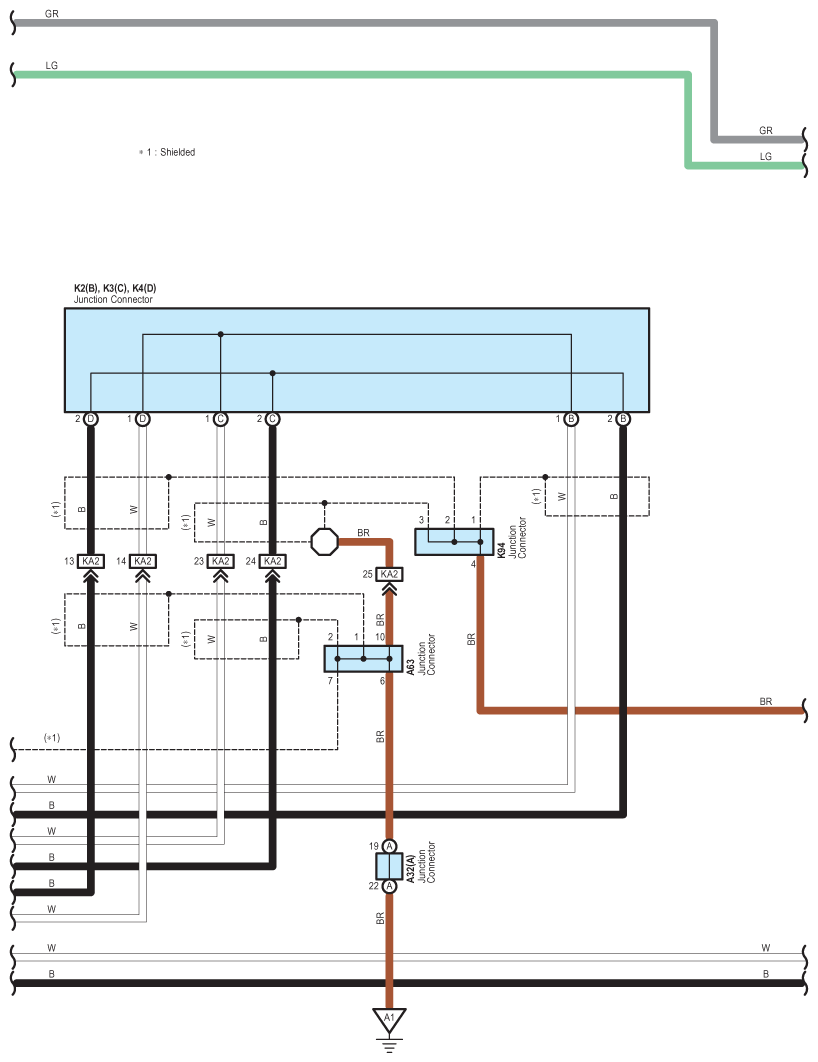

Fig 14: Cruise Control Wiring Diagram (14 Of 16)

G08919573

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

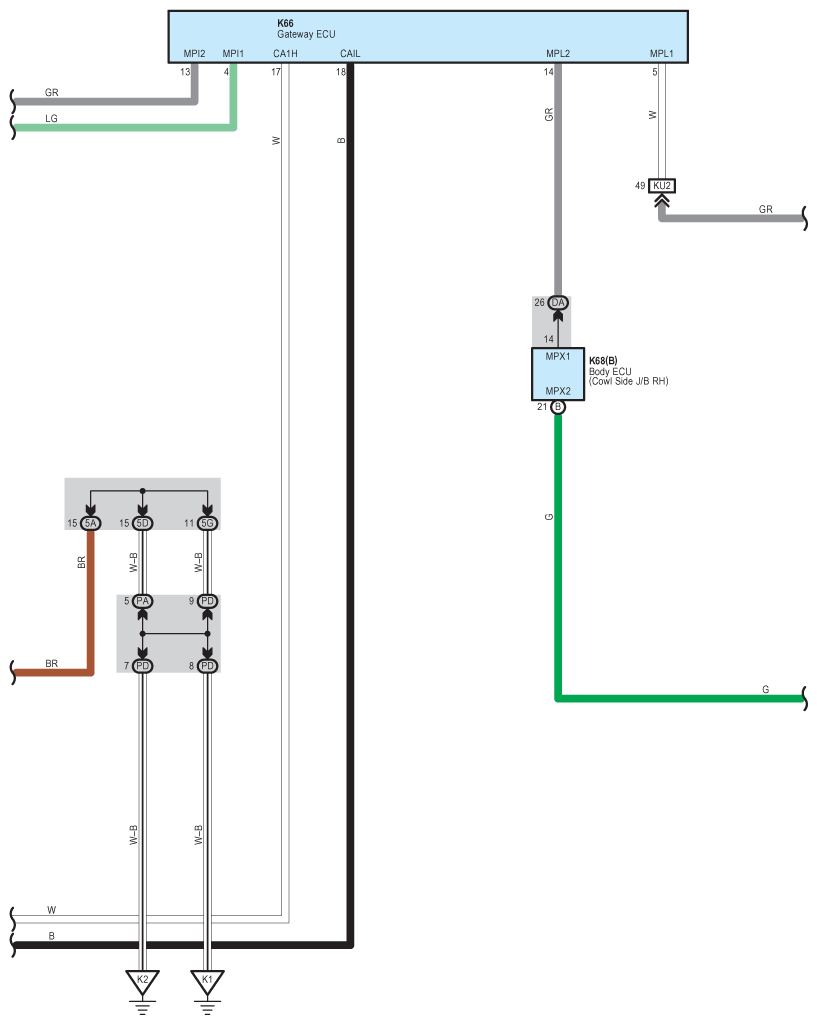

Fig 15: Cruise Control Wiring Diagram (15 Of 16)

G08919574

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 16: Cruise Control Wiring Diagram (16 Of 16)

G08919575

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
