Door Lock Control: Notes

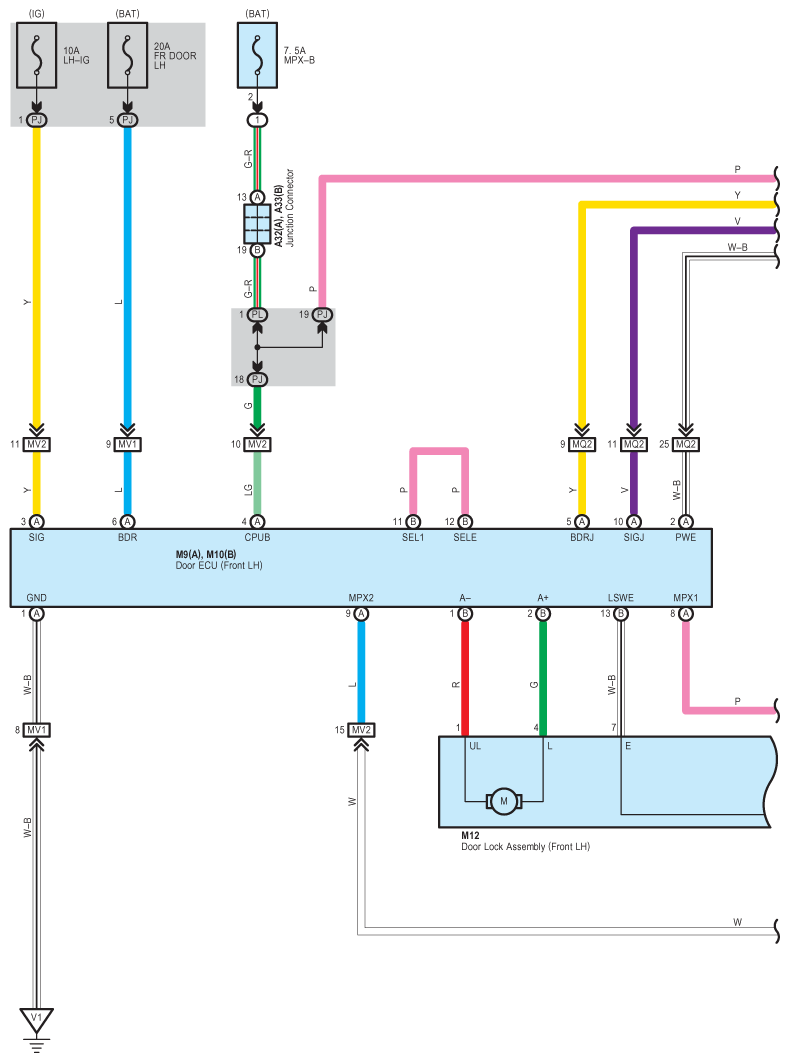

Fig 1: Door Lock Control Wiring Diagram (1 Of 9)

G08919517

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

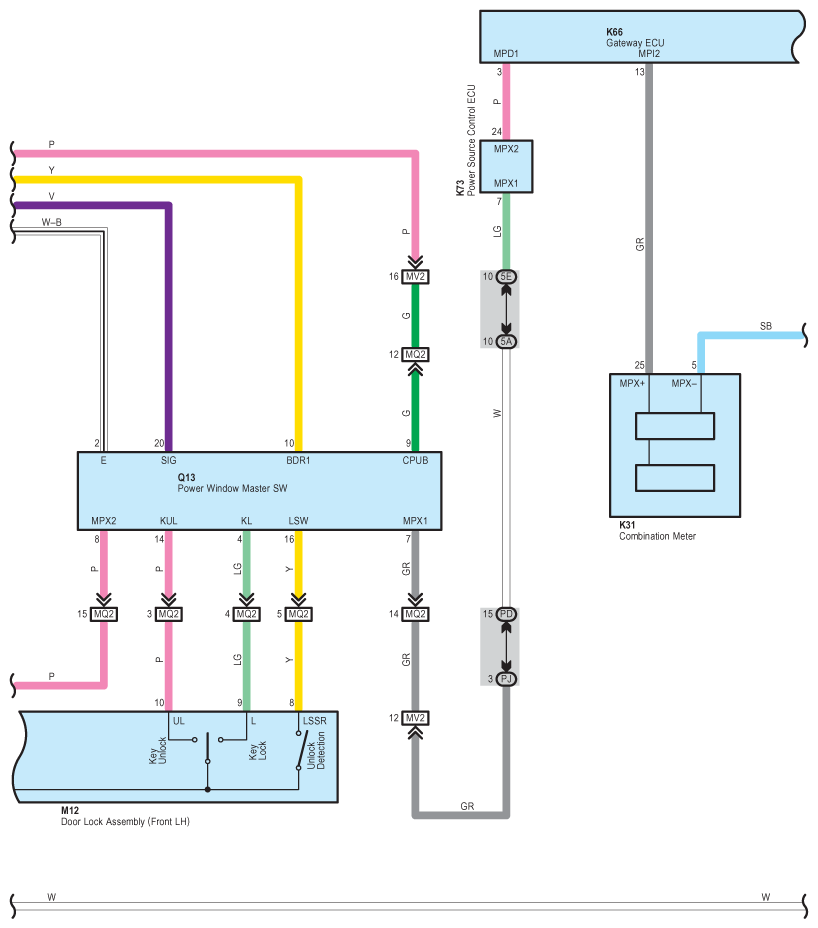

Fig 2: Door Lock Control Wiring Diagram (2 Of 9)

G08919518

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

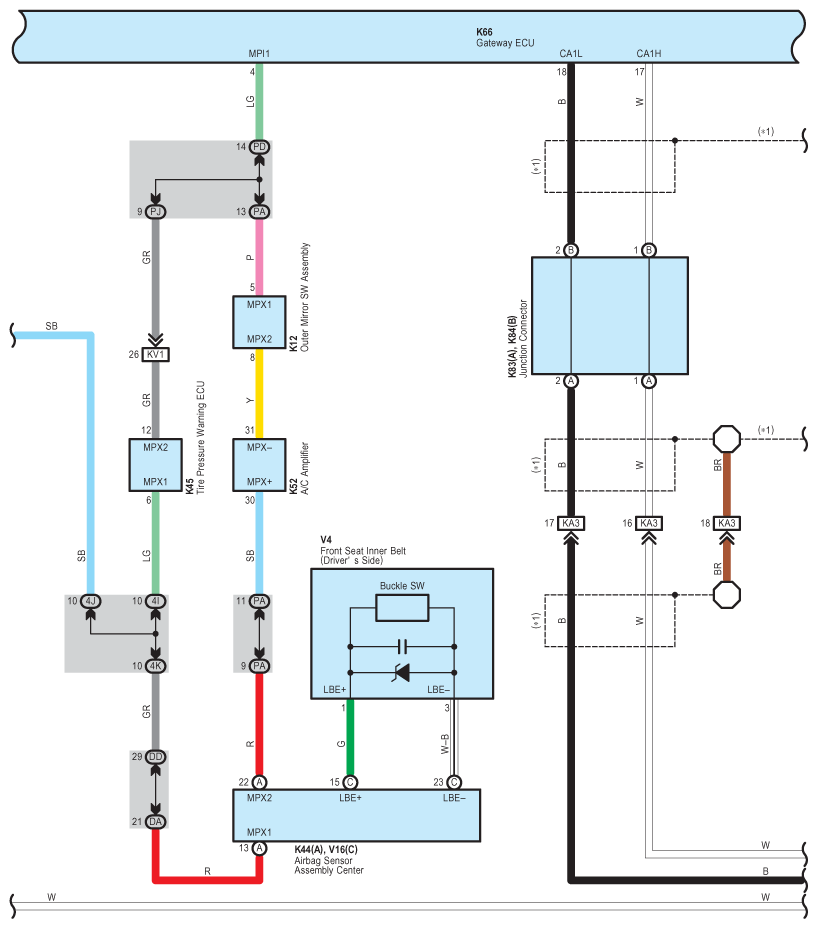

Fig 3: Door Lock Control Wiring Diagram (3 Of 9)

G08919519

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

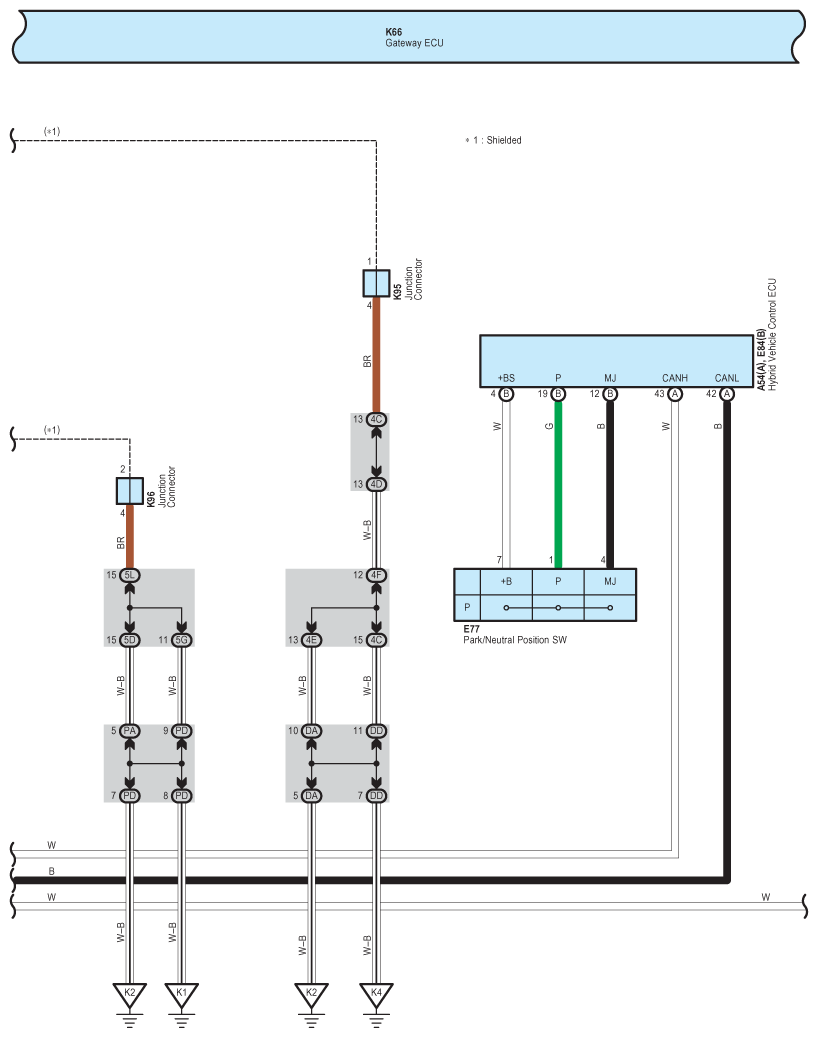

Fig 4: Door Lock Control Wiring Diagram (4 Of 9)

G08919520

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

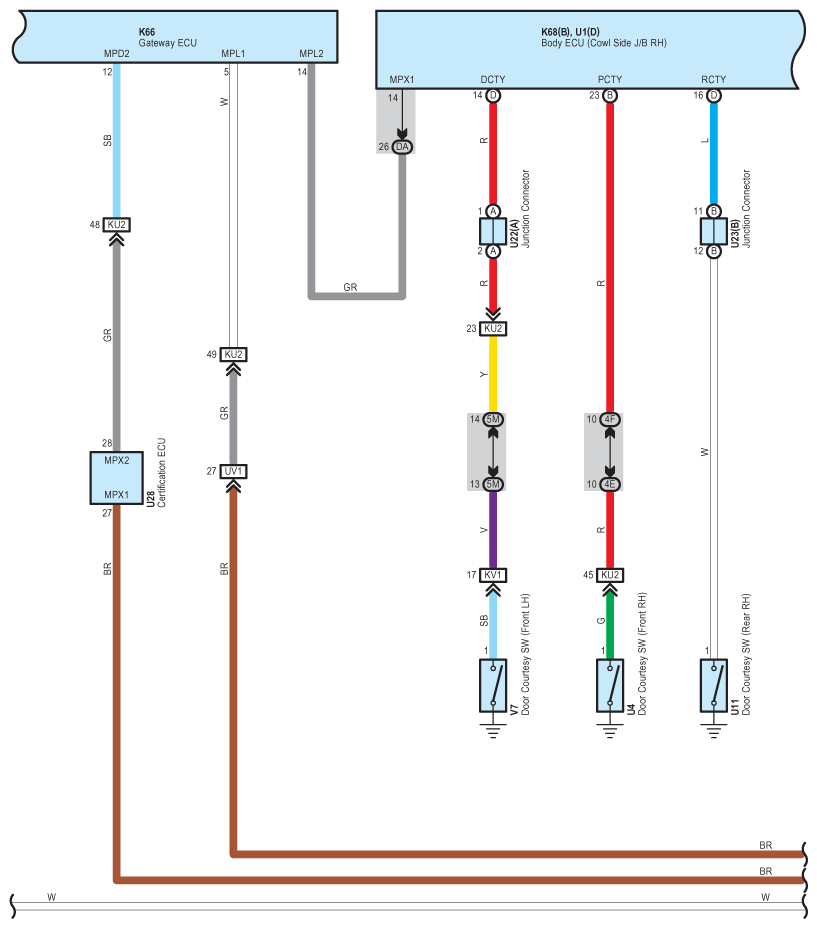

Fig 5: Door Lock Control Wiring Diagram (5 Of 9)

G08919521

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

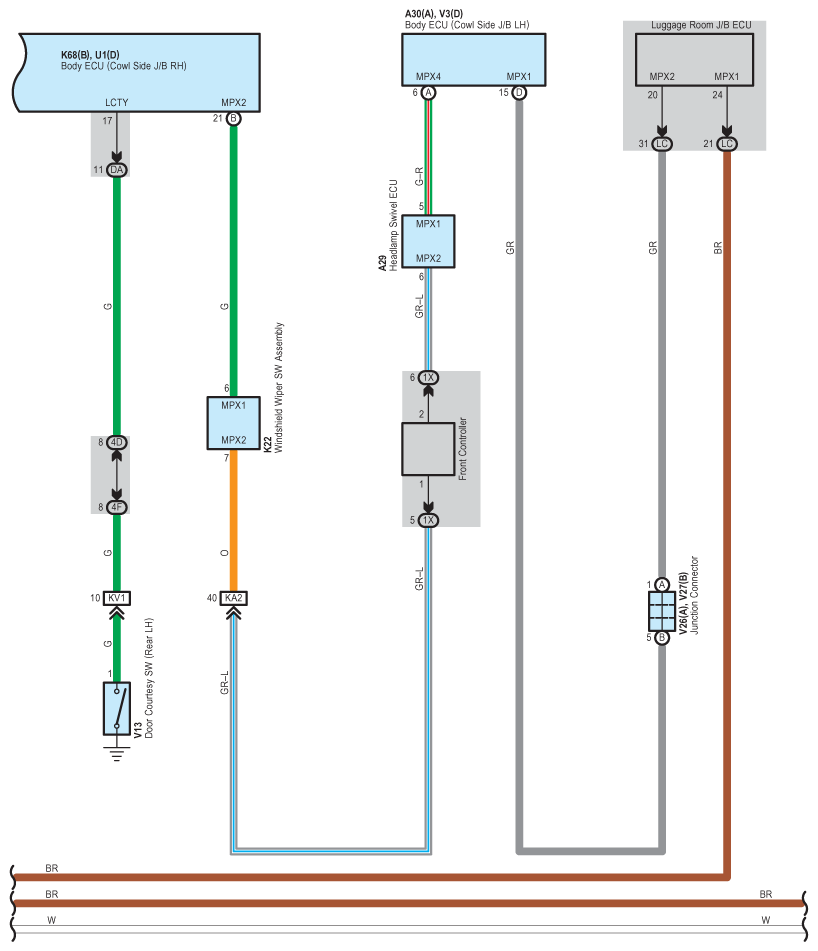

Fig 6: Door Lock Control Wiring Diagram (6 Of 9)

G08919522

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

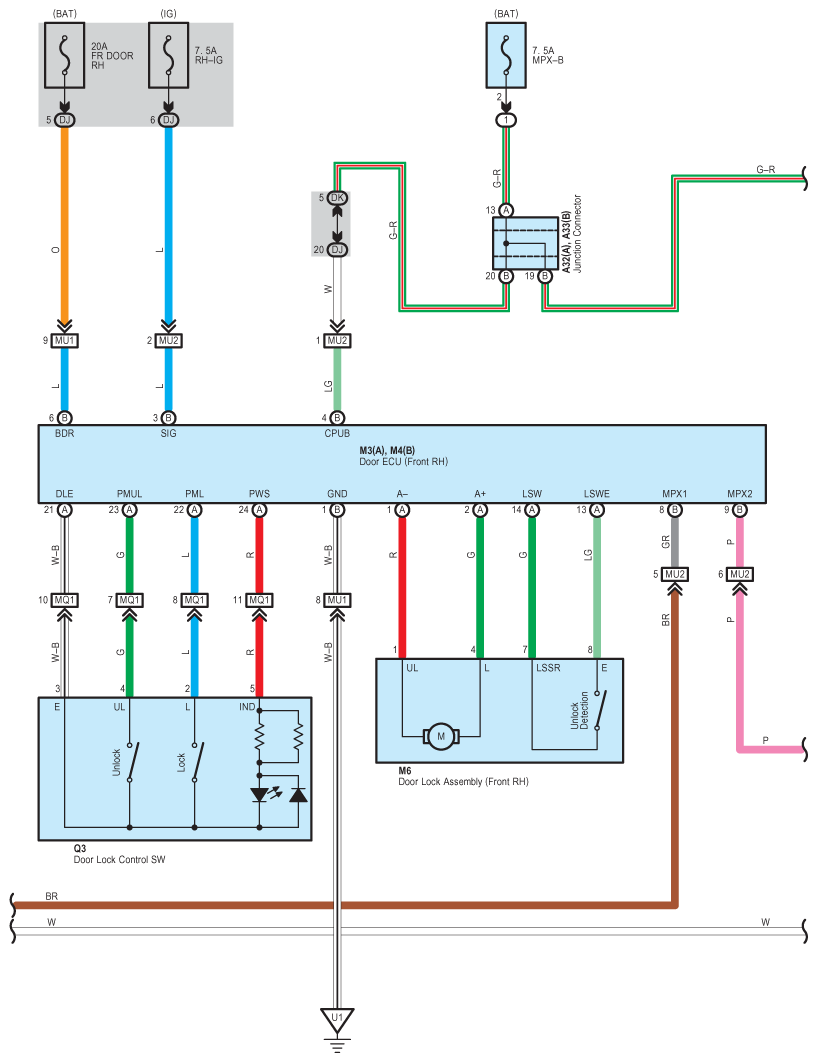

Fig 7: Door Lock Control Wiring Diagram (7 Of 9)

G08919523

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

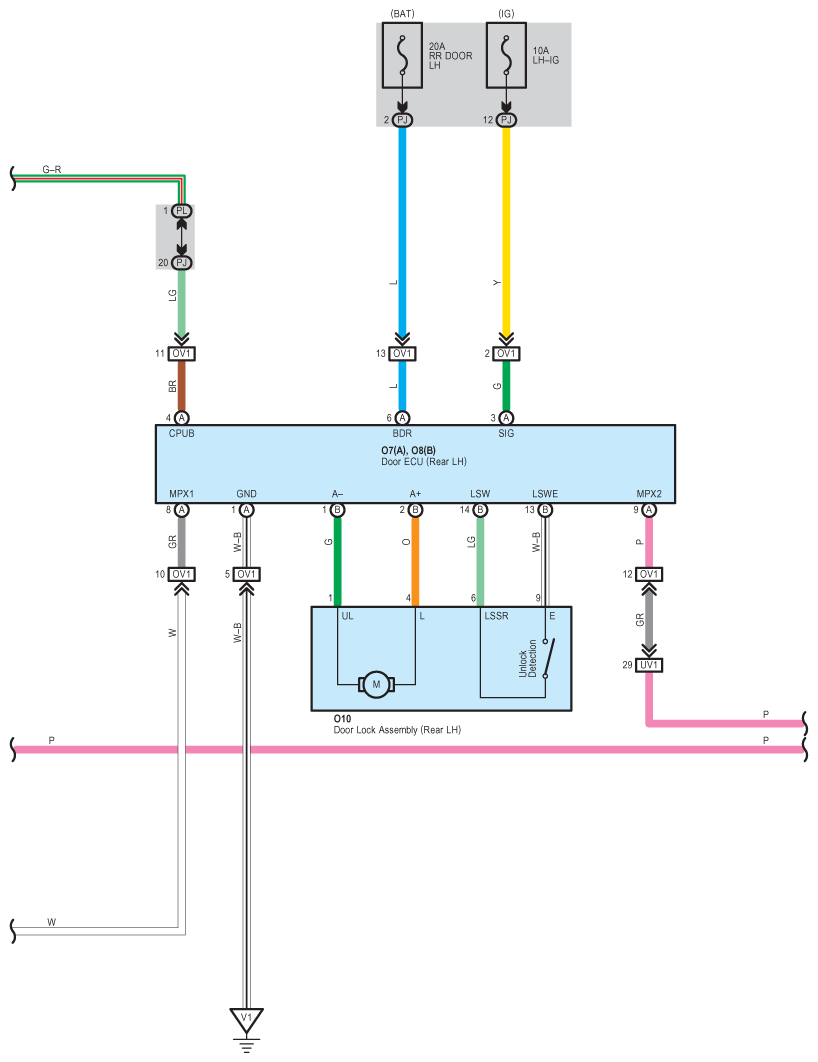

Fig 8: Door Lock Control Wiring Diagram (8 Of 9)

G08919524

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

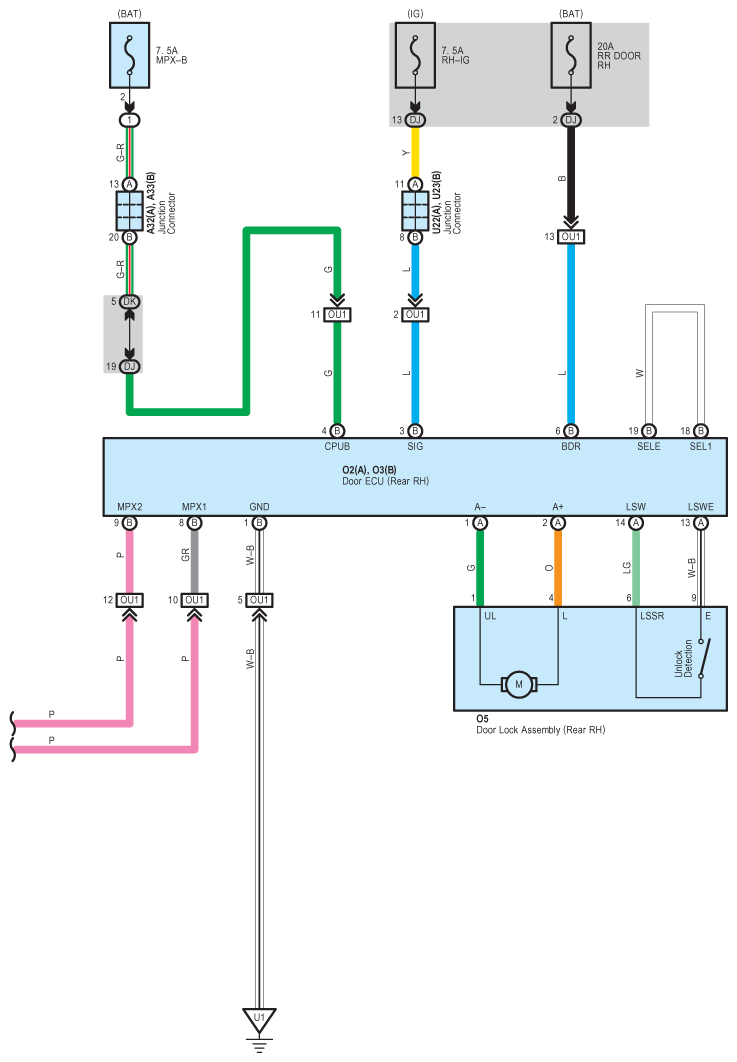

Fig 9: Door Lock Control Wiring Diagram (9 Of 9)

G08919525

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
