Front Fog Light: Notes

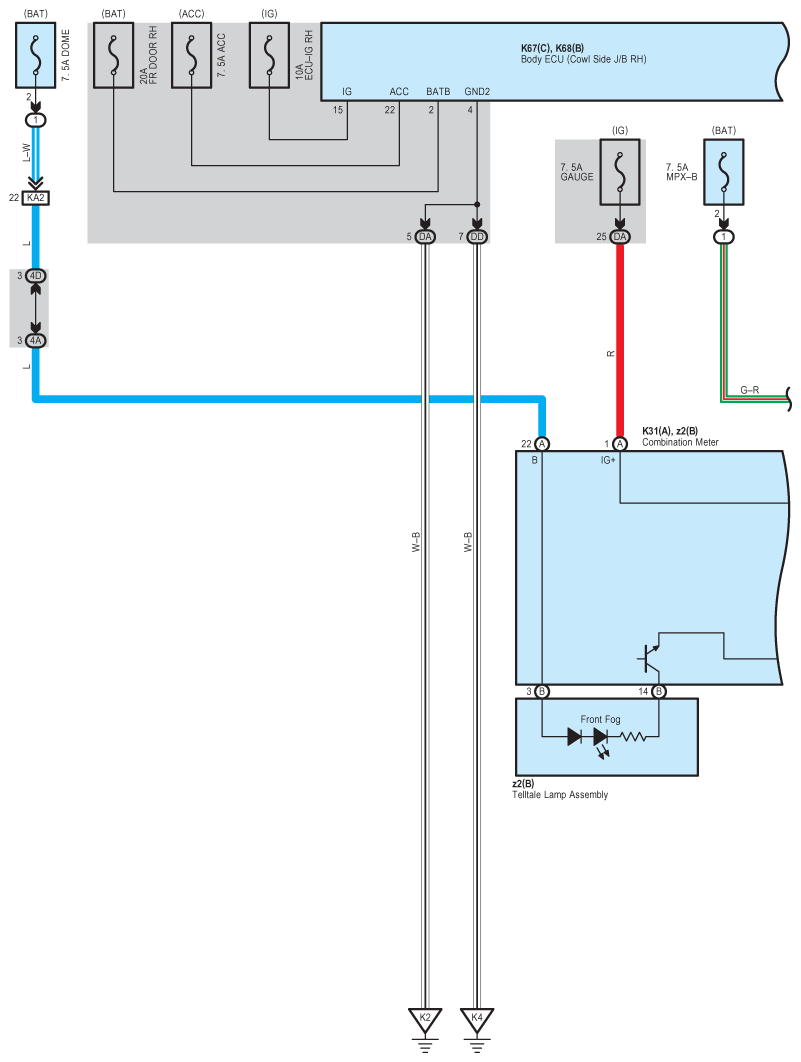

Fig 1: Front Fog Light Wiring Diagram (1 Of 5)
G08919481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

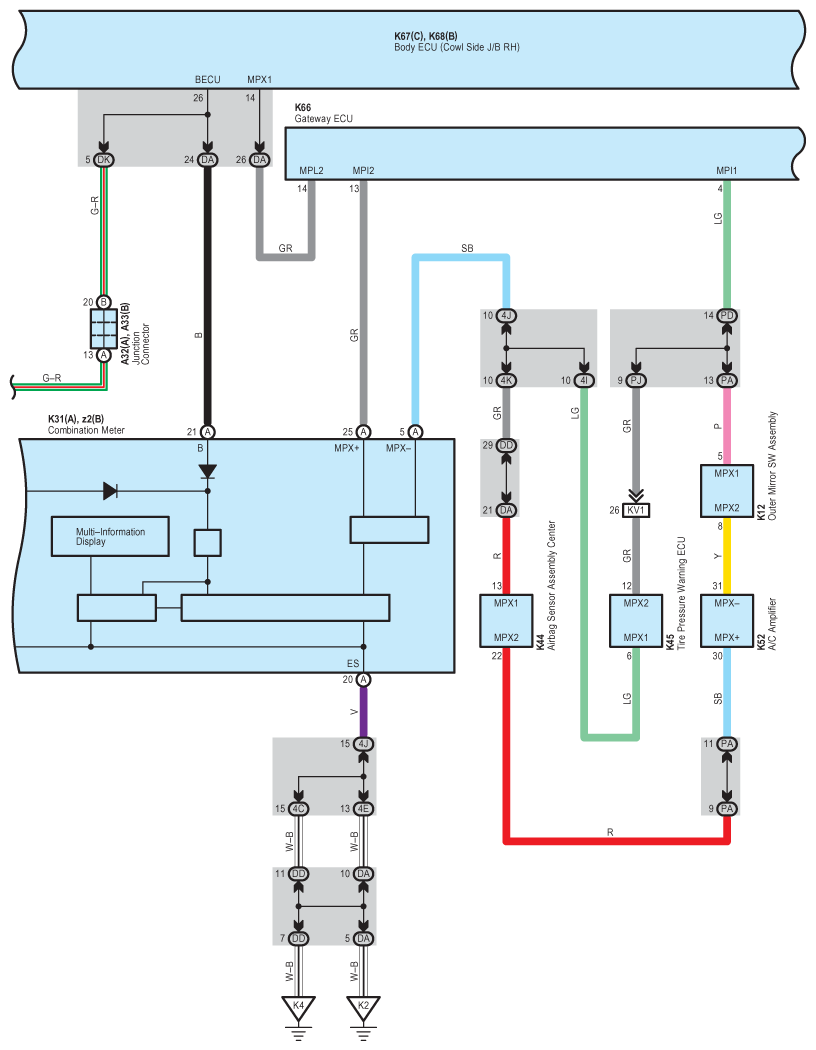

Fig 2: Front Fog Light Wiring Diagram (2 Of 5)
G08919482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

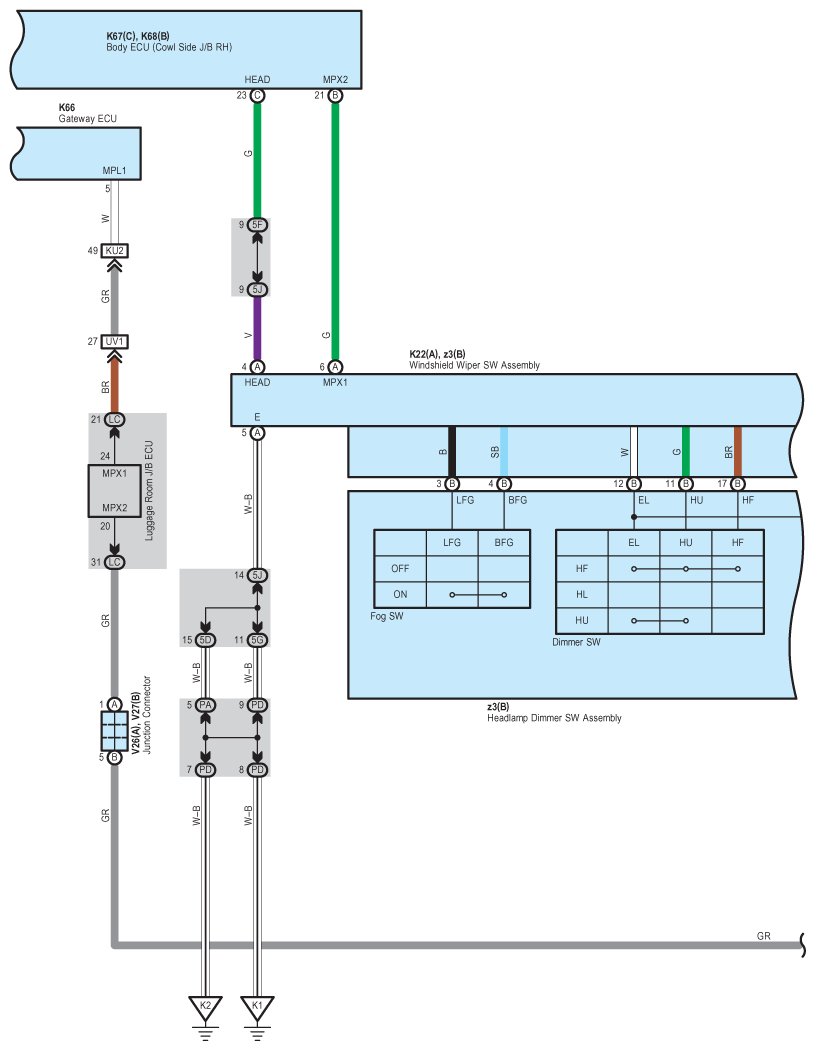

Fig 3: Front Fog Light Wiring Diagram (3 Of 5)
G08919483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

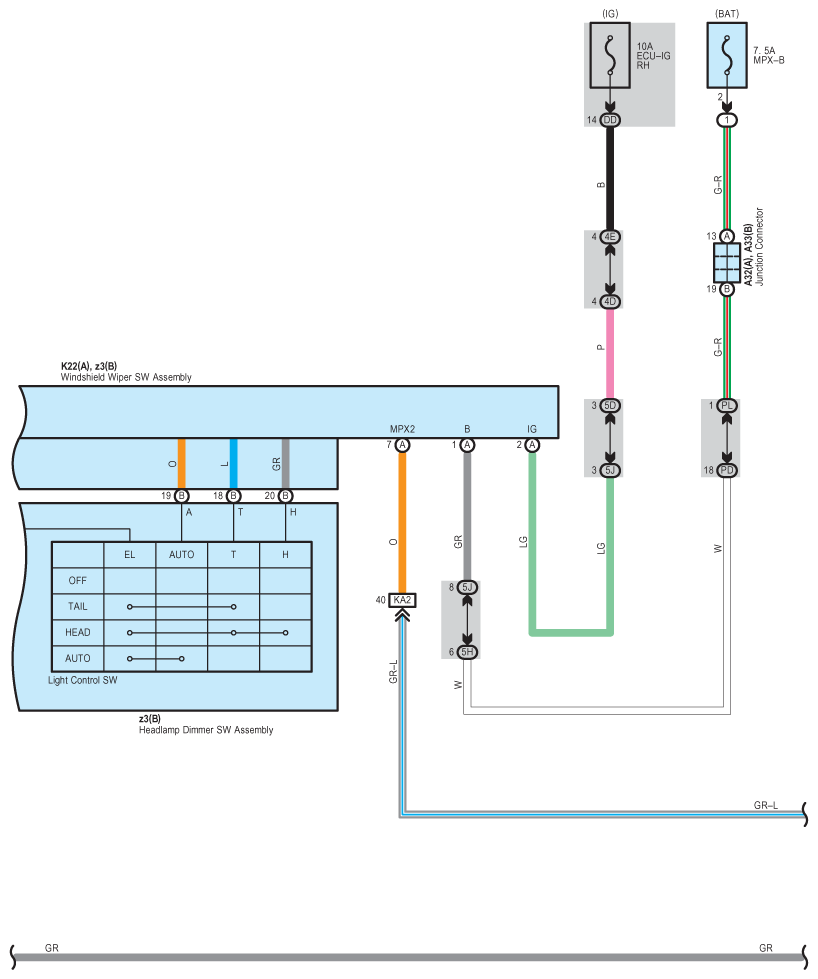

Fig 4: Front Fog Light Wiring Diagram (4 Of 5)
G08919484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

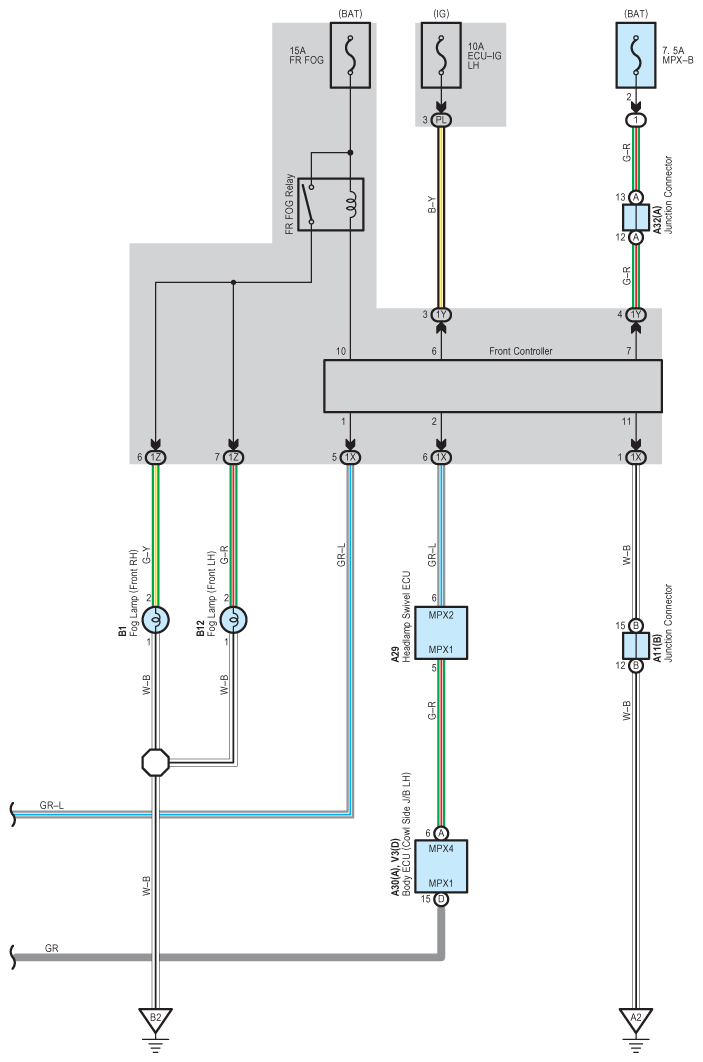

Fig 5: Front Fog Light Wiring Diagram (5 Of 5)
G08919485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
