OEM System Circuits: Illumination: Notes

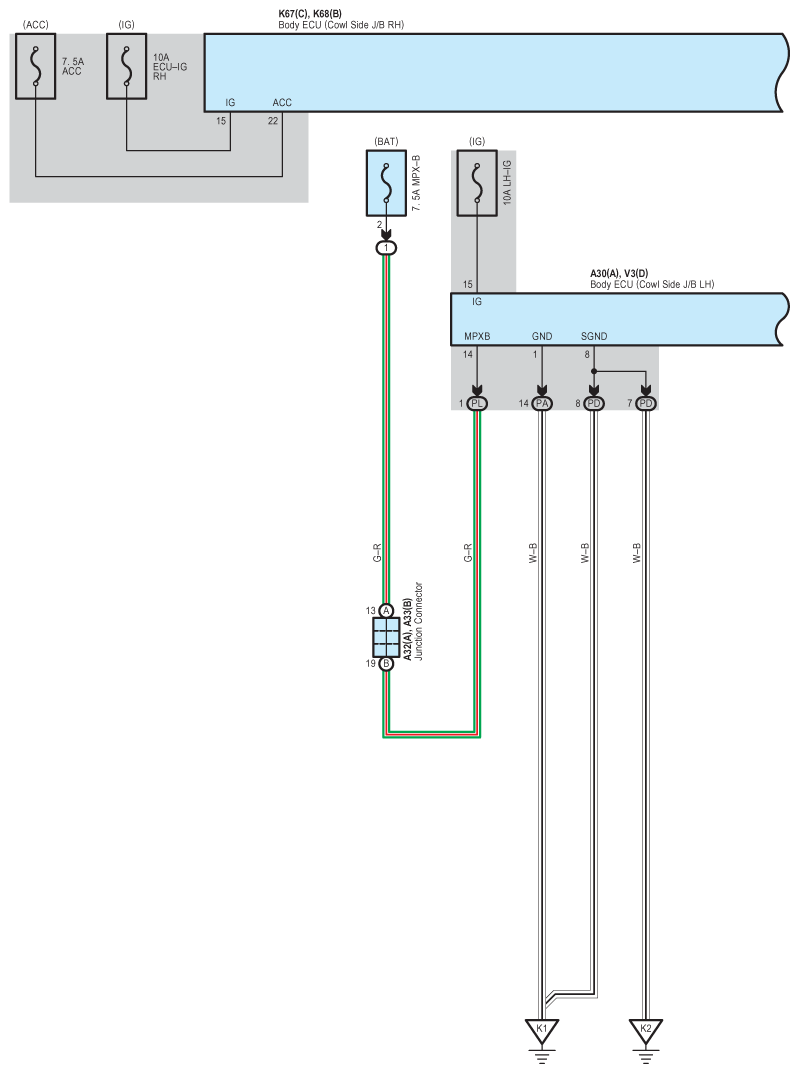

Fig 1: Illumination Wiring Diagram (1 Of 10)

G08919467

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

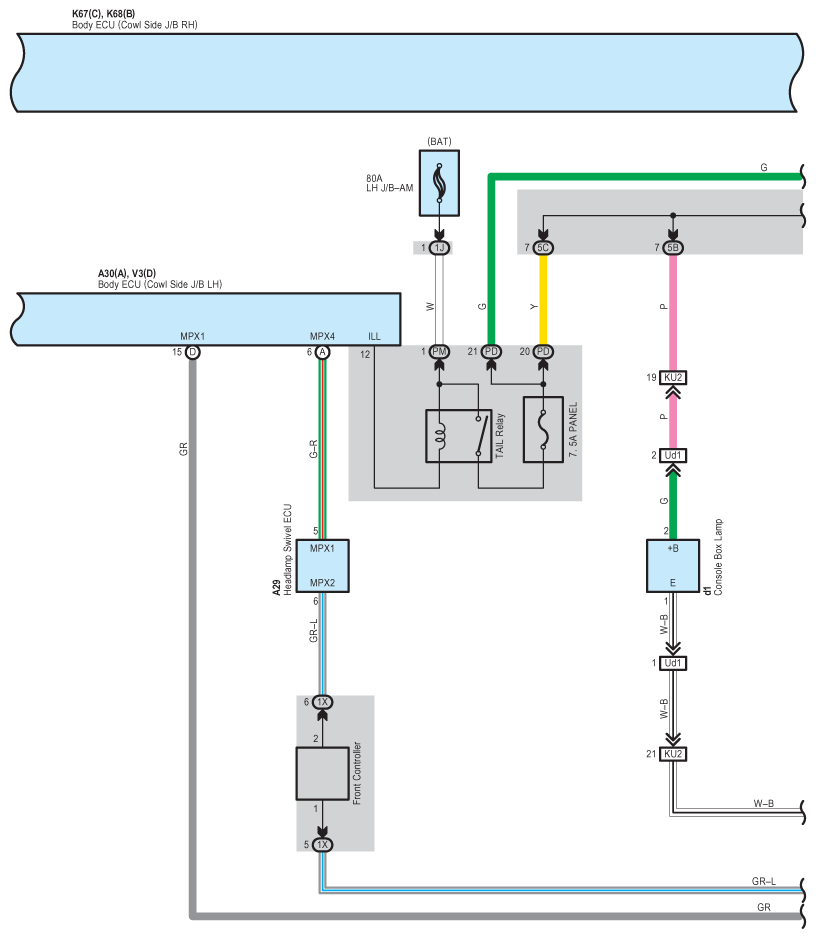

Fig 2: Illumination Wiring Diagram (2 Of 10)

G08919468

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

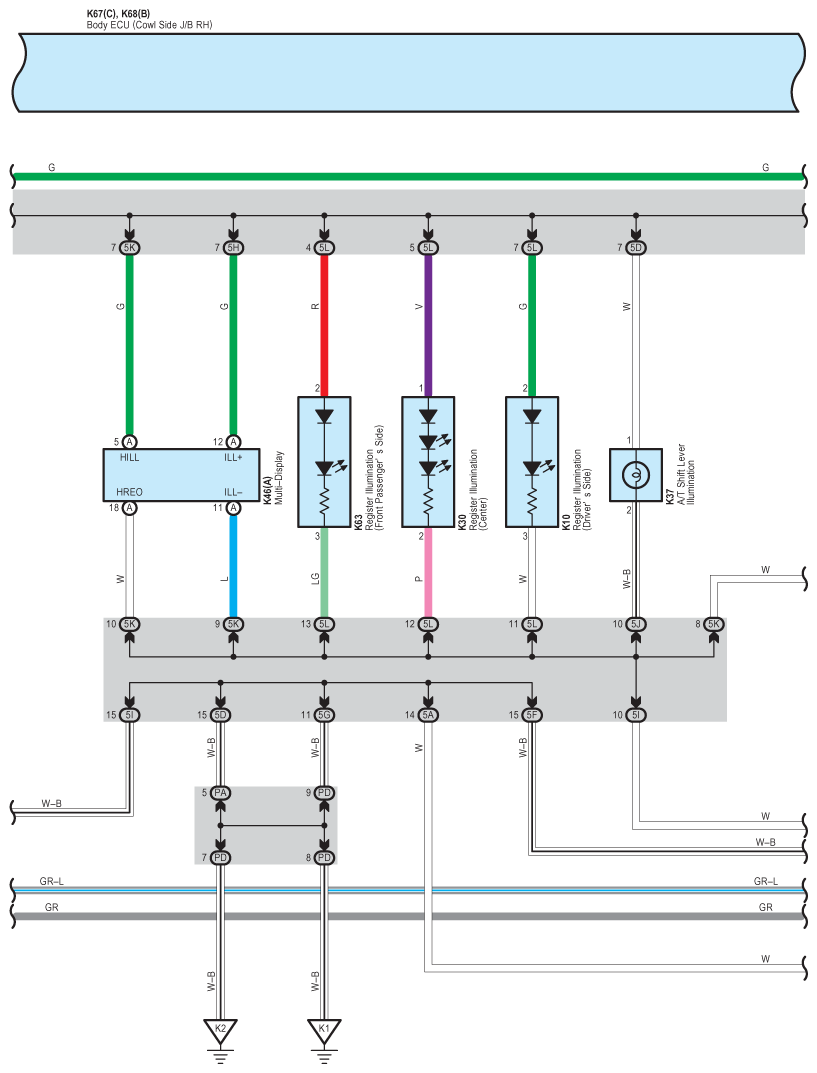

Fig 3: Illumination Wiring Diagram (3 Of 10)

G08919469

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

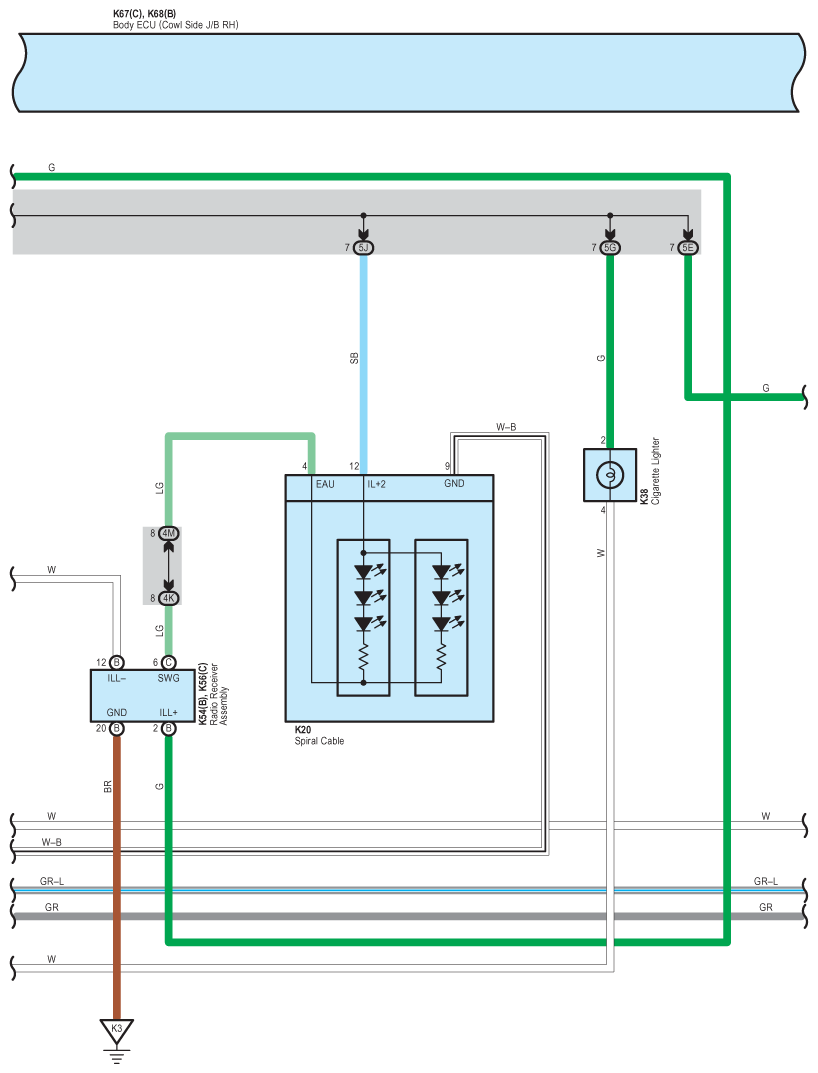

Fig 4: Illumination Wiring Diagram (4 Of 10)

G08919470

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

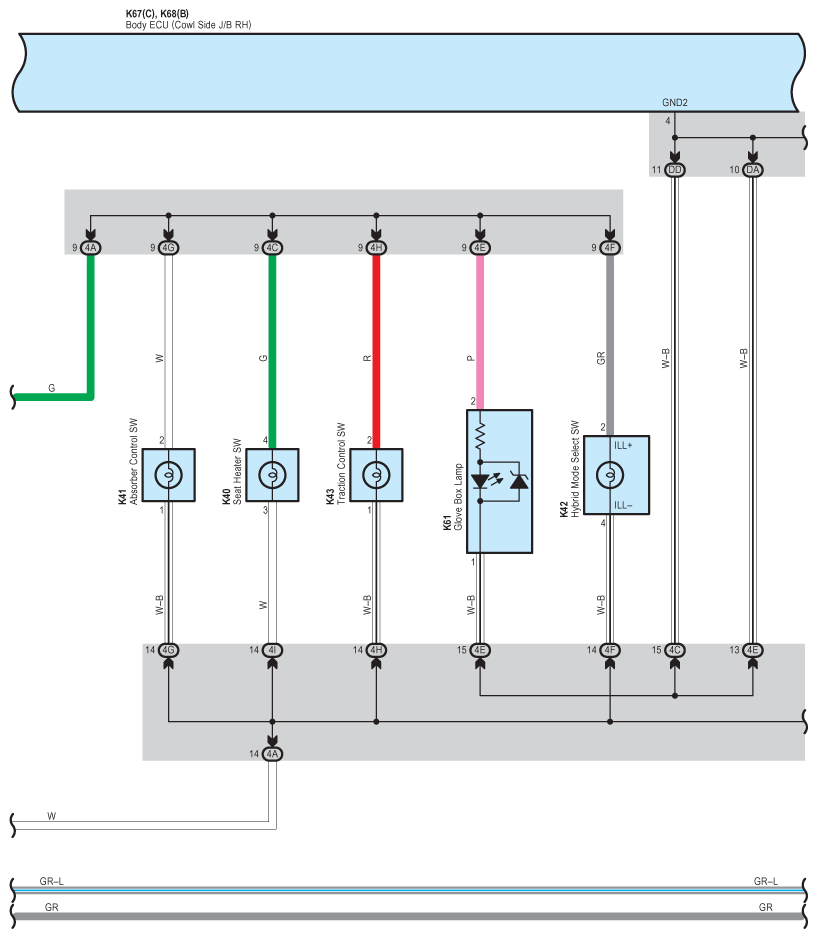

Fig 5: Illumination Wiring Diagram (5 Of 10)

G08919471

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

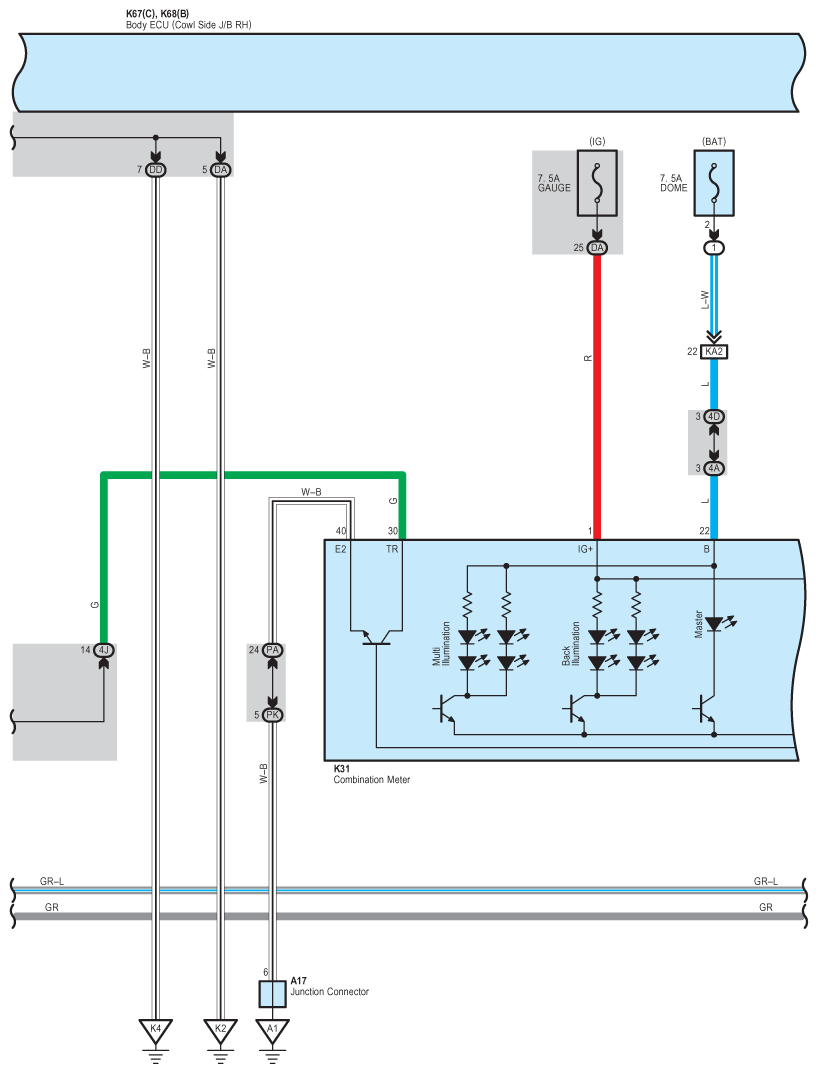

Fig 6: Illumination Wiring Diagram (6 Of 10)

G08919472

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

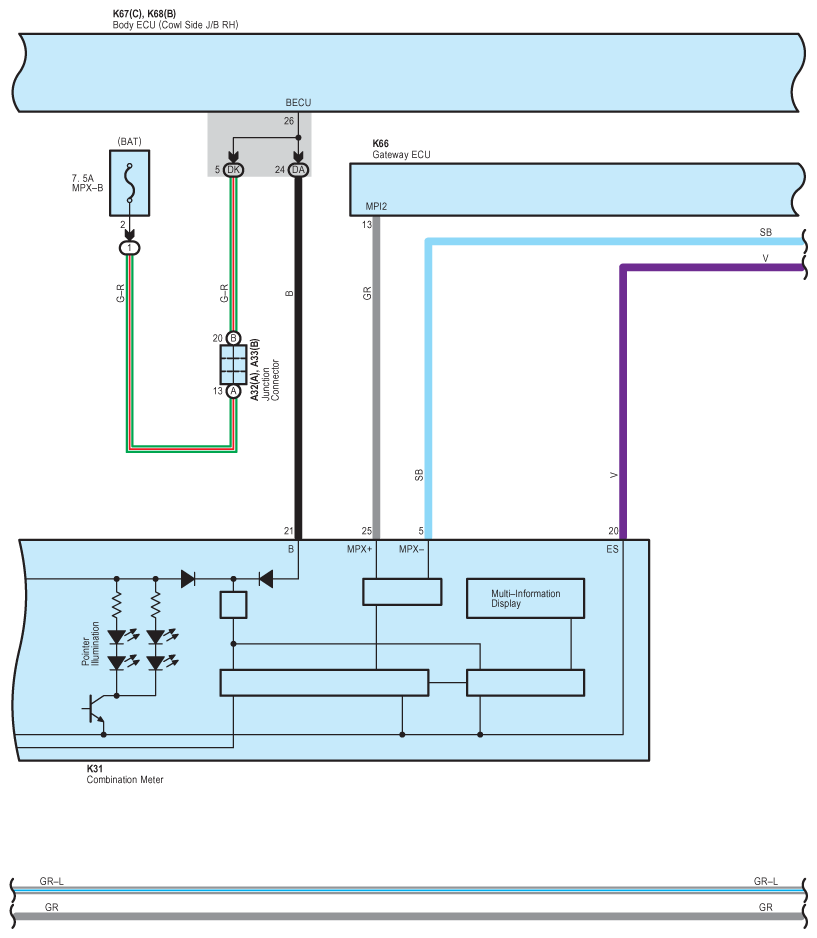

Fig 7: Illumination Wiring Diagram (7 Of 10)

G08919473

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

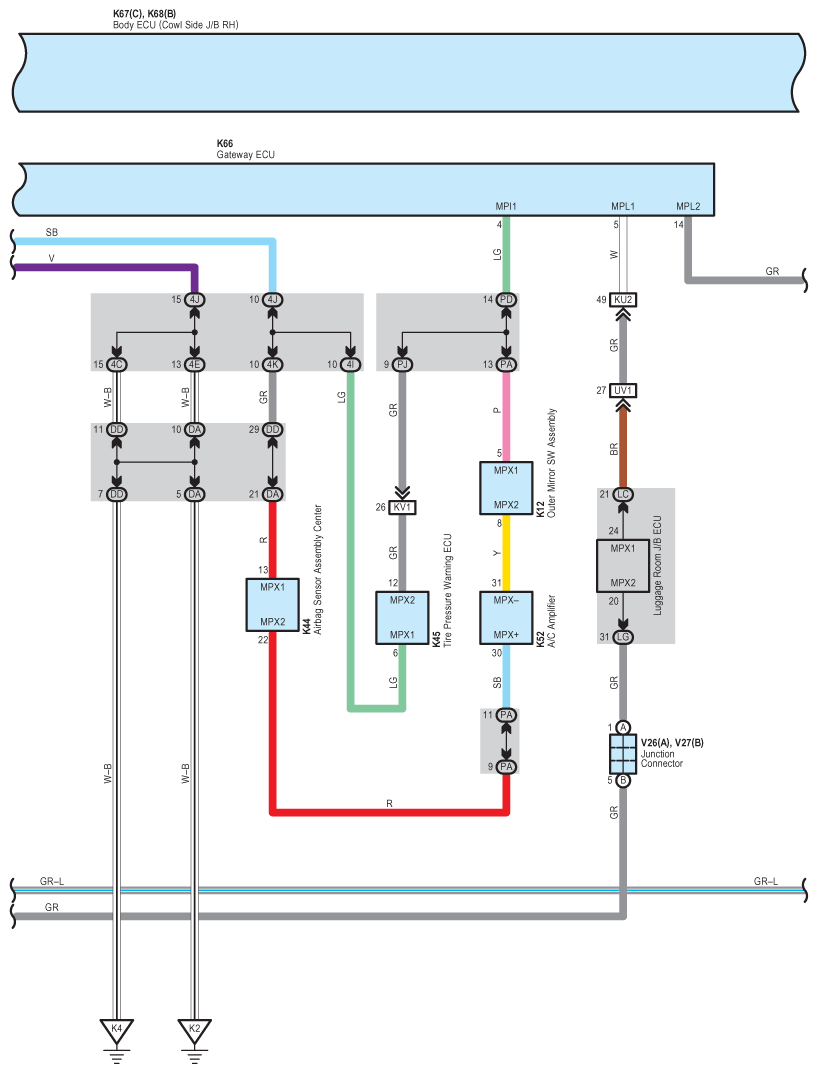

Fig 8: Illumination Wiring Diagram (8 Of 10)

G08919474

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

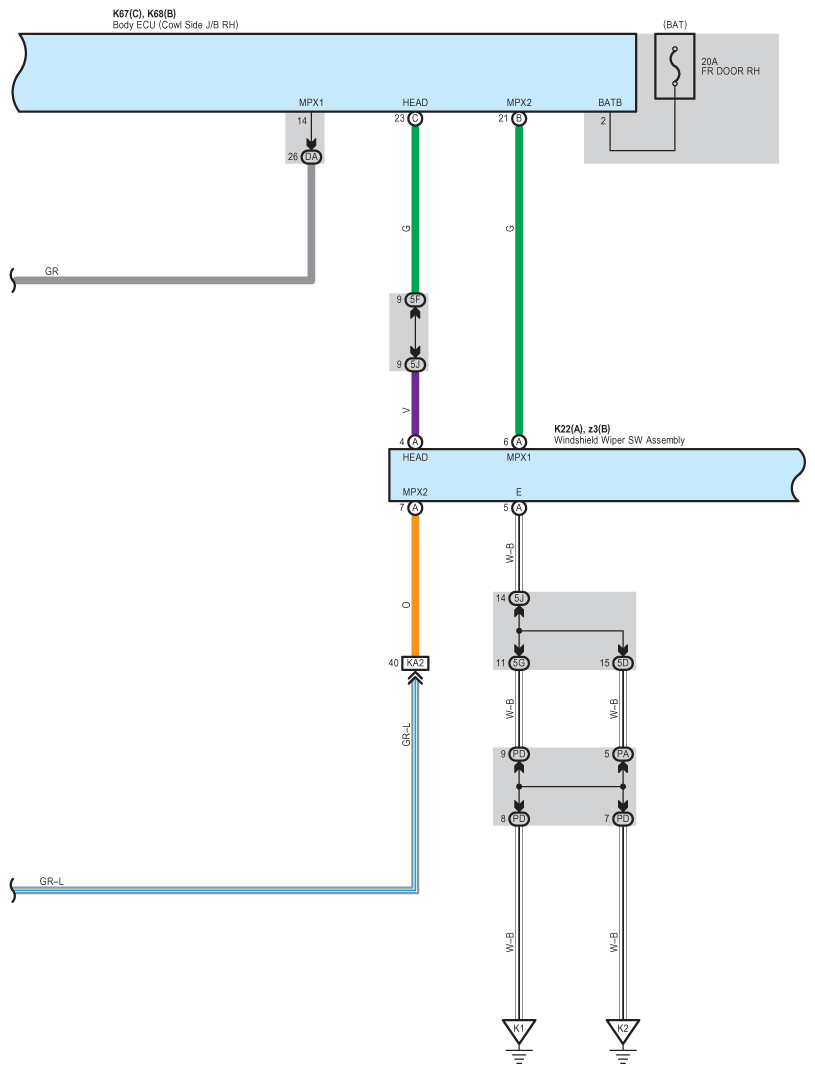

Fig 9: Illumination Wiring Diagram (9 Of 10)

G08919475

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

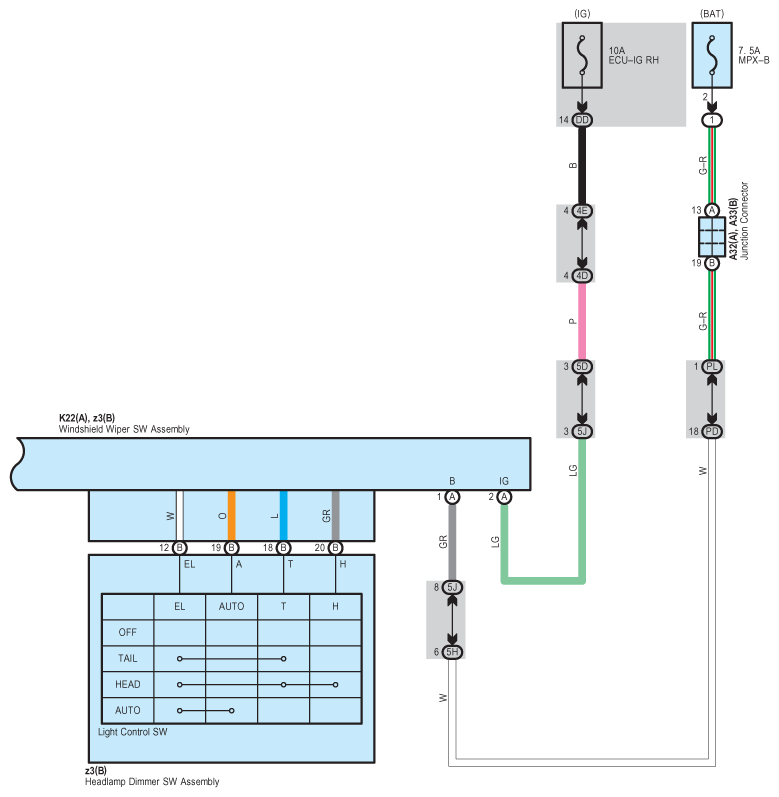

Fig 10: Illumination Wiring Diagram (10 Of 10)

G08919476

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
