Mirror Heater: Notes

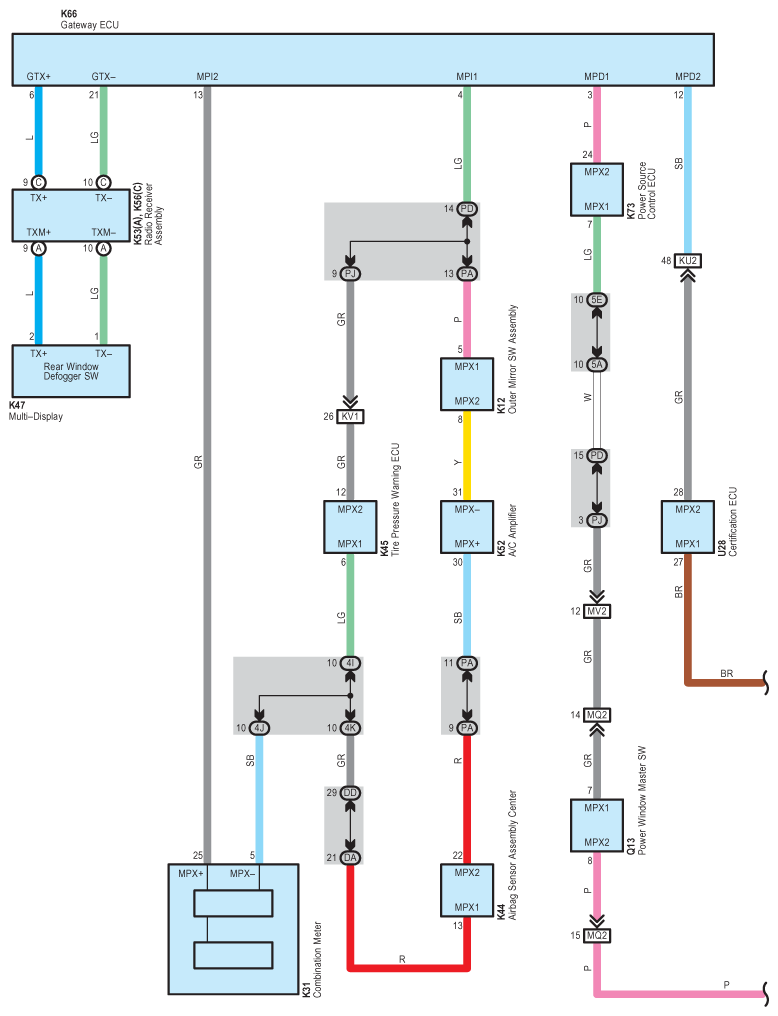

Fig 1: Mirror Heater Wiring Diagram (1 Of 3)
G08919711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

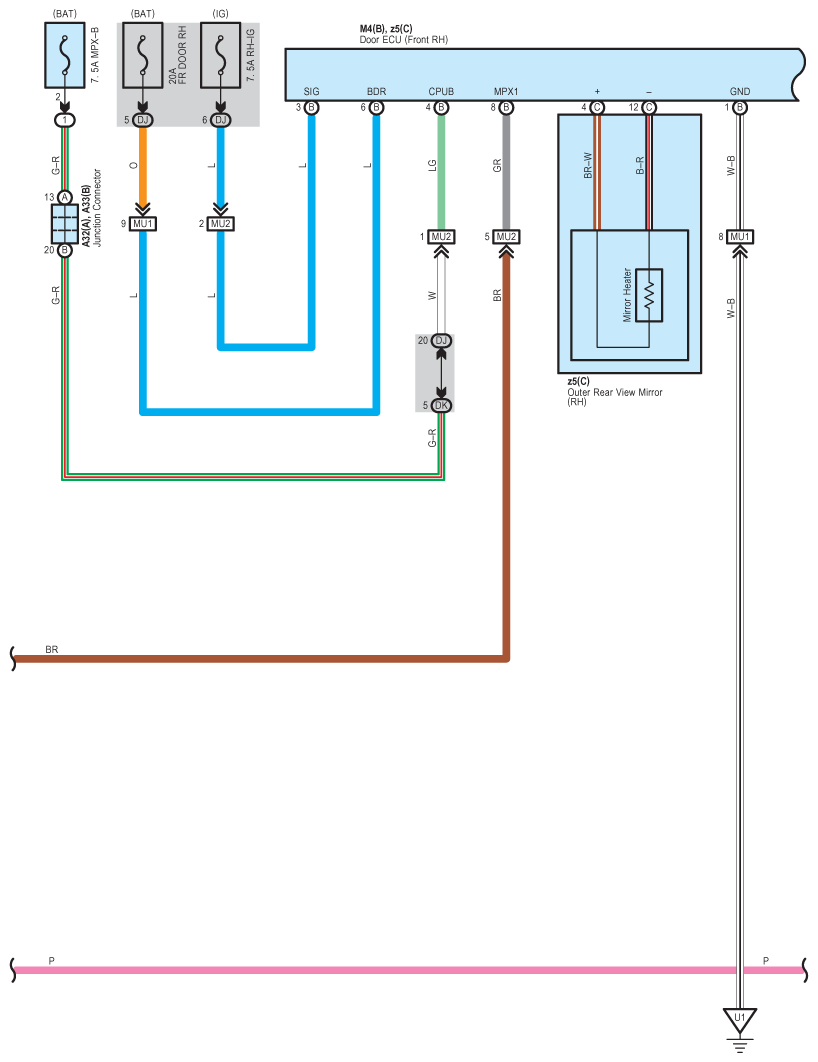

Fig 2: Mirror Heater Wiring Diagram (2 Of 3)
G08919712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

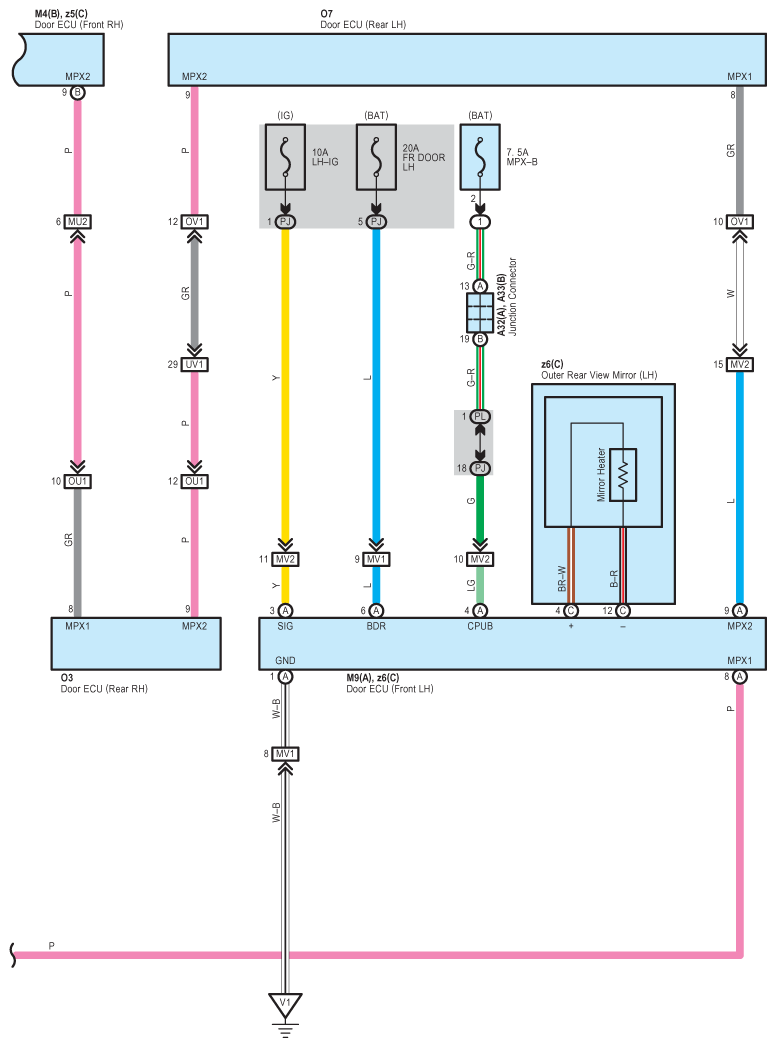

Fig 3: Mirror Heater Wiring Diagram (3 Of 3)
G08919713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
