Multiplex Communication System - BEAN: Notes

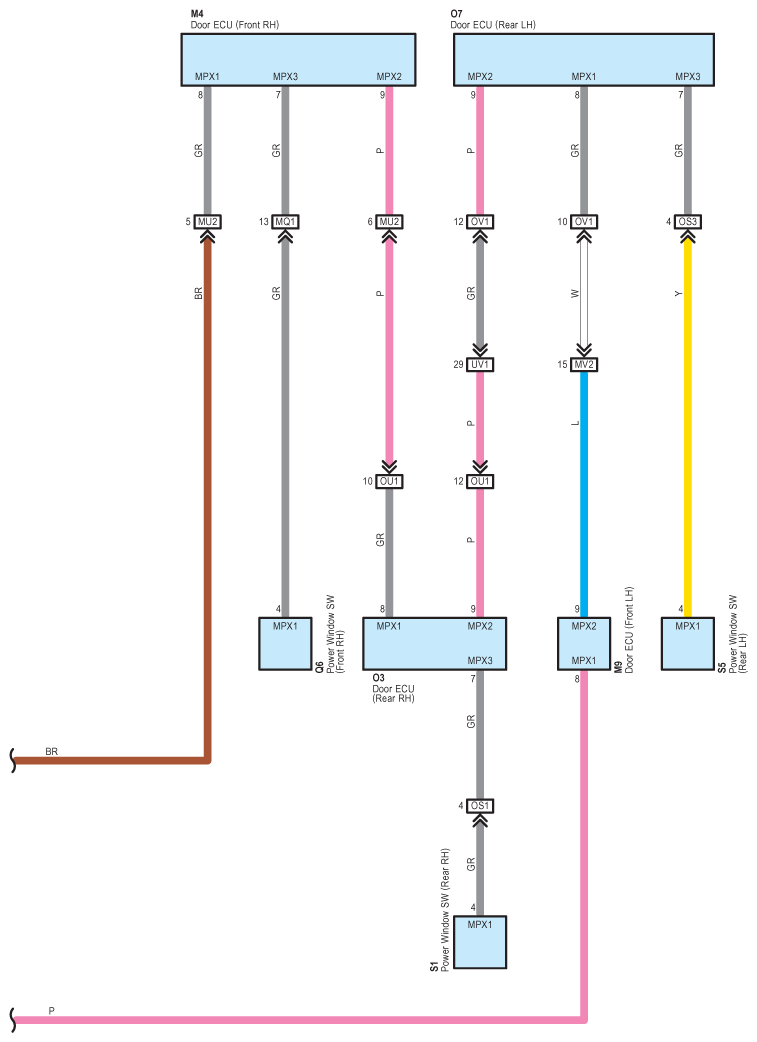

Fig 1: Multiplex Communication System - BEAN Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

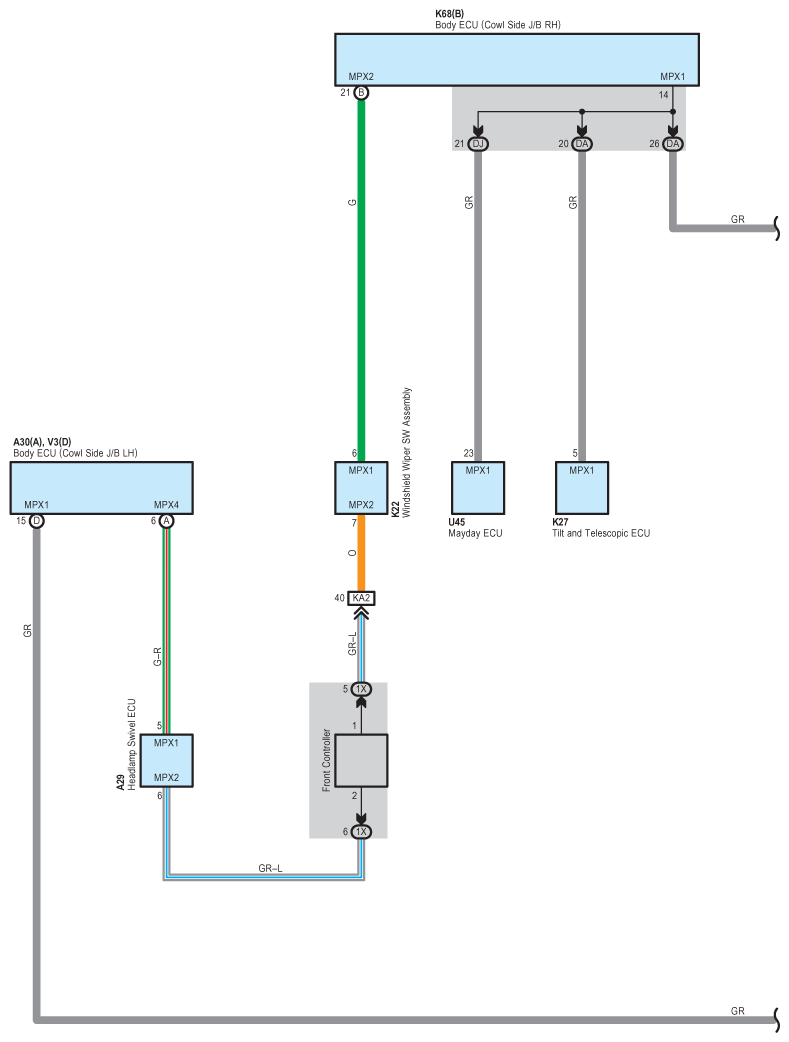

Fig 2: Multiplex Communication System - BEAN Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

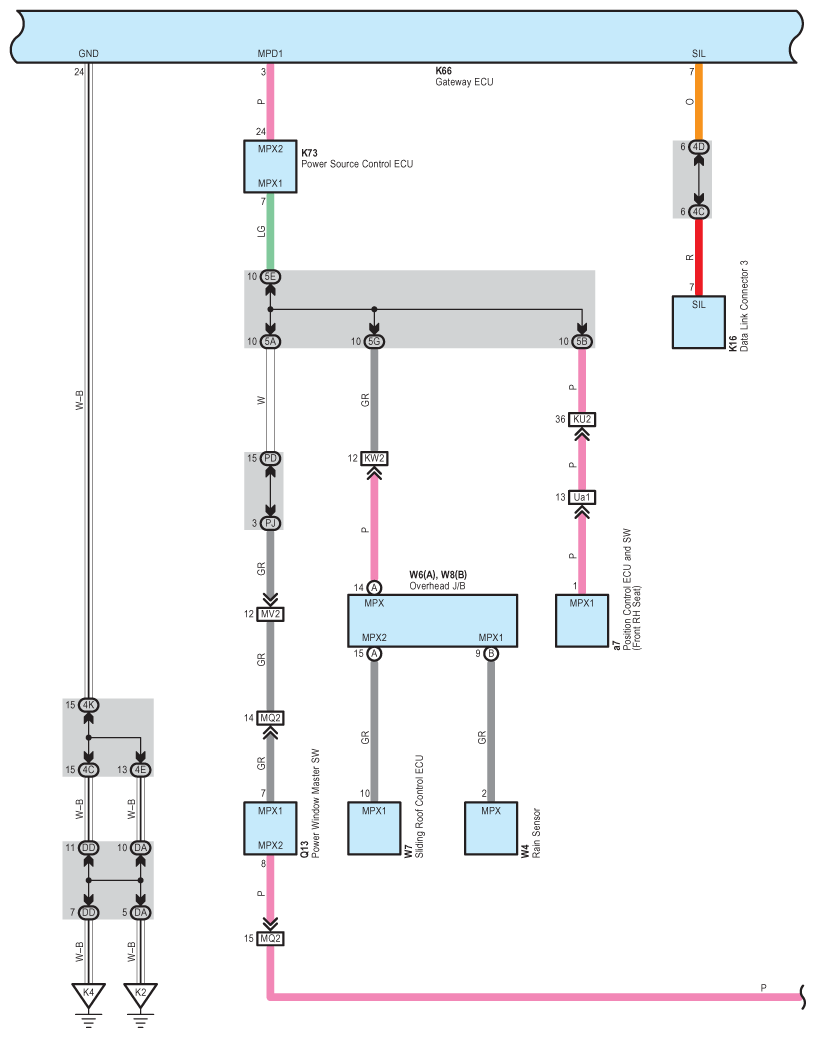

Fig 3: Multiplex Communication System - BEAN Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

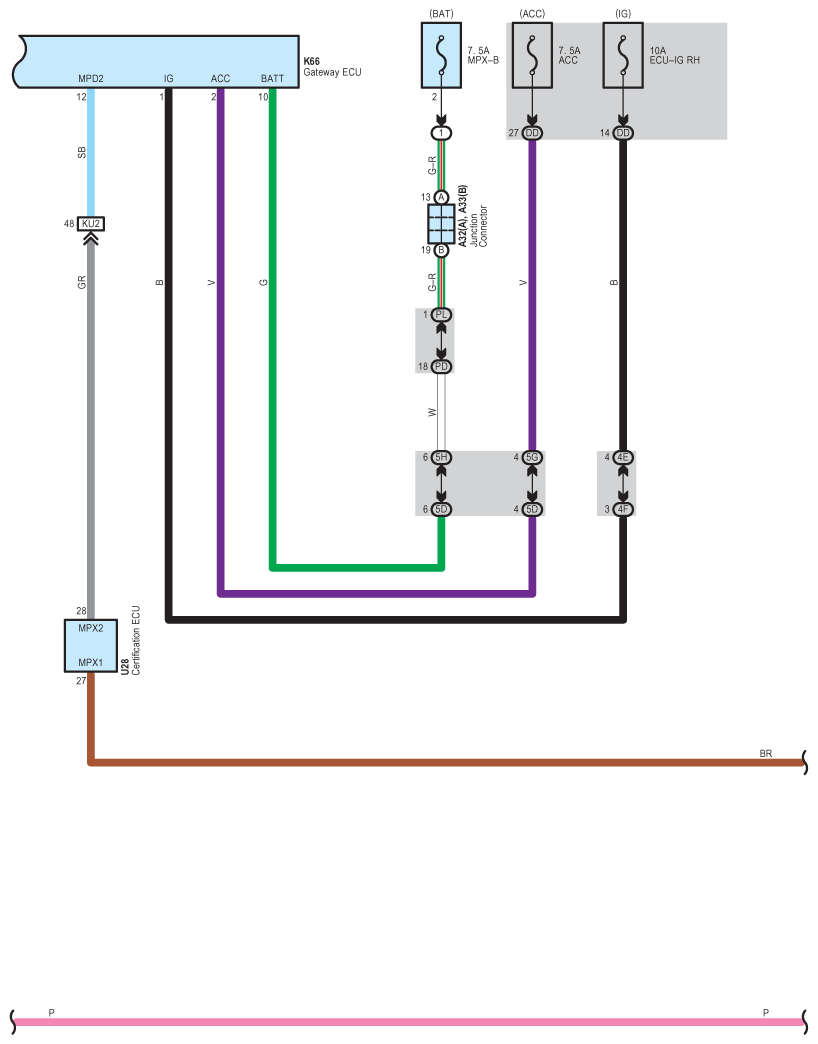

Fig 4: Multiplex Communication System - BEAN Wiring Diagram (4 Of 5)

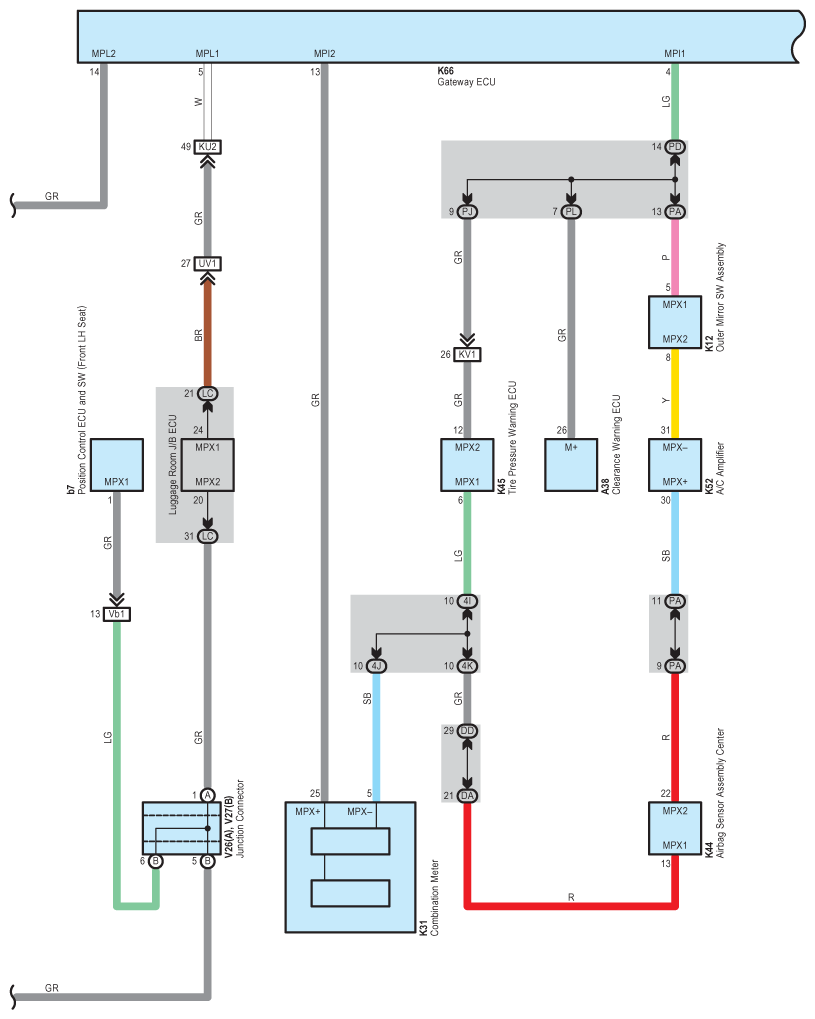

Fig 5: Multiplex Communication System - BEAN Wiring Diagram (5 Of 5)
