Power Window: Notes

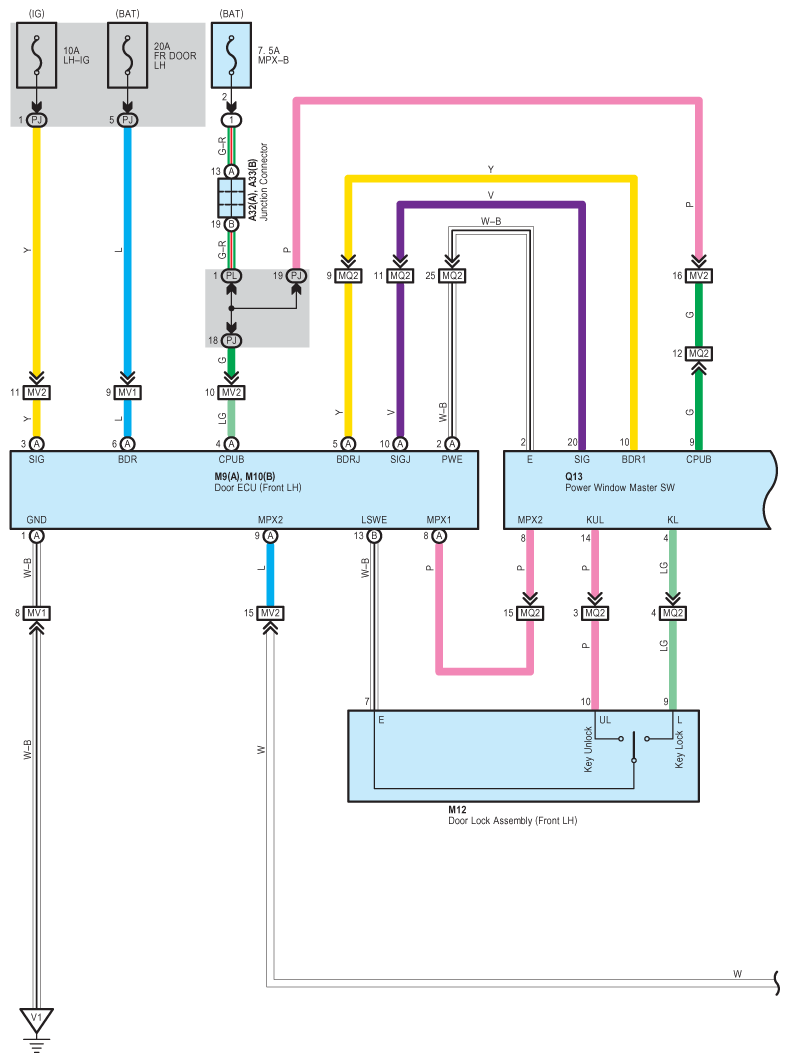

Fig 1: Power Window Wiring Diagram (1 Of 9)

G08919508

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

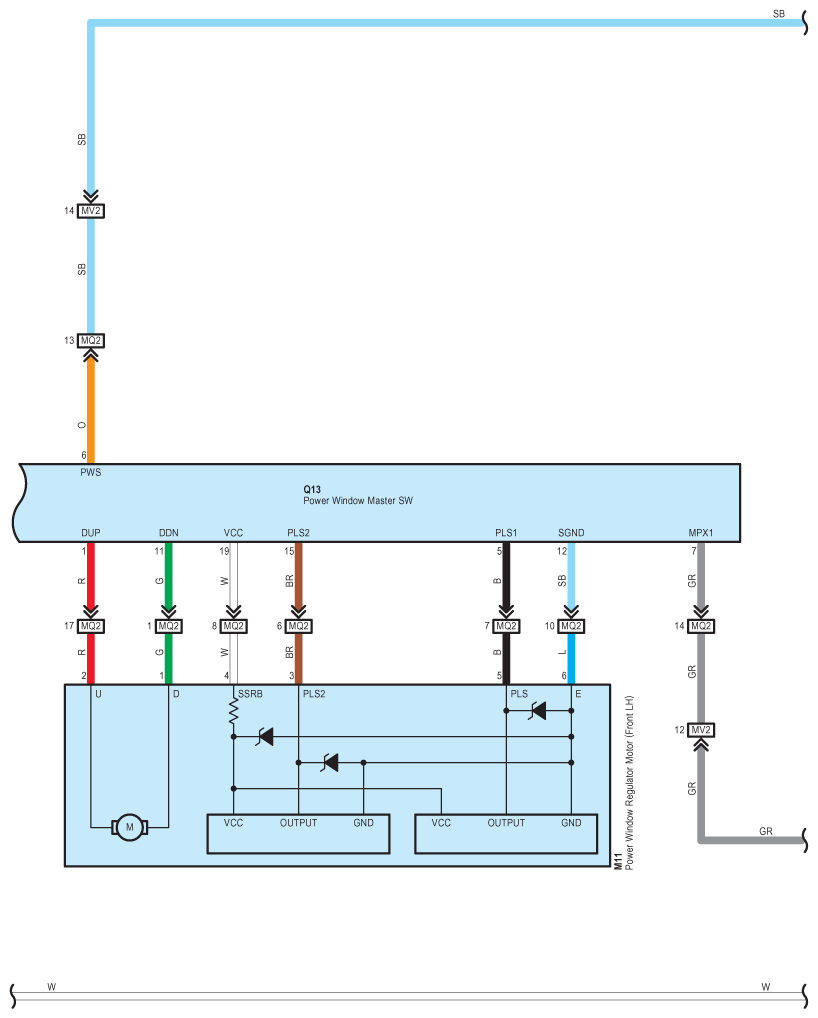

Fig 2: Power Window Wiring Diagram (2 Of 9)

G08919509

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

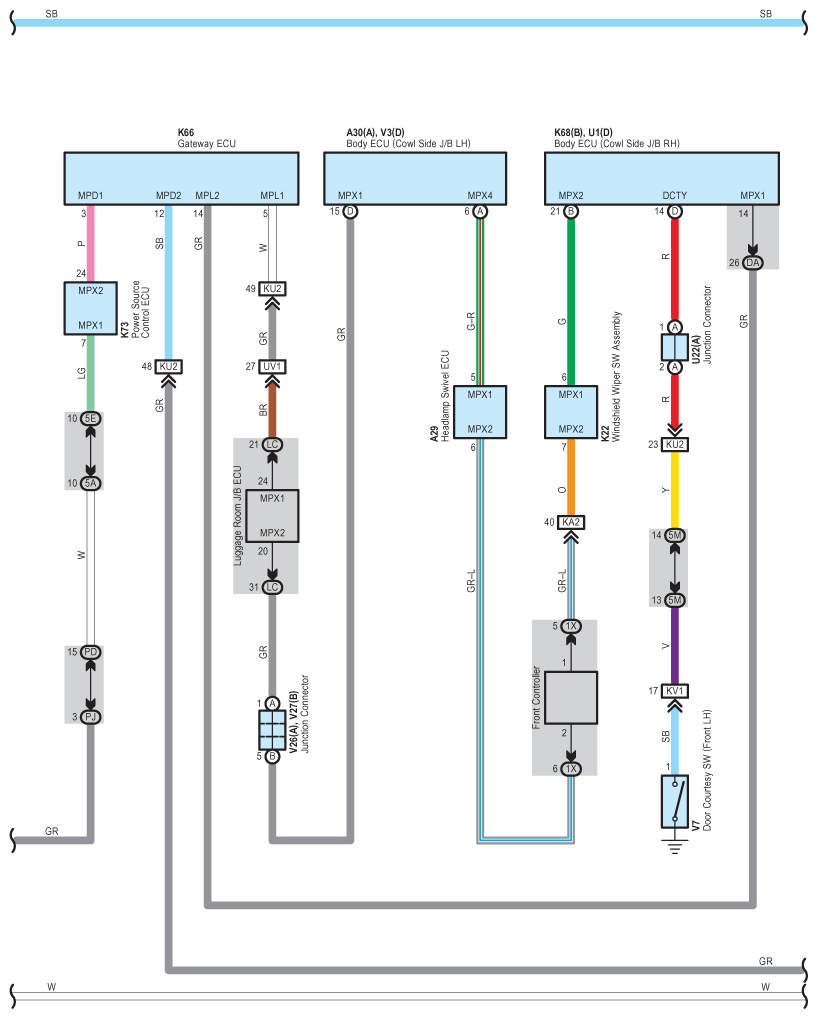

Fig 3: Power Window Wiring Diagram (3 Of 9)

G08919510

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

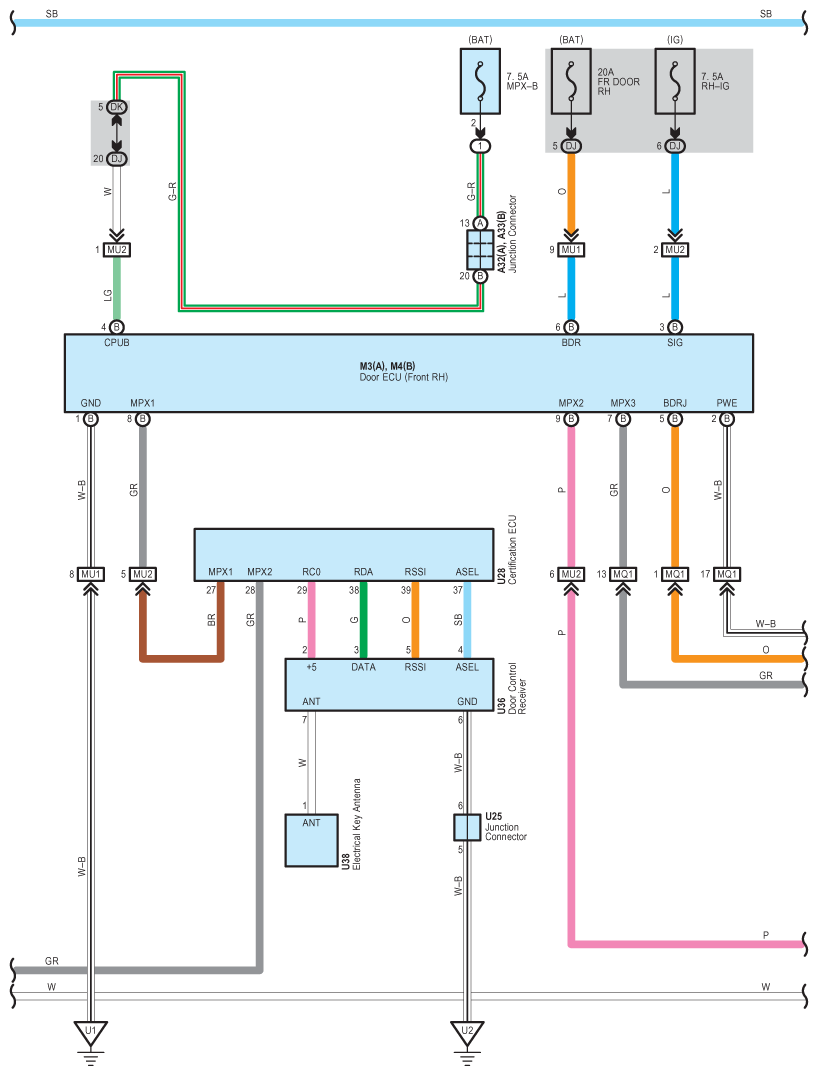

Fig 4: Power Window Wiring Diagram (4 Of 9)

G08919511

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

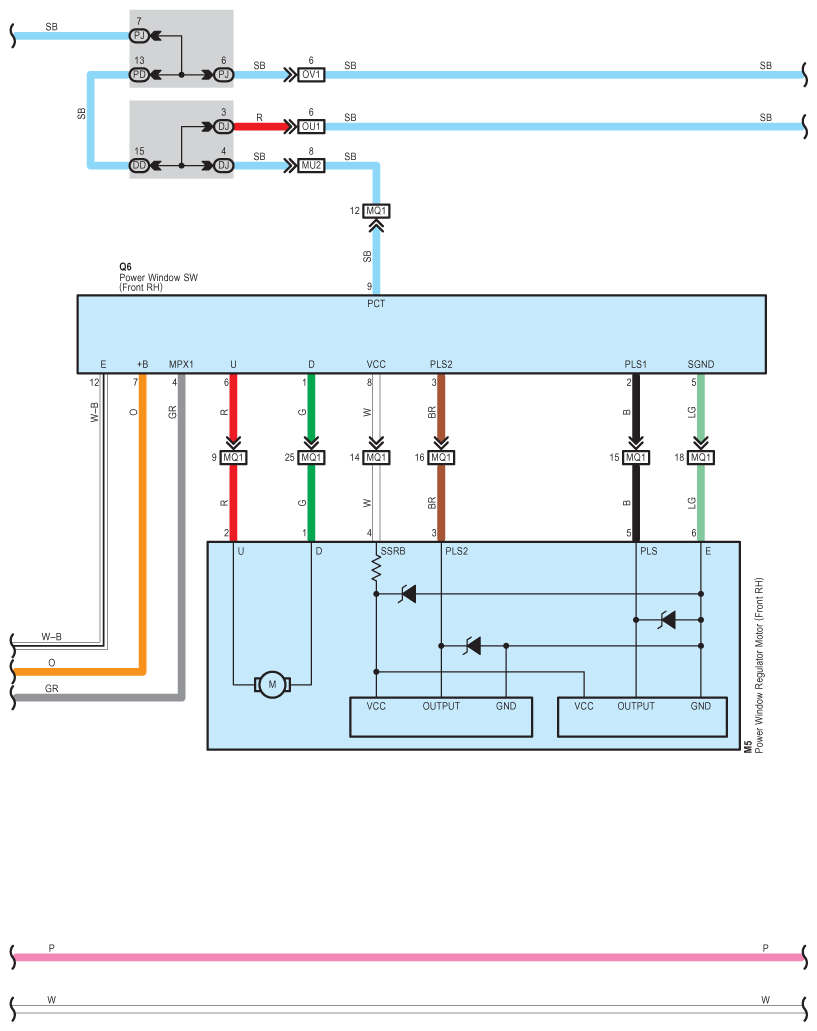

Fig 5: Power Window Wiring Diagram (5 Of 9)

G08919512

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

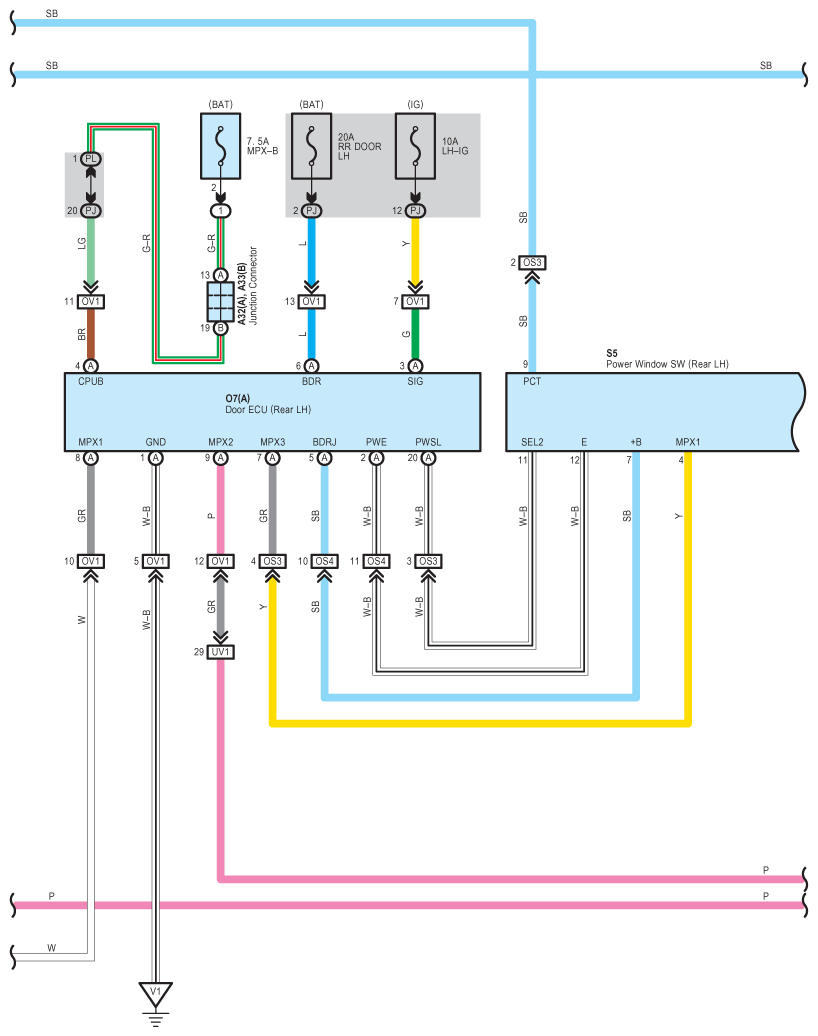

Fig 6: Power Window Wiring Diagram (6 Of 9)

G08919513

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

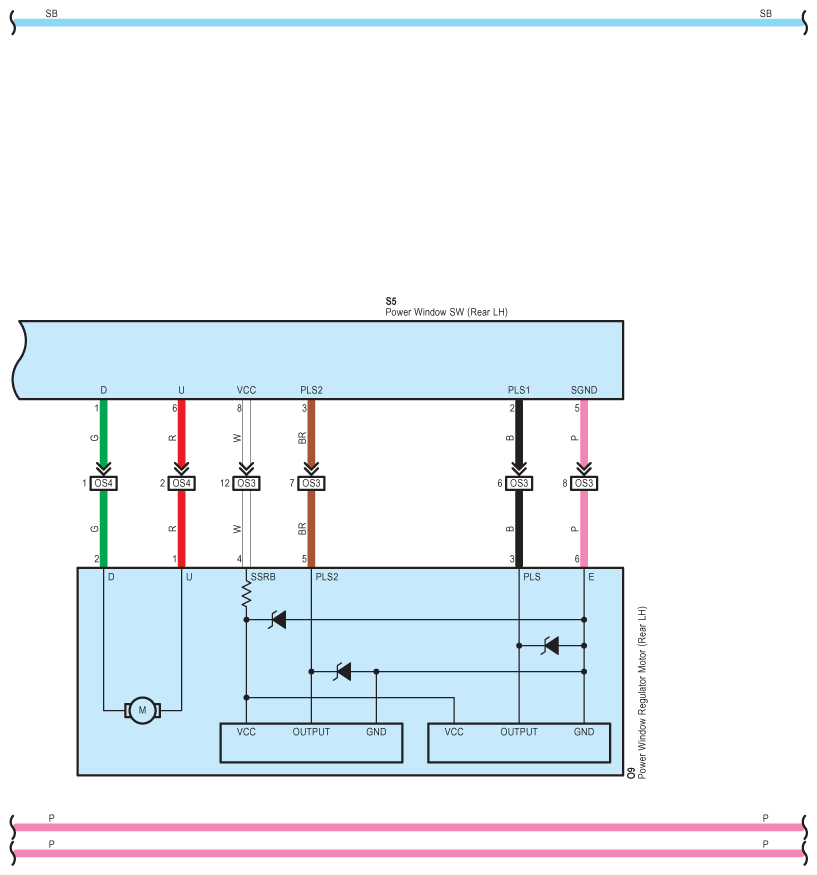

Fig 7: Power Window Wiring Diagram (7 Of 9)

G08919514

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

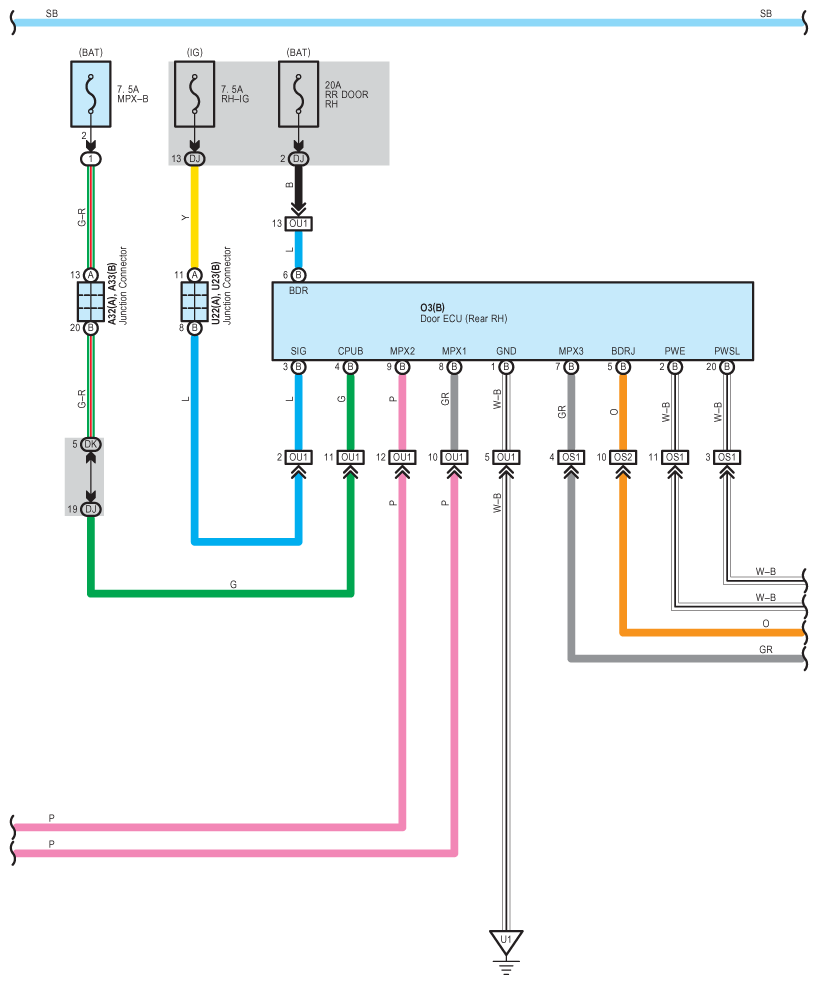

Fig 8: Power Window Wiring Diagram (8 Of 9)

G08919515

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

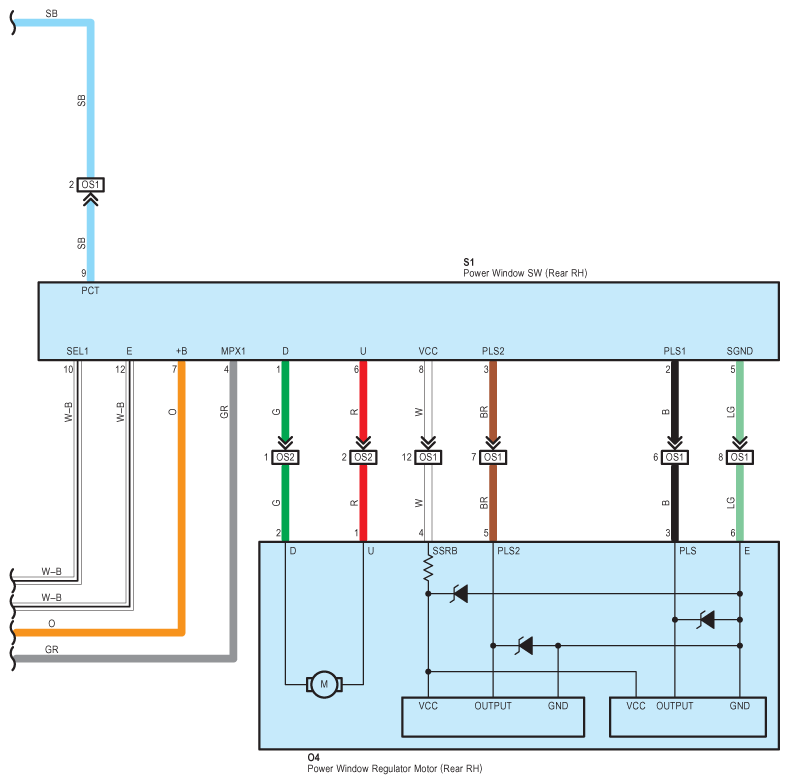

Fig 9: Power Window Wiring Diagram (9 Of 9)

G08919516

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
