Rear Sunshade: Notes

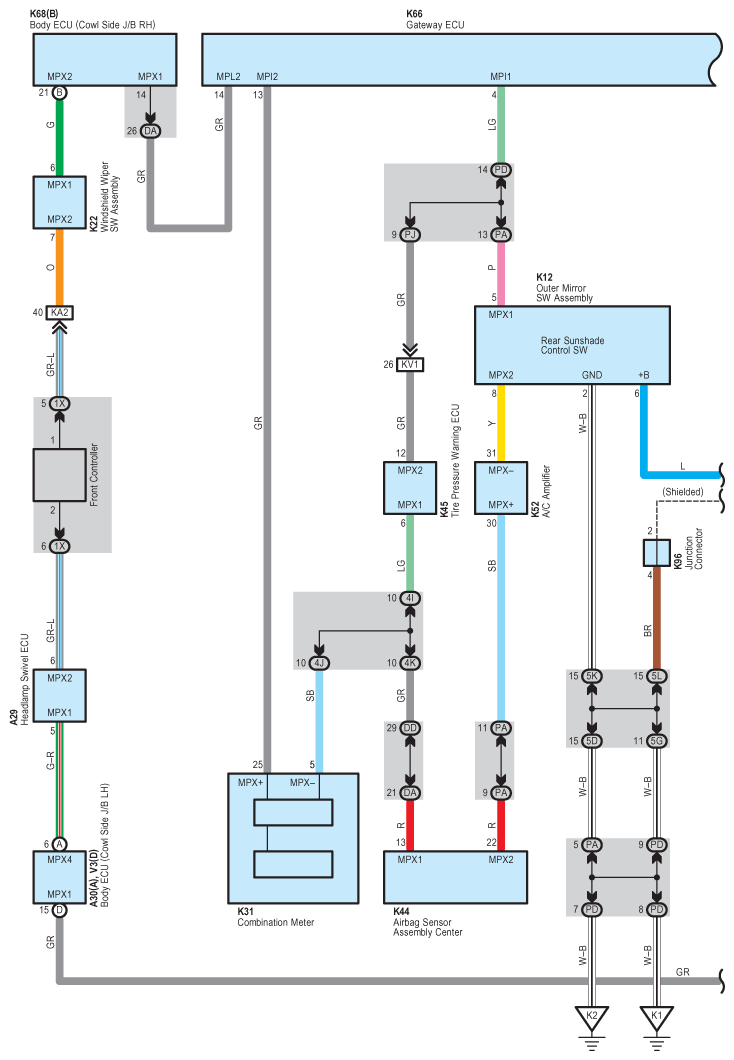

Fig 1: Rear Sunshade Wiring Diagram (1 Of 4)
G08919664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

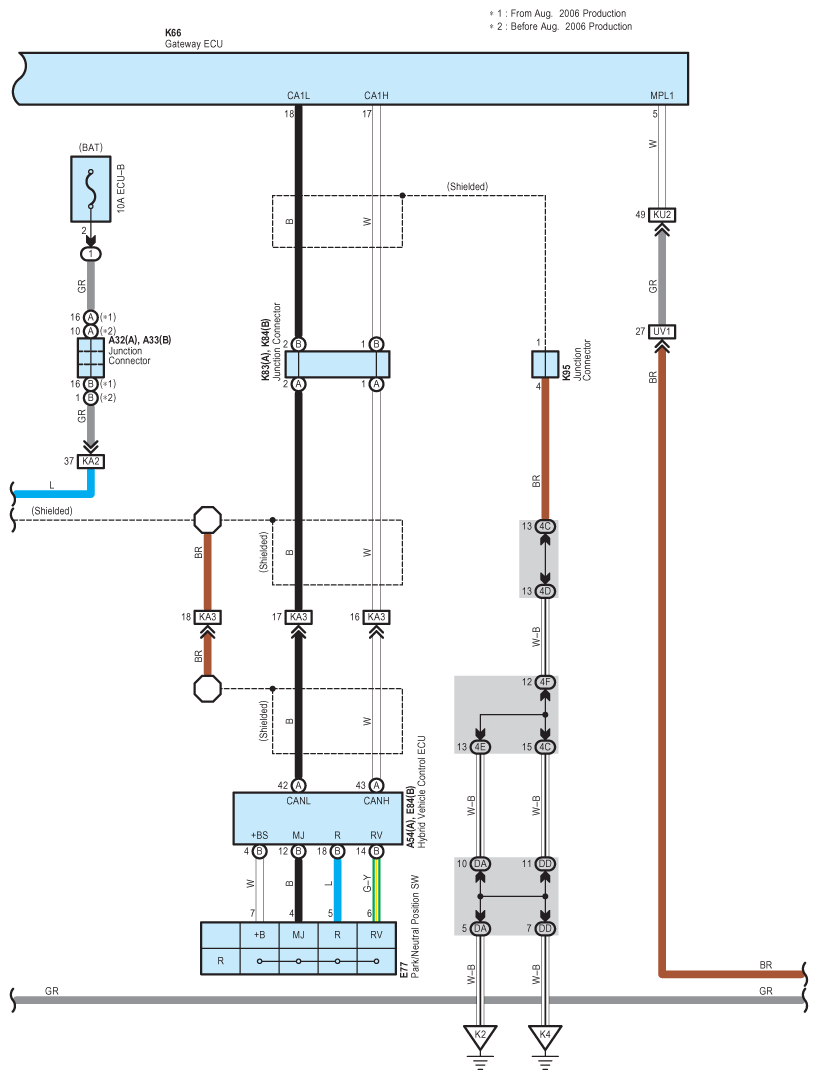

Fig 2: Rear Sunshade Wiring Diagram (2 Of 4)
G08919665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

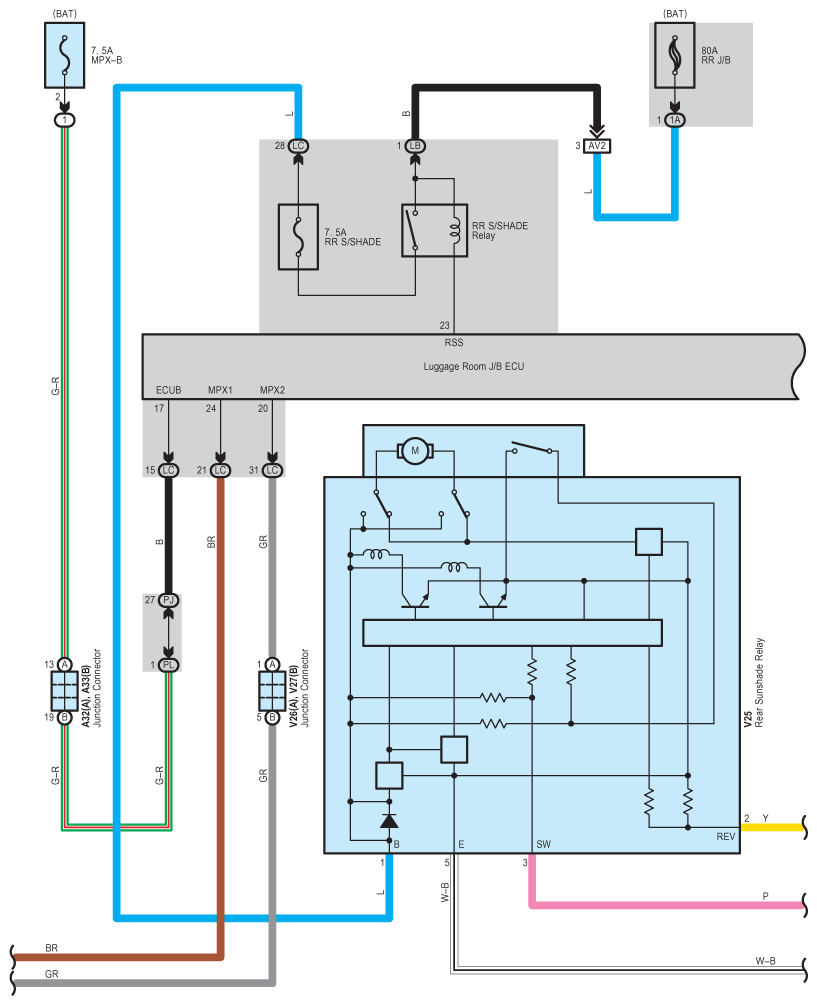

Fig 3: Rear Sunshade Wiring Diagram (3 Of 4)
G08919666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

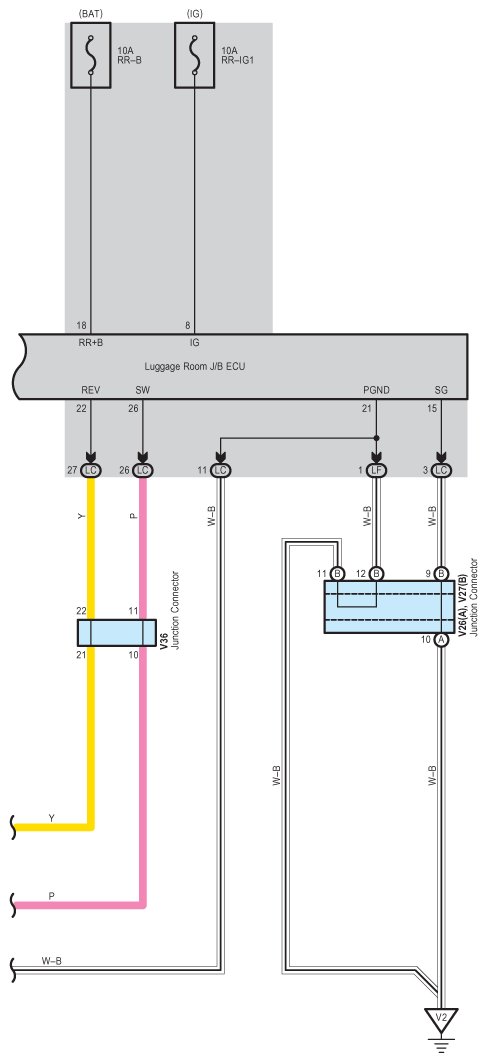

Fig 4: Rear Sunshade Wiring Diagram (4 Of 4)
G08919667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
