Theft Deterrent: Notes

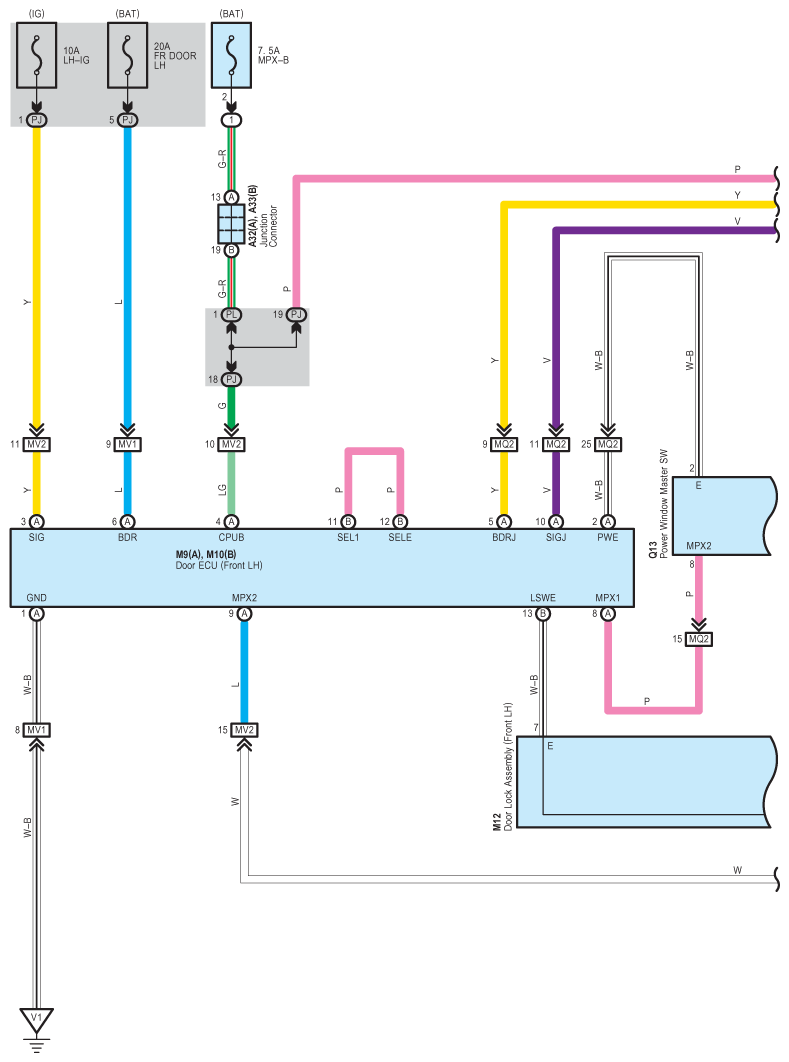

Fig 1: Theft Deterrent Wiring Diagram (1 Of 11)

G08919526

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

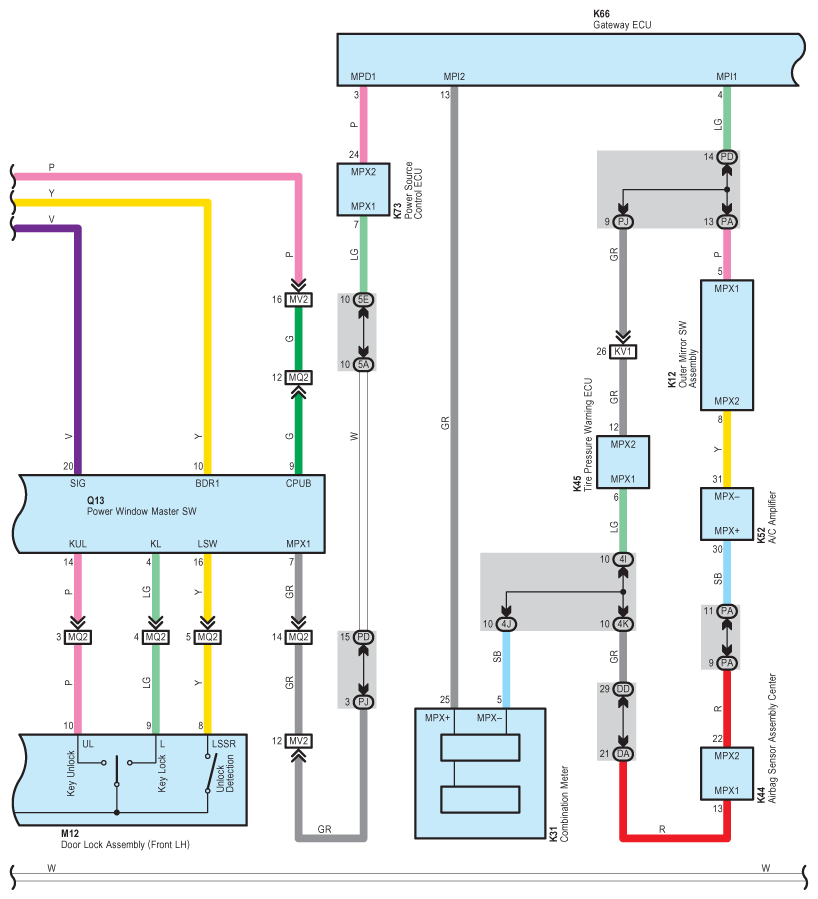

Fig 2: Theft Deterrent Wiring Diagram (2 Of 11)

G08919527

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

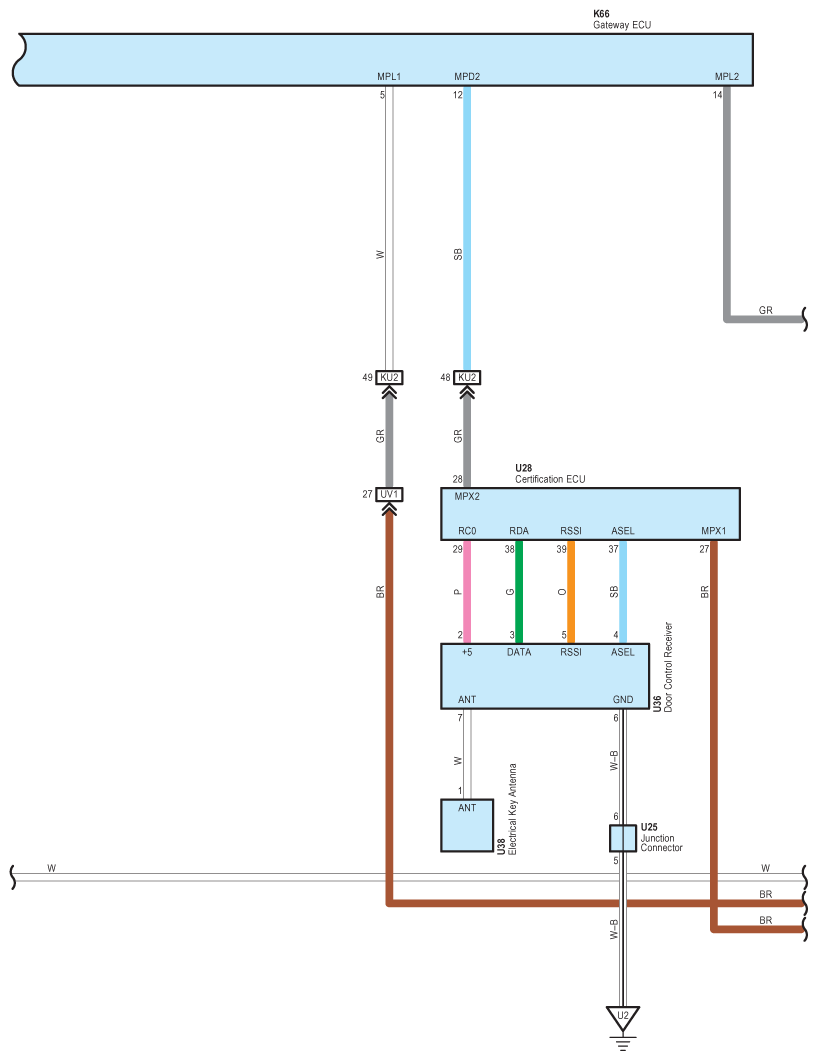

Fig 3: Theft Deterrent Wiring Diagram (3 Of 11)

G08919528

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

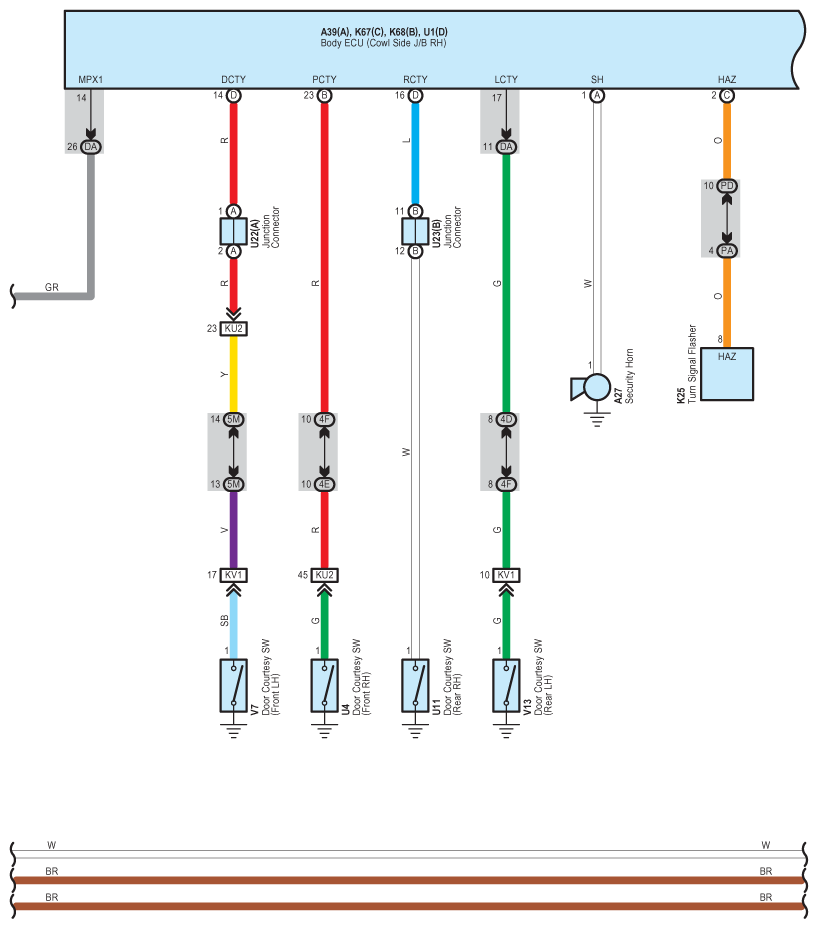

Fig 4: Theft Deterrent Wiring Diagram (4 Of 11)

G08919529

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

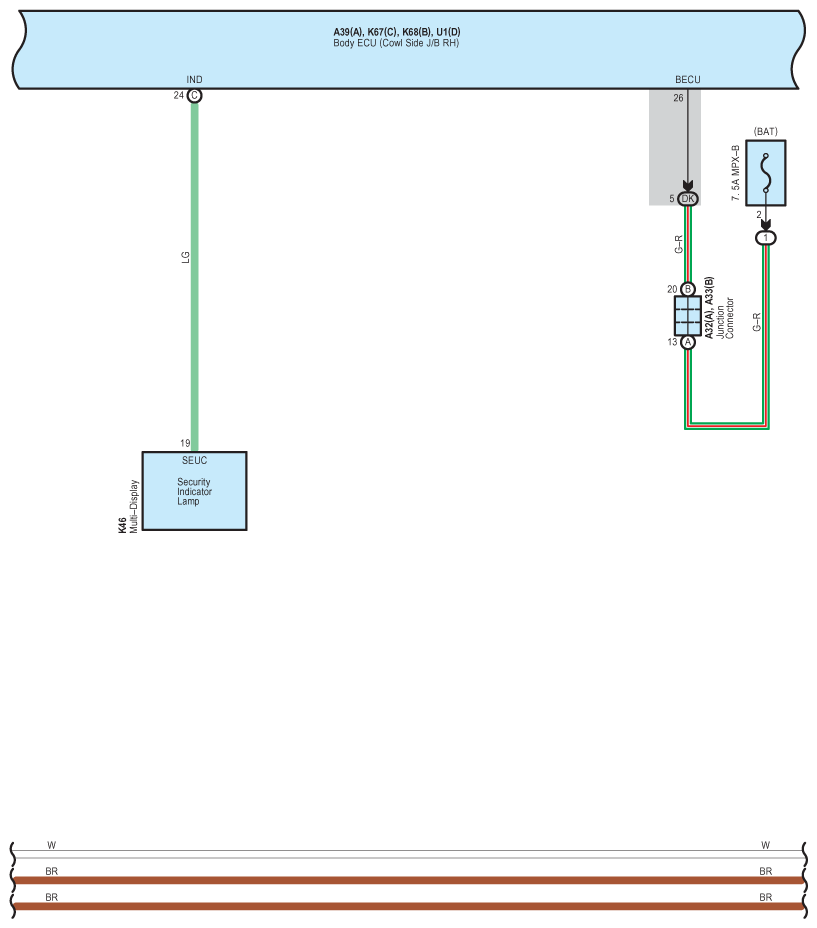

Fig 5: Theft Deterrent Wiring Diagram (5 Of 11)

G08919530

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

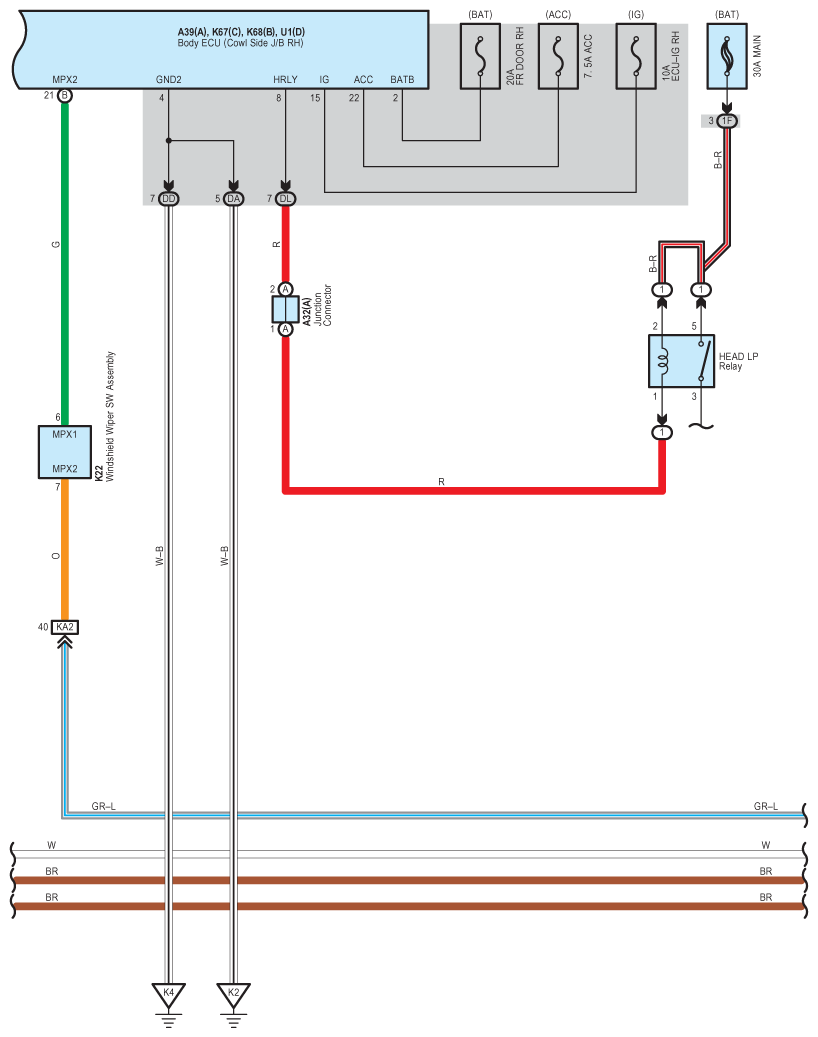

Fig 6: Theft Deterrent Wiring Diagram (6 Of 11)

G08919531

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

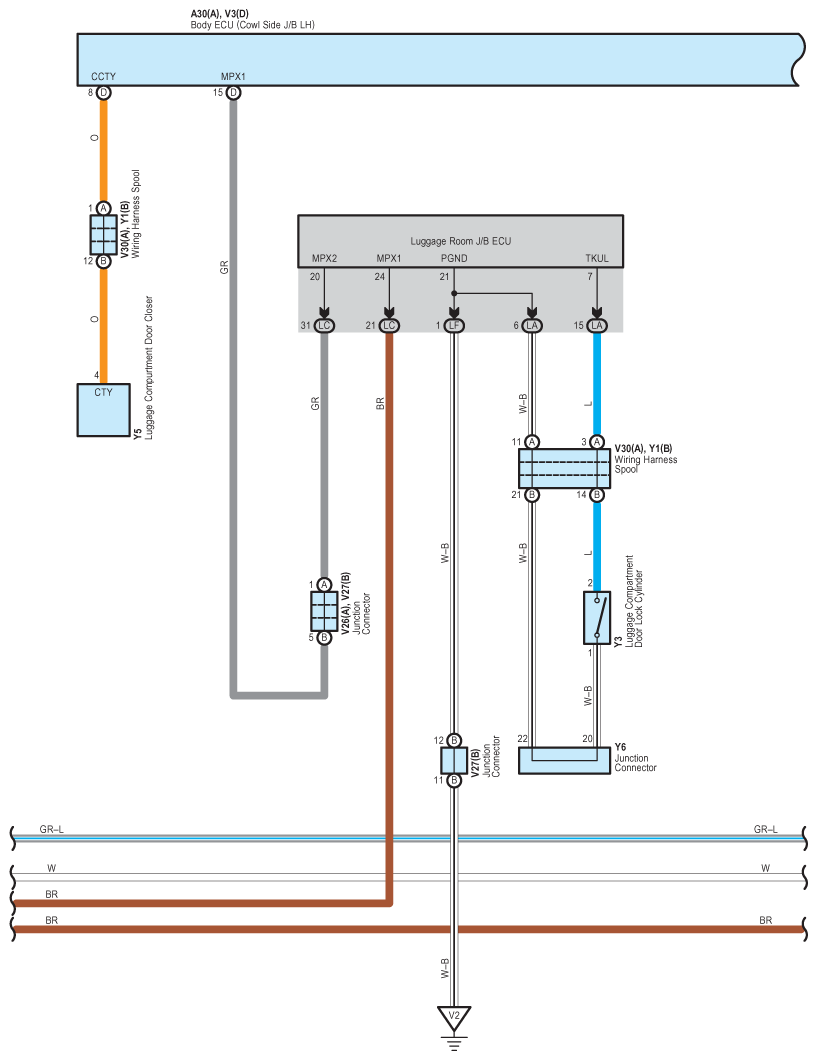

Fig 7: Theft Deterrent Wiring Diagram (7 Of 11)

G08919532

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

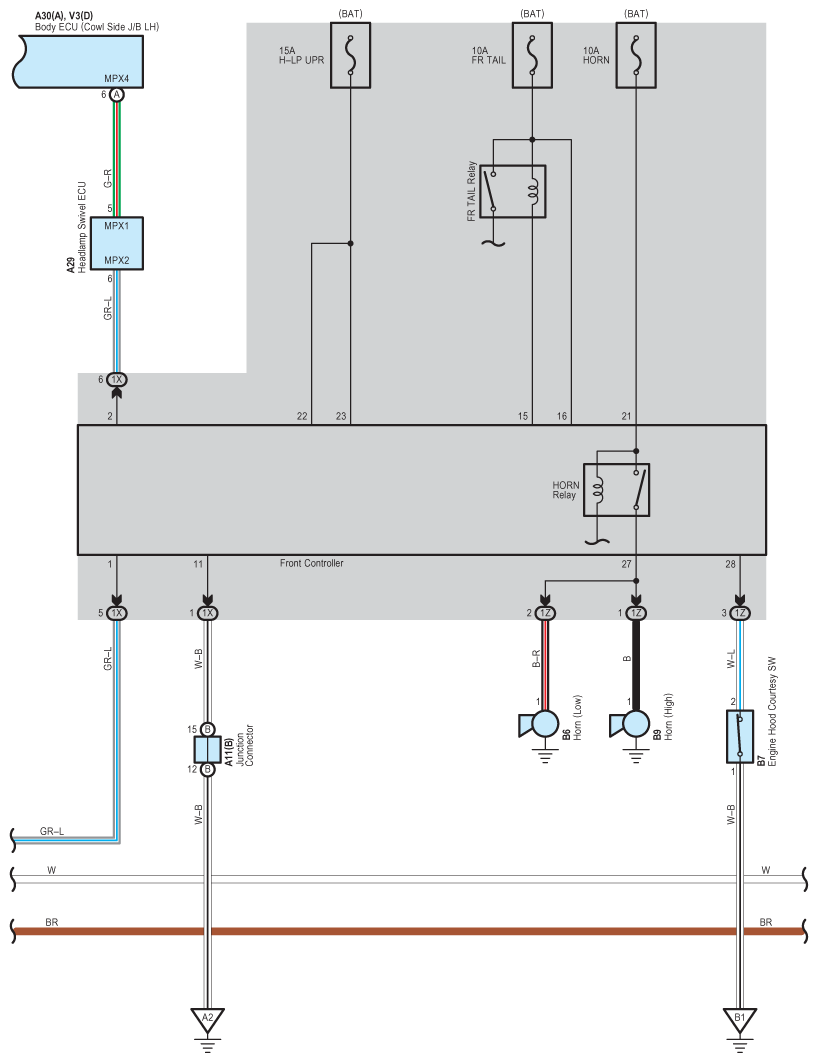

Fig 8: Theft Deterrent Wiring Diagram (8 Of 11)

G08919533

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

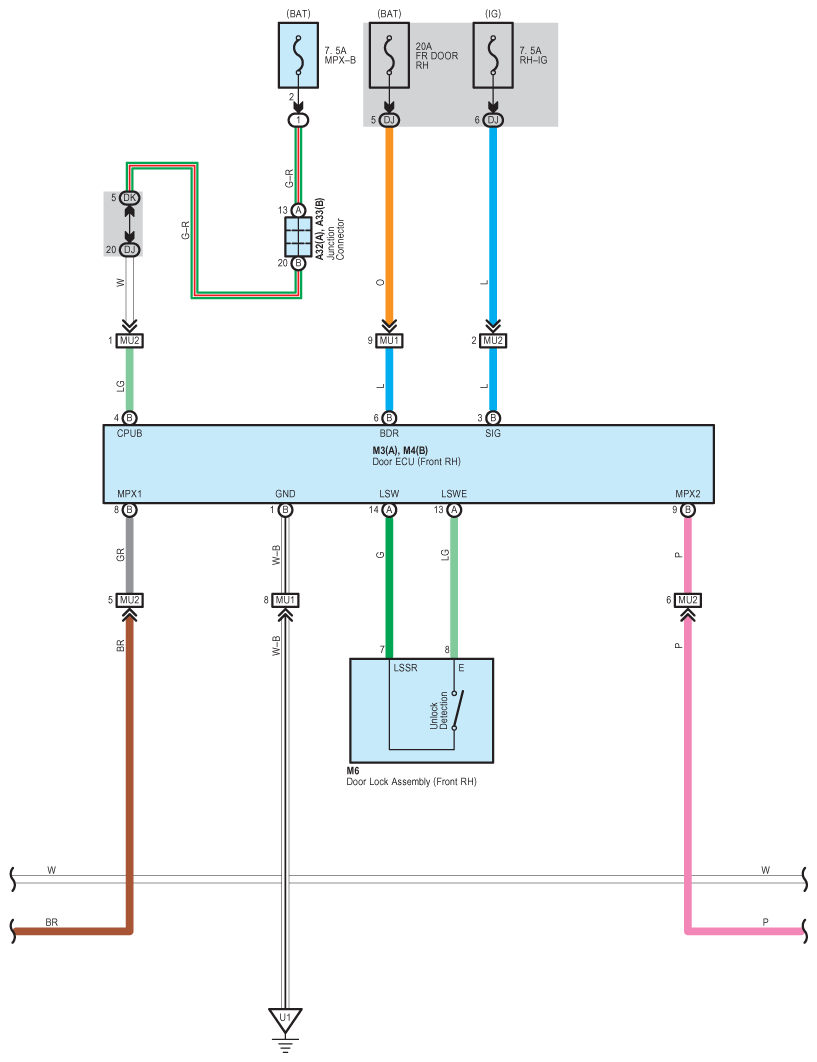

Fig 9: Theft Deterrent Wiring Diagram (9 Of 11)

G08919534

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Theft Deterrent Wiring Diagram (10 Of 11)

G08919535

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

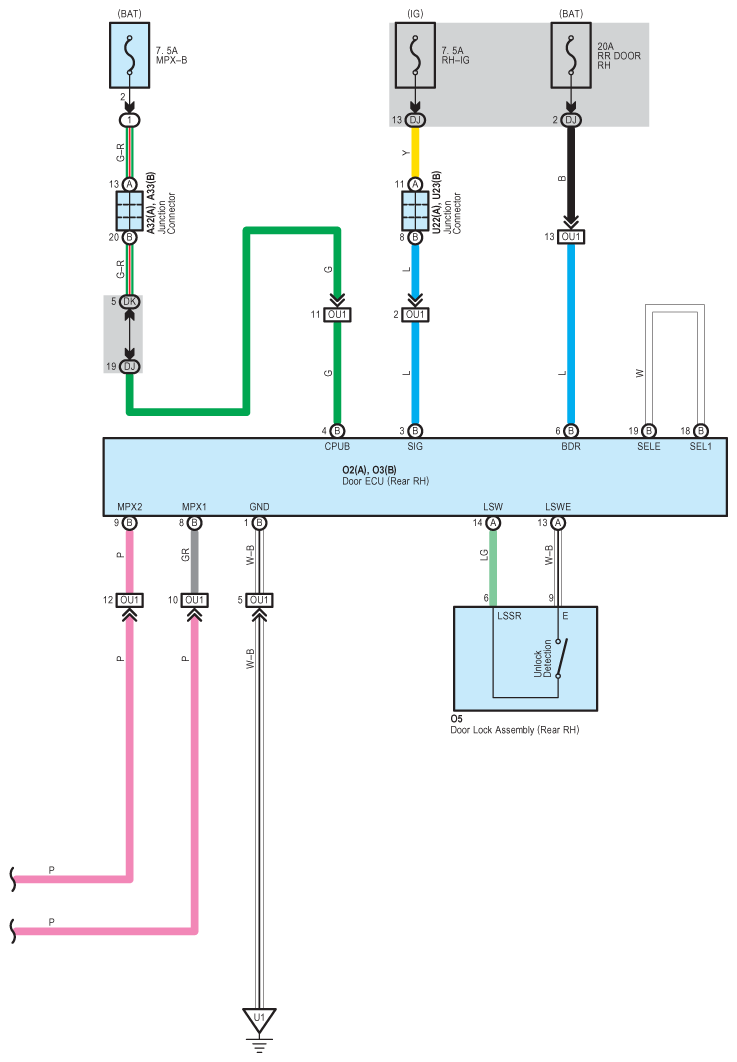

Fig 11: Theft Deterrent Wiring Diagram (11 Of 11)

G08919536

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
