VGRS System: Notes

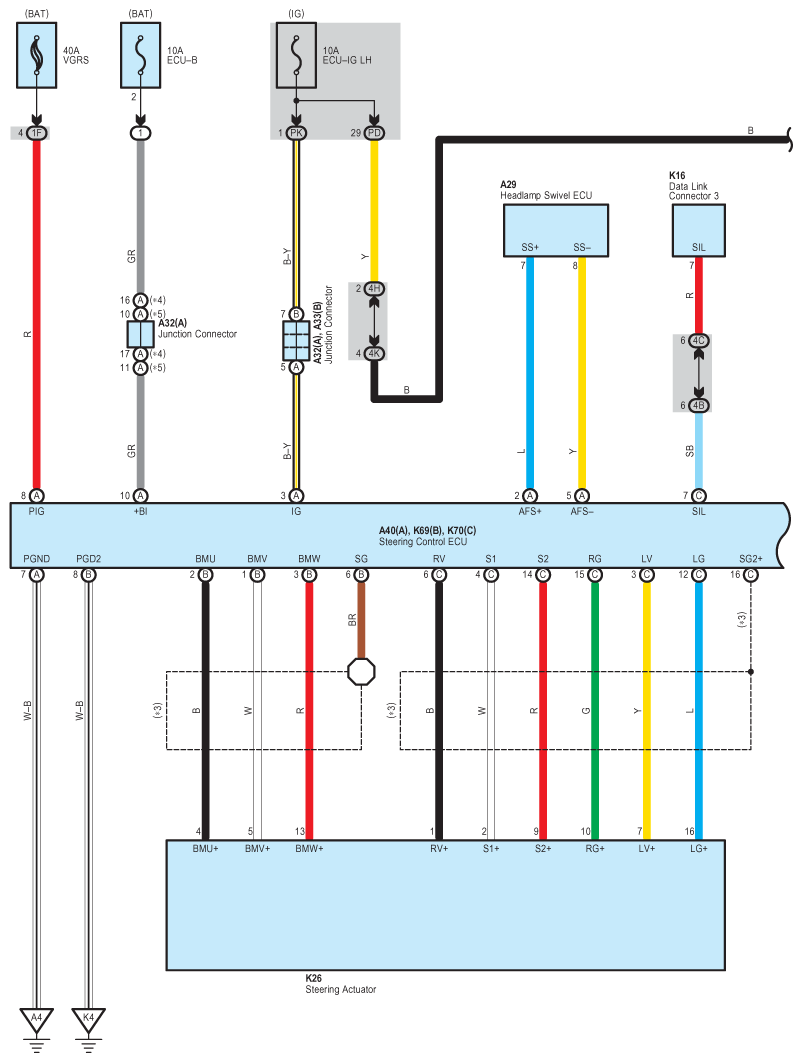

Fig 1: VGRS System Wiring Diagram (1 Of 9)

G08919598

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

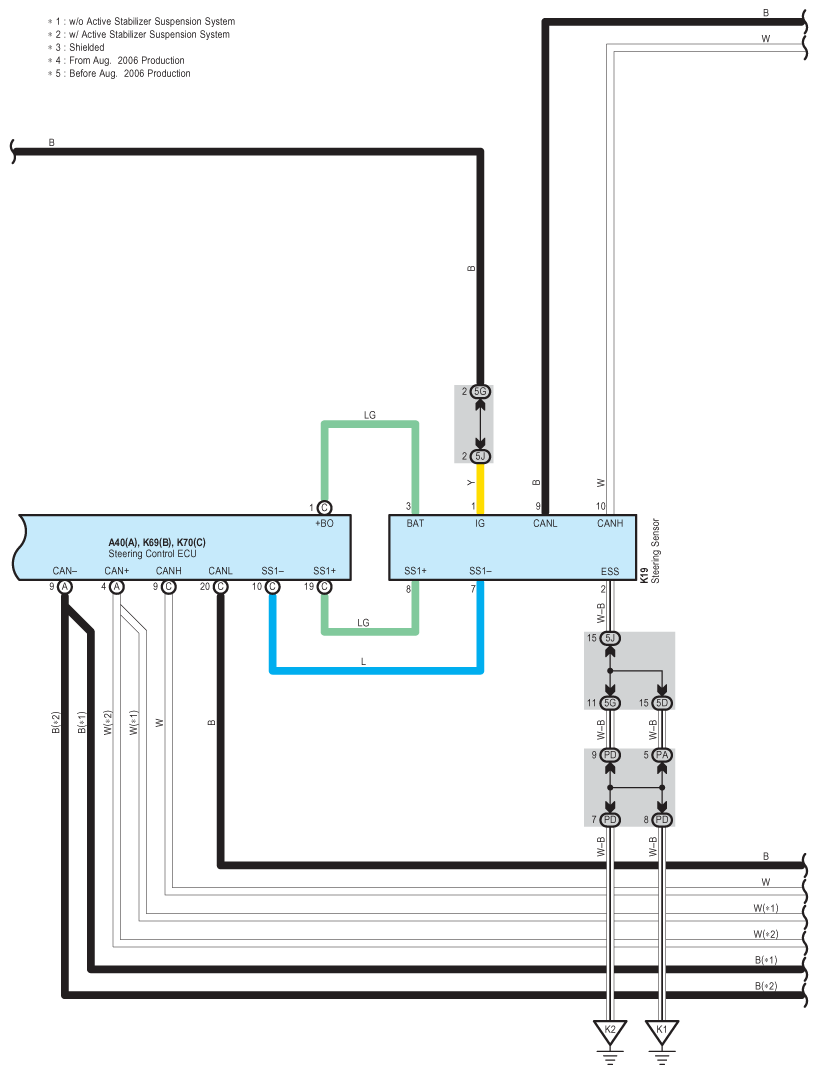

Fig 2: VGRS System Wiring Diagram (2 Of 9)

G08919599

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

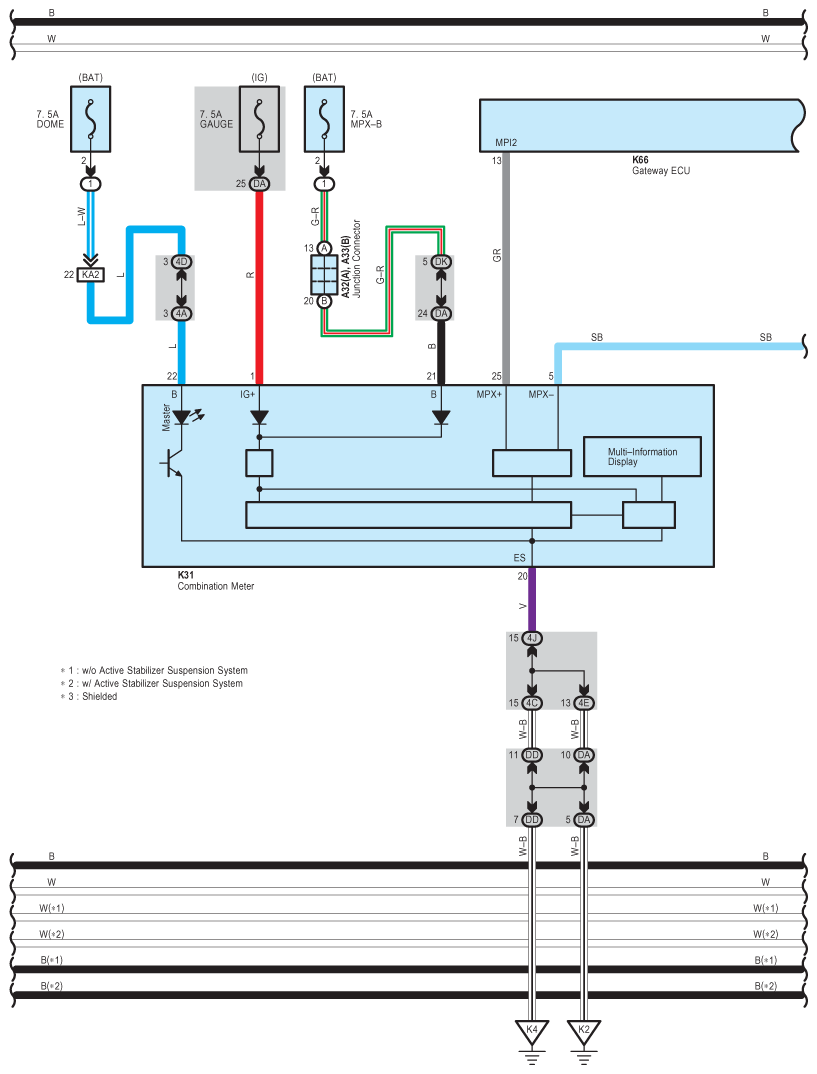

Fig 3: VGRS System Wiring Diagram (3 Of 9)

G08919600

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

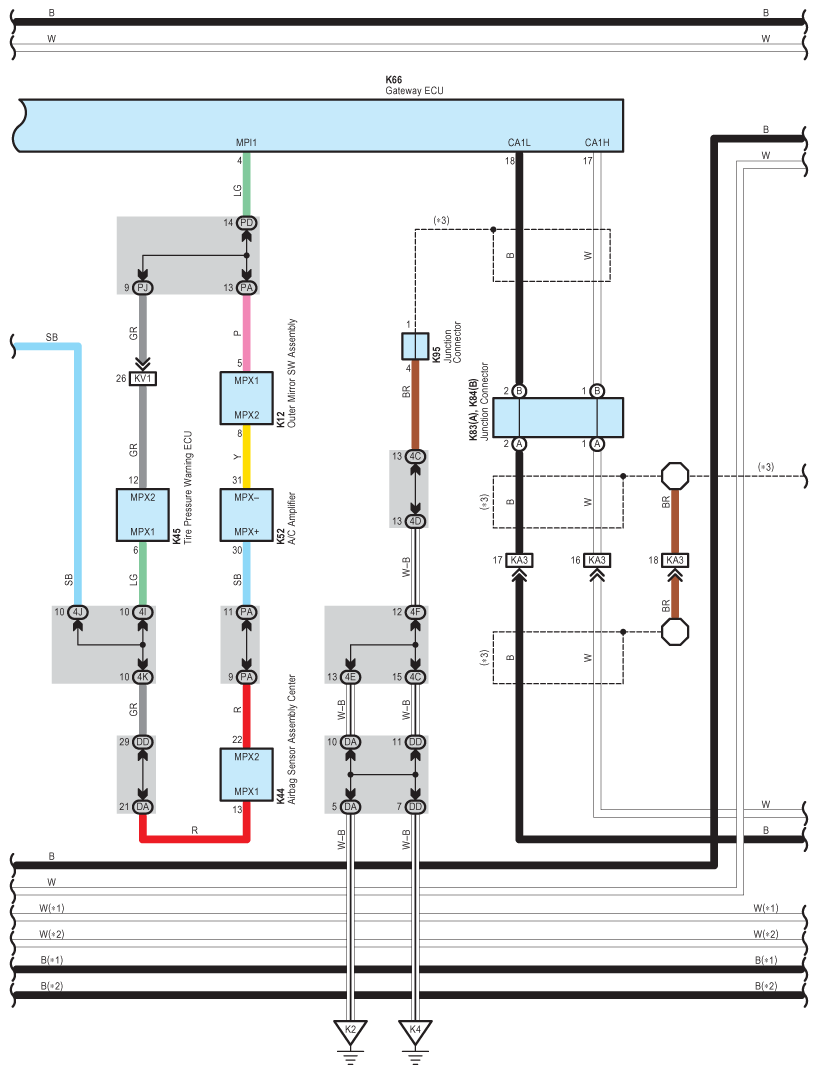

Fig 4: VGRS System Wiring Diagram (4 Of 9)

G08919601

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

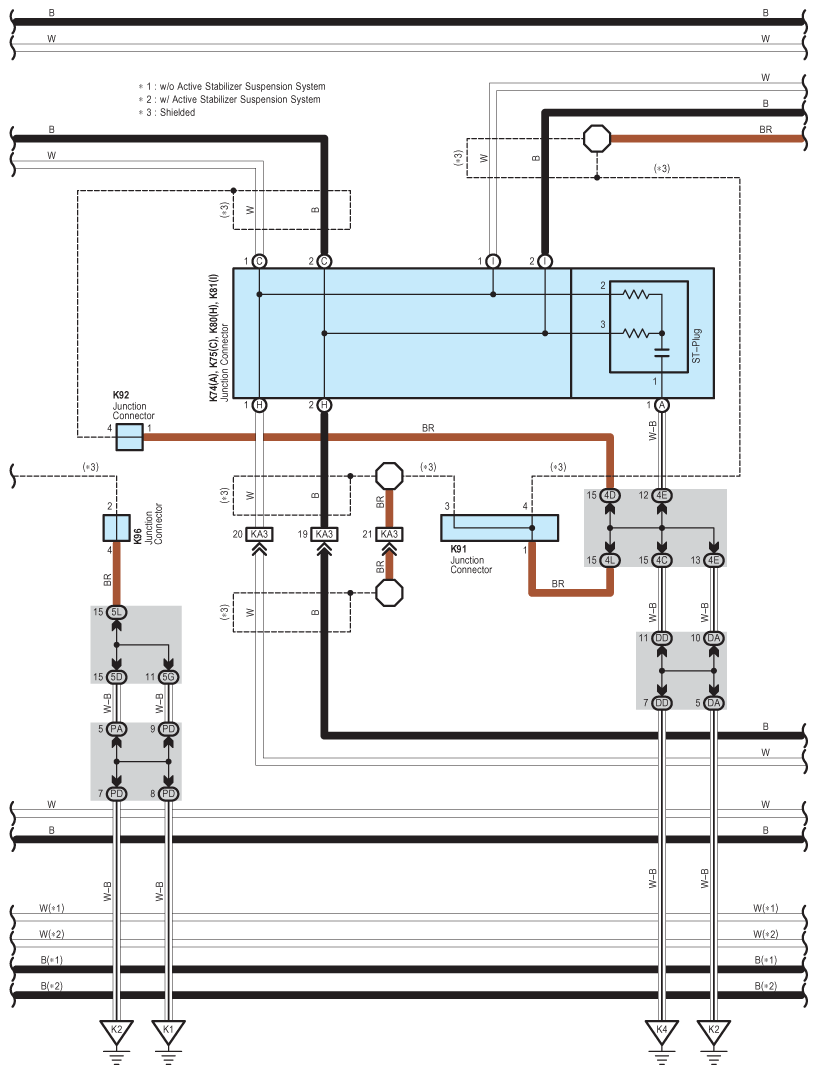

Fig 5: VGRS System Wiring Diagram (5 Of 9)

G08919602

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

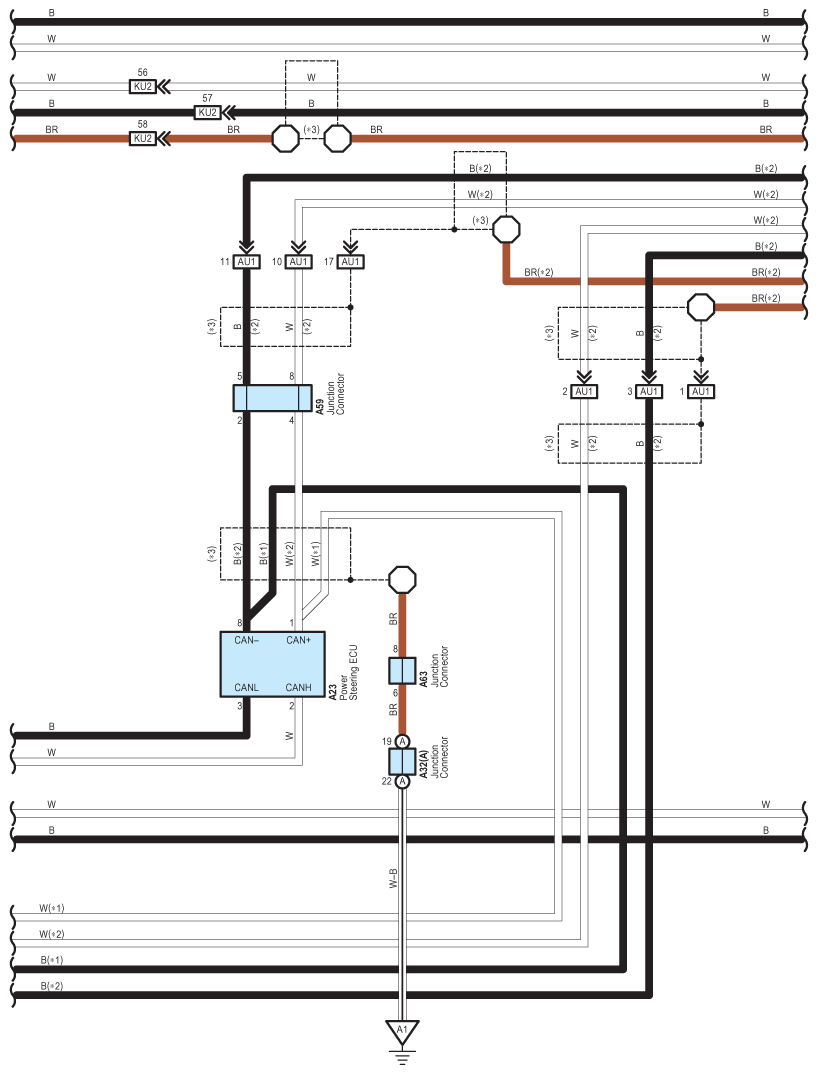

Fig 6: VGRS System Wiring Diagram (6 Of 9)

G08919603

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

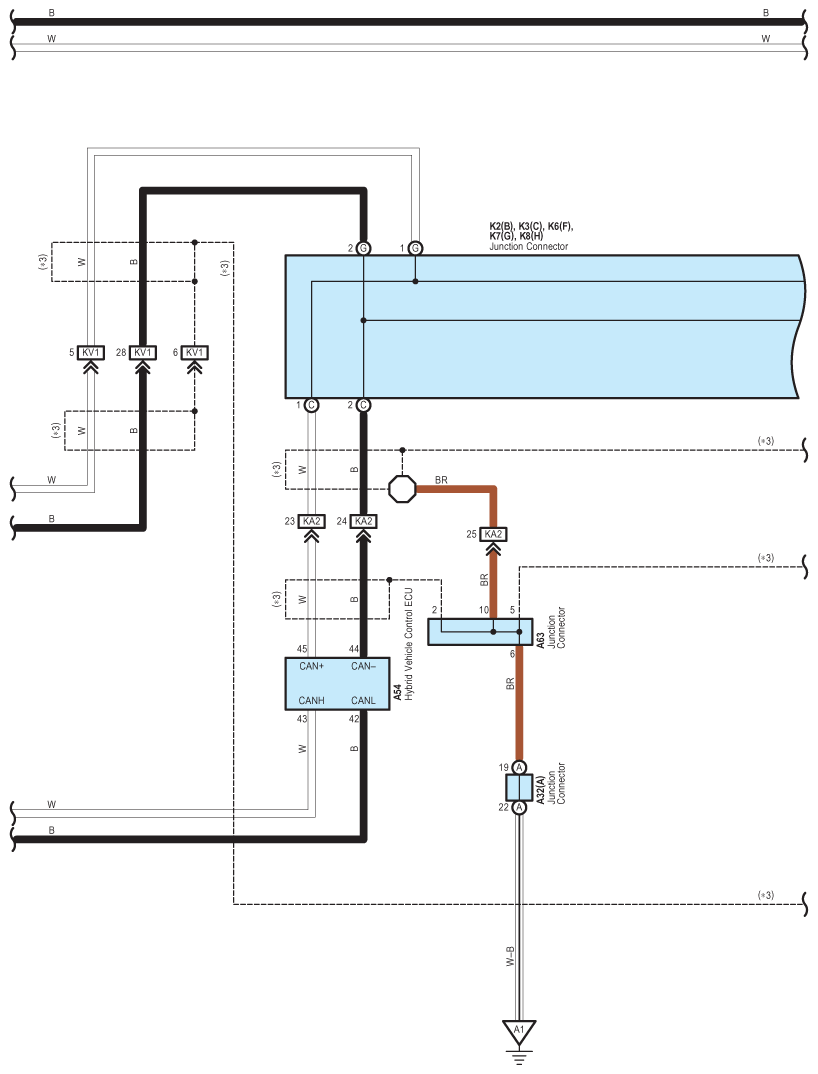

Fig 7: VGRS System Wiring Diagram (7 Of 9)

G08919604

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

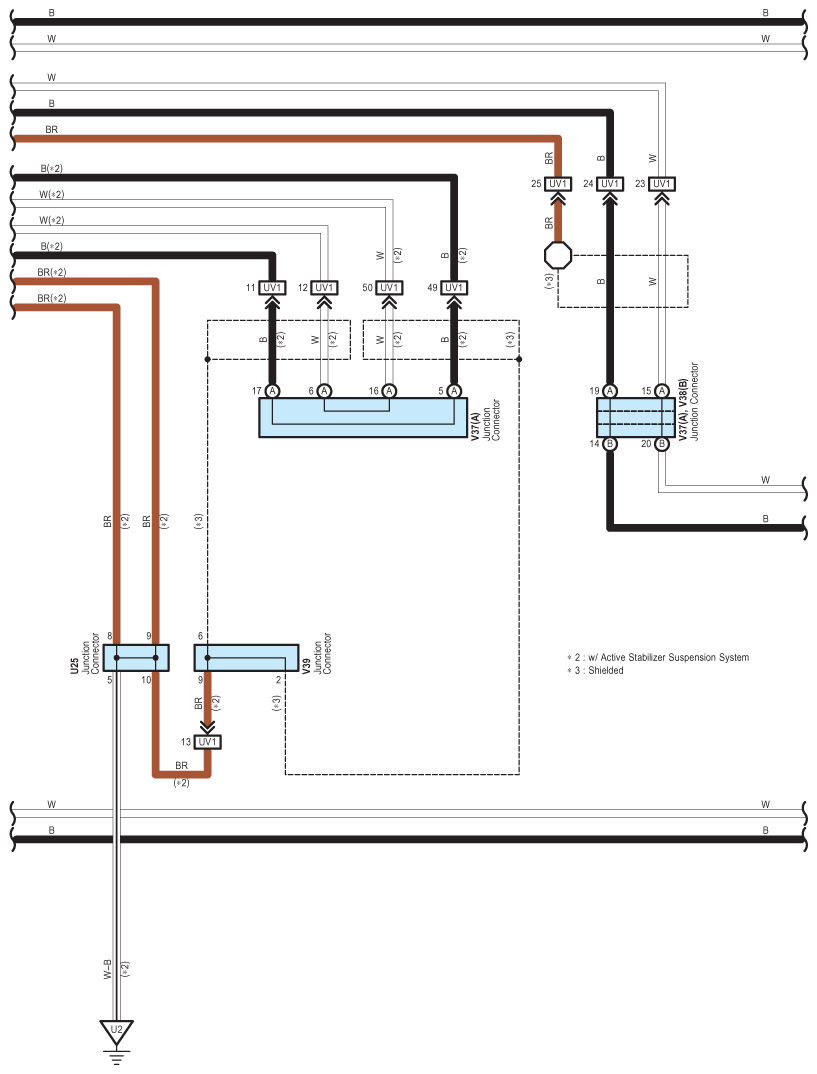

Fig 8: VGRS System Wiring Diagram (8 Of 9)

G08919605

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

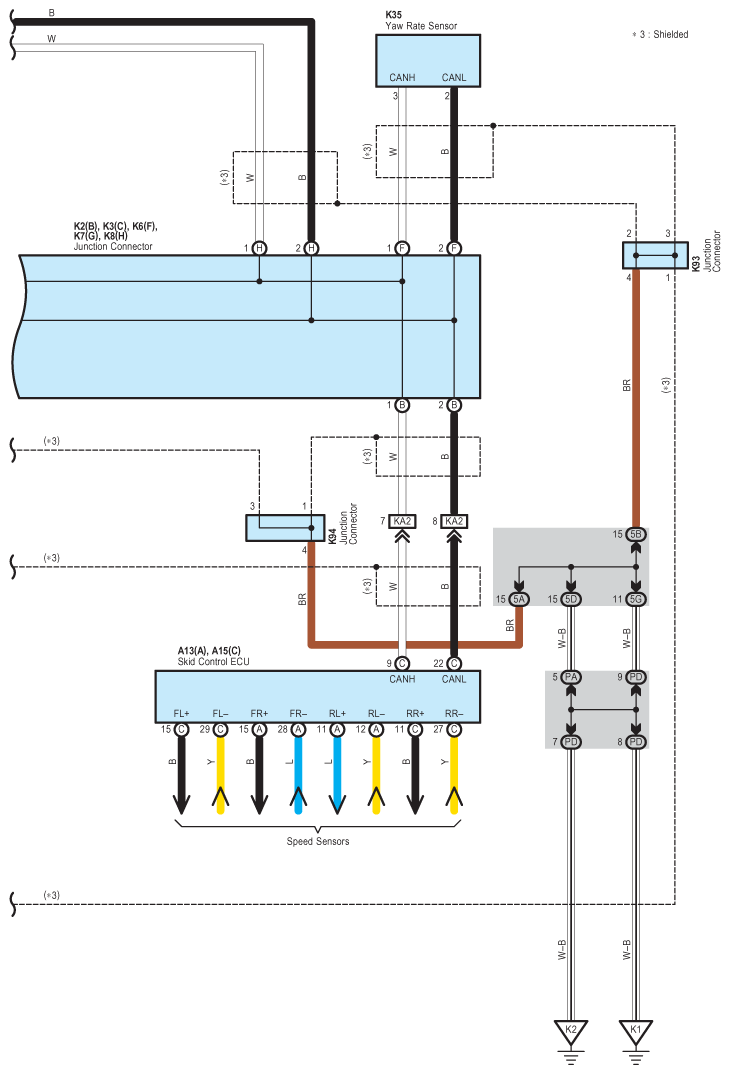

Fig 9: VGRS System Wiring Diagram (9 Of 9)

G08919606

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
