Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Absorber Control ECU | Behind right end of dash. See Figure. |
| Body ECU (Cowl Side J/B LH) | Behind left end of dash. See Figure. |
| Body ECU (Cowl Side J/B RH) | Behind right end of dash. See Figure. |
| Certification ECU | Right side of luggage compartment. See Figure. |
| Clearance Warning ECU | Behind right end of dash. See Figure. |
| Cooling Fan ECU | Left front of engine compartment. See Figure. |
| Distance Control ECU | Behind left end of dash. See Figure. |
| Door ECU (Front LH) | In driver's door. See Figure. |
| Door ECU (Front RH) | In right front door. See Figure. |
| Door ECU (Rear LH) | In left rear door. See Figure. |
| Door ECU (Rear RH) | In right rear door. See Figure. |

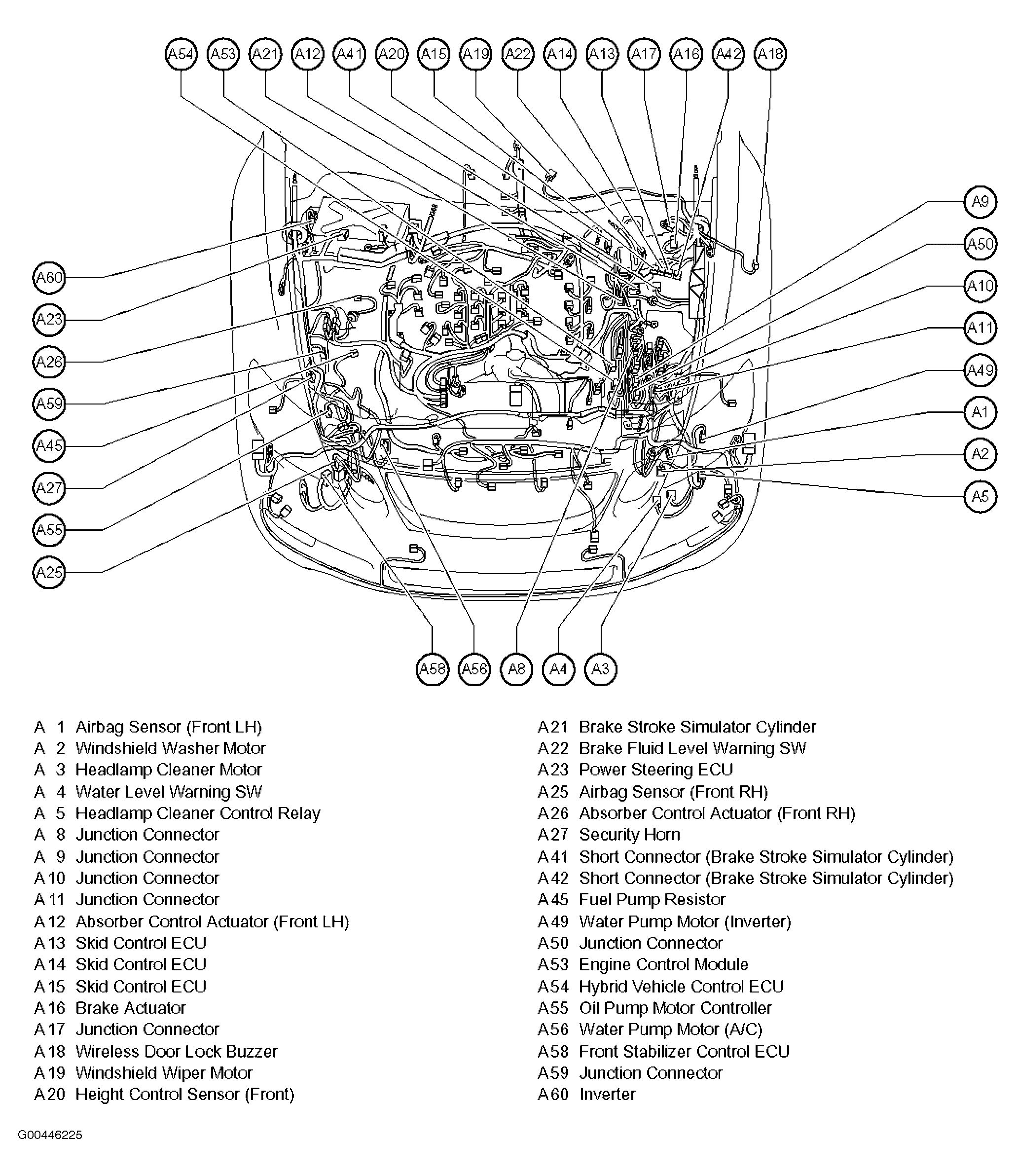

| Engine Control Module | Left side of engine compartment. See Figure. |
| Front Stabilizer Control ECU | Right front corner of engine compartment. See Figure. |
| Gateway ECU | Behind right end of dash. See Figure. |
| Headlamp Swivel ECU | Behind left kick panel. See Figure. |
| Hybrid Vehicle Control ECU | Left side of engine compartment. See Figure. |
| Injector Driver (EDU) | Right front of engine compartment. See Figure. |
| Mayday ECU | Right front of luggage compartment. See Figure. |

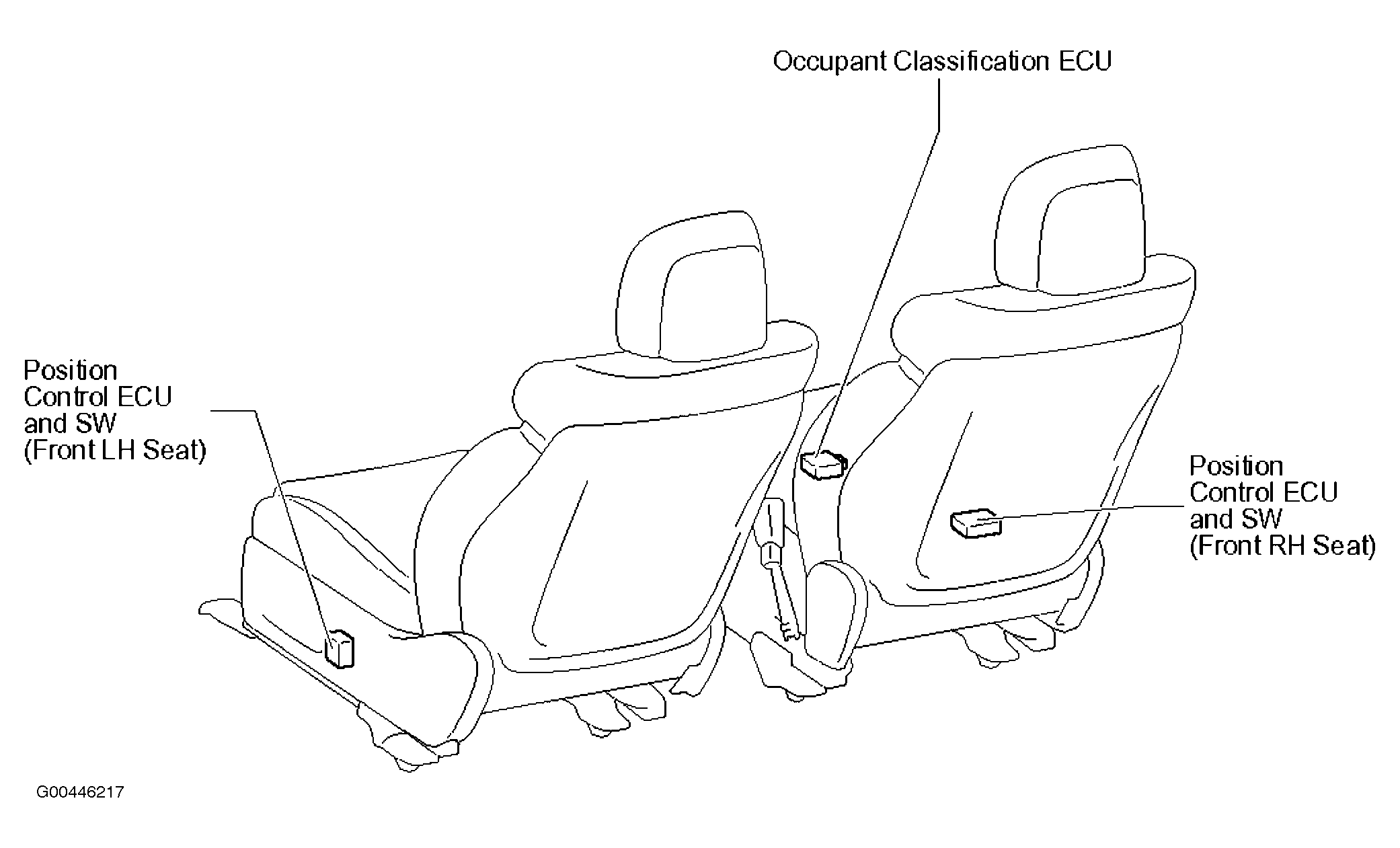

| Occupant Classification ECU | Under front passenger's seat. See Figure. |
| Oil Pump Motor Controller | Right front corner of engine compartment. See Figure. |

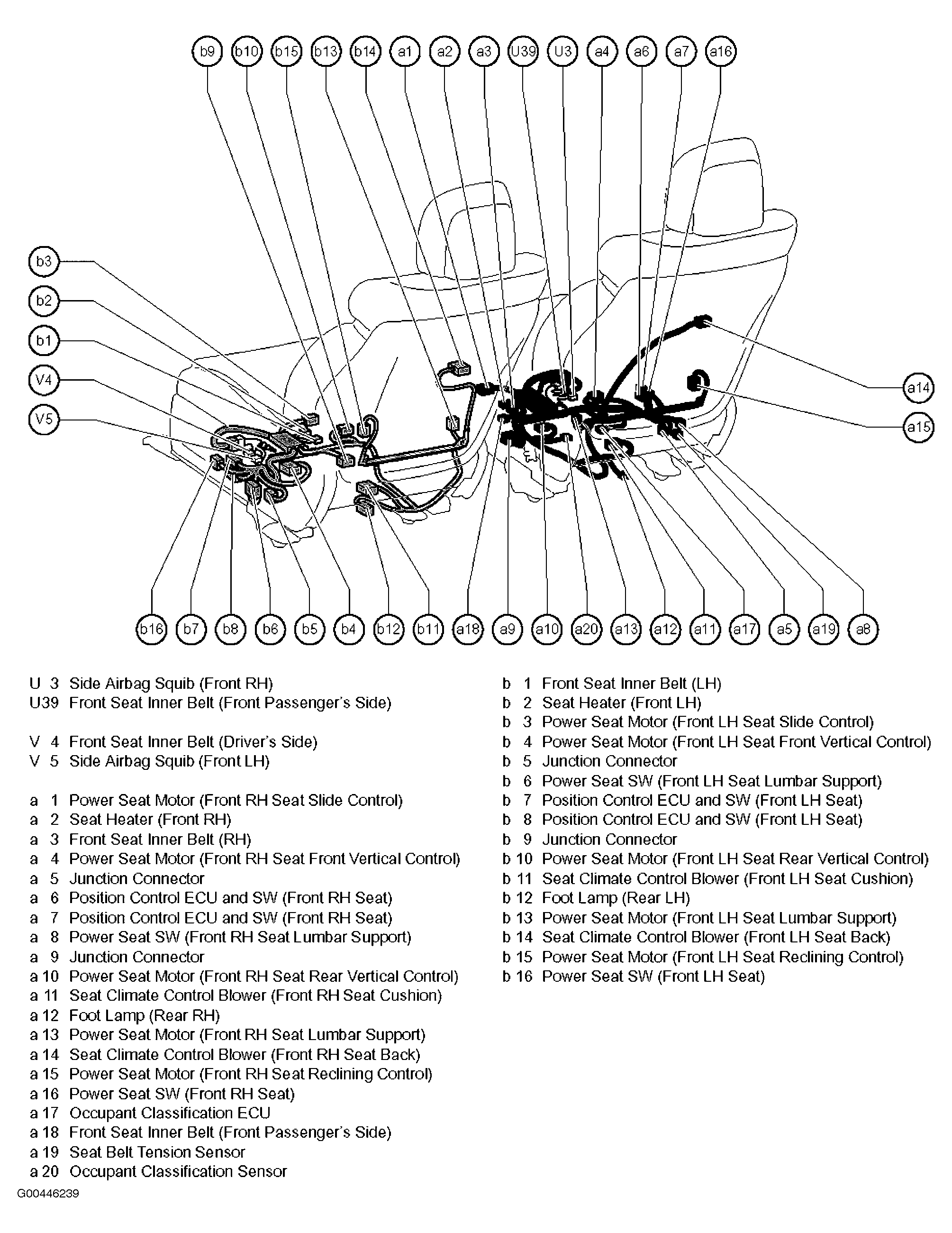

| Position Control ECU & SW (Front LH Seat) | Left side of driver's seat. See Figure. |
| Position Control ECU & SW (Front RH Seat) | Right side of front passenger's seat. See Figure. |
| Power Source Control ECU | Behind right end of dash. See Figure. |
| Power Steering ECU | Right rear corner of engine compartment. See Figure. |
| Rear Stabilizer Control ECU | Right side of luggage compartment. See Figure. |

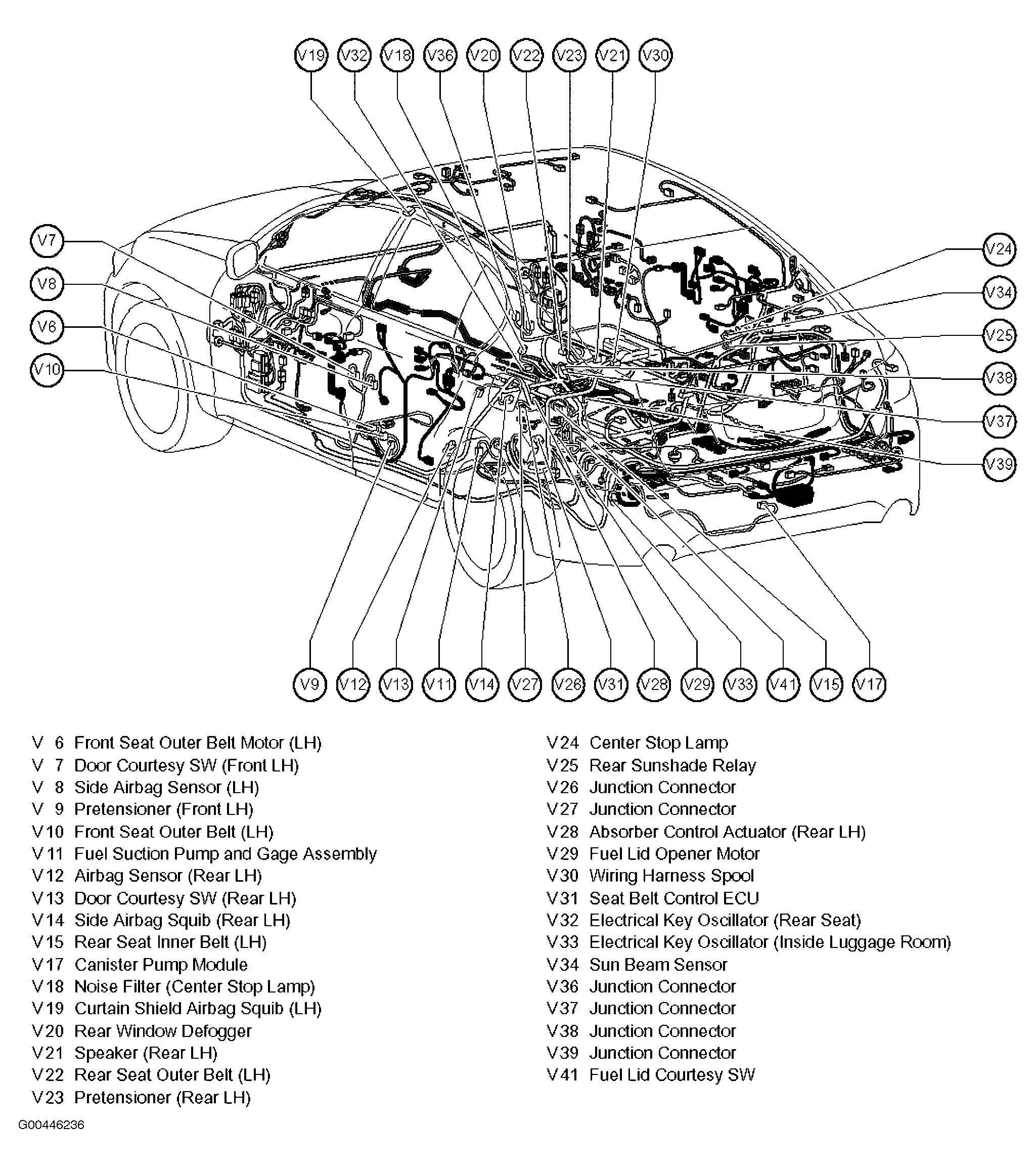

| Seat Belt Control ECU | Left side of luggage compartment. See Figure. |
| Shift Lock Control ECU | Under center console, near selector lever. See Figure. |
| Skid Control ECU | Left rear of engine compartment. See Figure. |
| Sliding Roof Control ECU | Front of overhead console. See Figure. |
| Steering Control ECU | Under glove box. See Figure. |
| Steering Lock ECU | Top right side of steering column. See Figure. |
| Tilt & Telescopic ECU | Top right side of steering column. See Figure. |
| Tire Pressure Warning ECU | Behind center of dash. See Figure. |
