Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|

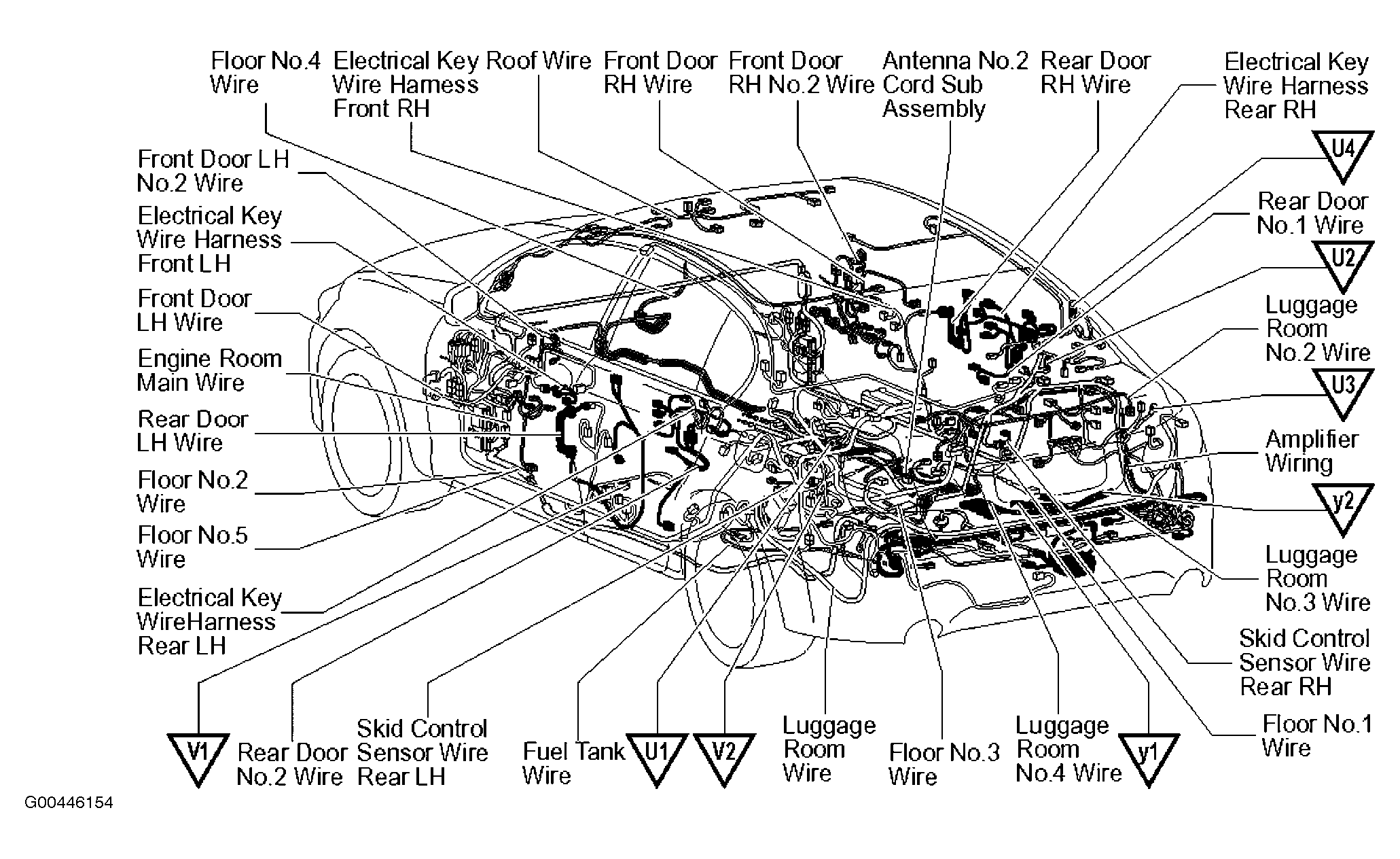

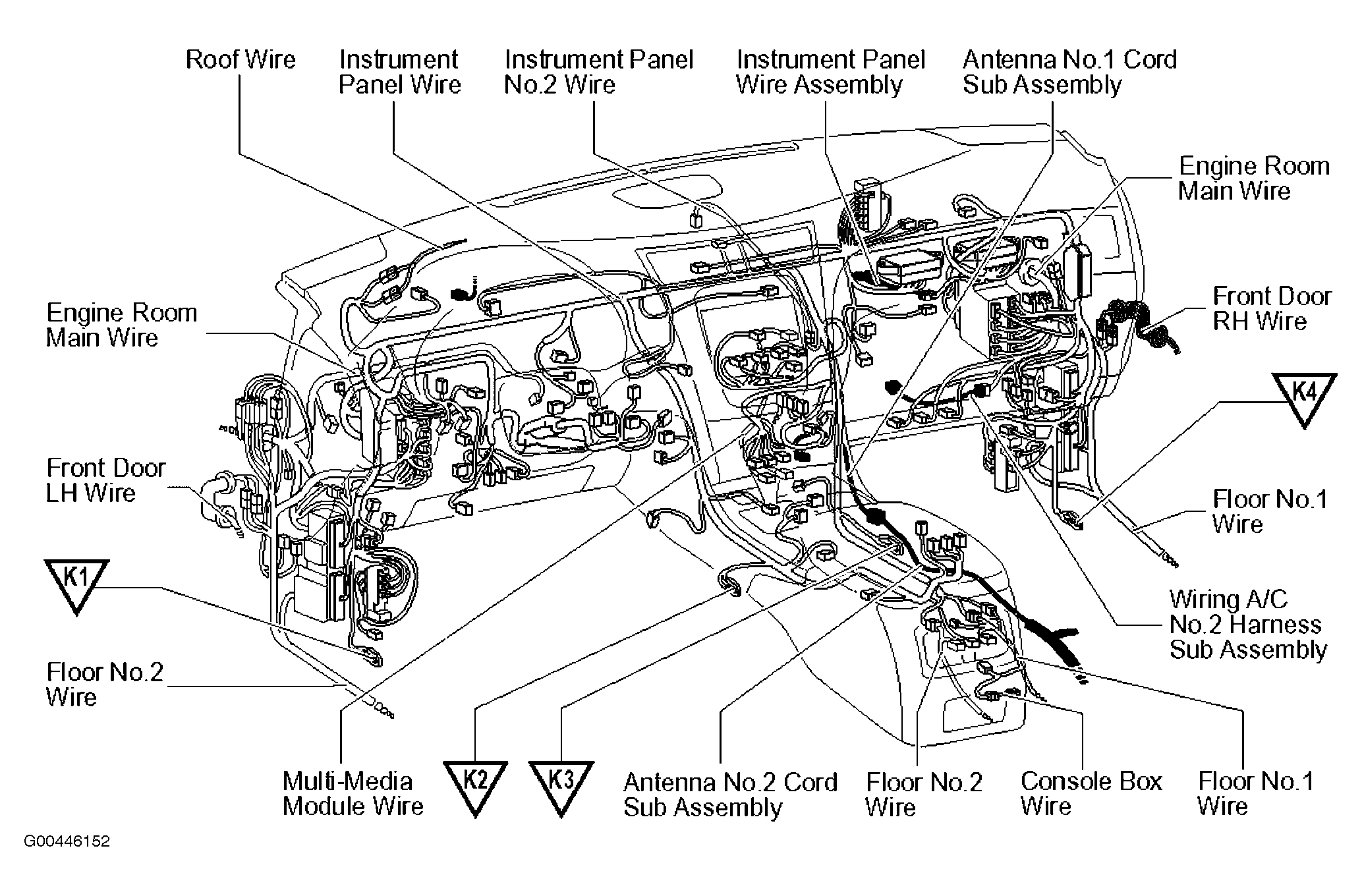

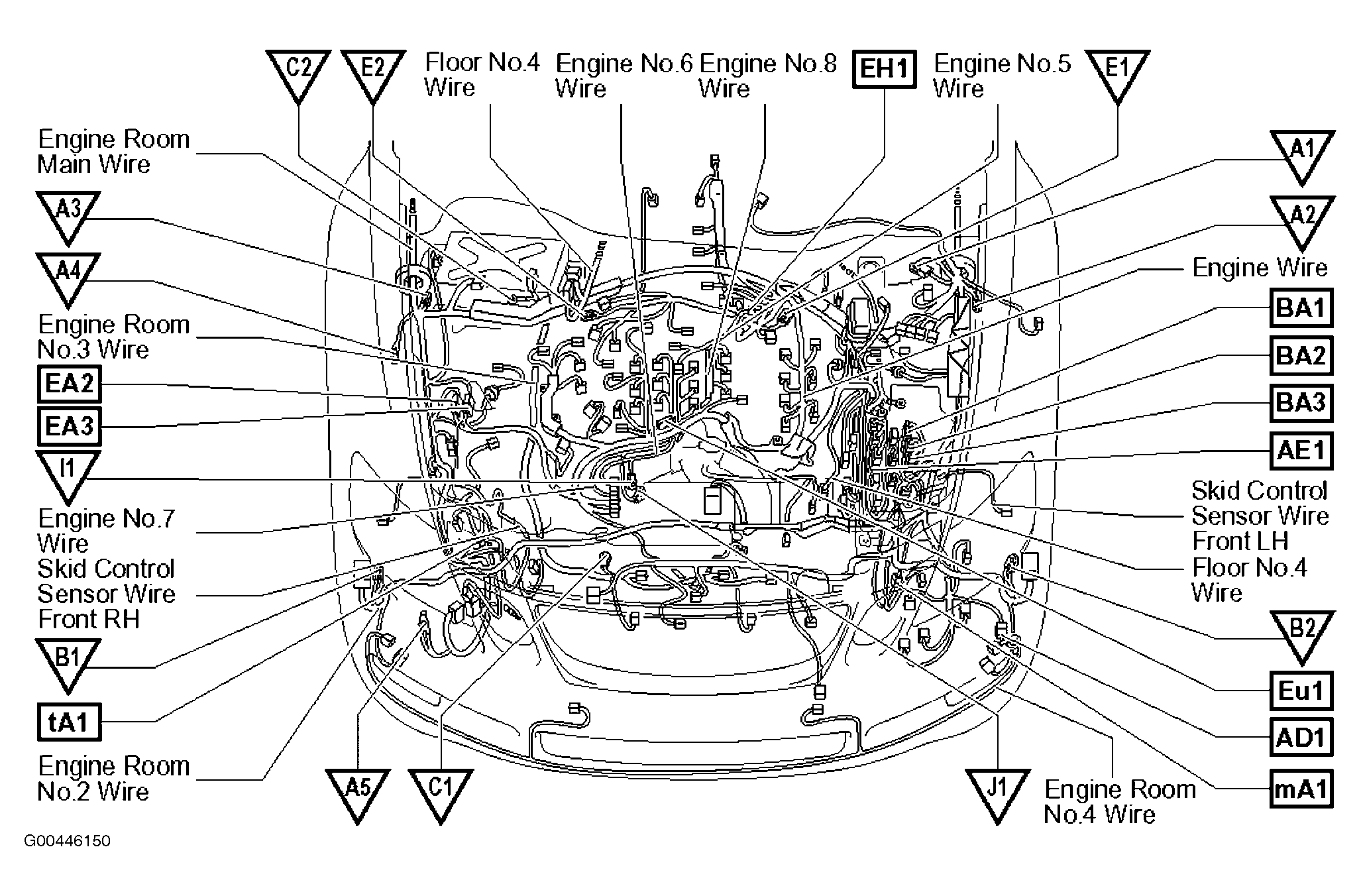

| A1 | Left rear of engine compartment. See Figure. |
| A2 | Left rear corner of engine compartment. See Figure. |
| A3 | Right rear corner of engine compartment. See Figure. |
| A4 | Right rear of engine compartment. See Figure. |
| A5 | Under right headlight assembly. See Figure. |
| B1 | Right front of engine compartment. See Figure. |
| B2 | Under left headlight assembly. See Figure. |
| C1 | Right front of engine compartment. See Figure. |
| C2 | Right rear of engine compartment. See Figure. |
| E1 | Left rear of engine. See Figure. |
| E2 | Right rear of engine. See Figure. |
| I1 | Right front of engine. See Figure. |
| J1 | Right front of engine. See Figure. |
| K1 | Behind left kick panel. See Figure. |
| K2 | Under left side of floor console. See Figure. |
| K3 | Under right side of floor console. See Figure. |
| K4 | Behind right kick panel. See Figure. |
| U1 | Under front passenger's seat. See Figure. |
| U2 | In right "C" pillar. See Figure. |
| U3 | Right side of luggage compartment. See Figure. |
| U4 | In right "C" pillar. See Figure. |
| V1 | Under driver's seat. See Figure. |
| V2 | Left side of luggage compartment. See Figure. |
| y1 | Right side of luggage compartment. See Figure. |
| y2 | Right rear of luggage compartment. See Figure. |
