Inspection Procedure

1. Check the DATA LIST for proper functioning of the start switch 1 and 2.

   Power source control ECU

   POWER SOURCE CONTROL ECU - DATA LIST REFERENCE



   Item	Measurement Item/Display (Range)	Normal Condition
   START SW 1	Start Switch 1 / ON or OFF	ON: Power switch pushed OFF: Power switch not pushed
   START SW 2	Start Switch 2 / ON or OFF	ON: Power switch pushed OFF: Power switch not pushed

   OK: ON (power switch ON (IG)) appears on the screen.

OK: REPLACE POWER SOURCE CONTROL ECU

NG: GO TO Next Step

1. Remove the power switch.
2. Measure the resistance of the switch.

   Standard resistance

   STANDARD RESISTANCE SPECIFICATION



   Tester Connection	Switch Condition	Specified Condition
   7 (SS1) - 5 (GND)	Pushed	Below 1 Ω
   2 (SS2) - 5 (GND)	Pushed	Below 1 Ω
   7 (SS1) - 5 (GND)	Not pushed	10 kΩ or higher
   2 (SS2) - 5 (GND)	Not pushed	10 kΩ or higher

   Fig 1: Identifying Power Switch Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE POWER SWITCH

OK: GO TO Next Step

1. Disconnect the K29 switch connector.
2. Disconnect the K73 ECU connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   STANDARD RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   K29-7 (SS1) - K73-14 (SSW1)	Below 1 Ω
   K29-2 (SS2) - K73-37 (SSW2)	Below 1 Ω
   K29-5 (GND) - Body ground	Below 1 Ω
   K29-7 (SS1) or K73-14 (SSW1) - Body ground	10 kΩ or higher
   K29-2 (SS2) or K73-37 (SSW2) - Body ground	10 kΩ or higher

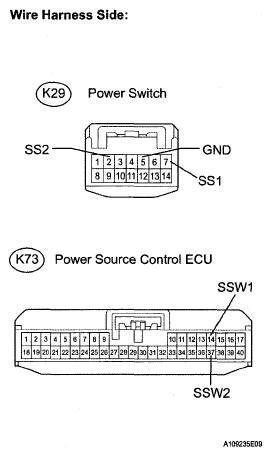

Fig 2: Identifying Power Switch And Power Source Control ECU And Body Ground
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE POWER SOURCE CONTROL ECU
