Inspection Procedure
- READ VALUE OF INTELLIGENT TESTER (READY CONDITION)
- Check the DATA LIST for proper functioning of the engine condition.
Power source control ECU
POWER SOURCE CONTROL ECU - DATA LIST REFERENCEItem Measurement Item / Display (Range) Normal Condition READY SIG READY condition / ON or OFF or UNKNOWN ON: Power switch ON (READY)
OFF: Power switch ON (IG) / (READY OFF)
UNKNOWN: Power switch OFFOK: ON (engine (hybrid) running) appears on screen.
OK: REPLACE POWER SOURCE CONTROL ECU
NG: GO TO Next Step
- Check the DATA LIST for proper functioning of the engine condition.
- CHECK WIRE HARNESS (POWER SOURCE CONTROL ECU - HV CONTROL ECU)
- Disconnect the K73 ECU connector.
- Disconnect the A54 ECU connector.
- Measure the resistance of the wire harness side connectors.
Standard resistance

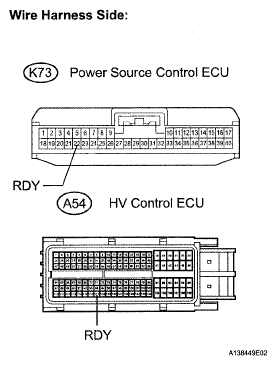

STANDARD RESISTANCE SPECIFICATIONTester Connection Specified Condition K73-22 (RDY) - A54-117 (RDY) Below 1 Ω K73-22 (RDY) or A54-117 (RDY) -Body ground 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: GO TO Next Step
- CHECK POWER SOURCE CONTROL ECU (READY SIGNAL)
- Measure the voltage of the power source control ECU.
Standard voltage
STANDARD VOLTAGE SPECIFICATIONTester Connection Condition Specified Condition 22 (RDY) - Body ground Power switch ON (IG) or ON (READY) Pulse generation (see TERMINALS OF ECU )
NG: GO TO HYBRID CONTROL SYSTEM
OK: REPLACE POWER SOURCE CONTROL ECU
- Measure the voltage of the power source control ECU.
