Parts Location

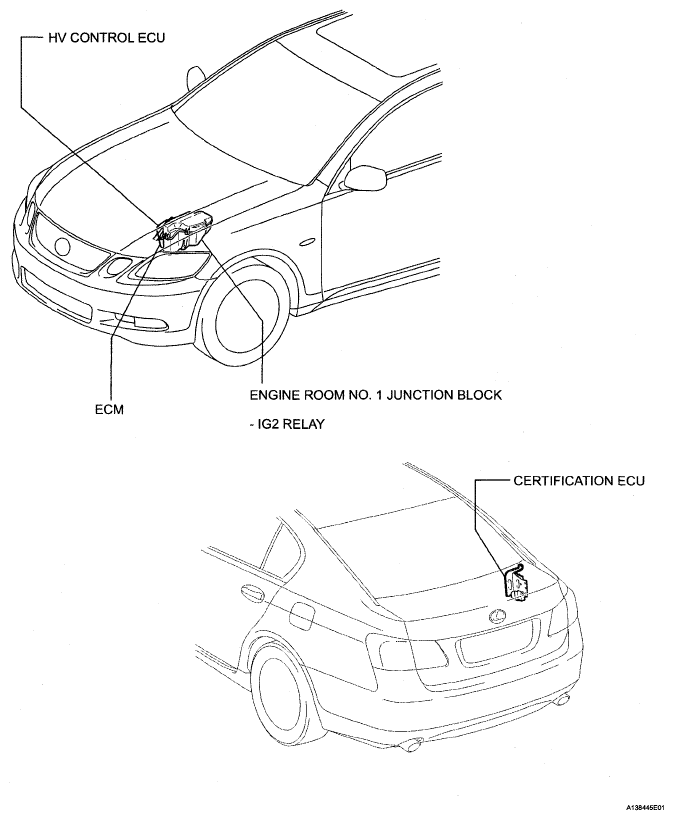

Fig 1: Identifying Engine Room No. 1 Junction Block Parts Location (1 Of 3)
G05303591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

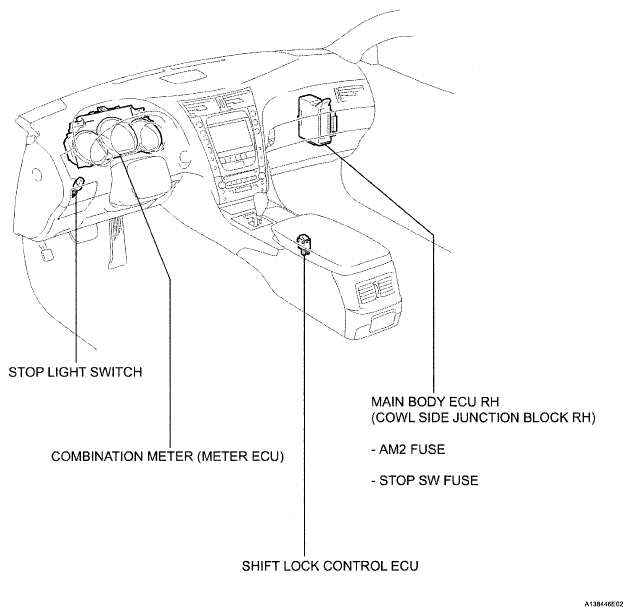

Fig 2: Identifying Engine Room No. 1 Junction Block Parts Location (2 Of 3)
G05303592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

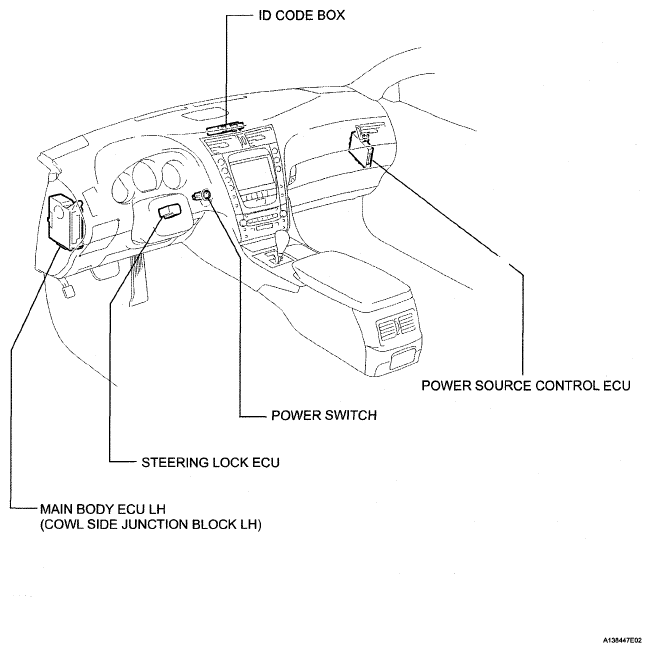

Fig 3: Identifying Engine Room No. 1 Junction Block Parts Location (3 Of 3)
G05303593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
