Fuel Relief Valve: Components

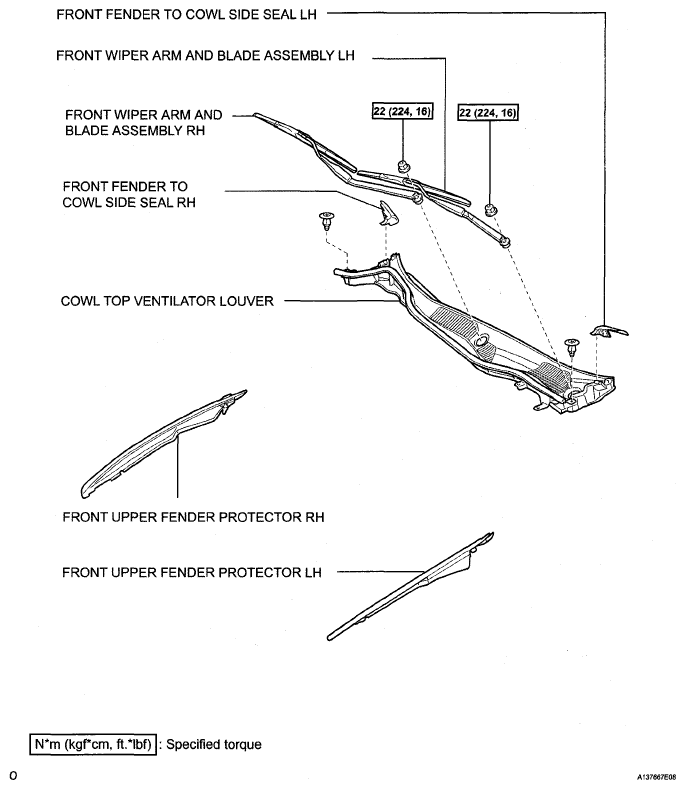

Fig 1: Fuel Relief Valve Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

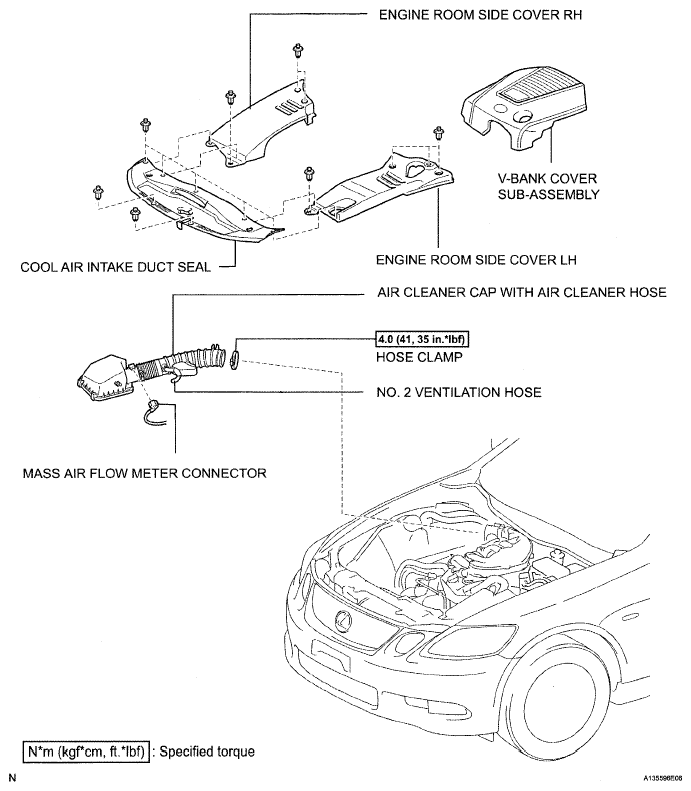

Fig 2: Fuel Relief Valve Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

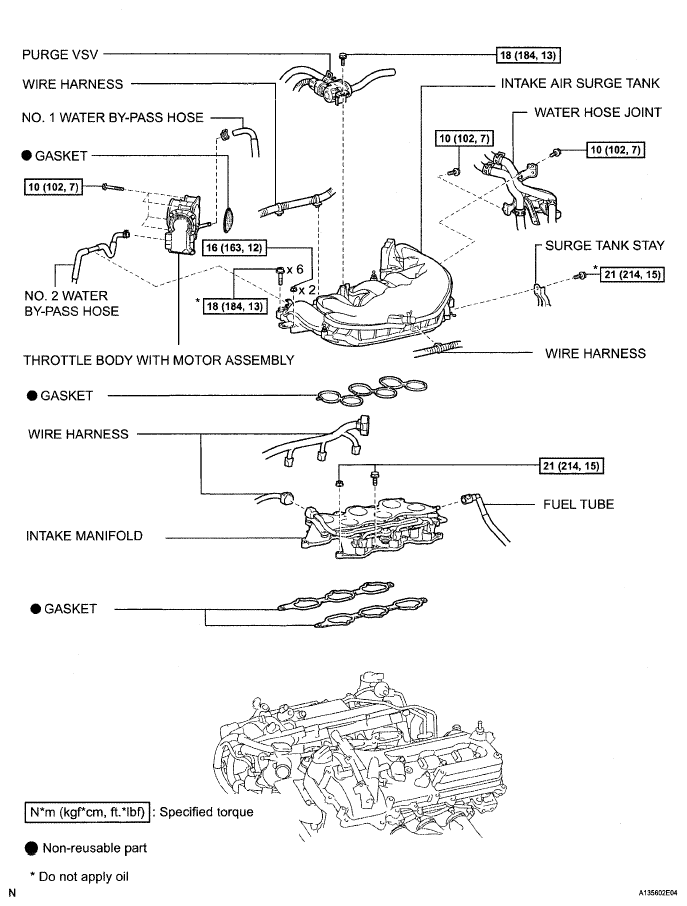

Fig 3: Fuel Relief Valve Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

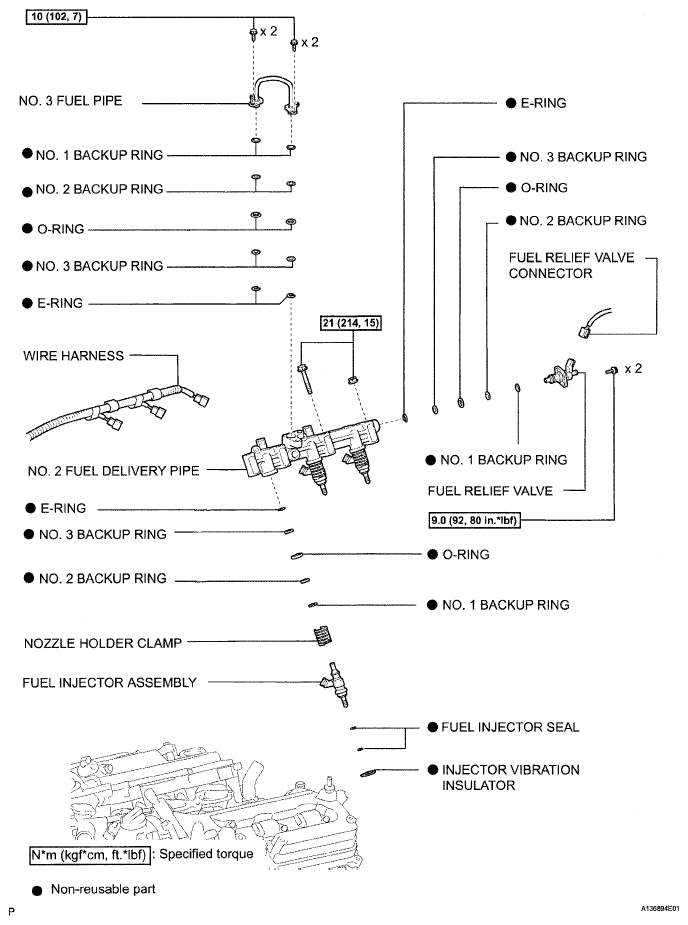

Fig 4: Fuel Relief Valve Replacement Components With Torque Specifications (4 Of 5)

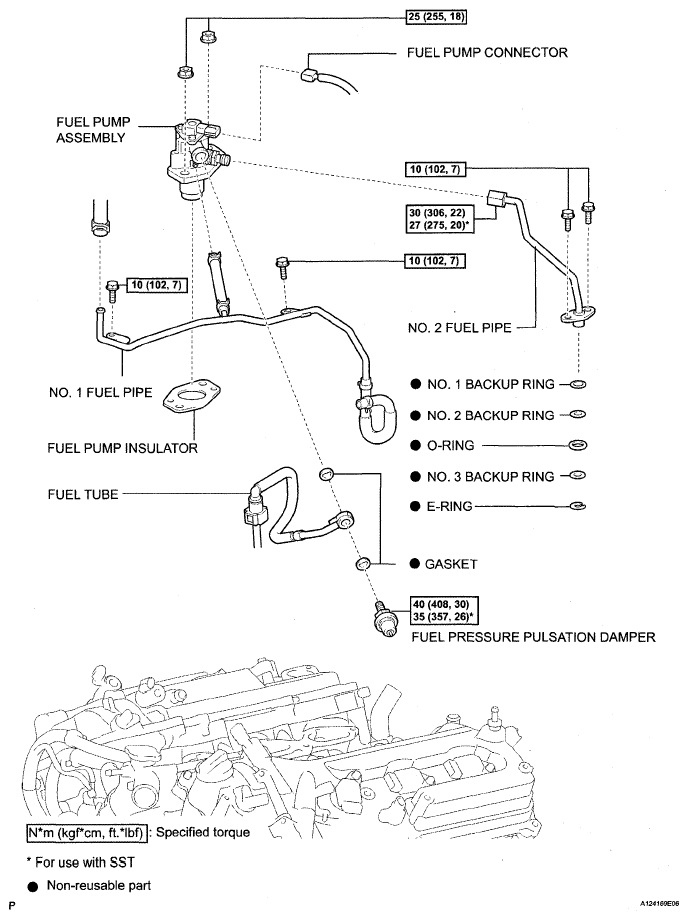

Fig 5: Fuel Relief Valve Replacement Components With Torque Specifications (5 Of 5)
