System Diagram

FUEL FLOW DIAGRAM

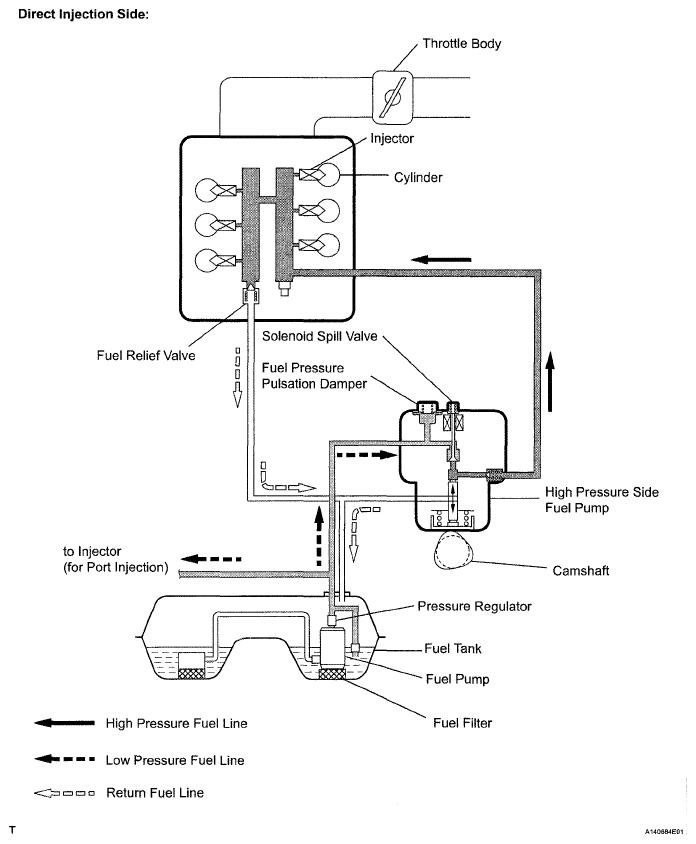

Fig 1: Fuel Flow Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

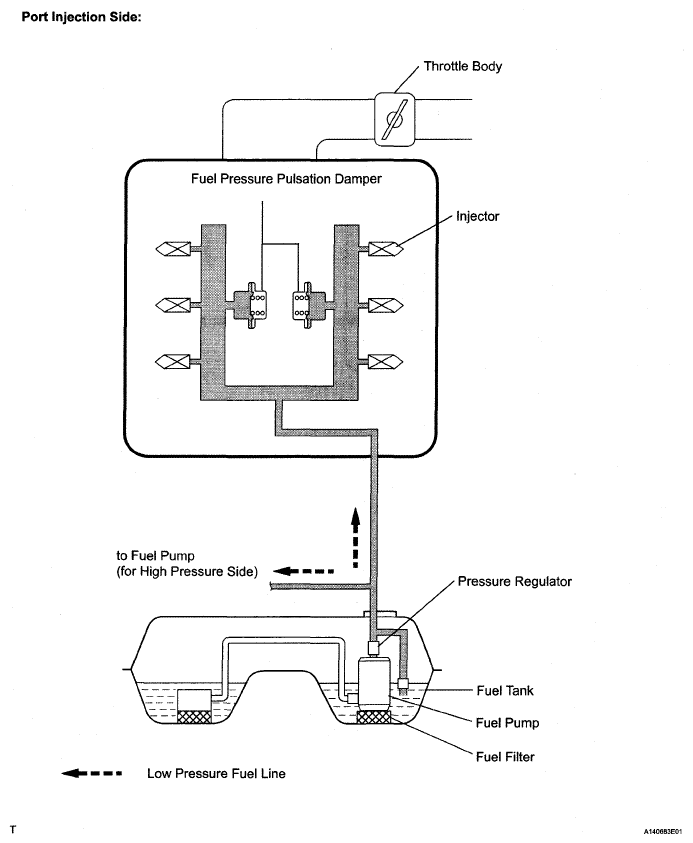

Fig 2: Fuel Flow Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ELECTRICAL CONTROL DIAGRAM

Fig 3: Electrical Control Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HIGH PRESSURE SIDE (DIRECT INJECTION SIDE) FUEL SYSTEM WIRING DIAGRAM

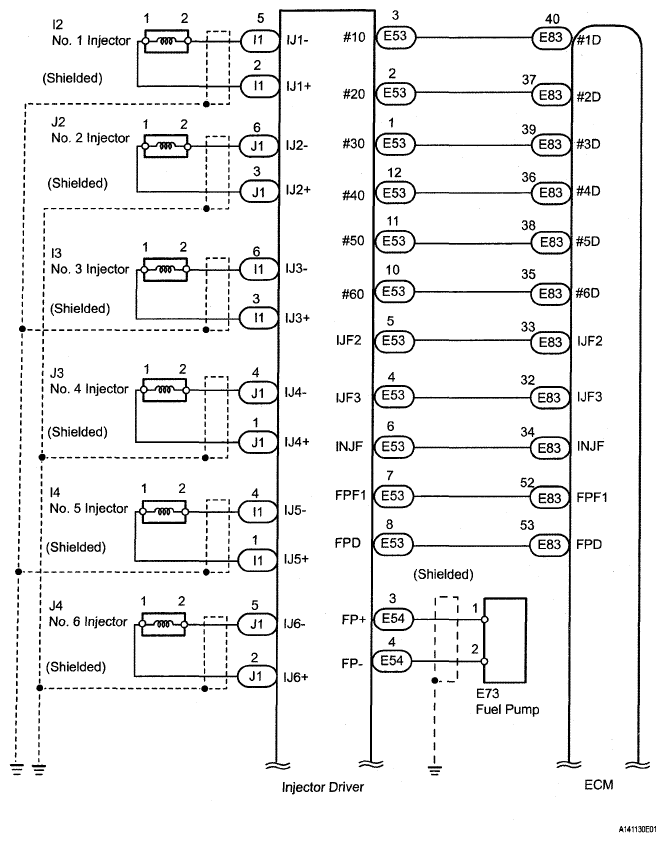

Fig 4: Fuel System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

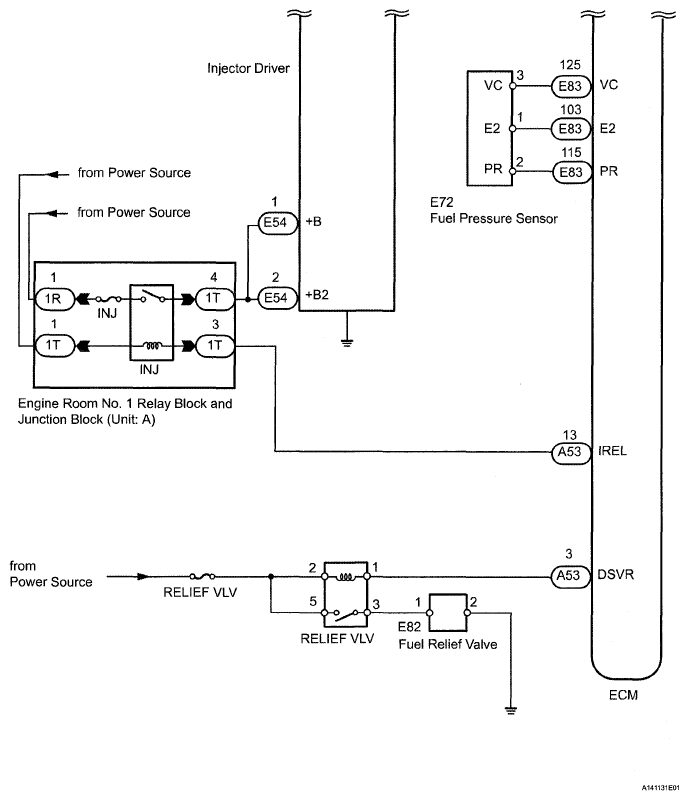

Fig 5: Fuel System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PORT INJECTION SIDE FUEL SYSTEM WIRING DIAGRAM

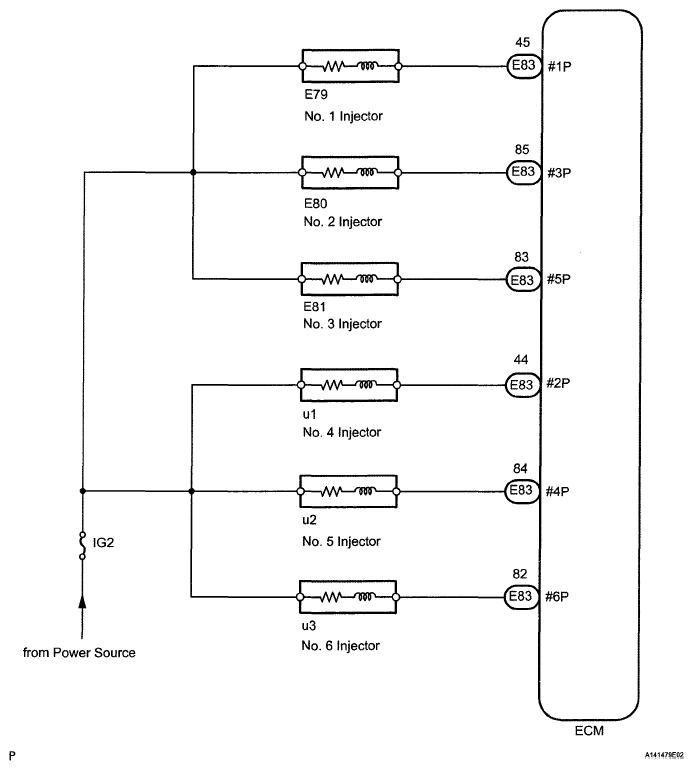

Fig 6: Port Injection Side Fuel System - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
LOW PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

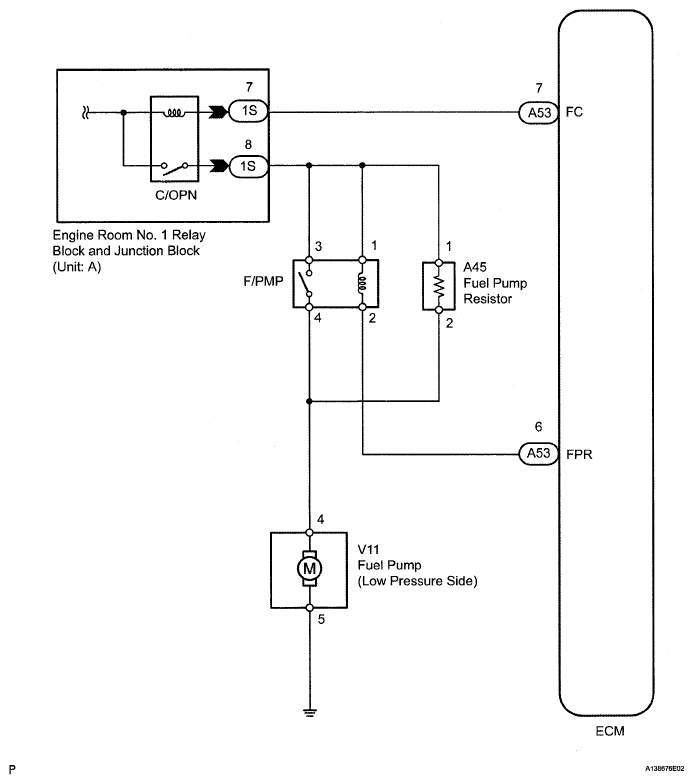

Fig 7: Low Pressure Side Fuel System - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
