VC Output Circuit: Wiring Diagram

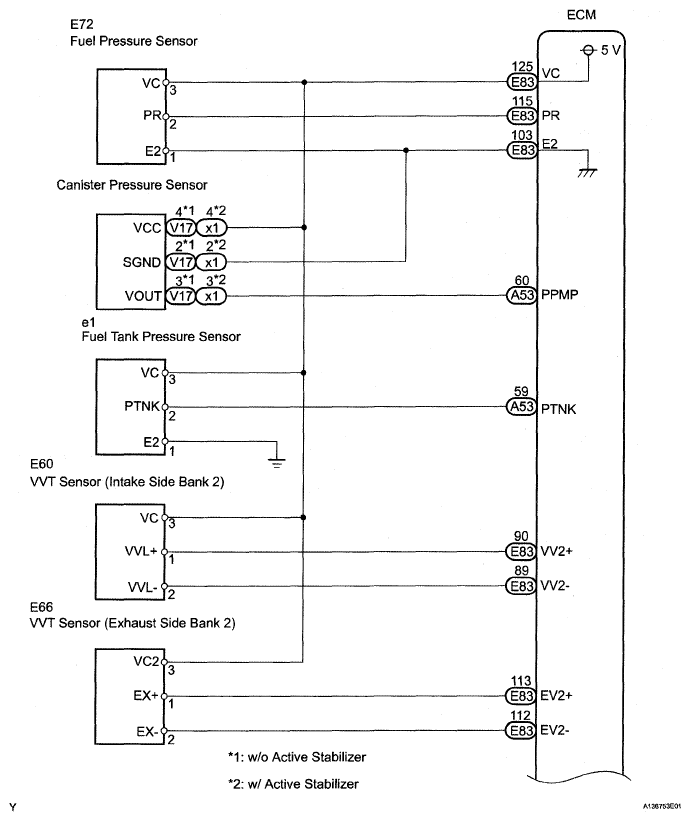

Fig 1: Fuel Pressure Sensor And ECM - Wiring Diagram (1 Of 2)
G05302503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Fuel Pressure Sensor And ECM - Wiring Diagram (2 Of 2)
G05302504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
