Parts Location

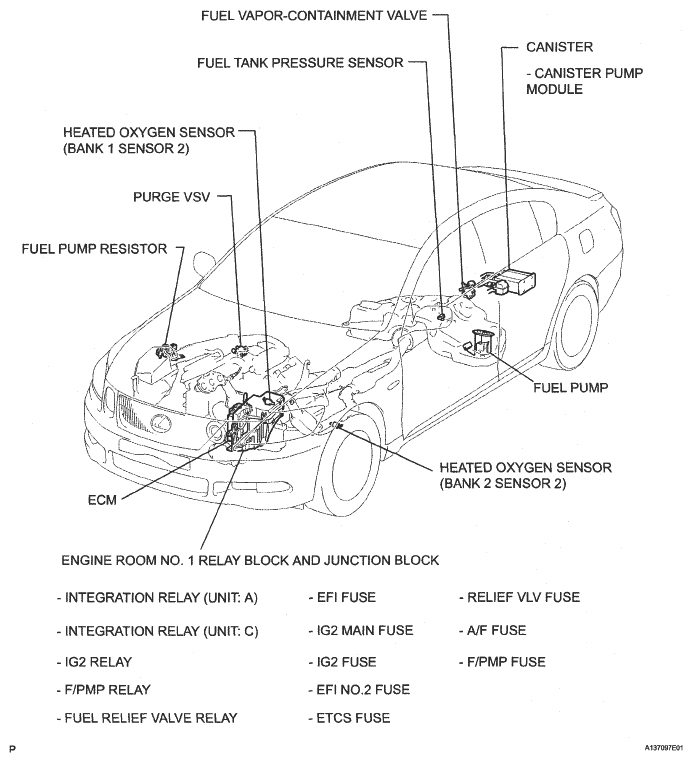

Fig 1: Identifying Engine Control System Components Location (1 Of 4)
G05302235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

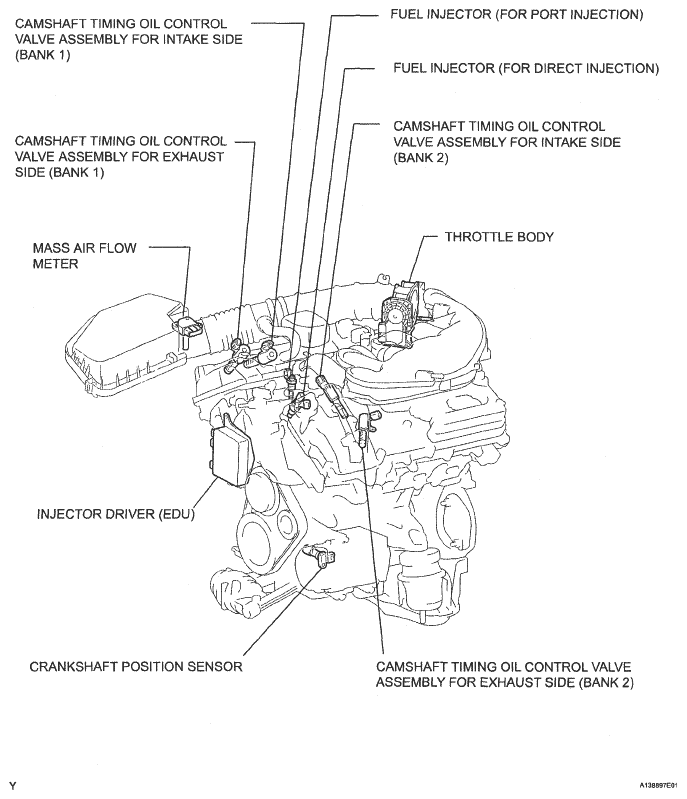

Fig 2: Identifying Engine Control System Components Location (2 Of 4)
G05302236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

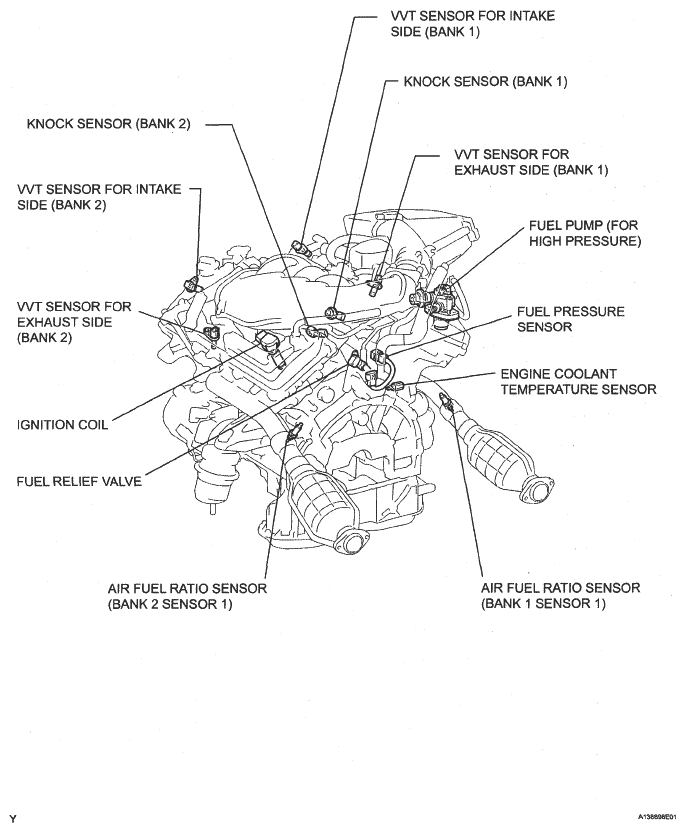

Fig 3: Identifying Engine Control System Components Location (3 Of 4)
G05302237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Engine Control System Components Location (4 Of 4)
G05302238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
