System Diagram

Fig 1: Engine Control System Diagram (1 Of 5)
G05302239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

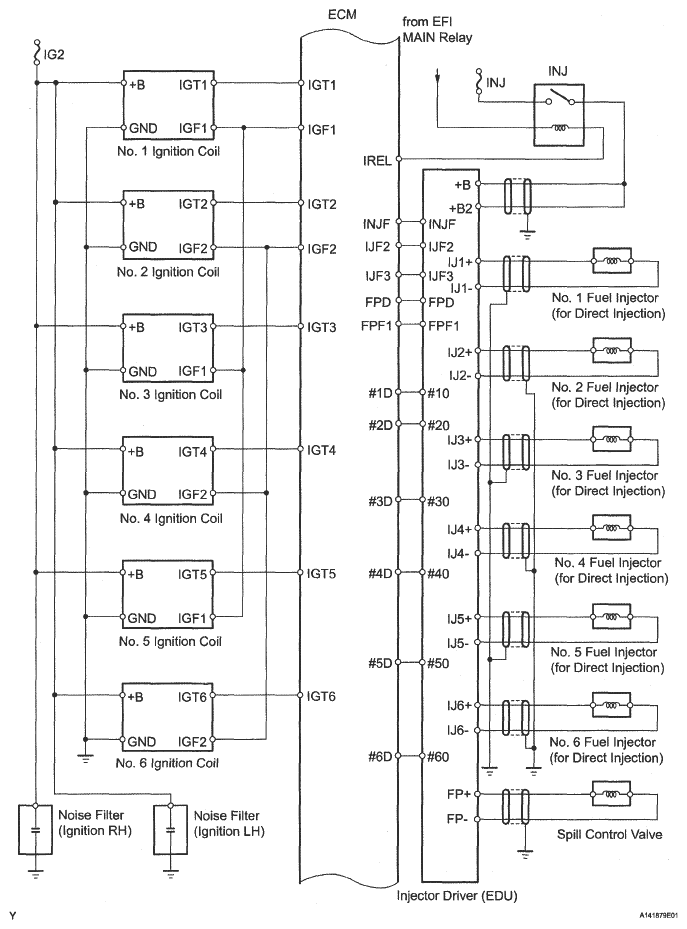

Fig 2: Engine Control System Diagram (2 Of 5)
G05302240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

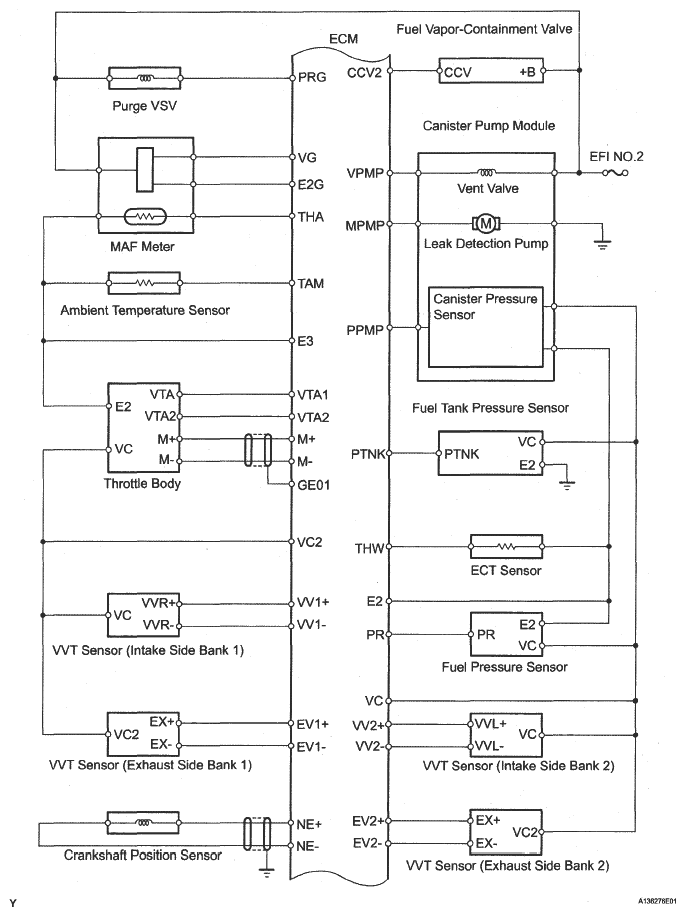

Fig 3: Engine Control System Diagram (3 Of 5)
G05302241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

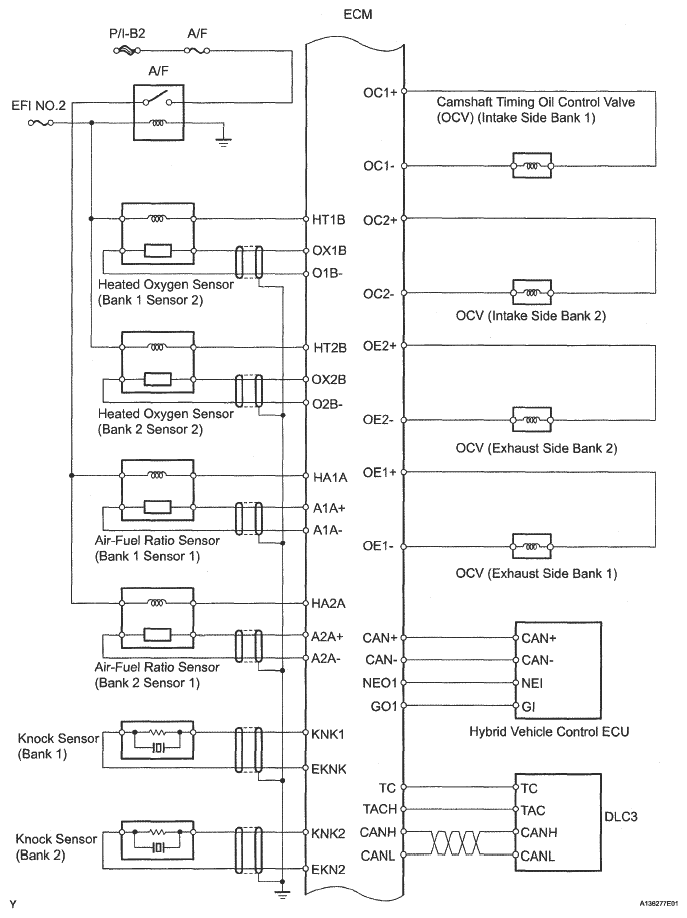

Fig 4: Engine Control System Diagram (4 Of 5)
G05302242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

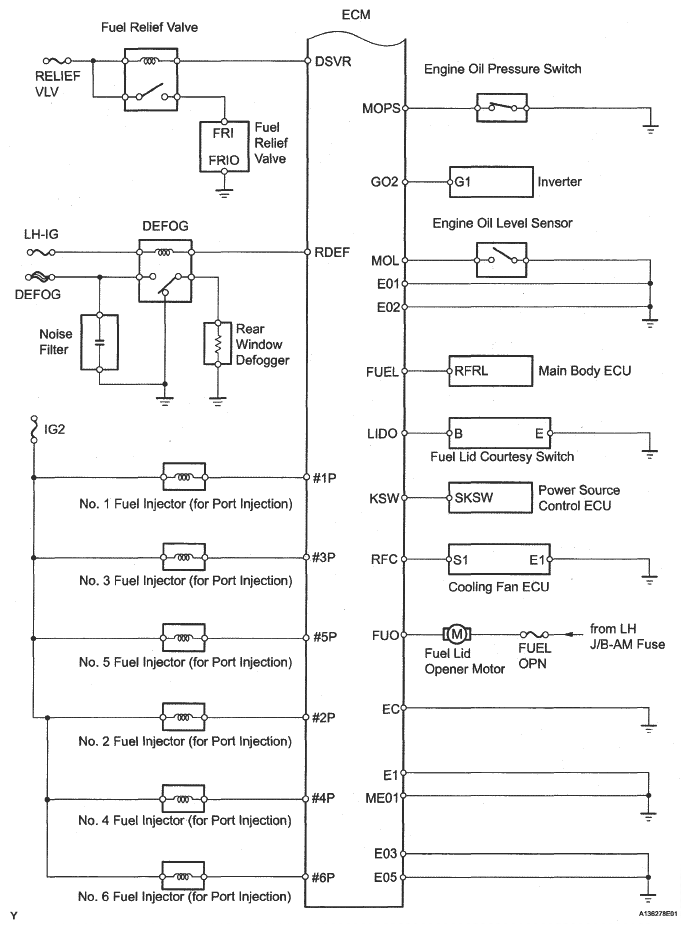

Fig 5: Engine Control System Diagram (5 Of 5)
G05302243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
