Initialization (2006/02-2006/07)

Procedures necessary when battery terminal is disconnected / reconnected

BATTERY SPECIFICATION

Necessary Procedures Procedure Details Effects / Inoperative Functions When Necessary Procedures are not Performed Notes
Steering angle sensor initialization Drive the vehicle on a straight road at 35 km/h (22 mph) or more for 5 seconds or longer. VGRS system
Alarm state cancel Press the key's UNLOCK switch Until UNLOCK switch is pressed, alarm will continue sounding (57 seconds total) Refer to theft deterrent article (see ON-VEHICLE INSPECTION )
Initialize intuitive parking assist system
  1. Fully turn the steering to the right
  2. Fully turn the steering to the left
 Steering sensing function of intuitive parking assist system Drive the vehicle at more than 20 km/h (12 mph) for more than 5 minutes on a straight road with as little traffic congestion as possible.
Power window system initialization
  1. Turn the power switch ON (IG)
  2. Fully open the window (if the glass is 1/4 or more open, this is not necessary)
  3. Press and hold the up side of the switch until the window is fully closed, and then hold the switch for 1 second
  • Door glass AUTO UP / DOWN function
  • Jam protection function
  • Key off (power switch OFF) operation function
  • Wireless transmitter-linked open function
  • Master switch remote control function
 Perform initialization for each window
Initialize sliding roof drive gear
  1. Close sliding roof fully.
  2. Push the open switch of the slide switch or the up switch of the tilt switch on the personal light, making the sliding roof operation as follows:

    Tilt up → Approximately 1 second → tilt down → slide open → slide close
  • Auto operation
  • Sliding roof operation after power switch is turned OFF
  • Jam protection function
  • Wireless door lock control function
  • Key-linked operation function (Driver's door only)
  • Entry lock switch-linked operation
 If pushed switch is released while sliding roof is operating, the reset procedures must be performed again.

Procedures necessary when ECU or other parts are replaced

ECU SPECIFICATION

Replacement Part Necessary Procedures Effects / Inoperative Functions When Necessary Procedures are not Performed Notes
Hybrid vehicle control ECU
  1. Perform clutch oil pressure value learning initialization
  2. Initialize radar cruise control system
  • Large shift shock
  • Radar cruise control system
  • Perform initialization with power switch ON (READY), shift lever on P and vehicle stopped
  • During learning operation, "T/M LEARNING" appears on meter's multi-information display
Hybrid vehicle transmission assembly Perform clutch oil pressure value learning initialization Large shift shock
  • Perform initialization with power switch ON (READY), shift lever on P and vehicle stopped
  • During learning operation, "T/M LEARNING" appears on meter's multi-information display
Tire pressure warning ECU and receiver
  1. Register transmitter IDs to "MAIN" setting of switch
  2. Register transmitter IDs to "2nd" setting of switch (if necessary)
  3. Initialize tire pressure warning system
  • Tire pressure warning light illumination
  • Tire pressure monitoring function (even if tire is punctured or pressure decreases, it is not detected)

Tire pressure warning valve and transmitter
  1. Register transmitter IDs to "MAIN" setting of switch
  2. Register transmitter IDs to "2nd" setting of switch (if necessary)
  3. Initialize tire pressure warning system
  • Tire pressure warning light illumination
  • Tire pressure monitoring function of replaced wheel (even if tire is punctured or pressure decreases, it is not detected)

Skid control ECU Initialize linear solenoid valve and perform calibration
  • Brake control warning light illumination
  • Brake warning light illumination
  • ABS warning light illumination VSC warning display of multi-information display
  • Master warning light illumination

  • Brake actuator
  • Brake pedal stroke sensor
  1. Bleed air
  2. Clear stored value of linear solenoid valve and calibration data
  3. Initialize linear solenoid valve and perform calibration
  • Brake control warning light illumination
  • Brake warning light illumination
  • ABS warning light illumination
  • Master warning light illumination

Brake pedal
  1. Inspect and adjust brake pedal height
  2. Clear stored value of linear solenoid valve and calibration data
  3. Initialize linear solenoid valve and perform calibration
 Brake does not operate properly
Yaw rate and acceleration sensor
  1. Clear zero point calibration data
  2. Perform yaw rate and acceleration sensor zero point calibration
  • Master warning light illumination
  • VSC warning display of multi-information display
  • Brake control warning light illumination
  • Brake warning light illumination
  • ABS warning light illumination
  • VSC control is prohibited or operation is incorrect
  • VGRS system

Steering column (Multiplex tilt and telescopic ECU) (Steering lock actuator [Steering lock ECU])
  1. Code registration (immobiliser)
  2. VGRS initialization
  3. VGRS calibration
  • Wireless door lock control function
  • Smart access system with push-button start
  • Engine start
  • Steering wheel is off-center (even if steering wheel is in neutral position, tires are not straight ahead)
 Leads to VGRS actuator spiral cable open malfunction
  • Power steering ECU
  • Power steering link
 Perform rotation angle sensor initialization and torque sensor zero point calibration
  • EPS control
  • Steering effort is different between turning steering wheel to left and right
  • Steering effort varies
  • Rotation angle sensor or torque sensor malfunction DTC is stored

Steering angle sensor
  1. Store steering angle neutral position and maximum steering angle
  2. Acquire steering sensor zero point
 VGRS system Drive the vehicle at more than 20 km/h (12 mph) for more than 5 minutes on a straight road with as little traffic congestion as possible.
Distance control ECU Initialize radar cruise control system
  • Radar cruise control function
  • Pre-collision function

Clearance warning ECU Initialize intuitive parking assist system Steering sensing function of intuitive parking assist system Drive the vehicle at more than 20 km/h (12 mph) for more than 5 minutes on a straight road with as little traffic congestion as possible.
  • Multiplex network master switch assembly
  • Multiplex network switch assembly (Front passenger seat, rear right seat, rear left seat)
  • Multiplex network door ECU (Front RH, front LH, rear right RH, rear right LH)
  • Power window regulator motor assembly (Front RH, front LH, rear right RH, rear right LH)
  • Front door window regulator (RH, LH)
  • Rear door window regulator (RH, LH)
 Initialize power window system
  • Door glass AUTO UP/ DOWN function
  • Jam protection function
  • Key off (power switch OFF) operation function
  • Wireless transmitter-linked open function
  • Master switch remote control function
 Refer to windshield / windowglass article (see INITIALIZATION )
  • ID code box
  • Certification ECU
  • Steering lock ECU
  • Door control receiver
  • Key
  1. Perform identification code registration (key code, ECU code)
  2. Refer to immobiliser article "REGISTRATION" procedures
  3. Perform seat "OPERATION CHECK"
  • Smart access system with push-button start
  • Wireless door lock control function
  • Engine start
  • Seat and mirror memory call operation
 When hybrid vehicle control ECU is replaced, registration of ECU communication ID is necessary
Steering column assembly (Steering lock ECU) Perform VGRS actuator neutral position calibration and initialization Steering wheel is off-center (even if steering wheel is in neutral position, tires are not straight ahead) Leads to VGRS actuator spiral cable open malfunction
  • Removal/installation, replacement or adjustment of anything between steering wheel and tires (not including the tires and wheels) (Example: steering wheel replacement; steering column assembly removal/installation; steering sliding yoke or steering actuator assembly replacement or removal/installation; tie rod replacement, removal/installation or adjustment)
  • Steering control ECU
 Perform VGRS actuator neutral position calibration and initialization Steering wheel is off-center (even if steering wheel is in neutral position, tires are not straight ahead) Leads to VGRS actuator spiral cable open malfunction
Key
(Only for vehicles with memory call settings present)		 Rerecord memory call function When using memory call, seat positions recorded in seat memory switches must also be rerecorded in key Refer to seat article (see ON-VEHICLE INSPECTION )
  • Sliding roof drive gear (Sliding roof ECU)
  • Sliding roof housing
  • Sliding roof drive cable
 Initialize sliding roof system
  • Auto operation
  • Sliding roof operation after power switch is turned OFF
  • Jam protection function
  • Wireless door lock control function
  • Key-linked operation function (Driver's door only)
  • Entry lock switch-linked operation

  1. RESET MEMORY
    NOTE:
    • If either the hybrid transmission assembly or hybrid vehicle control ECU is replaced, initialize the learned value of RESET MEMORY.
    • Wait 1 minute after disconnecting the negative battery terminal before reset memory.
    • The RESET MEMORY can be performed only with the Intelligent tester.

    HINT:

    Disconnecting the negative battery terminal does not initialize (clear) the learned value.

    1. Connect the intelligent tester to the DLC3.
    2. Turn the power switch on (READY) and turn the intelligent tester on.
      NOTE: Check that the shift lever is in the P position and turn the power switch on (READY).
    3. Select the following menu items: DIAGNOSIS / OBD/MOBD / HV ECU / DATA LIST. Read the data list before RESET MEMORY.

      Check Item

      ITEM SPECIFICATION

      Item Specified Condition
      +B 9 to 16 V
      WOUT CTRL POWER 1 W or more
      T/M OIL TEMP 10 to 100°C (50°F to 212°F)
      NOTE:
      • Do not depress the accelerator pedal during reset memory.
      • Do not move the shift lever from the P position.
      • If the specified conditions above are not satisfied, warm up the engine with the power switch on (READY) until each data meets the specified condition.
    4. Select the following menu items: DIAGNOSIS / OBD/MOBD / HV ECU / TRANSMISSION / RESET MEMORY.
      NOTE: During reset memory, do not turn off either the power switch or the intelligent tester.

      HINT:

      Approximately 1 minute is required to complete reset memory.

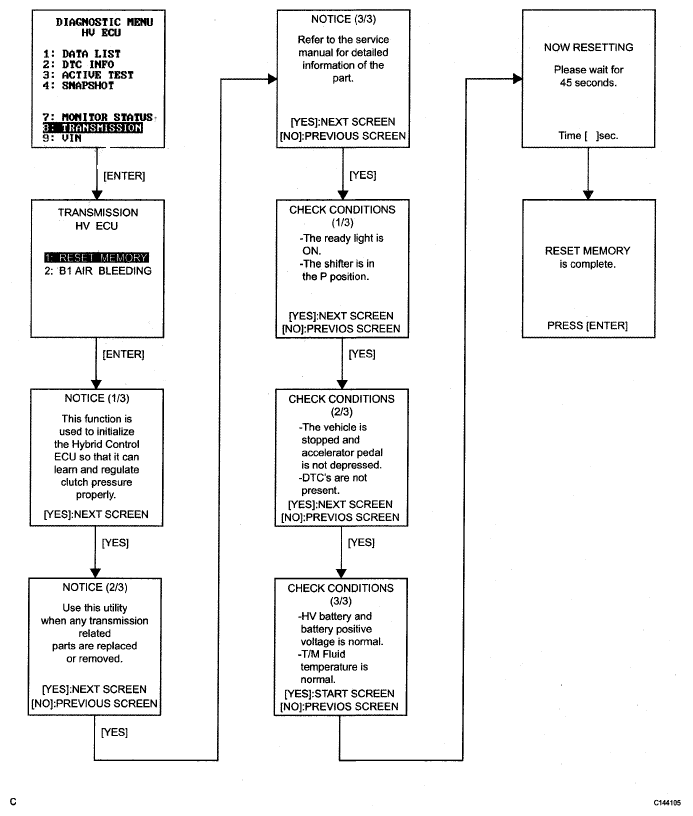

      1. Tester menu flow:
        Fig 1: Tester Menu Flow Chart
        G05301806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        CAUTION: After performing the RESET MEMORY, be sure to perform the ROAD TEST (see ROAD TEST ) described earlier.

        HINT:

        The ECU is learned by performing the ROAD TEST.

  2. REGISTER TRANSMITTER ID
    NOTE: It is necessary to register the transmitter ID in the tire pressure warning ECU when replacing the tire pressure warning valve and transmitter and/or tire pressure warning ECU.
    1. Set the air pressure of 4 wheels to the specified value (Procedure "A").

      Standard pressure: 240 kPa (2.4 kgf/cm 2  , 35 psi)

    2. Connect the intelligent tester to the DLC3 (Procedure "B").
      Fig 2: Connecting Intelligent Tester To DLC3
      G05301807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Turn the power switch ON (IG) (Procedure "C").
    4. Read and write down the ID (ID1 to ID4) by using the DATA LIST (Procedure "D").
    5. Select the REGIST TIRE following the intelligent tester screen (UTILITY - REGIST TIRE) (Procedure "E").
      NOTE:
      • The registered IDs in the ECU memory will be deleted when performing the registration.
      • If the system is in the initialization mode, it is unable to perform registration.

        Therefore, restart the registration after terminating the initialization or confirming that the initialization has been completed.

        Fig 3: Multi-Information Display - Mode Status Normal
        G05301808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If the procedures D to F are not completed within 5 minutes, the mode will return to normal operation mode.

    6. Select the registration mode "MAIN".

      HINT:

      Select "2nd" when registering in 2nd.

    7. Input the ID (ID1 to ID4) using the intelligent tester and transmit it to the tire pressure warning ECU (Procedure "F").

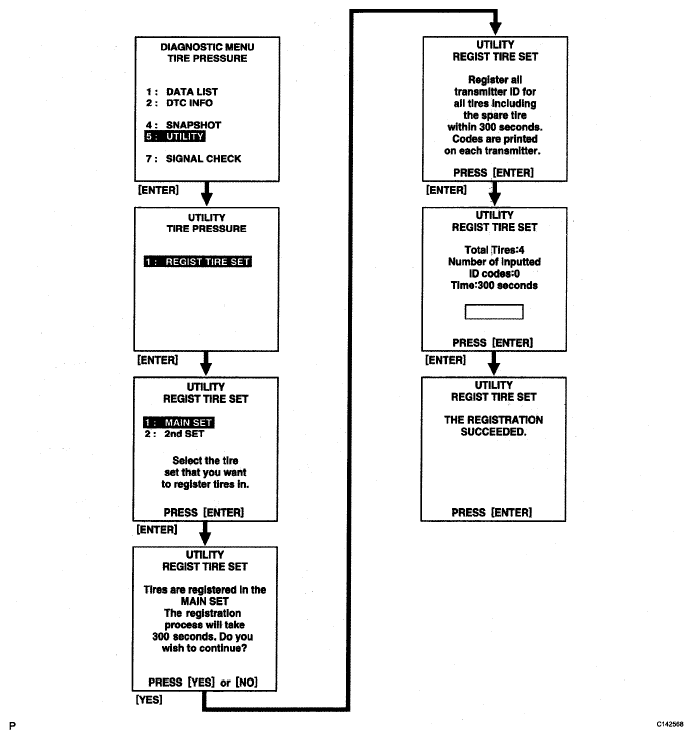

      Fig 4: Intelligent Tester Display - Registration
      G05010759Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Set the ID transmission condition to "ID Registration is complete" (Procedure "G").

      HINT:

      If the procedures D to F are not completed within 5 minutes, the mode will return to normal operation mode.

      Fig 5: Normal Operation Mode Flow Chart
      G05301810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Disconnect the intelligent tester with the power switch OFF.
  3. Initialization for tire pressure warning system
    NOTE:
    • Perform initialization after the transmitter ID registration is completed.
    • Initialization is necessary when one of the following has occurred: 1) the tire pressure warning ECU has been replaced; 2) tires with different tire pressures have been replaced; 3) tire pressure warning valve and transmitters have been replaced, or 4) transmitter IDs have been registered into the tire pressure warning ECU.
    • Perform the tire pressure adjustment after the vehicle has sufficiently cooled down. If the vehicle is not sufficiently cooled down, increase the air pressure by 20 to 30 kPa (0.2 kgf/cm2 , 2.9 psi to 0.3 kgf/cm2 , 4.4 psi) in addition to the specified value.
    1. Set the air pressure of 4 wheels to the specified value.

      Standard pressure: 240 kPa (2.4 kgf/cm 2  , 35 psi)

    2. Keep the tire pressure warning reset switch pressed for 3 seconds or more with the power switch ON (IG).

      HINT:

      The initialization is completed when the tire pressure warning ECU has received signals from all of the wheels.

    3. Check that the tire pressure warning light blinks 3 times (1 second ON, 1 second OFF). If the engine is on, "PRESSURE INITIAL" will be displayed on the multi-information display.
      NOTE:
      • Initialization is usually completed in 2 or 3 minutes.
      • When the initialization is completed incorrectly, DTC C2177/77 is memorized after driving the vehicle about 20 minutes or more.
      • The initialization can be terminated by making a short circuit between terminals TC and CG of the DLC3 connector.
    4. Confirm that initialization is completed using the intelligent tester.
      1. Check that the pressure of each tire is displayed in INIT THRESHOLD 1 to 4.
    5. Initialization is completed.
      Fig 6: Identifying Tire Pressure Warning Light Output Pattern
      G05301811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CLEAR STORED VALUE OF INITIALIZATION OF LINEAR SOLENOID VALVE AND CALIBRATION (WHEN USING INTELLIGENT TESTER)
    1. Connect the intelligent tester (with CAN VIM) to the DLC3.
      Fig 7: Connecting Intelligent Tester To DLC3
      G05298631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Move the shift lever to the P position.
    3. Turn the power switch ON (IG) with the brake pedal released.
    4. Clear the stored value of initialization of linear solenoid valve and calibration following the screen.

      HINT:

      Refer to the intelligent tester operator's manual for further details.

    5. Using the intelligent tester, perform initialization of linear solenoid valve and calibration.
  5. PERFORM INITIALIZATION OF LINEAR SOLENOID VALVE AND CALIBRATION (WHEN USING INTELLIGENT TESTER)
    1. Connect the intelligent tester (with CAN VIM) to the DLC3.
    2. Move the shift lever to the P position.
    3. Turn the power switch ON (IG) with the brake pedal released.
      NOTE:
      • If the linear solenoid valve offset learning is performed without turning the power switch ON (IG), the learning process may not be completed properly because of insufficient battery voltage.
      • When the linear solenoid valve offset learning is interrupted, or the learning process is performed with the shift lever not in the P position, DTC C1345/66 will be stored.
    4. Set the intelligent tester to Test Mode (select "Electronically Controlled Brake System Utility").

      HINT:

      Refer to the intelligent tester operator's manual for further details.

    5. Leave the vehicle stationary without depressing the brake pedal for 1 or 2 minutes.
    6. Check that the interval between blinks of the brake control warning light changes from 1 second to 0.25 seconds.

      HINT:

      • The time needed to complete initialization of linear solenoid valve and calibration varies depending on battery voltage.
      • The brake control warning light blinks at 1 second intervals during the initialization of linear solenoid valve and calibration and changes to the Test Mode display.
      • The brake control warning light blinks at 0.25 seconds intervals if the Test Mode is normal.
        Fig 8: Brake Control Warning Light Blinking Pattern
        G04949562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Check that DTC C1345/66 which indicates trouble with stroke sensor zero point learning is not output when the brake control warning light changes to the Test Mode display upon initialization of linear solenoid valve and calibration completion.
    8. Enter the normal mode from the Test Mode following the intelligent tester prompts.

      HINT:

      Refer to the intelligent tester operator's manual for further details.

  6. CLEAR STORED VALUE OF INITIALIZATION OF LINEAR SOLENOID VALVE AND CALIBRATION (WHEN USING SST CHECK WIRE)
    1. Move the shift lever to the P position.
    2. Turn the power switch ON (IG) with the brake pedal released.
    3. Using SST, connect and disconnect terminals TS and CG of the DLC3 4 times or more within 8 seconds.

      SST 09843-18040

      Fig 9: Identifying Connector Terminals
      G04949563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Check that no codes other than ABS code 42, VSC code 45 and electronically controlled brake system code 48, 66, or 95 are stored in the diagnostic system.
      Fig 10: Blinking Pattern Of ABS Code And Display Of VSC Code
      G05297006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The ABS warning light and multi-information display do not indicate the normal system code.

    5. Remove SST from the terminals of the DLC3.
    6. Using the check wire, perform initialization of linear solenoid valve and calibration.
  7. PERFORM INITIALIZATION OF LINEAR SOLENOID VALVE AND CALIBRATION (WHEN USING SST CHECK WIRE)
    1. Turn the power switch OFF.
    2. Using SST, connect terminals TS and CG of the DLC3.

      SST 09843-18040

    3. Move the shift lever to the P position.
    4. Turn the power switch ON (IG) with the brake pedal released.
      NOTE:
      • If the linear solenoid valve offset learning is performed without turning the power switch ON (IG), the learning process may not be completed properly because of insufficient battery voltage.
      • When the linear solenoid valve offset learning is interrupted, or the learning process is performed with the shift lever not in the P position, DTC C1345/66 will be stored.
        Fig 11: Identifying Connector Terminals
        G04949563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Leave the vehicle stationary without depressing the brake pedal for 1 or 2 minutes.
    6. Check that the interval between blinks of the brake control warning light changes from 1 second to 0.25 seconds.

      HINT:

      • The time needed to complete initialization of linear solenoid valve and calibration varies depending on the battery voltage.
      • The brake control warning light blinks at 1 second intervals during the initialization of linear solenoid valve and calibration and changes to the Test Mode display.
      • The brake control warning light blinks at 0.25 seconds intervals if the Test Mode is normal.
        Fig 12: Brake Control Warning Light Blinking Pattern
        G04949562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Check that DTC C1345/66 indicating a trouble with stroke sensor zero point learning is not output when the brake control warning light changes to the Test Mode display upon initialization of linear solenoid valve and calibration completion.
    8. Turn the power switch OFF and disconnect SST from the DLC3.
  8. CLEAR ZERO POINT CALIBRATION (WHEN USING INTELLIGENT TESTER)
    1. Connect the intelligent tester (with CAN VIM) to the DLC3.
      Fig 13: Connecting Intelligent Tester To DLC3
      G05298631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the power switch ON (IG).
    3. Operate the intelligent tester to erase the codes (select "Reset Memory").

      HINT:

      Refer to the intelligent tester operator's manual for further details.

    4. Using the intelligent tester, perform zero point calibration of the yaw rate and acceleration sensor.
  9. PERFORM ZERO POINT CALIBRATION OF YAW RATE AND ACCELERATION SENSOR (WHEN USING INTELLIGENT TESTER)
    NOTE:
    • While obtaining the zero point, do not vibrate the vehicle by tilting, moving or shaking. Keep it in a stationary condition and do not start the engine (hybrid).
    • Choose a level surface with an inclination of less than 1 degree.
    1. Procedures for Test Mode.
      1. Ensure that the steering wheel is centered, move the shift lever to the P position, and apply the parking brake.
        NOTE: DTC C1210/36 and C1336/39 will be recorded if the shift lever is not in the P position.
      2. Connect the intelligent tester (with CAN VIM) to the DLC3.
        Fig 14: Connecting Intelligent Tester To DLC3
        G05298631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Turn the power switch ON (IG).
      4. Set the intelligent tester to Test Mode (select "Test Mode").

        HINT:

        Refer to the intelligent tester operator's manual for further details.

    2. Obtain the zero point of the yaw rate and acceleration sensor.
      1. Keep the vehicle stationary on a level surface for 2 seconds or longer.
      2. Check that the ABS and brake control warning lights blink and "VSC TEST MODE" is indicated on the multi-information display (Test Mode).

        HINT:

        • If the ABS and brake control warning lights do not blink and "VSC TEST MODE" is not indicated on the multi information display, perform zero point calibration again.
        • The zero point calibration is performed only once after the system enters the Test Mode.
        • Calibration cannot be performed again until the stored data is cleared.
    3. Turn the power switch OFF and disconnect the intelligent tester.
      Fig 15: Identifying ABS And Brake Control Warning Lights Blinking Pattern
      G05297011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. CLEAR ZERO POINT CALIBRATION (WHEN USING SST CHECK WIRE)
    1. Turn the power switch ON (IG).
    2. Using SST, connect and disconnect terminals TS and CG of the DLC3 4 times or more within 8 seconds.

      SST 09843-18040

      Fig 16: Identifying Connector Terminals
      G04949563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check that no codes other than ABS code 42, VSC code 45 and electronically controlled brake system code 48, 66, or 95 are stored in the diagnostic system.
      Fig 17: Blinking Pattern Of ABS Code And Display Of VSC Code
      G05297006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The ABS warning light and multi-information display do not indicate the normal system code.

    4. Remove SST from the terminals of the DLC3.
    5. Using a check wire, perform zero point calibration of the yaw rate and acceleration sensor.
  11. PERFORM ZERO POINT CALIBRATION OF YAW RATE AND ACCELERATION SENSOR (WHEN USING SST CHECK WIRE)
    NOTE:
    • While obtaining the zero point, do not vibrate the vehicle by tilting, moving or shaking. Keep it in a stationary condition and do not start the engine (hybrid).
    • Choose a level surface with an inclination of less than 1 degree.
    1. Procedures for Test Mode.
      1. Turn the power switch OFF.
      2. Using SST, connect terminals TS and CG of the DLC3.

        SST 09843-18040

      3. Check that the steering wheel is in the centered position and move the shift lever to the P position.
        NOTE: DTC C1210/36 and C1336/39 will be recorded if the shift lever is not in the P position.
    2. Obtain the zero point of the yaw rate and acceleration sensor.
      Fig 18: Identifying Connector Terminals
      G04949563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Turn the power switch ON (IG).
      2. Keep the vehicle in a stationary condition on a level surface for 2 seconds or more.
      3. Check that the ABS and brake control warning lights blink and "VSC TEST MODE" is indicated on the multi-information display (Test Mode).

        HINT:

        • If the ABS and brake control warning lights do not blink and "VSC TEST MODE" is not indicated on the multi-information display, perform zero point calibration again.
        • The zero point calibration is performed only once after the system enters the Test Mode.
        • Calibration cannot be performed again until the stored data is cleared.
    3. Turn the power switch OFF and disconnect the SST from the DLC3.
  12. INSTALL BRAKE PEDAL STROKE SENSOR ASSEMBLY
    1. When installing a new brake pedal stroke sensor assembly:
      1. Install a new sensor with the 2 nuts.

        Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

        NOTE:
        • Engage the sensor lever with the brake pedal groove.
        • Check that there is no foreign matter attached to the sensor's contacting surface.
          Fig 19: Identifying ABS And Brake Control Warning Lights Blinking Pattern
          G05297011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Firmly depress the brake pedal and break the sensor lever set pin.
      3. Remove the broken sensor lever set pin.
      4. Connect the sensor connector.
    2. When reusing the brake pedal stroke sensor assembly:
      1. Temporarily install the sensor with the 2 nuts.
        NOTE:
        • Engage the sensor lever with the brake pedal groove.
        • Check that there is no foreign matter attached to the sensor's contacting surface.
          Fig 20: Locating Brake Pedal Stroke Sensor Assembly
          G05297197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Connect the sensor connector.
      3. Connect the cable to the negative battery terminal.
      4. Connect the intelligent tester to the DLC3.
      5. Turn the power switch ON (IG). Reading the stroke sensor 1 value shown on the data monitor, turn the sensor slowly to the right and left to adjust the output voltage to the standard voltage.

        Standard voltage: 0.8 to 1.2 V

      6. Disconnect the cable from the negative battery terminal.
      7. Fully tighten the 2 nuts.

        Torque: 8.5 N*m (86 kgf*cm, 75 in.*lbf)

        NOTE: Do not depress the brake pedal after turning the power switch ON (IG).
        Fig 21: Turning Engine Switch On (IG)
        G05297198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. VGRS SYSTEM CALIBRATION PROCEDURE (USING SST CHECK WIRE)
    1. FACE TIRES STRAIGHT AHEAD
      NOTE: Drive the vehicle to confirm that the steering wheel is centered.
    2. CHECK DTCs
      1. Check for DTCs (see DTC CHECK / CLEAR ).

        Result

        RESULT REFERENCE

        Result Proceed to
        DTC C1591/51 is not output A
        DTC C1591/51 is output B

      B:  GO TO step  4

      A: GO TO Next Step

    3. PERFORM ACTUATOR ANGLE INITIALIZATION

      SST 09843-18040

      1. Turn the power switch ON (IG).
      2. Start the engine.
      3. Center the steering wheel.
      4. Complete the following steps within 1 minute.
        1. Using SST check wires, connect terminals TS and CG, and TC and CG of the DLC3.
          Fig 22: Identifying DLC3 Connector
          G05297474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        2. Disconnect the SST check wire from terminal TS of the DLC3, and turn the steering wheel to the left 180° or more.
        3. Connect the SST check wire to terminal TS of the DLC3.
        4. Disconnect the SST check wire from terminal TC of the DLC3, and turn the steering wheel to the right 180° or more.
        5. Connect the SST check wires to terminal TC of the DLC3.

          HINT:

          When the master warning light (VGRS) comes on, DTC C1591/51 is memorized.

        6. Disconnect the SST check wires from the DLC3.
        7. Turn the power switch OFF.

      NEXT:  GO TO step  1

    4. FACE TIRES STRAIGHT AHEAD
      1. Confirm that the steering wheel is centered when facing the tires straight ahead.
        NOTE: Drive the vehicle to confirm that is steering wheel is centered.

        Result

        RESULT REFERENCE

        Result Proceed to
        Steering wheel is off-center A
        Steering wheel is centered B

      B:  GO TO step  8

      A: GO TO Next Step

    5. UNLOCK STEERING ACTUATOR
      NOTE: Do not start the engine.
      1. Turn the power switch OFF.
      2. Disconnect the negative (-) terminal cable from the battery.
      3. Disconnect the K26 connector from the steering actuator.
        Fig 23: Identifying K26 Connector And Steering Actuator
        G05301828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Connect a jumper wire from terminal LV+ to the positive (+) battery terminal and another jumper wire from terminal LG+ to the negative (-) battery terminal.
        NOTE: Do not apply voltage for more than 3 minutes.
    6. STEERING CENTER ADJUSTMENT
      1. Center the steering wheel.
        NOTE: If the spiral cable of the airbags and VGRS system is not centered when the steering wheel is installed, release the system lock and center the spiral cable (see INSTALLATION ). Slowly turn the steering wheel to the left. Turn it to the right approximately 2 turns from the point where resistance begins to be felt (the end of the spiral cable) while steering. This will center the spiral cable. If excessive force is applied to the end of the spiral cable, the cable may break.
    7. LOCK STEERING ACTUATOR
      1. Disconnect the positive (+) and negative (-) battery terminal cables from the steering actuator.
      2. Connect the K26 connector to the steering actuator.
      3. Connect the negative (-) terminal cable to the battery.
      4. Turn the steering wheel approximately 3° to the left and right. Confirm that the reaction force can be felt.
        NOTE:
        • If the above procedures are not followed correctly, a DTC will be detected. If a DTC is detected, perform the above procedures again and then check for DTCs.
        • Perform these procedures with the power switch OFF.

      NEXT:  GO TO step  1

    8. ADJUST ACTUATOR ANGLE

      HINT:

      Activating and ending test mode will complete actuator angle adjustment.

      1. Make sure the power switch is OFF.
        NOTE: Do not touch the steering wheel during these procedures.
      2. Using SST check wire, connect terminals TS and CG of the DLC3.

        SST 09843-18040

      3. Turn the power switch ON (IG).
      4. Confirm that the "VGRS TEST MODE" is displayed on the multi-information display when test mode is activated.
      5. Turn the power switch OFF.
      6. Disconnect the SST check wire from terminals TS and CG of the DLC3.
        Fig 24: Identifying DLC3 Connector
        G05297476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      7. Turn the power switch ON (IG) again.
    9. CHECK MASTER WARNING LIGHT
      1. Confirm that the master warning light (VGRS) is off.
      2. Turn the power switch OFF.
      3. Confirm that master warning light (VGRS) is operating normally.
    10. CHECK STEERING WHEEL OPERATION
      1. Start the engine.
      2. Perform the steering angle sensor initialization (see INITIALIZATION ).
      3. Turn the steering wheel from lock to lock and check that it rotates approximately 2.7 turns.
      4. Drive the vehicle and confirm that the steering wheel is centered.

      NEXT: END

  14. VGRS SYSTEM CALIBRATION PROCEDURE (USING INTELLIGENT TESTER)
    1. FACE TIRES STRAIGHT AHEAD
      NOTE: Drive the vehicle to confirm that the steering wheel is centered.
    2. PERFORM VGRS SYSTEM CALIBRATION
      1. Connect the intelligent tester (with CAN VIM) to the DLC3.
        Fig 25: Connecting Intelligent Tester To DLC3
        G05285048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Turn the power switch ON (IG) and turn the intelligent tester on.
      3. Select and perform "STEERING ANGLE ADJ" from the VGRS menu on the intelligent tester display.
      4. Press the "ENTER" key.
        NOTE: Press the "ENTER" key even if DTC C15B4/71 is output.
        Fig 26: Screen Display - Steering Angle Adjust
        G05301831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Press the "ENTER" key.
        NOTE: Ensure that the power switch is OFF.
        Fig 27: Screen Display - Vehicle On Flat And Level Surface
        G05301832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      6. Press the "YES" key.
        Fig 28: Screen Display - STEERING ANGLE ADJ
        G05301833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      7. Press the "ENTER" key.
        NOTE: If the spiral cable of the airbags and VGRS system is not centered when the steering wheel is installed, release the system lock and center the spiral cable (see INSTALLATION ). Slowly turn the steering wheel to the left. Turn it to the right approximately 2 turns from the point where resistance begins to be felt (the end of the spiral cable) while steering. This will center the spiral cable. If excessive force is applied to the end of the spiral cable, the cable may break.
        Fig 29: Screen Display - STEERING ANGLE ADJ
        G05297482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      8. Press the "ENTER" key.
        NOTE: Do not touch the steering wheel during these procedures.
        Fig 30: Screen Display - Turn IG SW ON
        G05301835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      9. Press the "ENTER" key.
        Fig 31: Screen Display - Center Steering Wheel
        G05297484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      10. Press the "ENTER" key.
        NOTE: Do not touch the steering wheel during these procedures.
        Fig 32: Screen Display - Steering Wheel Centered
        G05297485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      11. The remaining time is displayed and the display switches automatically to the next screen.
        NOTE: Do not touch the steering wheel during these procedures.
        Fig 33: Screen Display - Time Remaining
        G05297486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      12. Check that VGRS system calibration is completed normally.
      13. Select "ENTER" to return the display to the "MENU" screen.
        Fig 34: Screen Display - STEERING ANGLE ADJ
        G05297487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. CHECK MASTER WARNING LIGHT
      1. Confirm that the master warning light (VGRS) is off.
      2. Turn the power switch OFF.
      3. Disconnect the intelligent tester from the DLC3.
      4. Confirm that master warning light (VGRS) is operating normally.
    4. CHECK STEERING WHEEL OPERATION
      1. Start the engine.
      2. Perform the steering angle sensor initialization (see INITIALIZATION ).
      3. Turn the steering wheel from lock to lock and check that it rotates approximately 2.7 turns.
      4. Drive the vehicle and confirm that the steering wheel is centered.

      NEXT: END

  15. ROTATION ANGLE SENSOR INITIALIZATION AND TORQUE SENSOR ZERO POINT CALIBRATION
    NOTE: Clear the rotation angle sensor calibration value, initialize the rotation angle sensor, and calibrate the torque sensor zero point if any of the following has occurred:
    • The power steering ECU assembly has been replaced.
    • The power steering link assembly has been replaced.
    • Steering effort differs between turning the steering wheel to the left and right.
    1. Inspection before calibration
      1. Connect the intelligent tester to the DLC3.
      2. Turn the power switch ON (IG).
      3. Turn the intelligent tester on.
      4. Select "IG SUPPLY" from the DATA LIST.
      5. Check the IG power supply voltage on the tester screen.
        VOLTAGE SPECIFICATION

        Item Measurement Item/Range (Display) Inspection Condition Reference Value
        IG SUPPLY ECU power source voltage/ Min.: 0 V, Max.: 25.5 V Power switch ON (IG) 10 to 14 V

        Voltage: 10 to 14 V

        NOTE: If the IG power supply voltage is 9 V or less, calibration cannot be performed. In this case, charge or replace the battery, and then perform calibration.
    2. Rotation angle sensor calibration value clear, rotation angle sensor initialization, and torque sensor zero point calibration
      NOTE:
      • If DTC C1516 (Torque Sensor Zero Point Adjustment Incomplete) is stored, the torque sensor zero point cannot be calibrated. Clear the DTC before starting calibration.
      • If DTC C1526 (Rotation Angle Sensor Initialization Incomplete) is stored, the rotation angle sensor cannot be initialized. Clear the DTC before starting initialization.
      1. Connect the intelligent tester to the DLC3.
      2. Turn the power switch ON (IG).
      3. Turn the intelligent tester on.
      4. Select "TRQ SENSOR ADJ".
      5. Follow the procedures on the tester display to clear the rotation angle sensor calibration value, initialize the rotation angle sensor, and calibrate the torque sensor zero point.
        NOTE:
        • When initializing the rotation angle sensor, observe the following to stabilize sensor voltage:

          After turning the power switch ON (IG), wait for at least 2.5 seconds before turning the steering wheel. Do not turn the steering wheel quickly.

        • The steering wheel will vibrate during torque sensor zero point calibration. Do not touch the steering wheel while it is vibrating or for 2 seconds after it stops.
  16. INITIALIZE DISTANCE CONTROL ECU
    NOTE: When replacing the distance control ECU, perform the following procedures so that the ECU can recognize the specification.
    1. Be sure to perform the following procedures after replacing the distance control ECU.
      1. Turn the power switch ON (IG).
      2. Push the cruise main switch ON.
      3. With the brake pedal depressed, push the cruise control main switch to RES/ACC 3 times within 3 seconds. Check that the VSC buzzer sounds at this time.
        NOTE: Do not turn the headlight dimmer switch on at this time because optical axis automatic adjustment mode has already started, which could lead to an incorrect optical axis setting. If the headlight dimmer switch is turned on by mistake, readjust the optical axis.
  17. ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    CAUTION: Exposure to radio frequency emissions is hazardous to your health. It is hazardous to your health to be within 20 cm (7.9 in.) of the device's radio frequency aperture.
    NOTE:
    • This device complies with FCC radio frequency emission regulations.
    • Perform measurements on a level surface.
    • Make sure that no large pieces of metal are within a 10 m (32.81 ft.) x 14 m (45.93 ft.) area in front of the vehicle. If possible, the surrounding area should also be free of large metal objects.
      Fig 35: Identifying Radio Frequency Aperture
      G05301840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Before adjusting the radar beam axis, prepare the vehicle as follows.
      1. Check the tire pressure and adjust it if necessary.
      2. Remove all excess weight from the vehicle (luggage, heavy objects, etc.).
    2. w/ Air suspension:

      Adjust the vehicle's height to the standard height.

    3. Check and adjust the vertical direction of the radar sensor.
      1. Remove dust, oil and foreign matter from the radar sensor's level rack.
      2. Set a level on the radar sensor's level rack.
        Fig 36: Setting Level On Radar Sensor Level Rack
        G05298679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Check that the level's air bubble is within the red frame.

        OK: Level's air bubble is within red frame.

        If the bubble is not within the red frame, use a hexagon wrench to adjust screw A until the level's air bubble is within the red frame.

        HINT:

        • The adjustable range within the level's red frame is +- 0.2°.
        • The target angle is + 0.2° (upward angle of 0.2°).
          Fig 37: Identifying Adjusting Screw
          G05298680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

          Result

          RESULT REFERENCE

          Adjustment Direction Adjustment Procedure Adjustment Angle
          Vertical adjustment
          • Upward direction: Turn screw A to negative (-) side
          • Downward direction: Turn screw A to positive (+) side
          		 Approx. 1.0° per turn
    4. Adjust the reflector height.
      1. Adjust the reflector so that the center of the SST reflector is the same height as the millimeter wave radar sensor.

        SST 09870-60000

        HINT:

        Prepare a 10 m (32.81 ft.) string, a string with a sharp-pointed weight (plumb bob), and a 5 m (16.41 ft.) tape measure.

        Fig 38: Adjusting Reflector Height
        G05298681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Place the reflector.
      1. Hang the string (with weight) from the center of the vehicle rear's emblem. Mark the vehicle rear's center point on the ground. Repeat for the front of the vehicle.
        Fig 39: Identifying Mark Of Vehicle Rear Center Point On Ground
        G05301844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Set one end of the 10 m (32.82 ft.) string on the vehicle rear's center point. Run the string over the vehicle front's center point to a position 5 m (16.41 ft.) beyond the vehicle front's center point, as shown in the illustration. Mark the 5 m (16.41 ft.) position.
        Fig 40: Adjusting Center By Moving String To Right And Left
        G05298683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Using a tape measure, measure 12 mm (0.47 in.) to the left of the 5 m (16.41 ft.) position. Place the reflector at that position.
        NOTE: Perform the operation as precisely as possible.

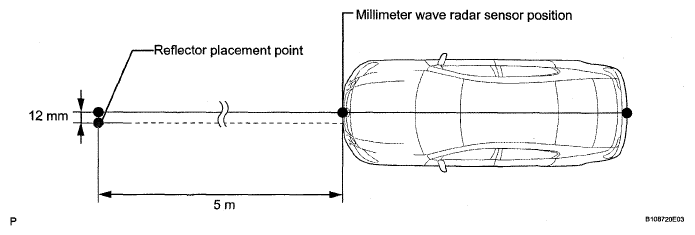

        Fig 41: Identifying Millimeter Wave Radar Sensor Position
        G05301846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Adjust the radar beam axis.
      1. Connect the intelligent tester to the DLC3.
        Fig 42: Connecting Intelligent Tester To DLC3
        G05298685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Turn the power switch ON (IG).
      3. Turn the intelligent tester main switch ON, and turn the cruise control main switch ON.
      4. Operate by following the screen menus. Select "BEAM AXIS ADJUST" of Radar Cruise Control, and then press the "ENTER" key.

        HINT:

        • Pressing the "ENTER" key will make the ECM transfer to BEAM AXIS ADJUST MODE.
        • When the ECM transfers to BEAM AXIS ADJUST MODE, the buzzer sounds for 1 second.
          Fig 43: Screen Display - OBD/MOBD
          G05301848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Select "5: RADAR CRUISE".
      6. Press the "ENTER" key.
        Fig 44: Screen Display - RADAR CRUISE
        G05298687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      7. Select "6: BEAM AXIS ADJUST".
      8. Press the "ENTER" key.
        Fig 45: Screen Display - BEAM AXIS ADJUST
        G05298688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      9. Press the "ENTER" key.
        Fig 46: CONSULT - II Display - Enter
        G05252261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      10. Press the "ENTER" key.
        Fig 47: CONSULT - II Display - Enter
        G05252262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      11. After the CRUISE main indicator light illuminates, press the "ENTER" key.
      12. Press the "ENTER" key.
      13. Check that a distance of 5 m (16.41 ft.) is displayed on the tester.

        HINT:

        If the distance is 0 m, the sensor cannot detect the target. Reconfirm that there is no metal in the surrounding area.

        Fig 48: CONSULT-II Display - Condition
        G05252263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        1. Check that a value between 0.0 and 6.3 is displayed in the meter display area A.
        2. Check that a value between 0.0 and 20.67 is displayed in the feet display area B.
        3. Check that LEFT or RIGHT is displayed in area C.
        4. Check that an angle value between 0.0 and 6.3 is displayed in area D.

          While using the intelligent tester's BEAM AXIS ADJUST MODE, the actual direction and angle of the radar sensor may be different from the intelligent tester's data. In such a case, the deviation is displayed on the combination meter's multi-information display.

          Fig 49: CONSULT - II Display - Distance
          G05298692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Check and adjust the horizontal direction of the radar sensor.
      1. Check that the divergence of the radar beam axis is 0°.

        Standard: 0° (Both right and left)

        If the axis is not as specified, use a hexagon wrench to adjust screw B until the divergence of the radar beam axis is 0°.

      2. Based on the measured divergence of the beam axis, turn and adjust screw B for horizontal adjustment of the millimeter wave radar sensor using a hexagon wrench.
        Fig 50: Adjusting Screw B For Horizontal Adjustment Of Millimeter Wave Radar Sensor
        G05298693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Result

        RESULT REFERENCE

        Adjustment Direction Adjustment Procedure Adjustment Angle
        Horizontal adjustment
        • Right direction: Turn screw B to positive (+) side.
        • Left direction: Turn screw B to negative (-) side.
        		 Approx. 0.33° per turn

        HINT:

        • If "LEFT SIDE: 1.0°" is displayed, the divergence is 1.0° in the left direction. Turn screw B approximately 3 turns to the negative (-) side.
        • If the value does not change to 0°, it is possible that the sensor is aiming at something different. Reconfirm that there are no reflective materials in the surrounding area.
      3. Reset the radar sensor's driving learning values.
      4. Prepare a type of metal that can block radio waves, such as aluminum foil.
        Fig 51: Identifying Aluminum Foil
        G05298694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Cover the radar sensor's left half with the metal for 10 seconds.
        NOTE: Be sure to keep the reflector in place and make sure that there is nothing between the sensor's left half and the reflector.

        HINT:

        When the reset is completed, the buzzer sounds for 10 seconds.

      6. Disconnect the intelligent tester from the DLC3.
    8. Recheck and readjust the vertical direction of the radar sensor.
      1. Set a level on the radar sensor's level rack.
        Fig 52: Setting Level On Radar Sensor Level Rack
        G05298679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Check that the level's air bubble is within the red frame.

        OK: Level's air bubble is within red frame.

        If the bubble is not within the red frame, use a hexagon wrench to adjust screw A until the level's air bubble is within the red frame.

        HINT:

        • The adjustable range within the red frame is +- 0.2°.
        • The target angle is + 0.2° (upward angle of 0.2°).
          Fig 53: Identifying Adjusting Screw
          G05298680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

          Result

          RESULT REFERENCE

          Adjustment Direction Adjustment Procedure Adjustment Angle
          Vertical adjustment
          • Upward direction: Turn screw A to negative (-) side
          • Downward direction: Turn screw A to positive (+) side
          		 Approx. 1.0° per turn
  18. PERFORM INITIAL SETTING OF STEERING ANGLE MID-POINT AND MAXIMUM STEERING ANGLE

    HINT:

    The mid-point learning operation (steering angle midpoint, maximum steering angle) can be performed using 4 methods:

    MID-POINT LEARNING OPERATION CHART

    Method 1 Use intelligent tester to perform initial setting of mid-point When clearance warning ECU is replaced
    When steering wheel mid-point or wheel alignment is adjusted
    When cable of battery terminal is disconnected and reconnected
    When malfunction causes momentary drop in the power supply voltage (due to cranking, depleted battery, etc.)
    When steering angle sensor is removed and installed
    When steering angle sensor is replaced
    Method 2 Use customize mode to perform initial setting of mid-point When clearance warning ECU is replaced
    When steering wheel mid-point or wheel alignment is adjusted
    Method 3 Perform steering angle mid-point learning operation by rotating steering wheel to left and right full lock position When battery terminal is disconnected and reconnected
    When malfunction causes momentary drop in the power supply voltage (due to cranking, depleted battery, etc.)
    When steering angle sensor is removed and installed
    When steering angle sensor is replaced
    Method 4 Perform steering angle mid-point learning operation by traveling in approximate straight line for extended distance When battery terminal is disconnected and reconnected
    When malfunction causes momentary drop in the power supply voltage (due to cranking, depleted battery, etc.)
    When steering angle sensor is removed and installed
    When steering angle sensor is replaced
    1. Method 1 (Intelligent tester)
      1. Turn the power switch OFF.
      2. Connect the intelligent tester to the DLC3.
      3. Turn the power switch ON (IG) and push the intelligent tester main switch ON.
      4. Select the following menus: "DIAGNOSIS / OBD".
      5. Perform the STEERING INIT procedure from the INTUITIVE P/A menu.
        Fig 54: Intelligent Tester Display Screen (Steering Init )
        G05284435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        *1: A countdown from 30 to 0 seconds will occur.

    2. Method 2 (Manual operation method)
      1. Using customize mode, set the mid-point and maximum steering angle.

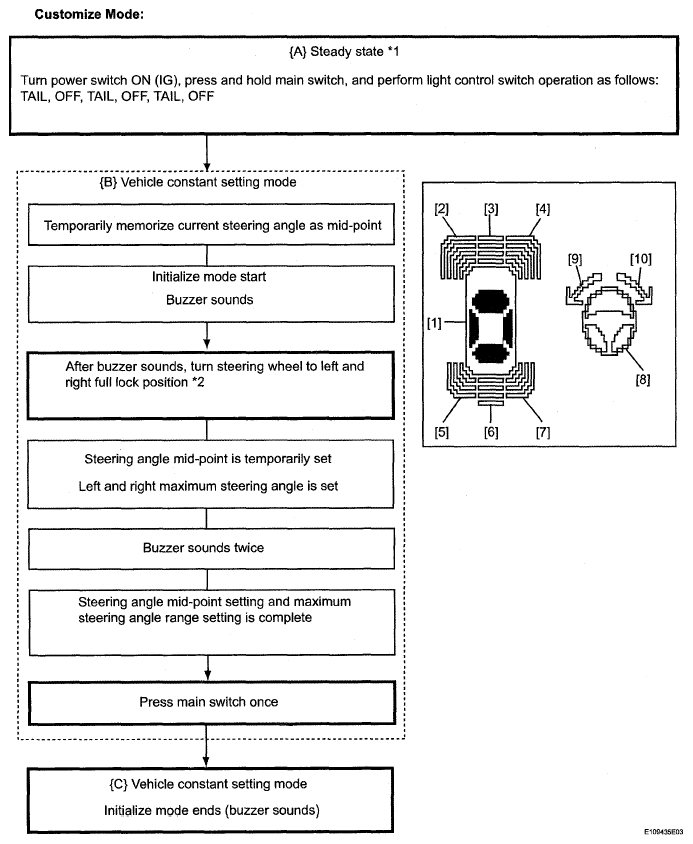

        Fig 55: Manual Operation Method - Flow Chart
        G05301860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        • *1: Steering wheel is centered (tires aligned straightforward).
        • *2: If 180 seconds pass, steering angle midpoint setting and maximum steering angle range setting will not occur and initialize mode will end.

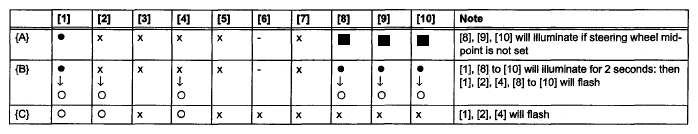

        Multi-information Display Indication Settings in Each Mode

        Fig 56: Multi-Information Display Indication Settings In Each Mode
        G05301861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        •: Illumination

        ◦: Flashing

        ■: Flashes depending on condition

        x: No illumination or flashing

    3. Method 3 (Manual operation method)
      1. Turn the power switch ON (IG).
      2. Turn the clearance sonar main switch ON.
      3. Turn the steering wheel to the full left and right lock position.
        NOTE: Make sure to completely turn the steering wheel to the left and right full lock position.
    4. Method 4 (Manual operation method)
      1. At an area with few turns and curves, and minimal traffic, drive at 20 km/h (12 mph) or more for 5 minutes or more.
  19. RESET (INITIALIZE) POWER WINDOW REGULATOR MOTOR
    NOTE: Resetting the power window regulator motor (initializing the pulse sensor) is necessary if: 1) the battery terminal cable is disconnected; 2) the power window regulator master switch, wire harness, power window regulator switch, window regulator, and power window regulator motor are replaced or removed / installed; 3) the D/C CUT or MPX-B fuses are replaced. If resetting is not performed, the multiplex network (master) switch will not be able to operate the AUTO operation function and jam protection function; and the multiplex network master switch will not be able to operate the remote UP / DOWN function.
    1. Turn the power switch ON (IG).
    2. Open the power window halfway by pressing the power window switch.
    3. Fully pull the switch up until the power window is fully closed and continue to hold the switch for at least 1 second.
    4. Check that the AUTO UP / DOWN function operates normally.

      HINT:

      If the AUTO UP / DOWN function operates normally, reset operations are completed. If abnormal, perform the following 3 steps.

    5. Disconnect the cable from the negative (-) battery terminal for 10 seconds or more.
      CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
    6. Reconnect the cable.
    7. Perform initialization from the first 4 steps again.

      HINT:

      If a condition where an initialization is necessary occurs (see 1), 2) and 3) above), the initialization procedures above are performed, but the remote UP / DOWN function does not operate, the power window regulator master switch may have a malfunction.

  20. RESET SLIDING ROOF DRIVE GEAR
    NOTE: When disconnecting the cable from the negative (-) battery terminal, or disconnecting the sliding roof drive gear or connector, the sliding roof drive gear requires initialization of the pulse sensor. If a reset is not executed, the following functions do not operate: auto operation, jam protection function, key off operation, key-linked open and close, and transmitter-linked open and close.
    1. Turn the power switch ON (IG).
    2. If the sliding roof is opened, close it fully.
    3. Push the SLIDE CLOSE switch or TILT UP switch, making the sliding roof operation as follows:

      Tilt up → Approximately 1 second → tilt down → slide open → slide close

    4. Sliding roof stops at the fully closed position.
    5. Finish the initialization.
    6. Check that the operation works normally with AUTO operation.
      NOTE: If the following conditions occur while operating, initialization will fail.
      • Power switch is turned OFF.
      • Pushed switch is released while sliding roof is operating.
      • Vehicle speed is 5 km/h (3 mph) or higher.
      • Battery of sliding roof ECU is 1 V or higher.
      • Communication is cut off.

      HINT:

      • If the sliding roof cannot fully close or its position has become misaligned, perform the initialization again.
      • If the sliding roof TILT UP switch or SLIDE CLOSE switch is pressed and held until the roof glass has either stopped moving or started moving in the opposite direction, and then the switch is held for another 10 seconds or more, perform the initialization again.
      • If the AUTO operation function and jam protection function do not operate after the drive gear has been reset, replace the sliding roof drive gear (sliding roof ECU).
scientia non olet · About LEMON Manuals
