Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| A/C Amplifier | Behind right side of dash. See Figure. |
| Airbag Squib (Driver's Side Knee Airbag) | Under left side of dash. See Figure. |
| Airbag Squib (Front Passenger's Airbag Assembly) | Behind right side of dash. See Figure. |
| Airbag Squib (Front Passenger's Side Knee Airbag) | Under right side of dash. See Figure. |
| Airbag Squib (Steering Wheel Pad) | Center of steering wheel. See Figure. |
| Antenna Amplifier | Under center of dash. See Figure. |
| Brake Control Power Supply Assembly | Right rear of luggage compartment. See Figure. |
| Brake Stroke Simulator Cylinder | Left rear of engine compartment. See Figure. |

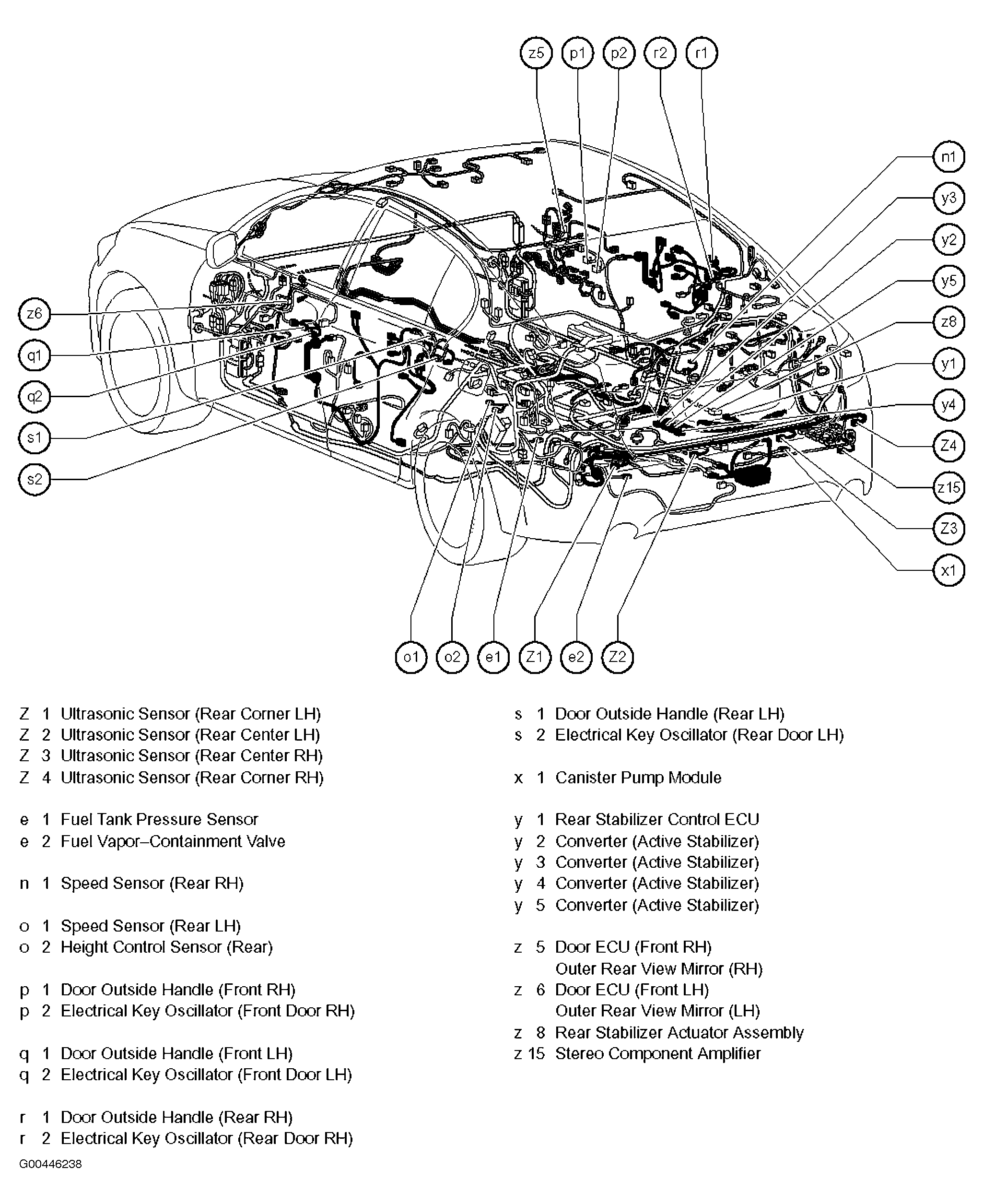

| Converter (Active Stabilizer) | Right front of luggage compartment. See Figure. |

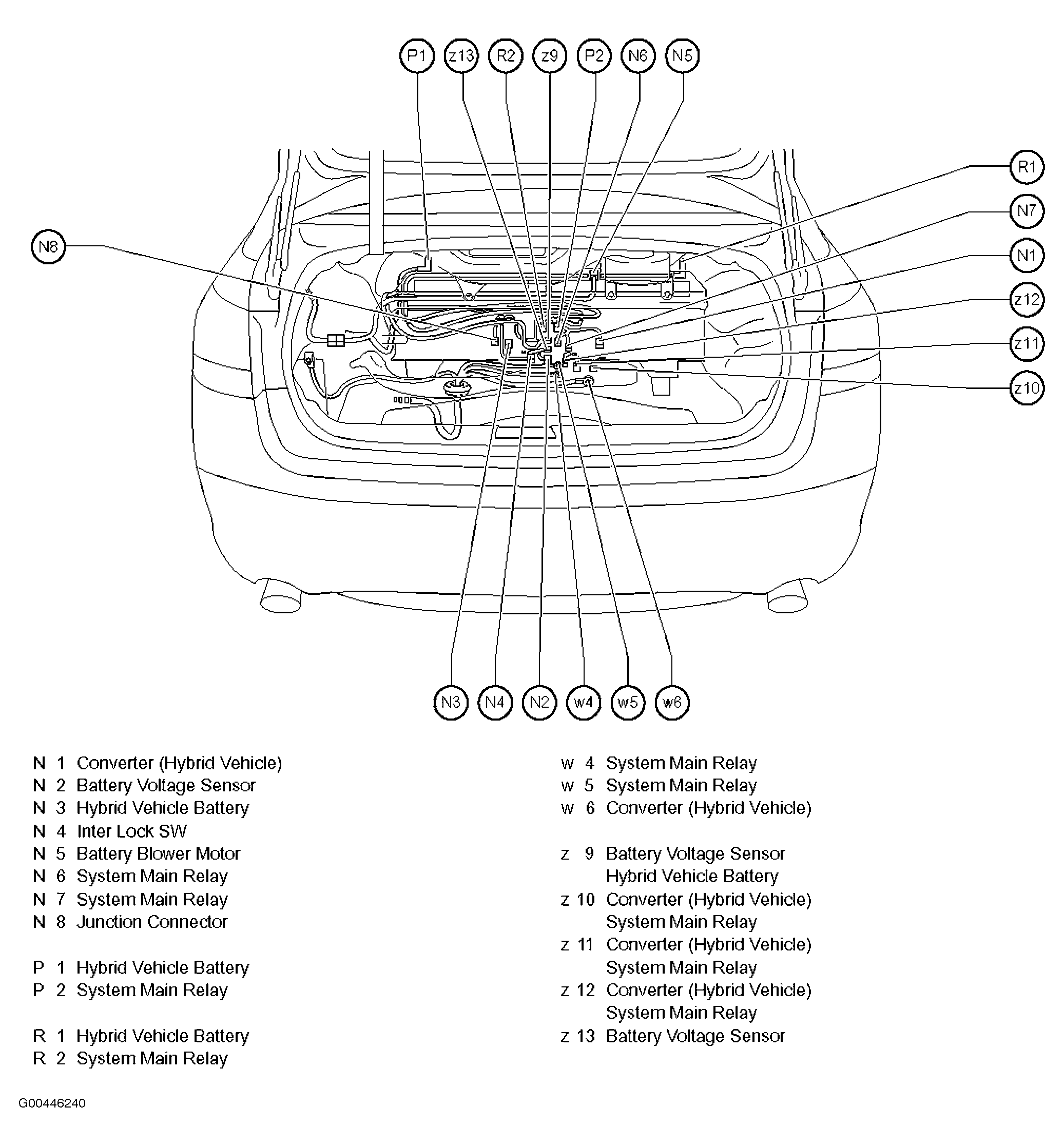

| Converter (Hybrid Vehicle) | Center front of luggage compartment. See Figure. |
| Curtain Shield Airbag Squib (LH) | Near top of left "B" pillar. See Figure. |
| Curtain Shield Airbag Squib (RH) | Near top of right "B" pillar. See Figure. |

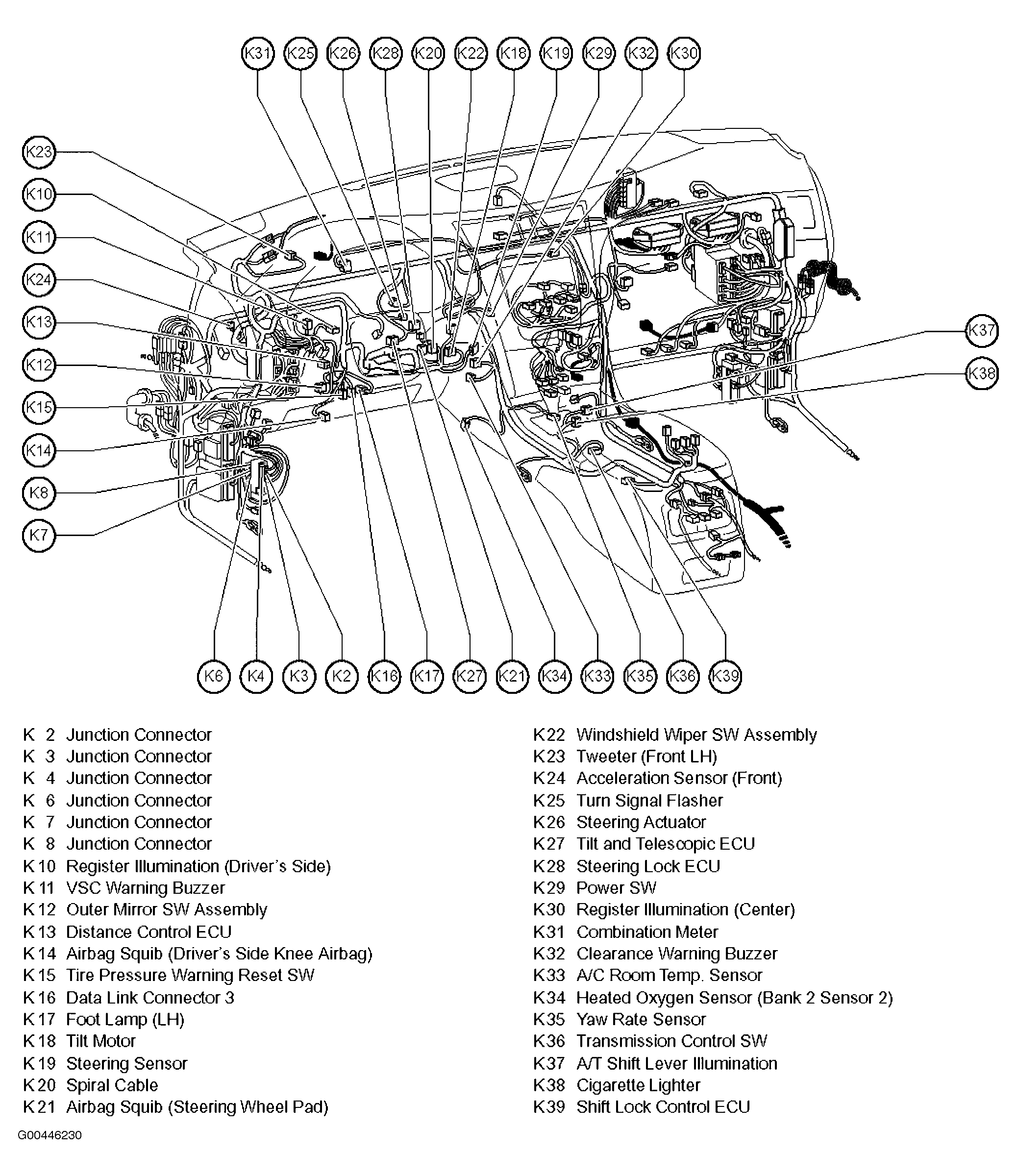

| Data Link Connector 3 | Under left side of dash. See Figure. |
| Door Control Receiver | Right rear of luggage compartment. See Figure. |
| Electrical Key Antenna | Base of right "C" pillar. See Figure. |
| Electrical Key Oscillator (Console) | Rear of center floor console. See Figure. |
| Electrical Key Oscillator (Front Door LH) | In left front door. See Figure. |
| Electrical Key Oscillator (Front Door RH) | In right front door. See Figure. |
| Electrical Key Oscillator (Inside Luggage Room) | Left side of luggage compartment. See Figure. |
| Electrical Key Oscillator (Outside Luggage Room) | Center rear of luggage compartment. See Figure. |
| Electrical Key Oscillator (Rear Door LH) | In left rear door. See Figure. |
| Electrical Key Oscillator (Rear Door RH) | In right rear door. See Figure. |
| Electrical Key Oscillator (Rear Seat) | At left "C" pillar. See Figure. |
| Front Seat Inner Belt (Driver's Side) | Under driver' seat. See Figure. |
| Front Seat Inner Belt (Front Passenger's Side) | Under front passenger's seat. See Figure. |
| Front Seat Inner Belt (LH) | Under driver's seat. See Figure. |
| Front Seat Inner Belt (RH) | Under front passenger's seat. See Figure. |
| Front Seat Outer Belt (LH) | Near base of left "B" pillar. See Figure. |
| Front Seat Outer Belt (RH) | Near base of right "B" pillar. See Figure. |
| Fuel Pump Resistor | Right side of engine compartment. See Figure. |

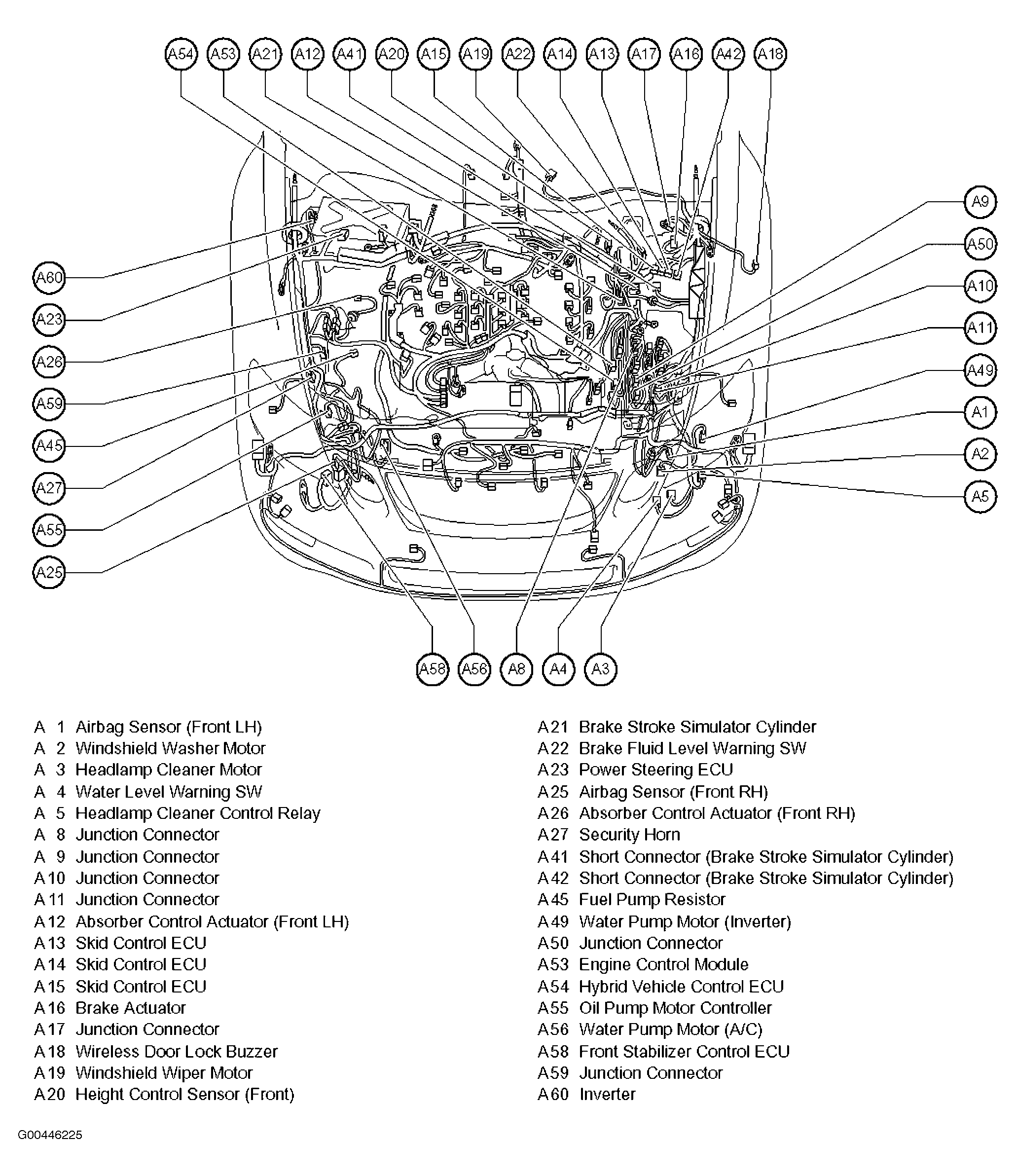

| Headlamp Cleaner Control Relay | Left front corner of engine compartment. See Figure. |

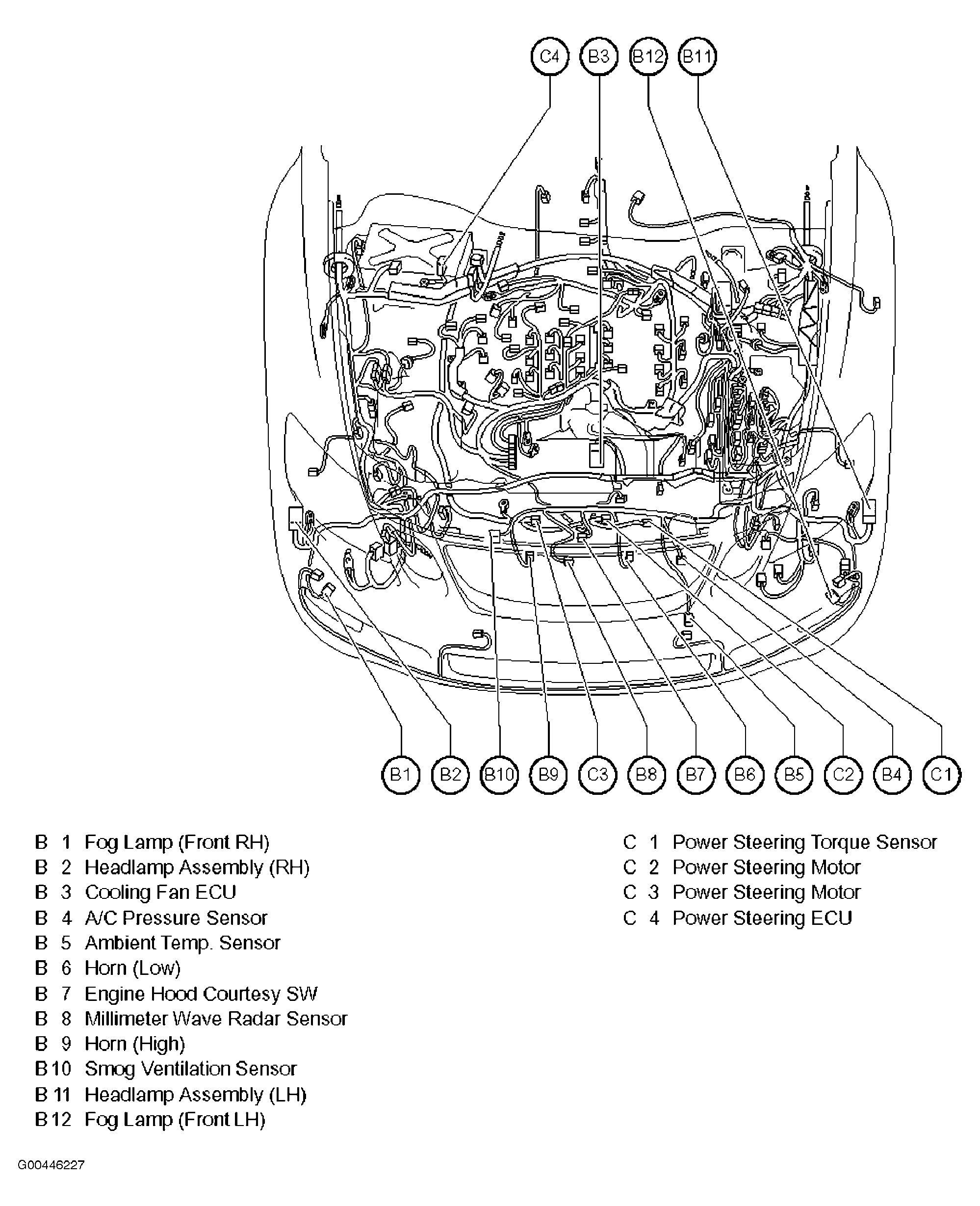

| Horn (High) | In front of right side of radiator. See Figure. |
| Horn (Low) | In front of left side of radiator. See Figure. |
| Hybrid Vehicle Battery | Front of luggage compartment. See Figure. |
| ID Code Box | Behind center of dash. See Figure. |

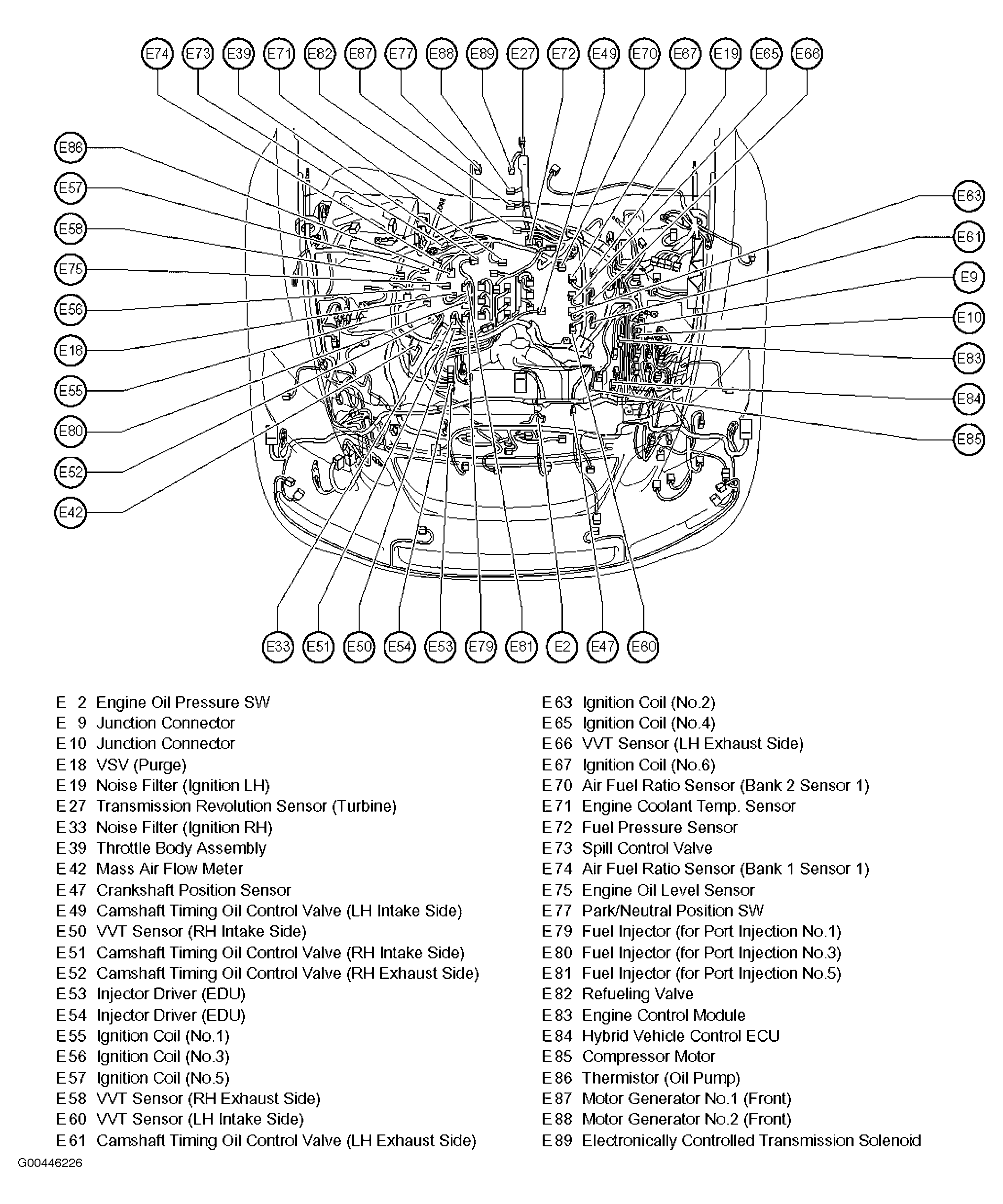

| Ignition Coils No. 1, 3 & 5 | Top right side of engine. See Figure. |
| Ignition Coils No. 2, 4 & 6 | Top left side of engine. See Figure. |
| Inverter | Right rear corner of engine compartment. See Figure. |
| Junction Connector A5 | Under right side of front passenger's seat. See Figure. |
| Junction Connector a9 | Under left side of front passenger's seat. See Figure. |
| Junction Connector A17 | Left rear corner of engine compartment. See Figure. |
| Junction Connector A59 | Right side of engine compartment. See Figure. |
| Junction Connector B5 | Under left side of driver's seat. See Figure. |
| Junction Connector B9 | Under right side of driver's seat. See Figure. |
| Junction Connector (CAN Center) | Behind right side of dash. See Figure. |
| Junction Connector (CAN LH) | Behind left kick panel. See Figure. |
| Junction Connector (CAN RH) | Behind right kick panel. See Figure. |
| Junction Connector N8 | Center front of luggage compartment. See Figure. |
| Junction Connectors A8, A9, A10, A11 & A50 | Left side of engine compartment. See Figure. |

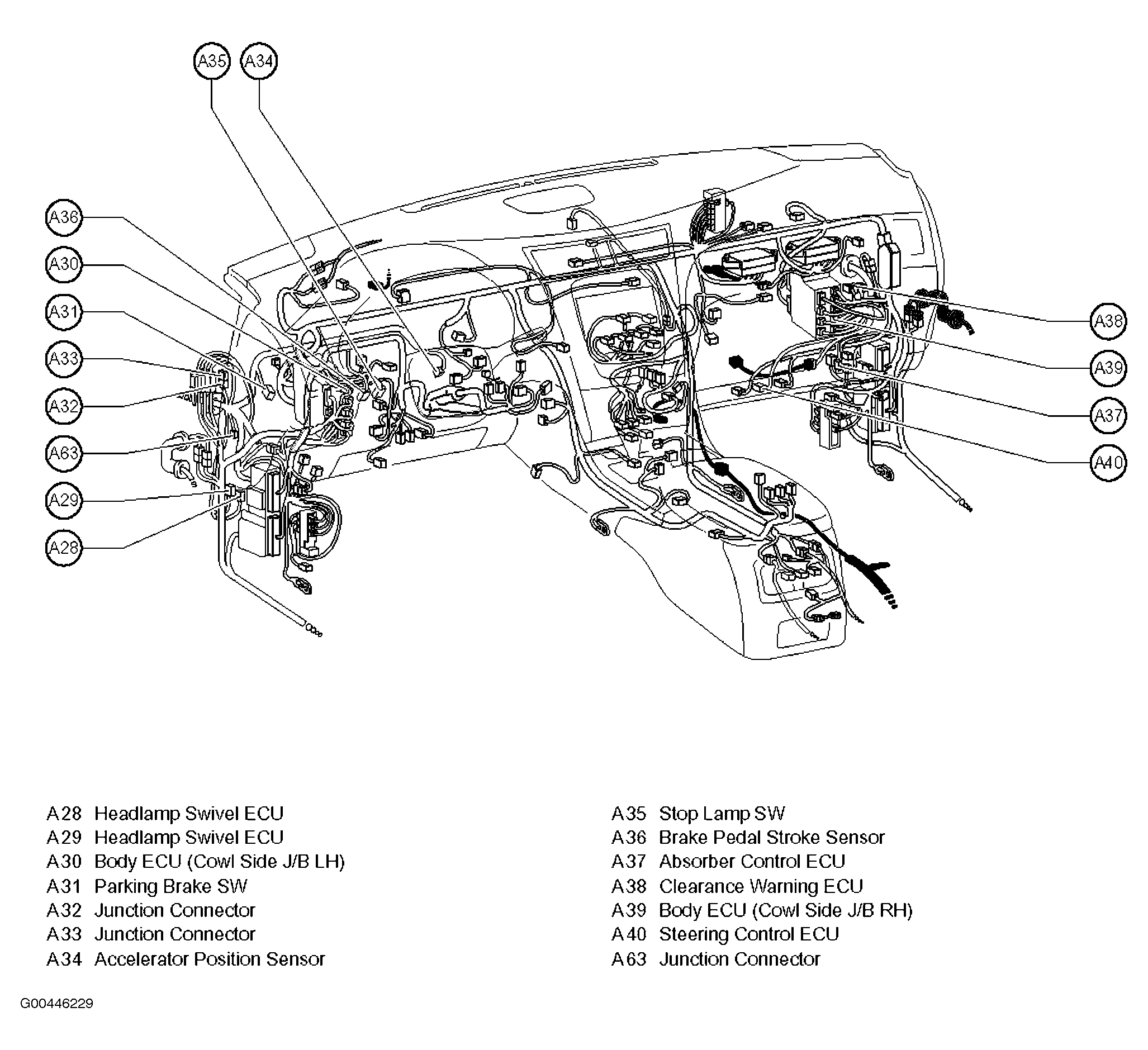

| Junction Connectors A32, A33 & A63 | Behind left end of dash. See Figure. |
| Junction Connectors E9 & E10 | Left side of engine compartment. See Figure. |
| Junction Connectors K2, K3, K4, K6, K7 & K8 | Behind left kick panel. See Figure. |
| Junction Connectors K74, K75, K76, K79, K80, K81, K91 & K92 | Behind right kick panel. See Figure. |
| Junction Connectors K83, K84, K85, K86, K87, K88, K95 & K96 | Behind right side of dash. See Figure. |
| Junction Connectors K93 & K94 | Behind left kick panel. See Figure. |

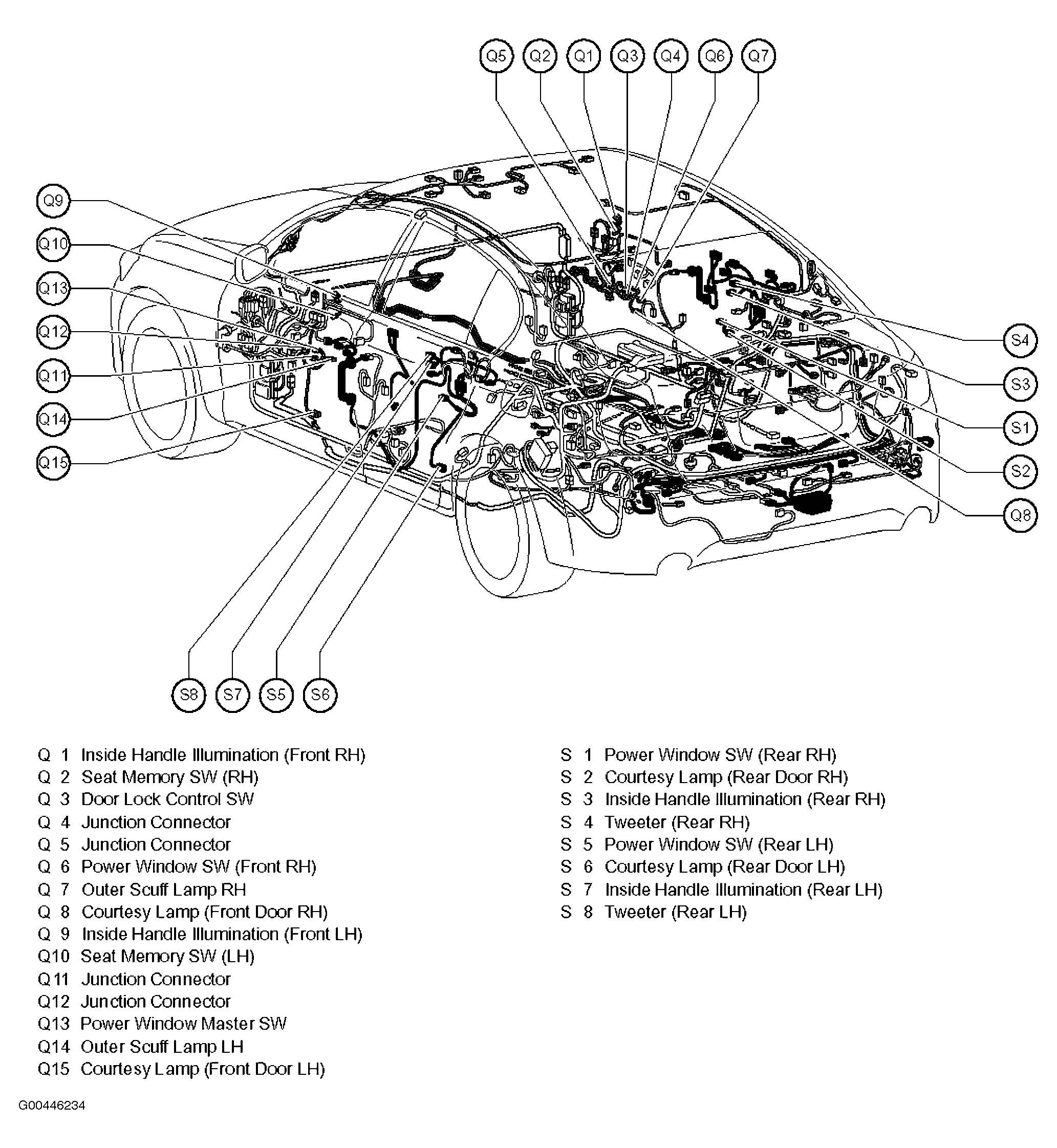

| Junction Connectors Q4 & Q5 | In right front door. See Figure. |
| Junction Connectors Q11 & Q12 | In left front door. See Figure. |
| Junction Connectors U22, U23, U25 & U26 | Right front of luggage compartment. See Figure. |
| Junction Connectors V26, V27, V37, V38 & V39 | Left front of luggage compartment. See Figure. |
| Junction Connector V36 | Near base of left "C" pillar. See Figure. |
| Junction Connector Y6 | Center rear of luggage compartment lid. See Figure. |
| Mayday Battery | Right front of luggage compartment. See Figure. |
| Motor Generator No. 1 (Front) | Rear of engine compartment. See Figure. |
| Motor Generator No. 2 (Front) | Rear of engine compartment. See Figure. |
| Noise Filter (Center Stop Lamp) | Near left "C" pillar. See Figure. |
| Noise Filter (Ignition LH) | Top left rear of engine. See Figure. |
| Noise Filter (Ignition RH) | Top right side of engine. See Figure. |

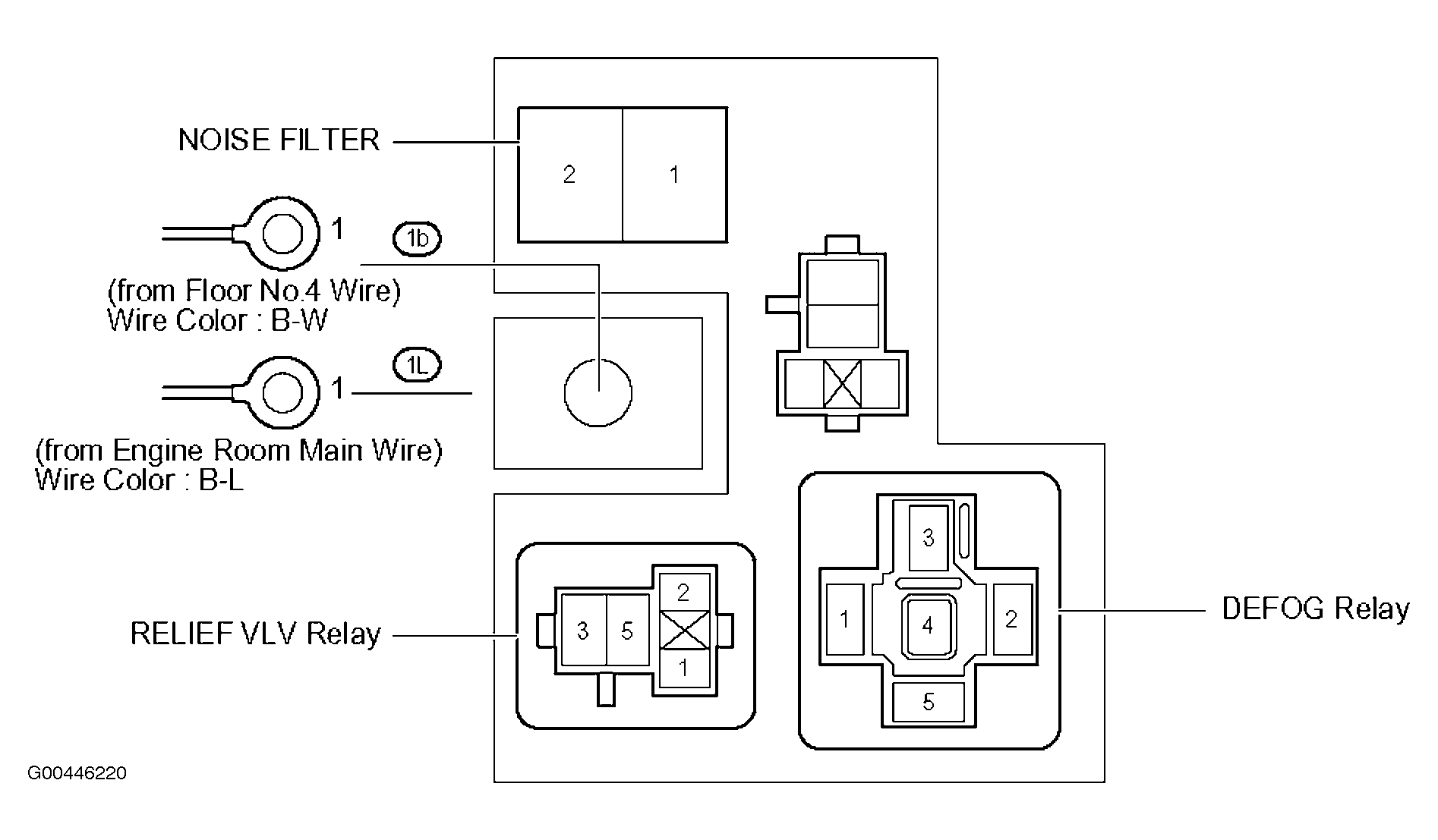

| Noise Filter (2) | On unit H, inside engine room R/B - J/B No. 1. See Figure. |
| Option Connector (Airbag Cut Off SW) | Behind right side of dash. See Figure. |
| Option Connector (Audio System) | Right rear corner of luggage compartment. See Figure. |
| Pretensioner (Front LH) | At base of left "B" pillar. See Figure. |
| Pretensioner (Front RH) | At base of right "B" pillar. See Figure. |
| Pretensioner (Rear LH) | At left "C" pillar. See Figure. |
| Pretensioner (Rear RH) | At right "C" pillar. See Figure. |
| Rear Seat Inner Belt (LH) | Behind center of rear seat. See Figure. |
| Rear Seat Inner Belt (RH) | Behind center of rear seat. See Figure. |
| Rear Seat Outer Belt (LH) | Near base of left "C" pillar. See Figure. |
| Rear Seat Outer Belt (RH) | Near base of right "C" pillar. See Figure. |
| Seat Heater (Front LH) | In driver's seat cushion. See Figure. |
| Seat Heater (Front RH) | In front passenger's seat cushion. See Figure. |
| Security Horn | Right front of engine compartment. See Figure. |
| Short Connector (Brake Stroke Simulator Cylinder) (A41) | Left rear corner of engine compartment. See Figure. |
| Short Connector (Brake Stroke Simulator Cylinder) (A42) | Left rear corner of engine compartment. See Figure. |
| Side Airbag Squib (Front LH) | Under left side of left front seat. See Figure. |
| Side Airbag Squib (Front RH) | Under right side of right front seat. See Figure. |
| Side Airbag Squib (Rear LH) | Left side of left rear seat. See Figure. |
| Side Airbag Squib (Rear RH) | Right side of right rear seat. See Figure. |
| Spiral Cable | In steering column. See Figure. |

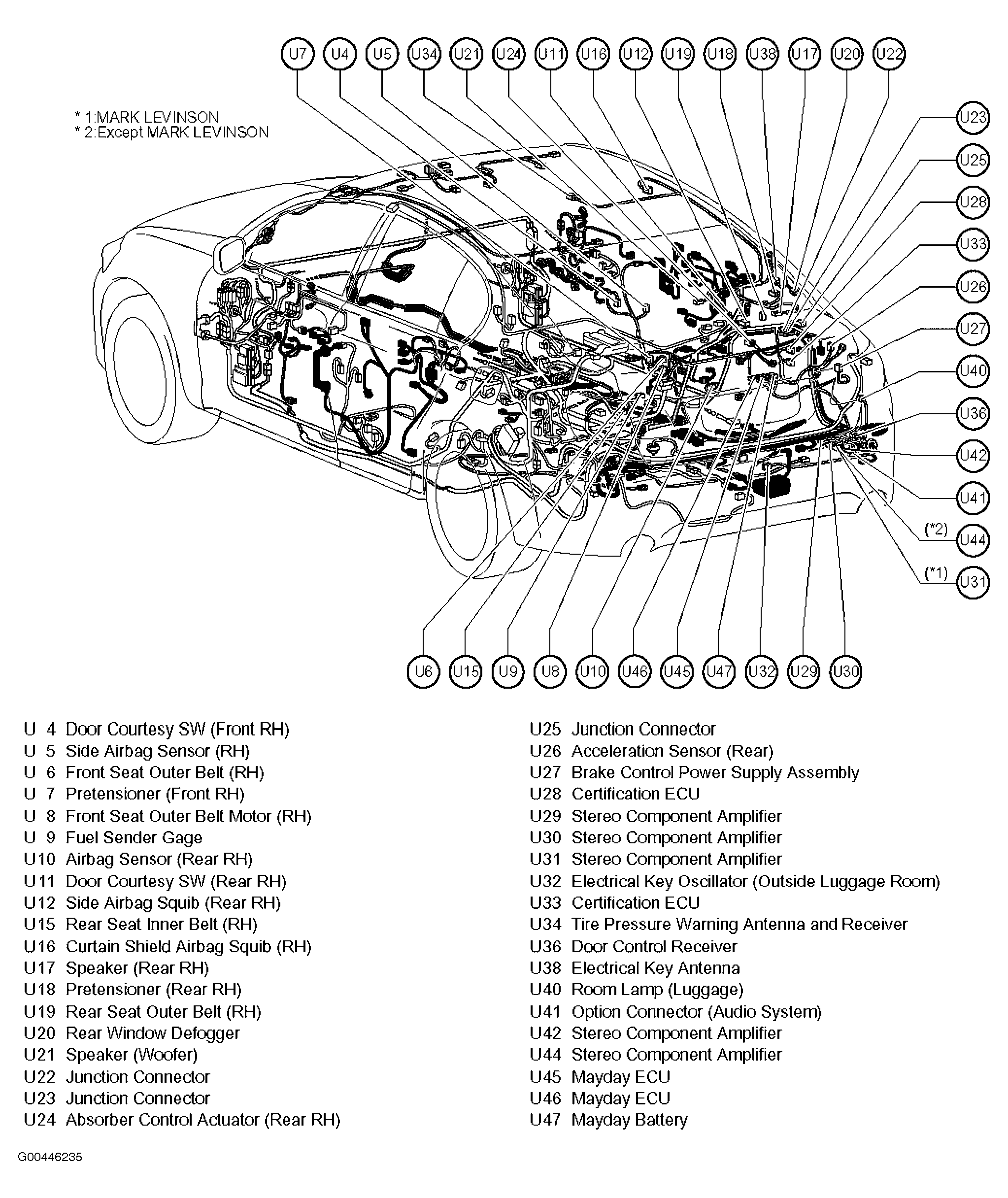

| Stereo Component Amplifier | Right rear corner of luggage compartment. See Figure. |
| Television Camera | Right side of luggage compartment. See Figure. |
| Thermistor (Oil Pump) | Right rear of engine. See Figure. |
| Tire Pressure Warning Antenna & Receiver | Center of roof. See Figure. |
| VSC Warning Buzzer | Behind left side of dash. See Figure. |
| Wiring Harness Spool | Under center of rear parcel shelf. See Figure. |
