Child Restraint Seat Tether Anchor: Installation

  1. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
    1. Align the claw with the positioning hole and install the anchor bracket with the bolt.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      Fig 1: Identifying Child Restraint Seat Tether Anchor Bracket Bolt
      G05013665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Sunshade)  (See INSTALLATION )
  3. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (See  INSTALLATION   )
  4. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR COVER

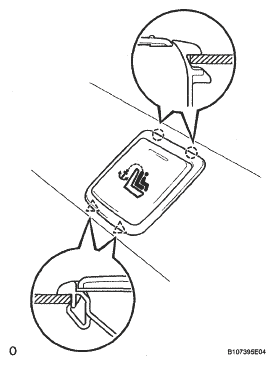

    Fig 2: Identifying Child Restraint Seat Tether Anchor Cover
    G05306583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the tether anchor cover to the package tray trim panel as shown in the illustration.
      Fig 3: Locating Tether Anchor Cover To Package Tray Trim Panel
      G05298543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL ROOF SIDE GARNISH INNER  (See INSTALLATION )
  6. INSTALL REAR SEAT SIDE GARNISH  (See INSTALLATION )
  7. INSTALL REAR DOOR SCUFF PLATE  (See INSTALLATION )
  8. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH (See  INSTALLATION   )
  9. INSTALL REAR SEAT BELT OUTER ANCHOR (See  INSTALLATION   )
  10. INSTALL REAR SEATBACK ASSEMBLY  (See INSTALLATION )
  11. INSTALL REAR SEAT HEADREST ASSEMBLY
  12. INSTALL REAR SEAT CUSHION ASSEMBLY  (See INSTALLATION )
